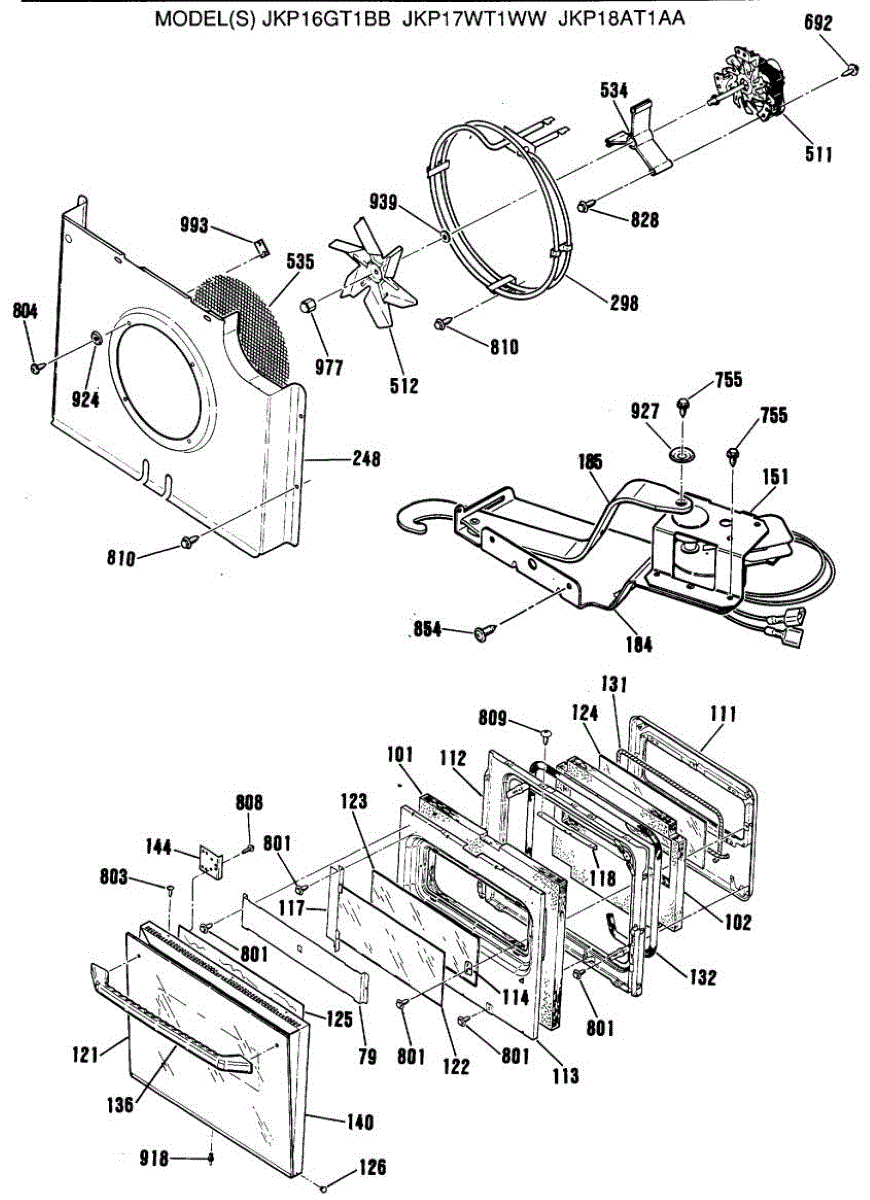

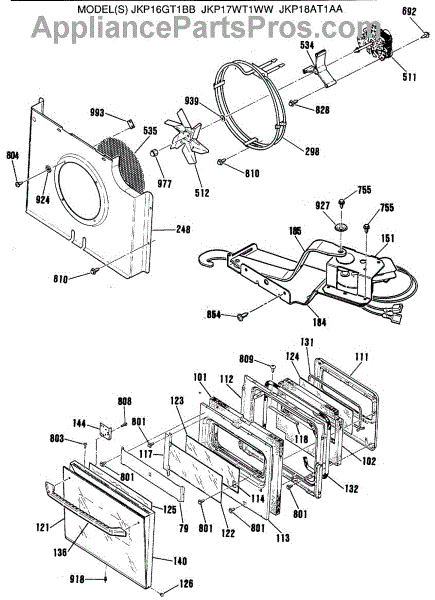

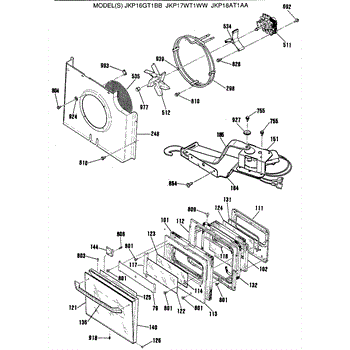

Parts for Ge JKP16GT1BB: 03 - Section3 Parts

This inner oven door glass seal cushions and seals the inner glass pane inside the door, helping contain heat and keep the glass stable and quiet. Replace a cracked or flattened seal to maintain safe, consistent oven performance.

• Seats and cushions the inner door glass panel
• Seals the perimeter of the pane to limit heat and air leaks
• Helps prevent debris and moisture between glass layers
• Can reduce rattling or shifting of the inner glass
• When worn, contribute to longer preheat times or temperature inconsistency

• Disconnect power; for gas ranges, also shut off the gas supply. Allow the oven to cool completely.
• Remove the door and separate the inner panel per your service instructions.
• Note the seal's routing and orientation; install the new seal without stretching or twisting.
• Wear cut-resistant gloves and handle glass carefully during reassembly.

This oven door gasket runs around the door perimeter to seal the oven cavity. Replacing a worn seal restores proper heat retention for faster preheat, steadier temperatures, and more consistent cooking results.

• Provides the heat-resistant seal between the oven door and oven cavity
• Helps maintain set temperature and overall cooking performance
• Wear can cause heat escaping at the door, longer preheat, temperature swings, and uneven baking
• Cracks, fraying, flattening, or hardened spots indicate it's time to replace

• Disconnect power and shut off gas; let the oven cool completely
• Open the door and note the routing of the original gasket
• Remove the old seal and clean the channel/retainers; install the new gasket without stretching it
• Ensure corners are fully seated and the door closes evenly; refer to your model's service manual for specifics

This oven door latch assembly secures the door during the self-clean cycle and reports lock status to the control. Replace a worn or failed latch to restore safe locking and reliable self-clean operation.

• Locks the oven door during self-clean to prevent opening at high temperatures
• Signals the control when the door is locked or unlocked
• Helps the oven start and complete a self-clean cycle safely
• Typical symptoms: self-clean won't start or finish, door won't lock/unlock, lock motor runs continuously or is noisy, lock indicator stays on

• Disconnect power at the breaker and allow the oven to cool completely before servicing
• Access is typically from the top or behind the control panel; remove panels as required and note linkage/switch orientation
• Transfer any linkages or mounting hardware from the original latch in the same orientation
• Manually cycle the latch to verify smooth operation before restoring power and testing self-clean

This lock lever is the replacement latch arm that engages the oven door lock mechanism so the door secures during self-clean cycles and normal operation. It restores proper door engagement and helps the oven door lock and latch reliably. What it does:

• Moves the latch assembly to secure the door when the lock engages
• Prevents the door from opening during self-clean or locked states
• Common symptom: oven won't enter or complete self-clean because door won't lock
• Common symptom: door feels loose, won't latch, or makes scraping/obstructed noises when closing

• Disconnect power to the appliance before starting any repair
• Access may require removing the oven door or control/front panel; follow OEM instructions
• Handle near edges and glass carefully; use proper tools and keep small fasteners secure

Note: Motor only - convect fan WB2X8351 not included.

Replacement fan blade that mounts to the motor shaft to circulate air inside the appliance, restoring airflow and reducing vibration or noise from damaged or bent blades. Works with the fan motor to help maintain proper cooling and ventilation. What it does:

• Spins on the motor shaft to move air through the appliance's cabinet or evaporator area.
• Restores even airflow for more consistent cooling and performance.
• Reduces excessive noise and vibration caused by cracked, warped, or missing blades.
• Helps prevent airflow-related issues such as warm spots or slow cooling when the fan is not operating properly.

• Disconnect power to the appliance before servicing to avoid electric shock or injury.
• Remove interior panels or housing to access the fan; handle the blade carefully — edges can be sharp.
• Slide the blade onto the motor shaft and secure per OEM method (set screw, clip, or hub); ensure proper alignment and rotation direction.
• Test fan operation after installation and reassemble panels securely.

Replacement screw that secures panels, trim and internal brackets to keep appliance components stable and rattle-free. Use when originals are missing, stripped, or broken to restore proper fit and safe operation. What it does:

• Secures panels, control housings, trim and small brackets so parts stay aligned and stable.
• Replaces missing or damaged fasteners that cause rattling, vibration, or loose assemblies.
• Keeps electrical and mechanical components properly positioned for reliable operation.
• Intended as a direct replacement where the OEM screw specified for the application is required.

• Disconnect power and unplug the appliance before starting any repair.
• Use the correct screwdriver or bit and seat the screw squarely to avoid stripping the head or threads.
• Do not overtighten—stop when snug to prevent damage to panels or plastic components.
• Keep removed screws organized; replace only with the identical OEM screw for proper fit.

Package of 12

ST10-16 X 7/16"

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. Use it to replace a missing or stripped fastener for a snug, durable connection. What it does:

• Secures trim, panels, brackets, or internal components in place
• Restores proper alignment and reduces vibration or noise
• Replaces missing, worn, or damaged screws that cause loose parts
• Compatible with the original mounting point and fastening method

• Turn off power and unplug the appliance before starting any repair
• Use the correct driver to avoid stripping the head; match thread engagement fully
• If threads are damaged, inspect the mating part and replace or repair as needed

A single replacement screw used to secure appliance components and restore proper fit. This OEM-design fastener replaces a missing or damaged screw so panels, brackets, or small assemblies stay properly attached. What it does

• Fastens panels, brackets, or small assemblies to maintain component alignment and stability.
• Replaces stripped, corroded, or lost screws that cause rattling or loose parts.
• Restores secure connections that can prevent vibration noise or component movement.

• One screw.

• Disconnect power and unplug the appliance before starting any work.
• Match screw head type and length to the original before installation; use the correct driver to avoid stripping.
• Tighten snugly but avoid over-torquing, which can damage threads or parts.

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

This replacement screw secures appliance components so panels, brackets, and assemblies stay tight and aligned. Replace stripped or missing hardware to eliminate rattles and keep your unit assembled safely and correctly.

• Fastens panels, brackets, or components to the appliance frame
• Restores a secure fit when the original screw is lost, stripped, or corroded
• Helps prevent vibration noise and movement during operation
• Supports proper alignment of trim and assemblies

• Disconnect power; for gas units, also shut off the gas supply
• Use the correct driver to avoid stripping the head; do not overtighten
• Inspect and address damaged mating threads, clips, or brackets before reinstalling
• Refer to your model's parts diagram to confirm location and quantity

This 8-32 thread screw fastens panels and components in compatible appliances, restoring secure mounting and stopping rattles or loose parts. Use it to replace stripped or missing fasteners and maintain proper alignment of covers and assemblies. What it does

• Secures panels, control boards, brackets, and accessory parts to the appliance chassis
• Restores proper fastening when original screws are missing, damaged, or stripped
• Helps eliminate vibration noise and loose-fit symptoms
• Matches common 8-32 appliance thread standards for a direct replacement

• One 8-32 thread screw

• Disconnect power to the appliance before beginning work to avoid shock or injury
• Use the correct-size Phillips or hex driver to prevent cam-out and head damage
• Install by hand first to engage threads, then tighten snugly—do not overtighten to avoid stripping

This plastic rivet is a push-in fastener used to secure trim and panels on compatible appliances, helping keep exterior pieces firmly in place for proper fit and finish. It's a small, inexpensive part that prevents rattling and loose trim. What it does:

• Acts as a push-in fastener to hold trim pieces, panels or liners together
• Keeps exterior parts aligned and reduces vibration or rattling noises
• Replaces worn or missing rivets that allow panels to sit loose
• Works where a simple snap-in plastic retainer is required

• One plastic rivet

• Disconnect power to the appliance before starting any repair that exposes wiring or components
• Typically installs by pushing into the mounting hole until the head seats; may require pliers for removal
• Inspect mating hole and surrounding trim for damage before installing replacement

This is a flat metal washer used to secure fasteners and maintain proper spacing on the appliance. It provides a simple, durable spacer that helps keep components aligned and fasteners snug for reliable performance. What it does:

• Acts as a spacer to maintain correct clearance between parts
• Distributes load from a fastener to prevent pull-through or damage
• Helps keep bolts and screws from loosening under vibration
• Can reduce noise or vibration caused by loose or misaligned components

• Disconnect power (and water if applicable) before beginning any repair.
• Use the correct fastener and orientation for reassembly; replace any damaged hardware.
• Tighten fasteners snugly but avoid over-torquing;
• If the appliance shows continued vibration, noise, or instability after replacing the washer, further inspection of mounting hardware and suspension components is recommended.

This is a replacement mounting nut used to secure appliance components and fasteners. It restores proper fastening where a stripped, lost, or damaged nut causes loose panels or rattling, helping stabilize the assembly. What it does:

• Secures studs, bolts, or threaded fasteners to hold parts in place
• Prevents movement and vibration that can cause noise or misalignment
• Replaces stripped, rusted, or missing nuts to restore safe operation
• Matches OEM fit for a secure, long-lasting connection

• Disconnect power and unplug the appliance before starting any repair
• Use the correct socket or wrench size to avoid rounding the nut
• Tighten to snug; avoid overtightening which can strip threads or damage components
