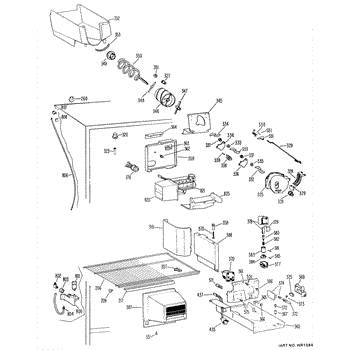

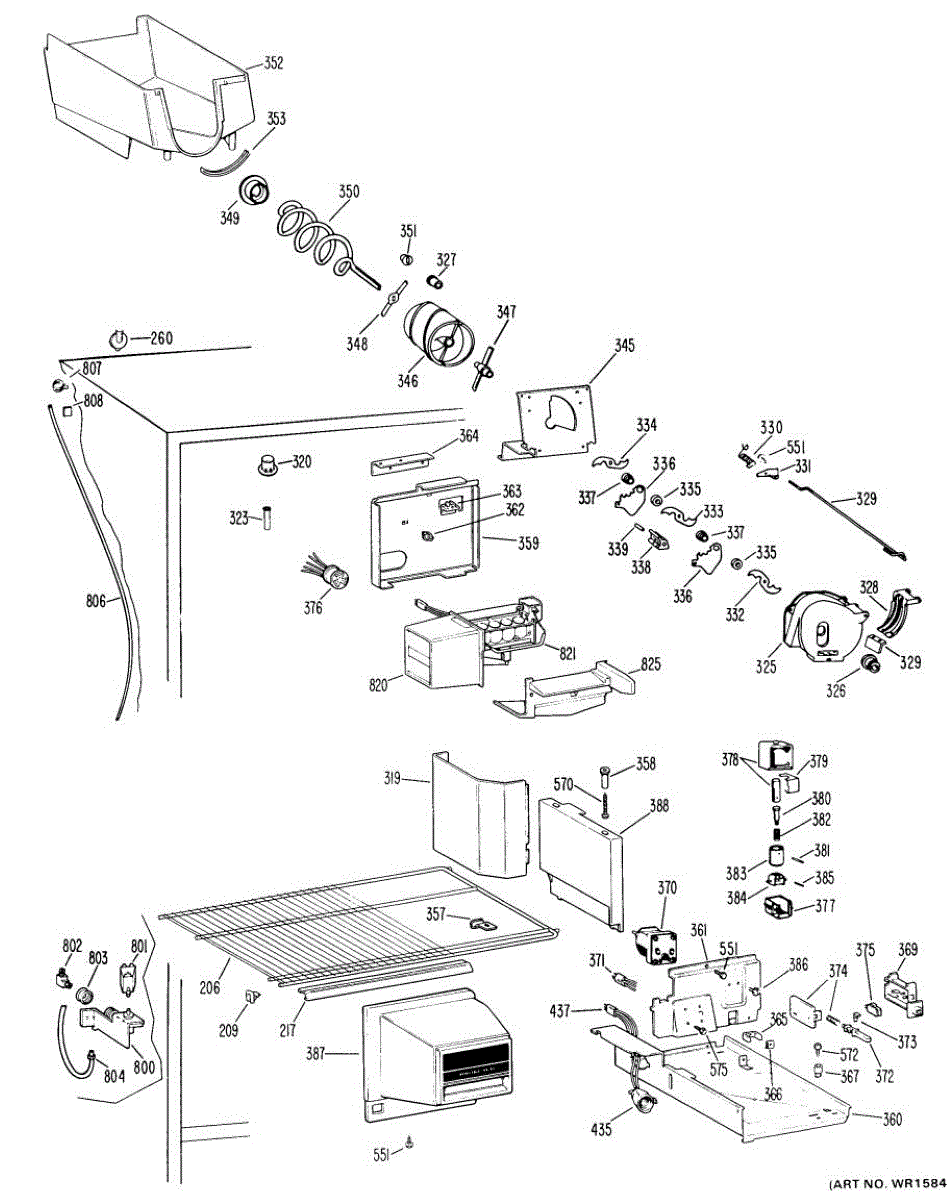

Parts for Ge TBX22RFBR: 04 - Section4 Parts

This replacement crusher dispenser housing restores the outer housing that supports the ice crusher and dispenser chute, helping the dispenser operate smoothly and keep ice contained while in use. What it does:

• Replaces cracked or broken dispenser housing that can allow ice to jam or fall out
• Provides the proper mounting surface for the crusher and chute to align ice flow
• Helps reduce noise and rubbing caused by a misaligned or damaged housing
• Restores the dispenser's outer enclosure for a finished appearance and safe operation

• Disconnect power to the refrigerator before starting any repair.
• Remove ice bin and dispenser components as needed to access the housing; keep track of fasteners.
• Inspect adjacent seals, gaskets and mounting clips and replace if damaged.
• Handle plastic parts carefully to avoid cracking; reassemble components to factory alignment.

Includes 12 washers.

Includes 12 retainer rings.

This pivot is the replacement pivot piece that supports and guides a refrigerator door or sliding drawer, restoring proper alignment for smooth opening and closing. Fits original equipment pivot points. What it does:

• Supports the weight of a door or drawer and keeps it aligned on its track
• Guides smooth opening and closing and prevents binding or sagging
• Restores proper contact and seal when a worn pivot causes misalignment
• Helps reduce noise from loose or worn pivot points

• Disconnect power to the appliance before beginning any repair
• Access may require removing interior panels, trim, or the drawer/door per model instructions
• Handle carefully to avoid scratching sealed surfaces; replace worn fasteners if needed
• If alignment issues persist after replacement, check related hinges, tracks, and mounting hardware

This stationary display blade secures and positions the appliance's front display/overlay so controls and indicators stay aligned and visible. It replaces a cracked, loose, or missing display blade to restore a stable display surface. What it does:

• Holds the display/overlay in the correct position behind the control panel
• Prevents the display from rattling or shifting during normal use
• Restores a flush, aligned appearance when the original blade is broken or worn
• Helps keep buttons and indicators properly supported for reliable operation

• Disconnect power to the appliance before starting any repair.
• Removal usually requires removing the front/display trim or bezel; use basic hand tools.
• Handle small plastic parts carefully to avoid cracking during removal/installation.

This spacer is a small mounting support used to maintain proper clearance and alignment between refrigerator panels, doors, or components. It helps reduce rubbing, vibration, and noise by restoring correct spacing and fit. What it does:

• Keeps panels, trim, or components spaced correctly to prevent metal-on-metal contact and wear
• Helps align doors and panels for a flush fit and smoother operation
• Reduces vibration and rattling caused by misaligned parts
• Used wherever a fixed clearance or gap is required during reassembly

• Disconnect power to the appliance before beginning any service that requires panel or component removal
• Inspect mating surfaces for damage or debris before installing the spacer; replace any damaged fasteners
• Install in the same orientation and location as the original spacer; do not overtighten mounting hardware

This blade rest stabilizer supports and centers the blade assembly to keep cutting/wiping components aligned and operating quietly. It helps prevent blade wobble and uneven operation caused by a worn or damaged rest. What it does

• Holds the blade assembly in the correct position so blades remain centered during use
• Reduces vibration, rattling, and uneven motion from a loose or broken rest
• Helps maintain proper clearance between blade and housing for consistent performance
• Restores stable blade engagement after cracks, wear, or deformation

• One blade rest

• Disconnect power (unplug or switch off breaker) before servicing
• Remove surrounding housing or components as needed to access the blade assembly
• Handle blades carefully — they are sharp; use gloves if available
• Follow the appliance manufacturer's instructions and replace only with the correct part number

The Drive Cup is an OEM part for GE refrigerators. This part engages with other parts to drive the ice out of the molds and into the storage bin.

Causes of Drive Cup failure can range from physical wear and tear from regular use, which may lead to cracks or deformities in the part, to accumulation of frost or ice that hinders its movement.

Symptoms of a malfunctioning Drive Cup include:

• The ice maker fails to eject ice properly, leading to clogs or jams within the system.
• Unusual noises during the ice-making cycle, which could indicate that the drive cup is not engaging correctly with other components.
• Decreased efficiency in ice production, as the mechanism struggles to operate smoothly.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

According to GE you must also replace part number WR17X4341 auger when replacing this part.

Replacement bucket seal that fits around the refrigerator ice bucket to restore a snug fit and help keep ice contained while reducing frost, spills and water pooling. What it does

• Seals the ice bucket to the cabinet/shelf to help keep ice from spilling or shifting.
• Reduces frost build-up and melting around the ice bin area.
• Helps prevent minor water pooling from melting ice.
• Restores proper fit so the bucket sits flush and operates as intended.

• Disconnect power to the appliance before beginning any service.
• Remove the ice bucket and carefully peel out the old seal; clean the mounting surface of ice, debris and residue.
• Press the new seal into place, making sure it is fully seated and oriented correctly around the bucket.

Includes 12 clips.

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

Includes 12 screws.

Single fill valve (round ice cube)

Nut for 1/4 inch tubing.

This refrigerator water line is the plastic tubing that routes pressurized water through the appliance's water system. Replacing a cracked, brittle, or kinked line helps restore proper water flow and prevents leaks inside or around the unit.

• Carries water between the inlet valve and the refrigerator's water system components
• Helps maintain a sealed path for reliable flow to the dispenser and/or ice maker
• Replace if tubing is cracked, kinked, brittle, or leaking
• Common symptoms include puddling, dripping, reduced/No water at the dispenser, or ice maker not filling

• Disconnect power and shut off the water supply before servicing
• Note the original routing and clip locations; avoid sharp bends and kinks during installation
• Fully seat tubing into existing connectors/fittings on your model
• Turn water back on, check all connections for leaks, and purge air by dispensing water

This clamp secures small hoses or tubing and nearby wiring inside the appliance to keep lines held in place and reduce rubbing, leaks, or vibration noise. It's a direct-fit replacement designed to restore proper hose routing and stability. What it does:

• Holds water, drain or vent tubing securely to prevent sagging and rubbing that can cause leaks or wear
• Keeps hoses and wires aligned to reduce vibration and rattling during operation
• Helps maintain proper connections at fittings so seals stay seated and drip risk is minimized
• Simple mechanical clip action — no special tools or adhesives required

• Disconnect power and shut off the water supply before starting any repair
• Remove the old clamp and install this clamp in the same orientation; tubing sits fully in the fitting
• Use standard pliers (or the OEM-recommended tool) to compress/seat the clamp; avoid twisting or pinching the tubing
• Inspect surrounding tubing and fittings for wear; replace damaged hoses or seals if found

By GE. Round cube style replacement icemaker assembly. Fits older GE, HotPoint and Sears Kenmore (model prefix 363) refrigerators. Does not include the metal feeler arm, must re-use one from the old icemaker. This part has been discontinued and is no longer available.
