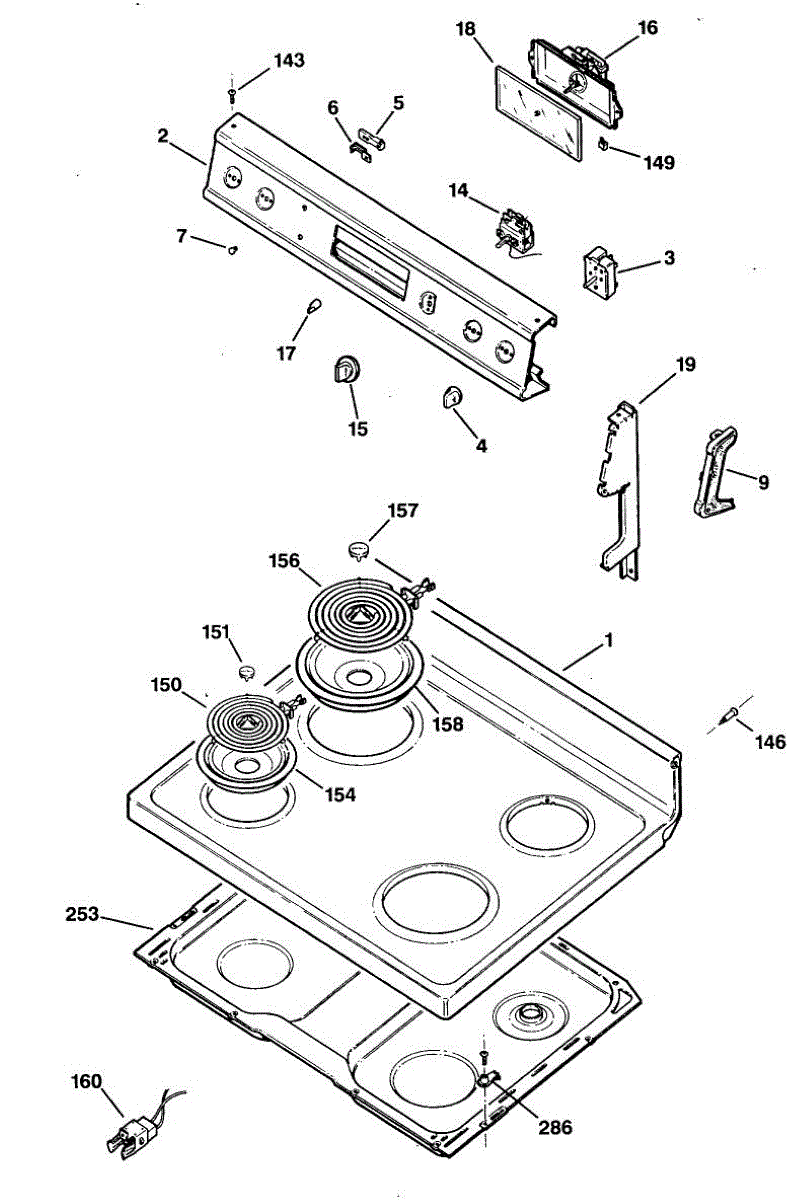

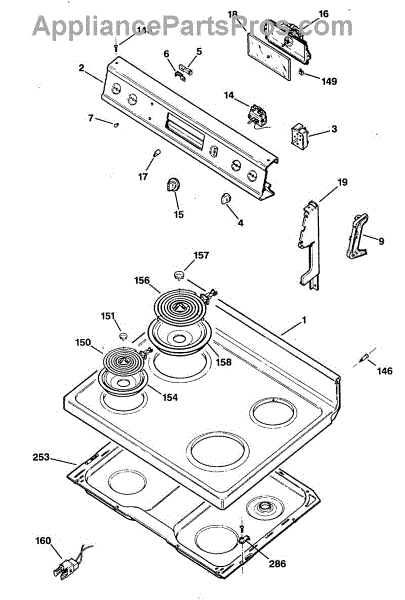

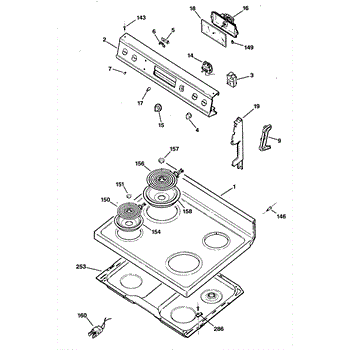

Parts for Ge JBS16GXR2: 01 - Section1 Parts

Parts for Ge JBS16GXR2: 01 - Section1 Parts

Location on Diagram
Part Description
Price & Availability
1
By: Ge
Part Number: WB62X5403
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1
By: Ge
Part Number: WB62X5407

This part has been discontinued and is no longer available.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2
By: Ge
Part Number: WB36X5663
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3
Best Seller
Product photo
4.8 (55)
By: Ge
Part Number: WB21X36771

The Infinite Heat Switch Kit is an OEM part for GE ranges and cooktops. This kit is essential for controlling the temperature of the burners on your range or cooktop, allowing you to adjust the heat level from low to high.

Causes of damage to the infinite heat switch can include normal wear and tear from frequent use, electrical issues such as short circuits or power surges, and physical damage from cleaning or impact.

Symptoms of a bad Infinite Heat Switch include:

  • Burners not heating to the desired temperature, either staying too hot or not getting hot enough.
  • The burner not turning on at all, indicating a possible failure in the switch's electrical contacts or circuit.
  • Inconsistent cooking temperatures, where the burner cycles on and off too frequently or not often enough, affecting cooking performance.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

More
$49.72

IN STOCK
Ships Today Guaranteed
Add to Cart
4
Product photo
By: Ge
Part Number: WB3X5834
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

5
Product photo
By: Ge
Part Number: WB2X1608
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

7
Product photo
By: Ge
Part Number: WB25X65

Decorative lens cover for range control panel indicator lights. Replace when cracked, faded, or missing to restore appearance. Verify fit by model.

More
$19.31

IN STOCK
Ships Today Guaranteed
Add to Cart
9
By: Ge
Part Number: WB7X7130
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

9
Product photo
By: Ge
Part Number: WB7X7131
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

14
By: Ge
Part Number: WB2X6274
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

14
Product photo
5.0 (2)
By: Ge
Part Number: WB21X5287
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

16
Product photo
5.0 (2)
By: Ge
Part Number: WB19X10008

Fix a buzzing timer or non-functioning clock with this range clock timer control. Moderate DIY installation, wiring instructions included. Fits electric ranges.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

17
Best Seller
Product photo
4.9 (25)
By: Ge
Part Number: WB3X5699

The Clock Knob Kit is an OEM replacement part for GE ranges. It contains the necessary knobs to control clock and timer functions from the control panel. This 3 pack of range clock knobs is all you need to cover one timer control. Color: Black. Each knob measures about 1/2 an inch in diameter, and 1 inch deep

Symptoms of faulty knobs include:

  • Knobs no longer stay securely attached to shafts
  • Issues selecting timer options or adjusting clock settings
  • Incorrect rotation feel or knobs difficult to turn
  • Display issues arising from loose or faulty internal connections

This GE replacement kit is also compatible with Hotpoint, RCA and some Kenmore ranges for convenient cooking.

NOTE: For chrome order WB3X459.

More
$22.95

IN STOCK
Ships Today Guaranteed
Add to Cart
18
By: Ge
Part Number: WB36X5575
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

19
By: Ge
Part Number: WB07X10129
$13.85

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
19
Product photo
By: Ge
Part Number: WB07X10130
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

19
By: Ge
Part Number: WB7X7163
$12.61

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
19
By: Ge
Part Number: WB07X10127
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

57
Best Seller
Product photo
4.9 (120)
By: Ge
Part Number: WB30M2

If your burner won't heat or only works on high, this 8 inch surface element restores proper cooking. Simple plug-in replacement takes seconds.

More
$47.23

IN STOCK
Ships Today Guaranteed
Add to Cart
143
Product photo
By: Ge
Part Number: WB1X5716
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

146
By: Ge
Part Number: WB1X5832
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

149
By: Ge
Part Number: WB2X7702
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

150
Best Seller
Product photo
4.9 (84)
By: Ge
Part Number: WB30M1

Replace a non-heating or damaged 6-inch burner. Simple plug-in installation takes minutes—just unplug the old element and connect the new one.

More
$46.57

IN STOCK
Ships Today Guaranteed
Add to Cart
151
Product photo
By: Ge
Part Number: WB32X52
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

152
Product photo
By: Ge
Part Number: WB2X1351

Range won't power on or heats intermittently? A faulty terminal block disrupts electrical connections. This double terminal block restores power flow.

More
$14.95

IN STOCK
Ships Today Guaranteed
Add to Cart
157
Product photo
By: Ge
Part Number: WB32X51

This center trim is the molded bezel that fits the front center of the cooktop/oven control area, restoring a finished look and protecting the control panel edges from heat and grime. What it does:

  • Covers and protects the exposed edge of the control panel for a clean appearance
  • Hides gaps, chips or discolored trim that make the console look worn
  • Helps prevent dirt and grease from getting behind the control assembly
  • Restores proper alignment and fit where the original trim is cracked or broken
What's included: One center trim piece. Install notes:
  • Disconnect power to the appliance before starting any repair.
  • Typically secures with clips or screws—retain hardware and note orientation when removing old trim.
  • Handle edges carefully; replacement may require gentle prying with a trim tool.
  • If mounting hardware or support brackets are damaged, replace them separately.

More
$8.95

IN STOCK
Ships Today Guaranteed
Add to Cart
158
Best Seller
Product photo
4.9 (76)
By: Ge
Part Number: WB31K10266

This 8-inch drip bowl installs under your range burner to catch grease and spills. Replace if yours is rusted, cracked, warped, or heavily stained.

More
$12.42

IN STOCK
Ships Today Guaranteed
Add to Cart
160
Best Seller
Product photo
4.8 (82)
By: Ge
Part Number: WB17X5113

Burner not heating or working intermittently? This surface element receptacle connects your heating element to power. DIY-friendly repair in under 1 hour.

More
$32.34

IN STOCK
Ships Today Guaranteed
Add to Cart
165
Product photo
4.9 (15)
By: Ge
Part Number: WB31M20

This 6-inch drip bowl installs beneath the coil element on your electric range. Replace if cracked, chipped, or heavily discolored from spills.

More
$10.95

IN STOCK
Ships Today Guaranteed
Add to Cart
253
By: Ge
Part Number: WB49X5566

Cooktop chassis frame box that supports and encloses the burner assembly on your electric range. Replace if cracked, bent, rusted, or damaged.

More
$47.26

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
254
By: Ge
Part Number: WB1X549
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

286
By: Ge
Part Number: WB2X8107
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

312
Product photo
By: Ge
Part Number: WB1X119D

Includes 12 washers.

More
$13.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
314
Product photo
By: Ge
Part Number: WB2X1222

This pad is a small bumper-style cushioning part that protects surfaces, reduces vibration and noise, and prevents metal-on-metal contact in appliance assemblies. It helps maintain quiet, secure operation and prevents cosmetic damage where parts meet. What it does:

  • Acts as a cushion between components to absorb shock and reduce rattling or vibration.
  • Prevents direct contact and wear between adjacent surfaces or panels.
  • Helps keep parts aligned by providing a friction surface that resists shifting.
  • Reduces noise caused by vibration or loose-fitting panels.
What's included:
  • One replacement pad.
Install notes:
  • Inspect the mounting area and remove any debris or adhesive residue before installing.
  • Typically presses or adhesively mounts into place; align carefully to ensure full contact.
  • Replace only with the exact part number to ensure fit and function.
  • Disconnect power to the appliance or follow model-specific safety precautions before accessing internal panels.

More
$6.39

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
321
Product photo
5.0 (1)
By: Ge
Part Number: WB1X5731D

Includes 12 screws.

More
$25.74

IN STOCK
Ships Today Guaranteed
Add to Cart
326
Product photo
By: Ge
Part Number: WB2X6574
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

327
Product photo
By: Ge
Part Number: WB01K10093

This speed nut is a clip-on fastener that provides threads for a screw on the appliance. It secures sheet-metal panels, brackets, or trim and helps keep assemblies tight under vibration and repeated use.

  • Provides captive threads so a screw can tighten into thin sheet metal
  • Helps secure panels, brackets, and trim pieces in place
  • Replace if a screw spins without tightening, a panel rattles/feels loose, or the original clip is missing or damaged
  • Restores a snug, reliable attachment point without a loose nut
What's included: One speed nut Install notes:
  • Disconnect power and, if applicable, shut off gas; allow the appliance to cool before servicing
  • Note the clip's orientation; slide it onto the panel edge or stud as designed
  • Start the screw by hand to avoid cross-threading; do not overtighten
  • Wear cut-resistant gloves when handling sheet-metal parts

More
$7.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
328
Product photo
By: Ge
Part Number: WB1K15

Replacement mounting screw secures panels, brackets, and trim in your range or wall oven. Use when original screws are missing, stripped, or damaged.

More
$10.00

IN STOCK
Ships Today Guaranteed
Add to Cart
400
Product photo
By: Ge
Part Number: WB36X526
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

409
By: Ge
Part Number: WB02X3470
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

461
Product photo
4.7 (3)
By: Ge
Part Number: WB1X536

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

More
$18.25

IN STOCK
Ships Today Guaranteed
Add to Cart
752
Product photo
By: Ge
Part Number: WZ4X345D

Package of 12

More
$21.95

IN STOCK
Ships Today Guaranteed
Add to Cart
769
Best Seller
Product photo
4.9 (75)
By: Ge
Part Number: WB1X500D

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

  • Loose or wobbly parts or panels within the appliance's interior or exterior
  • Panels or components falling out of place, creating gaps or exposing internal parts
  • Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

More
$9.48

IN STOCK
Ships Today Guaranteed
Add to Cart
904
By: Ge
Part Number: WB1X5550
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

961
Product photo
By: Ge
Part Number: WB2X1185
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1024
Best Seller
Product photo
4.9 (376)
By: Whirlpool
Part Number: 8009

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

  • Dimming or flickering light
  • Complete lack of illumination inside the appliance
  • Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

More
$19.55

IN STOCK
Ships Today Guaranteed
Add to Cart
32767
By: Ge
Part Number: 31-0824
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

32767
By: Ge
Part Number: 49-8375
$11.92

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
32767
Product photo
5.0 (6)
By: Ge
Part Number: WB02T10415

Wall-mounted safety bracket that prevents range tip-over. Includes bracket, screws, and instructions. Replace missing or broken brackets required by code.

More
$40.51

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
  • 5,000+ Repair Videos 5,000+ Repair Videos
  • Same-Day Shipping Same-Day Shipping
  • 365 Day Return Policy! 365 Day Return Policy!
  • Repair ForumFree Tech Support!
  • Top Quality Store on Google
