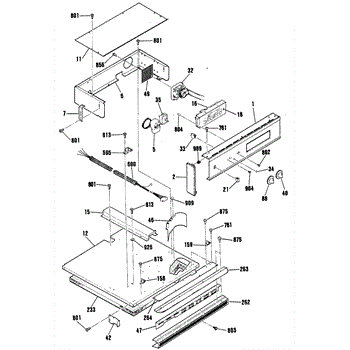

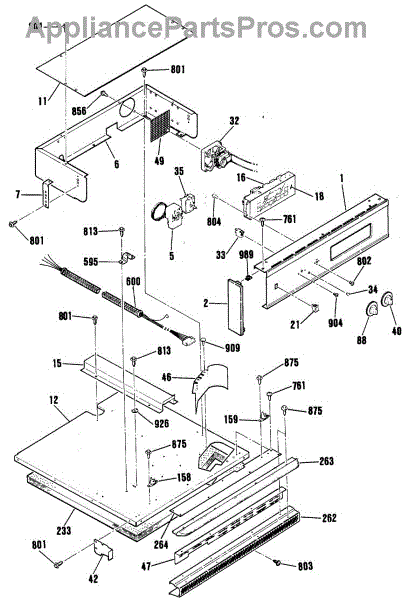

Parts for Ge JRP24GP4BG: 01 - Section1 Parts

This end cap covers the right side of your appliance's control panel, providing a finished appearance and protection. It prevents moisture and debris from entering the control area while maintaining the unit's aesthetic design. Replace this cap if it's cracked, missing, or doesn't fit properly against the control panel.

This repair kit contains components needed to fix common issues with your oven's electronic control board. It includes replacement parts for display problems, button malfunctions, or control failures. Use this kit when your oven display is blank, buttons don't respond, or temperature controls aren't working properly.

This is a black rocker switch used to control a function on compatible ranges/cooktops. Replacing a worn or inoperative switch restores positive on/off control and reliable operation of the connected feature.

• Controls an appliance function (such as a light or igniter circuit) with a single on/off action
• Common failure signs: switch won't stay on, no response when toggled, intermittent operation, or physical damage/discoloration
• Direct-fit replacement designed for the original switch location
• Helps restore safe, predictable control to the appliance

• Disconnect power and, if applicable, shut off gas before servicing
• Access is typically from the control panel; retain orientation of wires and note terminal positions
• Transfer wires one at a time to the new switch to avoid miswiring
• Inspect connectors for heat damage; replace damaged terminals before reassembly

Oven indicator light not working? This control panel lamp shows when heating elements are active. Simple DIY fix restores visual status feedback.

Indicator light lens covers and diffuses the panel light on your range or oven. Replace when cracked, discolored, or missing to restore visibility.

Fixes F1 or F2 error codes and prevents overheating in ovens. This safety switch monitors temperature limits to protect components. Direct fit part.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

This is a black vertical side trim piece that attaches along the side edge of a wall oven, providing a finished appearance where the oven meets the surrounding cabinetry. It helps cover gaps and protects the oven's edges. Replace this trim if it is cracked, warped, discolored, or missing.

Wire harness assembly that routes and protects electrical wiring inside your wall oven. Replace if cracked, damaged, or connections are loose or worn.

Replacement screw for securing oven components, panels, and brackets. Restores tight mounting when original screws are missing, stripped, or lost.

ST10-16 X 7/16"

Replacement mounting screw secures panels, brackets, and components in place. Needed when original fasteners are missing, stripped, or damaged.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

Black. 8-18 AB HXW 3/8

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This push-type plastic rivet is a small fastening clip that secures trim, panels and lightweight components on appliances. It replaces worn or broken rivets to restore a snug fit and reduce rattles or loose trim. What it does:

• Secures interior or exterior trim, panels and access covers
• Holds wiring harnesses or insulation in place where a low-profile fastener is required
• Replaces missing or damaged rivets that cause loose panels or vibration noise
• Simple push-in design creates a firm hold without screws or adhesives

• Disconnect power to the appliance before working on panels or wiring
• Push the rivet stem into the hole until it snaps; remove by prying out the center pin or using pliers
• Use the same style and size rivet as the original to ensure proper fit and retention
• Protect surrounding surfaces from tools and work deliberately to avoid damage

Range burner clip secures burner components in place. Replace if bent, broken, or burners wobble. Verify fit with your model number before ordering.

This wire harness connects the oven door lock motor to the appliance wiring, restoring electrical continuity for reliable door latch operation. It's a direct-fit replacement that helps resolve intermittent or failed lock motor function. What it does:

• Routes power and signal between the control board and the door lock motor so the latch can engage and release.
• Commonly used when a door won't lock, unlock, or shows intermittent lock operation.
• Replaces damaged, frayed, or burned wiring that can interrupt lock motor function.
• Helps restore proper oven or range door locking during self-clean or cook cycles.

• One lock motor wire harness

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Inspect connector ends and routing; replace only if the harness matches the original and connectors seat fully.
• Some models require partial disassembly of the door or console to access the lock motor; follow the OEM service instructions.
