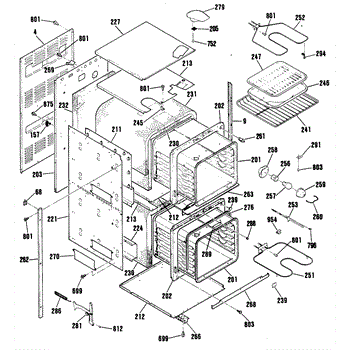

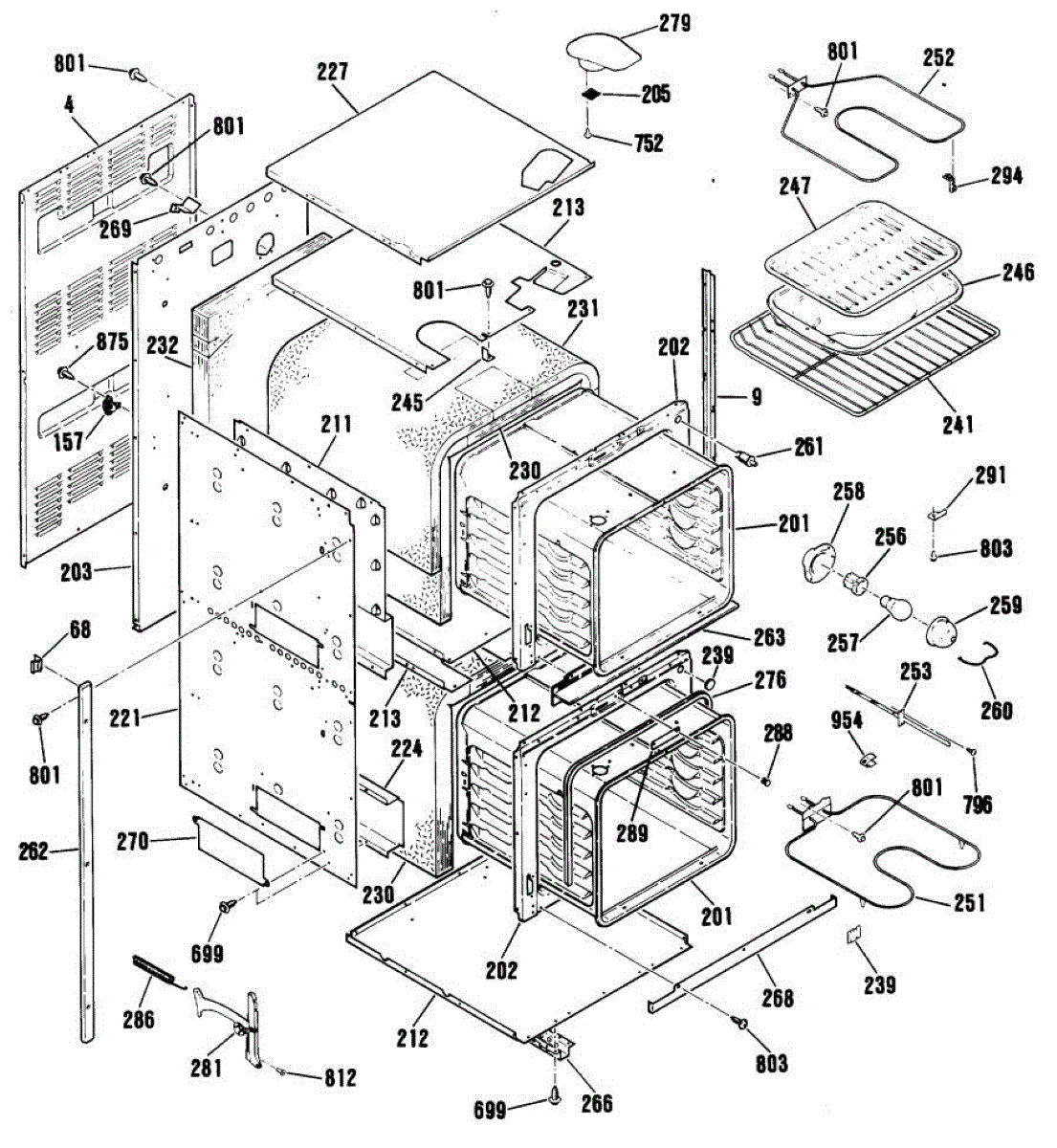

Parts for Ge JRP24GP4BG: 02 - Section2 Parts

Oven won't heat or overheats? This limit switch cuts power when unsafe temperatures are detected. Moderately challenging repair with basic tools.

Inner door insulation wrap for ovens and ranges. Replaces worn, damaged, or missing insulation between door panels. Maintains heat efficiency.

Insulation panel that installs on the top and side of your oven cavity. Replace if cracked, compressed, missing, or damaged to restore heat retention.

Thermal insulation panel for the back and bottom upper cavity of your oven. Replace if cracked, deteriorated, or missing to restore heat retention.

Replacement oven rack for GE electric and gas wall ovens and ranges. Installs inside oven cavity. Order when original rack is missing, warped, or worn.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Oven won't heat or bakes unevenly? The bake element generates heat at the bottom of your oven cavity. DIY-friendly repair, typically 30-40 minutes.

Broiler stopped heating or burned through? This top heating element replacement takes 10-30 minutes with basic tools. Disconnect power, remove brackets, and swap wires.

Fix oven not reaching set temperature or F2/F3 error codes. This temperature sensor monitors internal heat for accurate cooking. Easy DIY repair.

Replace your oven light bulb socket to restore interior lighting. Fixes flickering or non-working oven lights. Confirm fit with your model number.

This vertical side trim is a factory-style exterior trim piece that restores the finished edge of the refrigerator cabinet and improves the appearance where the door meets the cabinet. It replaces a cracked, dented, or missing side trim. What it does

• Covers and protects the outer cabinet edge for a clean, factory look
• Hides gaps and worn cabinet finishes that catch dirt or moisture
• Helps maintain proper door alignment appearance without altering function
• Commonly replaced when trim is cracked, dented, warped, or missing

• One vertical side trim piece

• High-level replacement — typically removes and installs with basic hand tools
• Follow manufacturer instructions for trim removal to avoid scratching adjacent finishes
• Disconnect power only if required by your model's disassembly instructions; this trim replacement is usually cosmetic

Structural support channel for gas range chassis. Secures frame components and maintains cabinet alignment. Replace if bent, cracked, or damaged.

Color: Black

This light cup support secures the interior lighting assembly and helps position the light socket and lens for reliable illumination. It restores proper alignment and contact for the refrigerator or freezer interior light. What it does:

• Holds the light socket and lens in place to prevent shifting or detachment
• Ensures consistent light alignment so the bulb illuminates the interior correctly
• Addresses symptoms like a loose or hanging light, intermittent contact, or misaligned lens
• Compatible with common GE refrigerator interiors where the original cup support is used

• One light cup support

• Disconnect power before accessing the interior light assembly to avoid shock
• Remove the old cup support by unsnapping or unfastening retaining tabs as required
• Press the replacement into position until retaining tabs engage; test light function before reassembling shelves

This cover plate is a replacement console trim piece that restores the appliance's finished appearance and protects control components from dust and spills. It helps keep the control area clean while maintaining proper fit with surrounding panels. What it does:

• Covers and protects the control/module opening to prevent dirt, grease, and moisture intrusion
• Restores the appliance's exterior appearance after damage or wear
• Keeps buttons, switches and electronic components shielded from direct contact
• Provides a stable mounting surface for adjacent trim and hardware

• Disconnect power to the appliance before starting any repair
• Installation typically requires removing a few screws or clips; save fasteners for reassembly
• Handle with care to avoid scratching the finished surface; align tabs/holes before tightening

Right hand side. For left hand use WB14K5007

Left hand side. For right hand use WB14K5006

The Support Bracket is an OEM part for GE ovens, designed to provide stability and support for the broiling element. This bracket is essential for ensuring the broiling element is securely positioned at the top of the oven, allowing for even heat distribution and optimal cooking performance when broiling foods.

Causes of damage to the support bracket often involve high heat exposure, accidental impacts during cleaning or cooking, or general wear and tear over time.

Symptoms of a bad Support Bracket include:

• The broiling element hanging lower than usual or touching the oven cavity, which can affect cooking performance and potentially damage the oven's interior.
• Unstable or loose broiling element, leading to uneven cooking or broiling.
• Visible signs of wear, damage, or corrosion on the bracket itself, indicating it may no longer provide adequate support.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

ST10-16 X 7/16"

Replacement mounting screw for securing panels, brackets, and trim on electric ranges and wall ovens. Needed when original fastener is stripped or missing.

ST10-16 X 7/16"

Flat-head 10-32 zinc screw secures panels and components on cooktops, ranges, and ovens. Replace stripped, missing, or corroded screws for proper fit.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Black. 8-18 AB HXW 3/8
