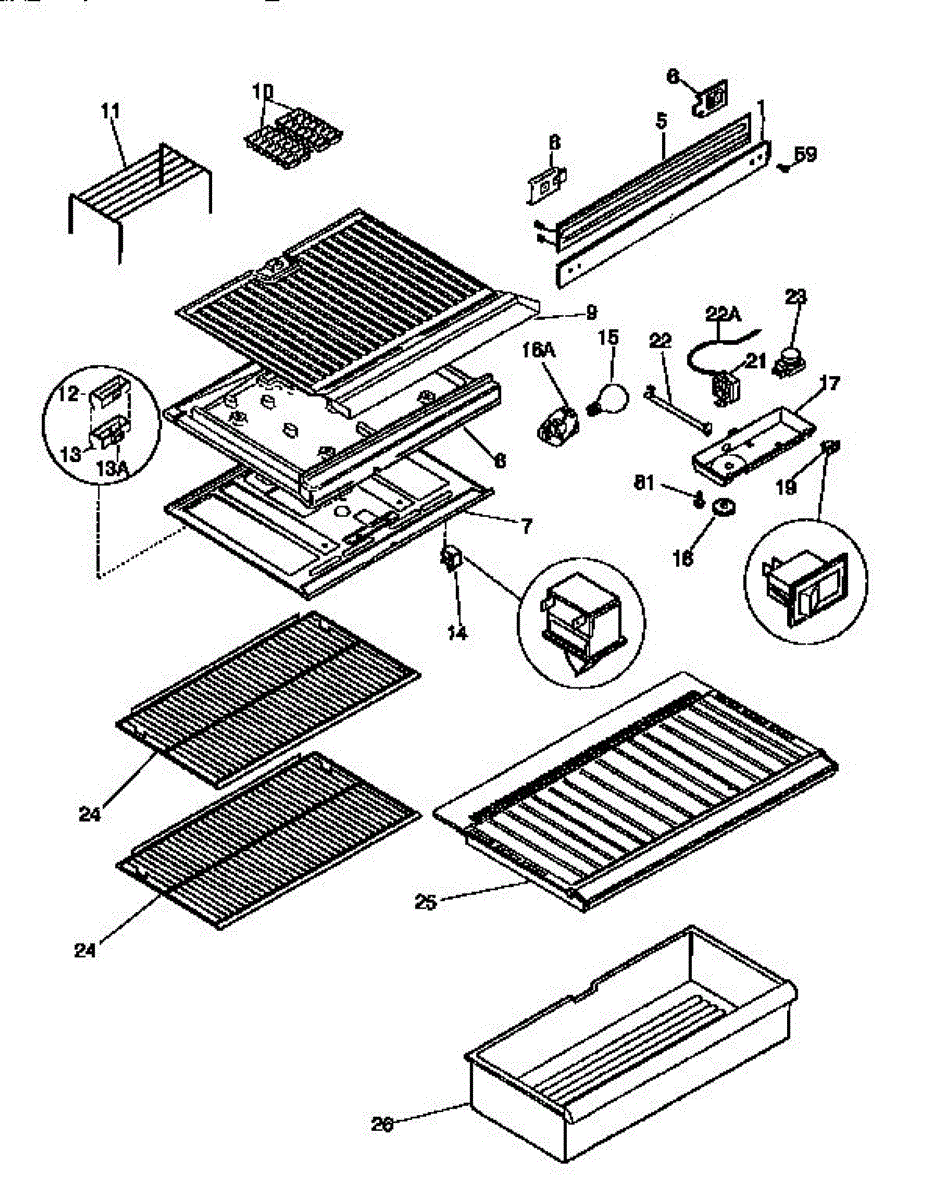

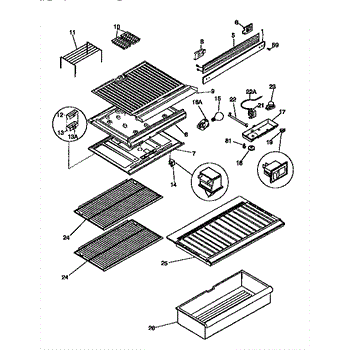

Parts for Kenmore 253.9366191 (2539366191, 253 9366191): Separator And Shelves Parts

Tapping plate that mounts the mullion vertical trim on your refrigerator. Replace if cracked, stripped, or missing to restore secure trim attachment.

Wiring harness for refrigerators. Connects electrical components inside the appliance. Replace if wires are frayed, damaged, or connections are loose.

Protects wiring harness edges in your refrigerator from wear and abrasion. Replace if cracked, broken, or missing to prevent wire damage and insulation.

Optional flexible ice tray for those that dont have an icemaker

Foam seal for refrigerator air deflector. Replace if torn, compressed, or causing temperature issues. Ensures proper airflow between compartments.

Air deflector with cover for freezers. Directs airflow inside the freezer compartment. Replace if cracked, broken, or missing to restore proper air circulation.

Air deflector with cover for freezers. Directs airflow inside the freezer compartment. Replace if cracked, broken, or missing to restore proper air circulation.

Air deflector with cover for freezers. Directs airflow inside the freezer compartment. Replace if cracked, broken, or missing to restore proper air circulation.

This door-activated light switch controls the interior lamp in your refrigerator. Replace a worn or sticking switch to restore dependable lighting and prevent the bulb from staying on and warming the compartment when the door is closed.

• Opens and closes the light circuit as the door is opened and closed
• Helps prevent the light from staying on with the door shut
• Common symptoms: interior light won't turn on, stays on with the door closed, or works intermittently
• Physical signs may include a stuck/broken plunger or damaged housing

• Disconnect power before servicing
• Gently pry the old switch from the liner/panel and release its locking tabs
• Transfer wires one at a time to the same terminals on the new switch
• Press the new switch fully into place; restore power, and test

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This nut anchor secures the appliance control box to the cabinet, keeping the control module mounted and stable for reliable operation. Replacement restores proper fastening when the original anchor is missing or damaged. What it does:

• Provides a captive fastening point for the control box or control board housing
• Holds the control assembly steady to prevent movement, vibration, or rattling
• Helps maintain proper alignment of electrical connections and wiring harnesses
• Used when the original anchor is stripped, cracked, or no longer grips the panel

• One nut anchor for control box mounting

• Disconnect power to the appliance before servicing to avoid shock or injury
• Access the control box per your model's service instructions; remove panels carefully
• Press or fasten the nut anchor into the mounting hole until it seats; secure the control box with the appropriate screw
• If supply threads are damaged, replace any mating fasteners and fit snugly, but not over-tightened.

Fix a refrigerator that won't run or cycles incorrectly with this energy saver switch. Controls power-saving mode. Straightforward DIY repair.

This screw is a direct-replacement fastener used to secure appliance panels and trim so components stay in place and operate quietly. It restores proper fit where mounting screws are missing or worn. What it does:

• Secures panels, trim, brackets or small components to the appliance frame
• Helps prevent rattling, misalignment, or loose parts during operation
• Matches OEM thread and head style for correct fit and reliable fastening
• Useful when replacing stripped or missing mounting hardware

• Disconnect power before servicing electrical appliances
• Use the correct screwdriver or bit to avoid stripping the head
• Keep small parts away from children and pets during installation
• Replace with the exact OEM screw to ensure proper fit and safety

Plastic

This replacement tube routes water from the refrigerator's defrost area to the drain pan to help prevent leaks and pooling. A simple, direct-fit part for restoring proper drain flow and reducing water buildup. What it does

• Channels defrost and condensation water to the drain pan to prevent interior pooling.
• Helps maintain normal drainage to avoid ice buildup or water leaks.
• Restores a damaged, cracked or clogged original tube where flow is restricted.
• Works as a service part when inspecting drain path during defrost/drain issues.

• One replacement tube.

• Disconnect power to the appliance before starting any repair.
• Remove access panels as needed and route tube along the factory path; avoid sharp bends or kinks.
• Inspect drain openings and heater components while replacing the tube.

This is a replacement mounting screw used to secure the defrost timer assembly to the refrigerator control housing, restoring proper fastening and preventing the timer from shifting or vibrating during operation. What it does:

• Secures the defrost timer to the control housing so the timer stays in position.
• Prevents vibration or movement that can cause intermittent contact or noisy operation.
• Helps maintain reliable defrost cycle timing by keeping the timer properly aligned.
• Addresses symptoms such as a loose or missing fastener, rattling behind the control panel, or a timer that shifts when the door is opened.

• Unplug the appliance before starting work to prevent electrical shock.
• Access the control housing or timer bracket per your model's service instructions.
• Use the correct screwdriver or driver bit; do not overtighten—stop when snug to avoid stripping.
• Retain removed hardware for reference and compare screw length/threads before installing.

Replacement glass shelf for refrigerator storage compartments. Restores usable space when original is cracked, chipped, broken, or missing.

Replacement crisper drawer for refrigerator fresh food compartment. Replace if cracked, broken, or missing to restore organized produce storage and smooth sliding.

Secures panels, brackets, and handles in refrigerators and other appliances. Replace missing or stripped screws to restore secure mounting.

Factory fastener that secures panels, brackets, and internal components. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattling.

This service data sheet provides the factory service and diagnostic information technicians use to troubleshoot and repair appliances. It includes key wiring, calibration, and specification details so repairs are accurate and faster. What it does:

• Summarizes system wiring, component locations, and electrical ratings for reference during service
• Lists control settings, diagnostic codes, and test points to help identify failures
• Clarifies manufacturer-recommended adjustments and calibration values
• Supports correct part selection and verification of symptom causes

• For technician use only; read entire sheet before beginning repair
• Keep sheet dry and with the appliance or service records for future reference
• Follow all safety precautions and disconnect power before testing or servicing
• Use the sheet alongside the appliance's official service manual and wiring diagrams

Size: Approximate 2.5 inches thick, 33 inches wide and 70 inches long.

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

• Visible scratches or chips on the appliance's surface.
• Areas of rust or corrosion that need to be covered after treating the rust.
• The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.
