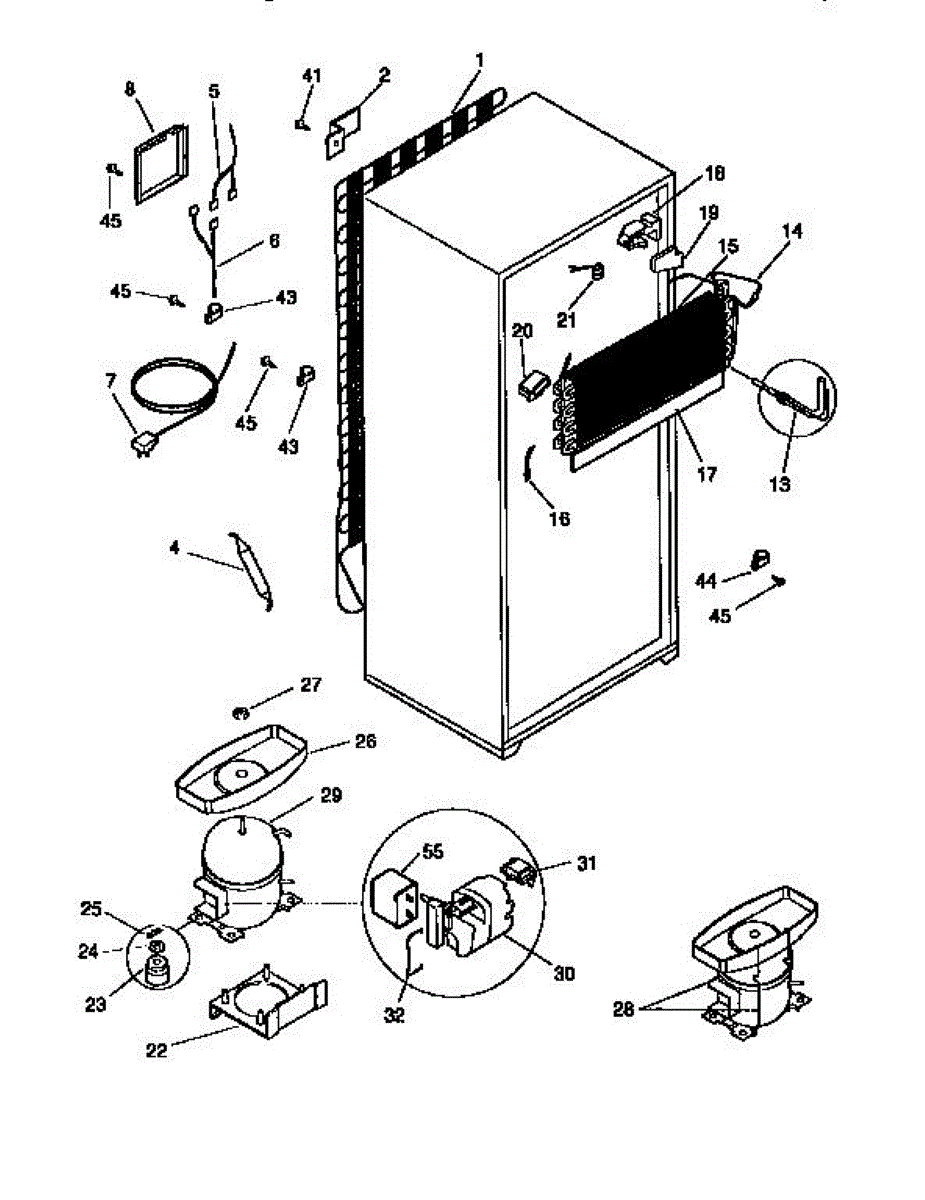

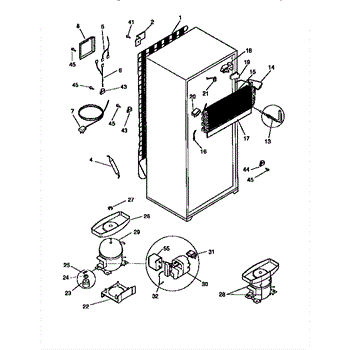

Parts for Kenmore 253.9366191 (2539366191, 253 9366191): Unit Parts

Replace a loose or missing extension lock washer causing rattling noises or unstable component mounting. Simple DIY fix in under 15 minutes.

Freezer not cooling below 32°F or water leaking under freezer? The drier filter removes moisture from the refrigerant system. Soldering required.

Wiring harness for refrigerators. Connects electrical components inside the appliance. Replace if wires are frayed, damaged, or connections are loose.

Aluminum strap secures the defrost heater against the evaporator coil. Replace if broken, cracked, or missing to maintain proper heater contact.

Fix inconsistent freezer temperatures or frost buildup with this insulator. Helps maintain proper cooling in the freezer compartment. Easy install.

Frost buildup on freezer wall? Defrost thermostat monitors evaporator temperature to prevent ice buildup. DIYers report 15-minute installation fixes issue.

This compressor mounting plate secures the compressor to the refrigerator chassis, helping maintain proper alignment and reduce vibration for quieter operation. Durable stamped metal designed to fit the factory mounting points. What it does:

• Secures the compressor assembly to the appliance frame to prevent movement
• Dampens and distributes compressor vibration to reduce noise
• Maintains compressor alignment for reliable operation
• Helps keep mounting hardware and rubber isolators in correct position

• Disconnect power to the appliance before service to avoid electrical shock
• Basic hand tools required; support the compressor when removing or installing mounting hardware
• Follow the OEM service manual for torque specs and detailed installation steps

Rubber grommet that mounts and cushions the compressor to reduce vibration transfer. Replace if cracked, worn, or missing to restore quiet operation.

Secures compressor to mounting bracket in your refrigerator. Replace if clip is broken, loose, or causing vibration noise. Verify fit with your model number.

Freezer not cooling or running constantly? This compressor kit circulates refrigerant through the system. Advanced repair requires refrigerant handling.

Bale wire secures the compressor motor in freezers and refrigerators. Replace if wire is broken, loose, or missing to properly mount the compressor unit.

Replacement mounting screw for dishwashers. Secures panels, racks, or internal components. Order a new screw if yours is stripped, missing, or damaged.

Secures and protects wiring harness from strain damage. Replace if cracked, broken, or wires show wear. Verify fit with your model number listed.

Secure hoses and wires inside your refrigerator with this nylon clamp. Replace if broken or cracked to prevent loose connections. Verify fit by model.

Replacement screw for various appliances. Used to secure panels, components, or housing. Replace if stripped, corroded, missing, or damaged hardware.

Replacement mounting screw for refrigerators and ice makers. Secures panels, brackets, and internal components. Needed when original is missing, stripped, or damaged.

Fix a refrigerator that's not cooling due to rusted or damaged condenser tubing. This tube kit repairs sealed system issues in kegerators and fridges.

This service data sheet provides the factory service and diagnostic information technicians use to troubleshoot and repair appliances. It includes key wiring, calibration, and specification details so repairs are accurate and faster. What it does:

• Summarizes system wiring, component locations, and electrical ratings for reference during service
• Lists control settings, diagnostic codes, and test points to help identify failures
• Clarifies manufacturer-recommended adjustments and calibration values
• Supports correct part selection and verification of symptom causes

• For technician use only; read entire sheet before beginning repair
• Keep sheet dry and with the appliance or service records for future reference
• Follow all safety precautions and disconnect power before testing or servicing
• Use the sheet alongside the appliance's official service manual and wiring diagrams

Size: Approximate 2.5 inches thick, 33 inches wide and 70 inches long.

White touch-up paint for refrigerators and appliances. Covers scratches, chips, and minor cosmetic damage on exterior surfaces. 0.6 fl oz bottle.
