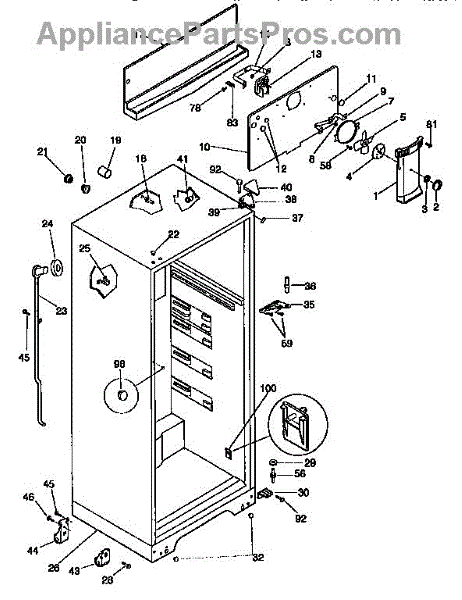

Parts for Kenmore 253.9366191 (2539366191, 253 9366191): Cabinet Parts

Refrigerator making loud noises or not cooling? A worn evaporator fan blade often causes these issues. DIY-friendly repair typically takes 30 minutes.

This fan motor mounting bushing is used in refrigerator fan motor assemblies to prevent vibrations between the fan motor and the surrounding components. Over time, the rubber on the bushing may become cracked or broken and fall off. Loud noises coming from the refrigerator's freezer section where it is mounted are a good indicator that the bushing needs to be replaced. To start, disconnect the refrigerator's power and empty the refrigerator and freezer's contents into an ice chest to keep them cold until the motor mount bushing is replaced. Open the freezer door and remove the plastic access panel on the back wall; the fan blade and motor are located behind it. Gently pull the fan blade off the center post. Remove the screws holding the motor in place and remove the motor. Take the old bushing off and install the new bushing. Replace the panel. Put the food contents back inside the freezer and refrigerator and restore the power.This motor mounting bushing is an authentic OEM replacement part sourced directly from the manufacturer. It is sold individually. It is designed for use in refrigerators manufactured by Frigidaire, Kenmore, Gibson, and Kelvinator.

Fix a loose or vibrating trimmer motor with this front motor mounting bracket. Secures the motor assembly to the housing. Easy 15-minute repair.

Covers the factory test opening on your refrigerator cabinet or liner. Replace if missing, cracked, or damaged to restore a finished look and seal.

Fix squealing freezer noise or warm fridge temps? Your evaporator fan motor may have failed. Most DIYers replace this in 10-15 minutes with basic tools.

Replace a cracked or broken motor mounting bracket causing excessive vibration or motor misalignment. Simple hand tool installation in 15-20 minutes.

White plastic button plug that covers unused hinge holes on refrigerator doors. Replace if cracked, missing, or discolored for a clean finished look.

Replacement roller adjustment screw for refrigerator leveling legs. Needed when original screw is stripped, missing, or damaged during roller maintenance.

Nylon U-shaped washer for refrigerator assembly. Replaces worn, cracked, or missing washers in mounting and structural applications. Exact fit part.

This left-side tapping plate/gusset is a metal mounting bracket that reinforces appliance panels and hinge areas, restoring secure attachment and alignment for doors or panels. It helps reduce wobble and maintains proper fit where the original bracket is damaged or worn. What it does:

• Reinforces and secures hinge or panel attachment points to restore alignment
• Provides a threaded or tapped surface for fasteners where sheet metal cannot accept screws
• Stops movement or sagging that can cause gaps, noise, or poor door sealing
• Helps prevent further damage to the cabinet or door mounting area

• Always disconnect power (and water, if applicable) before beginning repairs
• Inspect mounting holes and surrounding metal; remove any damaged fasteners or debris before installing
• Use the correct replacement screws and hand-tighten, then torque to manufacturer specs if available; do not over-tighten
• If the cabinet or hinge area is severely corroded or stripped, additional repair or reinforcement may be required

Factory fastener that secures panels, brackets, and internal components. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattling.

Center hinge pin that secures and aligns the middle door hinge on your refrigerator. Replace when worn, damaged, or missing to restore door support.

Replaces cracked or missing cabinet corner trim on your freezer. Covers exposed edges where two panels meet, restoring a finished look and alignment.

Rubber grommet cushions and seals freezer components, reducing vibration and preventing wear where wiring or rods pass through. Replace if cracked or worn.

Replacement shelf support grommet for refrigerators and freezers. Provides stability for shelves. Replace if broken, missing, or worn to restore proper shelf support.

Replacement drum support roller for dryers. Installs beneath the drum to allow smooth rotation. Replace if worn, seized, or causing misalignment.

Replacement screw for various appliances. Used to secure panels, components, or housing. Replace if stripped, corroded, missing, or damaged hardware.

Lower hinge pin secures the refrigerator door to the cabinet, acting as the pivot point. Replace if worn, damaged, or broken to restore smooth operation.

Replacement screw for various appliances. Used to secure panels, components, or housing. Replace if stripped, corroded, missing, or damaged hardware.

Secures panels, brackets, and handles in refrigerators and other appliances. Replace missing or stripped screws to restore secure mounting.

Replacement screw for various appliances. Used to secure panels, components, or housing. Replace if stripped, corroded, missing, or damaged hardware.

Factory fastener that secures panels, brackets, and internal components. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattling.

Replacement mounting screw for securing brackets, trims, covers, and components inside your refrigerator. Replace missing, stripped, or lost hardware.

Replaces a worn, cracked, or missing push-cap on your refrigerator's control panel. Restores the protective cover over switches and buttons.

The Crisper Shelf Support is an OEM part for Frigidaire refrigerators. It is designed to hold the crisper shelf securely in place, providing stable support for the storage of fruits and vegetables.

Over time, the crisper shelf support can become worn or damaged due to regular use, heavy loads, or accidental impacts. If the support breaks or fails, it can lead to an unstable or sagging crisper shelf.

Symptoms of a bad crisper shelf support include:

• The crisper shelf not sitting level
• The shelf falling out of place or not staying securely in position
• Difficulty in inserting or removing the crisper drawer
• Visible cracks or damage to the support

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Fix a refrigerator that's not cooling due to rusted or damaged condenser tubing. This tube kit repairs sealed system issues in kegerators and fridges.

This service data sheet provides the factory service and diagnostic information technicians use to troubleshoot and repair appliances. It includes key wiring, calibration, and specification details so repairs are accurate and faster. What it does:

• Summarizes system wiring, component locations, and electrical ratings for reference during service
• Lists control settings, diagnostic codes, and test points to help identify failures
• Clarifies manufacturer-recommended adjustments and calibration values
• Supports correct part selection and verification of symptom causes

• For technician use only; read entire sheet before beginning repair
• Keep sheet dry and with the appliance or service records for future reference
• Follow all safety precautions and disconnect power before testing or servicing
• Use the sheet alongside the appliance's official service manual and wiring diagrams

Size: Approximate 2.5 inches thick, 33 inches wide and 70 inches long.

White touch-up paint for refrigerators and appliances. Covers scratches, chips, and minor cosmetic damage on exterior surfaces. 0.6 fl oz bottle.
