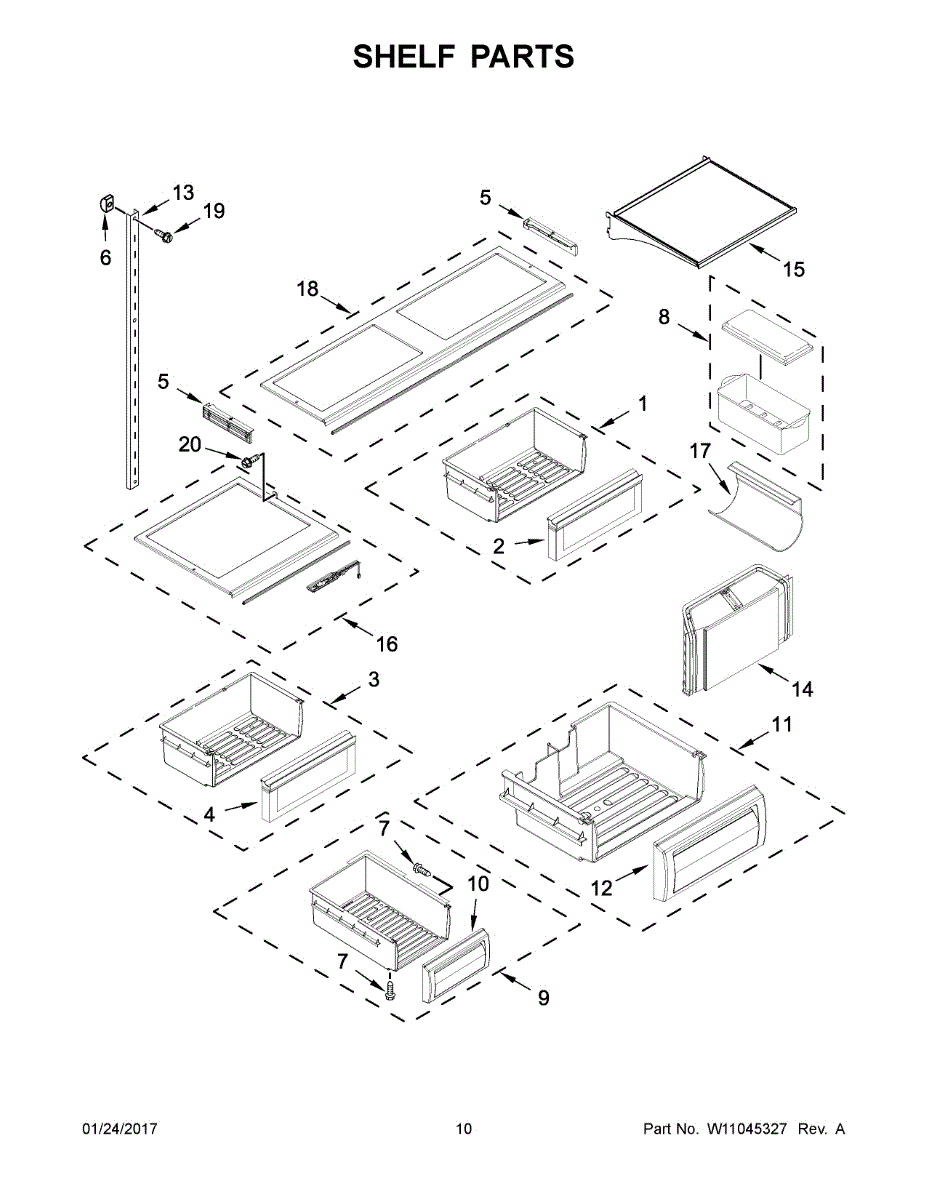

Parts for Kitchenaid KBFN502EBS02: 06 - Shelf Parts

This crisper pan is the replacement bin that supports and contains produce in the refrigerator's crisper drawer area, helping keep fruits and vegetables organized and reducing spills. What it does:

• Provides a stable bin to hold produce and keep items contained in the crisper area
• Catches juices and small debris to help prevent leaks and messes inside the fridge
• Restores proper fit and support when a cracked or damaged pan no longer holds a crisper drawer
• Helps the crisper drawer slide and seat correctly when the pan is intact

• One crisper pan

• Remove contents from the crisper area and slide out the drawer before replacing the pan
• Lift and align the replacement pan into the crisper drawer tracks until it seats fully
• Wash the new pan with mild soap and water before first use
• Handle carefully to avoid damage; wear gloves if edges are sharp

This screw support secures the dryer drum ladder assembly, helping maintain proper alignment and stable rotation for reliable drying performance. It replaces a worn or broken support to reduce noise and rattling during operation. What it does:

• Holds the ladder/support bracket in place so the drum rotates smoothly.
• Prevents excessive movement that can cause scraping, knocking, or rubbing noises.
• Restores correct positioning to reduce wear on adjacent components.
• Suitable when the original support is cracked, bent, or missing fastener points.

• One screw support (ladder) as shown.

• Intended for experienced DIYers; confirm compatibility with your model before installing.
• Disconnect power (unplug electric or shut off gas and unplug) before beginning work.
• Handle small parts carefully and keep track of fasteners; use appropriate hand tools.

Size; 8-18 x 1/2 inch.

This replacement egg container snaps into a refrigerator door shelf to hold and protect eggs while keeping them organized and easy to access. It restores the original storage location and helps prevent eggs from shifting or cracking during normal use. What it does:

• Holds and secures eggs in the fridge door to reduce movement and breakage
• Replaces damaged, cracked, or missing egg storage trays
• Helps keep eggs organized and easy to grab when loading or unloading the door
• Fits into the door shelf receptacle and engages with factory mounting tabs

• Remove food and any items from the door shelf before installing
• Align container tabs with the door shelf slots and press until it snaps into place
• Do not force; if resistance is felt, recheck alignment to avoid damage
• Follow the refrigerator owner's manual for model-specific removal and installation guidance

This ice pan is the molded tray that supports the ice maker and channels water during the ice-making cycle, helping ice form and move into the ice bin. It restores proper water routing and ice collection for compatible refrigerators. What it does:

• Holds and positions the ice maker assembly and newly formed ice before dispense
• Routes melt and overflow water to the drain area to prevent pooling
• Helps keep ice contained and reduces jamming in the ice bin
• Commonly replaced when ice formation or water drainage problems occur

• Remove power to the refrigerator before beginning any work
• Handle plastic parts gently to avoid cracking; inspect surrounding seals and fasteners
• May require removal of freezer shelving or the ice maker assembly for access

This replacement wine rack restores secure bottle storage inside the refrigerator, keeping bottles organized and helping prevent rolling or breakage. It replaces worn, cracked or missing wine racks so your fridge stores bottles safely. What it does:

• Holds and secures standard wine bottles on a dedicated shelf area to prevent rolling
• Replaces damaged, bent or missing racks that no longer support bottles safely
• Restores organized bottle storage and helps maximize usable shelf space
• Designed to fit into the fridge's existing support grooves or shelf frame

• Slides into existing support grooves or shelf frame; no special tools typically required
• Remove surrounding shelves or contents for safer, easier access before installing
• Handle edges carefully during installation to avoid damage or scratches

This is a replacement mounting screw used to secure panels and components on compatible Whirlpool appliances. It restores proper fit and prevents parts from becoming loose or rattling during use. What it does:

• Fastens trim, brackets, or panels to appliance chassis
• Helps stop rattling or vibration caused by loose hardware
• Restores secure alignment of removable covers and assemblies
• Suitable when original screw is stripped, missing, or corroded

• One replacement mounting screw

• Disconnect power to the appliance before starting any repair
• Use the matching driver bit and thread engagement; avoid over-tightening
• Inspect surrounding threads and replace if damaged to ensure secure fit
