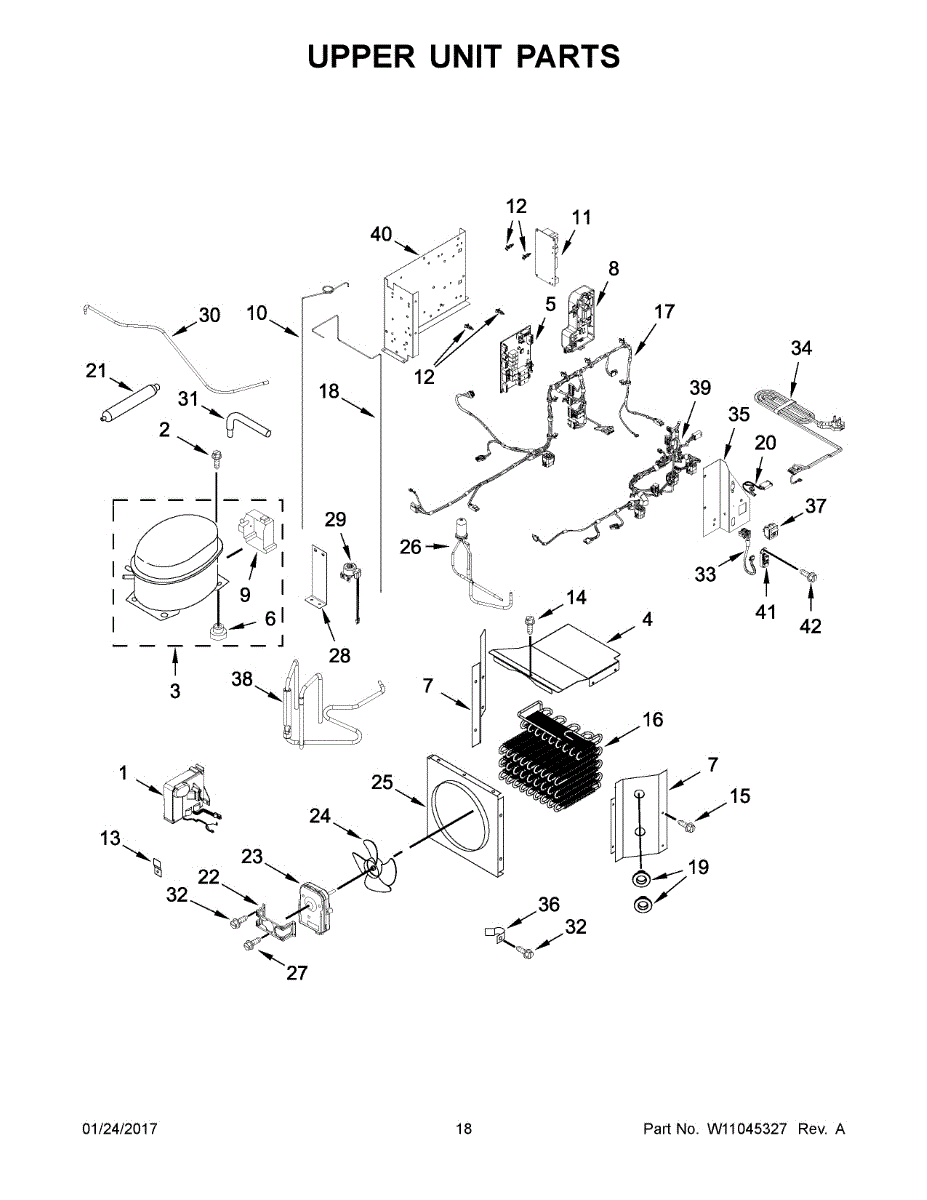

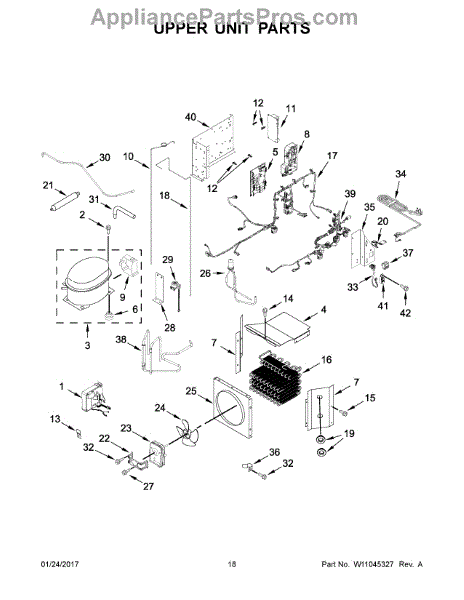

Parts for Kitchenaid KBFN502EBS02: 10 - Upper Unit Parts

Fix refrigerator cooling issues with an inverter control box replacement. Regulates compressor speed and energy efficiency. Moderate electrical repair.

Rubber grommet for refrigerators and freezers. Protects wires and components from sharp edges. Replace if cracked, worn, or missing for proper fit.

Replacement cover panel for refrigerators. Installs on exterior or interior surfaces. Order when original is cracked, broken, or missing.

Fixes refrigerator not cooling, display not working, or erratic temperature control. This main electronic control board restores reliable operation.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

Mounting plate for refrigerator assembly. Installs to secure internal components. Replace if cracked, broken, or missing to restore proper fitment.

Mounting plate for refrigerator interior components. Replace if cracked, broken, or warped. Secures parts in proper position inside your fridge.

Fix cooling issues with this refrigerator inverter box. Regulates variable speed compressor for efficient temperature control. Direct fit component.

Protects the terminal block on your refrigerator compressor by shielding electrical connections. Replace if cracked, broken, or missing for safety.

Refrigerator won't restart after power outage or showing PF error? This power control board regulates compressor and cooling fans. DIY install in 50 minutes.

Plastic spacer that mounts between refrigerator door panels or hinges. Replace if cracked, broken, or missing to restore proper door alignment.

Mounting bracket that secures the inverter box inside your refrigerator. Replace if cracked, bent, or missing to properly support the inverter assembly.

Replacement 8-18 thread screw for securing panels, brackets, and trim on appliances. Replace worn, stripped, or missing screws to keep components aligned.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Fix a refrigerator that won't cool or runs constantly with this condenser coil assembly. Restores efficient heat transfer and reduces compressor runtime.

Rubber grommet for refrigerator doors, shelves, or water lines. Replace if cracked, torn, loose, or missing to restore proper fit and seal.

Jumper wire for refrigerators. Installs in the electrical system to complete circuit connections. Replace if damaged, corroded, or missing.

Refrigerator not cooling properly? A clogged filter drier prevents proper refrigerant flow. Requires professional installation due to sealed system.

Mounting bracket for refrigerator interior components. Replaces broken, cracked, or missing brackets that secure shelves or bins in place.

Fix a refrigerator that's not cooling properly with this condenser fan motor. Replaces worn motors causing poor heat exchange. Video guide included.

Fix clicking noise, poor cooling, or overheating compressor by replacing a cracked or warped condenser fan blade. Restores airflow across the coil.

This is a plastic orifice or shroud piece that directs airflow around the condenser fan motor in the refrigerator. It ensures proper air circulation over the condenser coils for efficient cooling. Replace this part if it is cracked or missing, which can lead to poor cooling performance, the compressor running excessively, or unusual airflow noise from the back of the refrigerator.

This is a replacement mounting screw used to secure appliance panels and small components. It provides a correct-fit fastener to restore secure attachment and eliminate rattles or loose parts. What it does:

• Secures trim, panels, brackets, or small assemblies to prevent movement and vibration
• Restores proper alignment when a worn or missing screw causes loose parts or noise
• Works as a direct-replacement fastener where the OEM screw specification is required

• One replacement screw

• Use the correct driver bit to avoid stripping the head; do not overtighten
• Disconnect power and follow appliance safety guidelines when accessing internal components
• If the original mounting hole or threads are damaged, repair or replace the mounting hardware before reinstalling

If your refrigerator's ice or water dispenser won't activate or your damper control fails, this solenoid actuator restores reliable on/off operation.

This replacement water fill tube routes water to the appliance's dispenser/ice system so you get proper fill and reduced leaks. It restores reliable water delivery when the original tube is cracked or clogged. What it does:

• Directs water from the supply to the dispenser or ice/water mechanism
• Prevents leaks when intact and properly secured
• Helps ensure consistent water flow for ice makers and dispensers
• Worn or damaged tubes can cause pooling, low water delivery, or intermittent filling

• One replacement water fill tube

• Turn off the appliance power and water supply before starting work
• Inspect fittings and seals; replace clamps or gaskets if worn
• Slide tube into place and secure with the original or new clamps for a leak-free connection

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This wire jumper provides a short, pre-formed electrical connection used to bridge terminals in the appliance's wiring system, restoring a reliable circuit path for proper operation and diagnostics. What it does:

• Bridges two appliance terminals to complete a circuit or restore continuity
• Used where a short length of insulated conductor is required for control or sensor connections
• Commonly replaces damaged, burned, or corroded jumper wiring causing open circuits
• Can help diagnose or resolve intermittent electrical failures related to a disconnected jumper

• One wire jumper as shown

• Disconnect power to the appliance before attempting any repair to avoid shock or injury
• Match wire routing and terminal connections to the original; secure all terminals firmly
• Do not splice unless using proper connectors and insulation rated for appliance use

Replacement power cord for refrigerators. Connects appliance to wall outlet. Needed when original cord is damaged, frayed, or worn from use.

Refrigerator won't turn on or stays running constantly? This power disconnect switch controls main power to your unit. Easy DIY replacement fix.

Replacement housing for your refrigerator. Protects internal components and maintains proper appearance. Order now if your original is cracked or damaged.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/16 inch.

Size: 1/4 inch.
