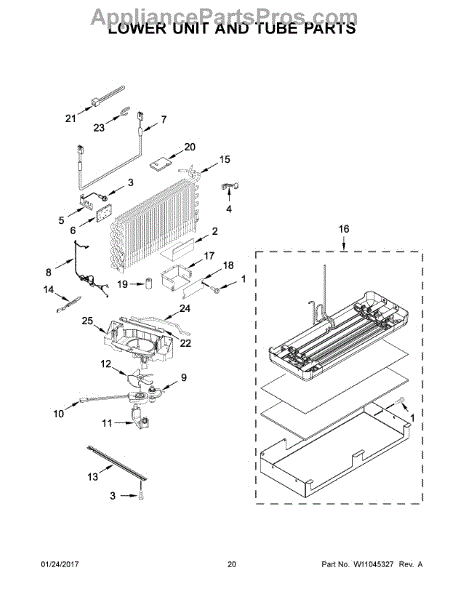

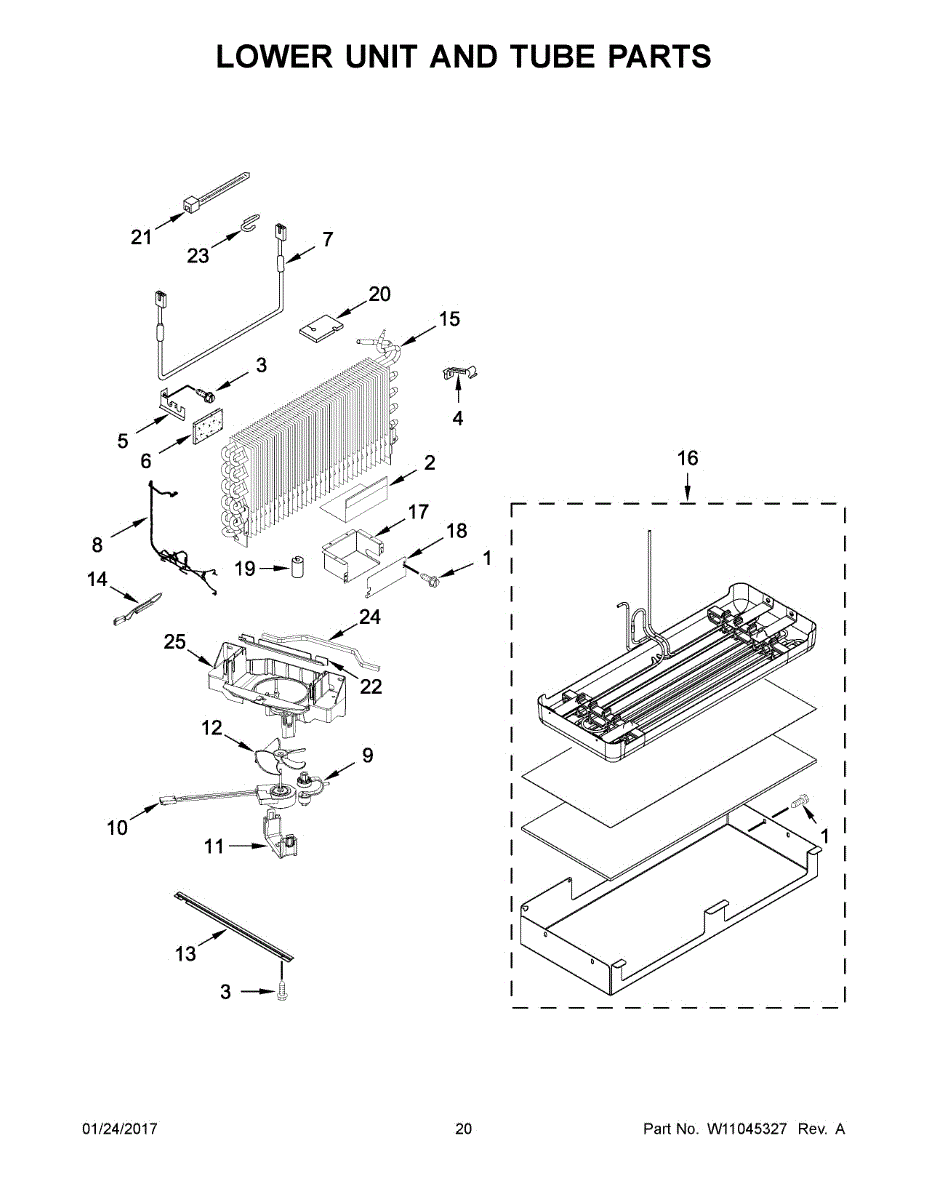

Parts for Kitchenaid KBFN502EBS02: 11 - Lower Unit And Tube Parts

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This insul-sound deadening pad reduces vibration and noise by dampening panels and components in laundry and kitchen appliances. It's a small adhesive-backed sound/isolation pad used where noise or rattles transfer through metal surfaces. What it does

• Dampens rattles and reduces structure-borne noise from panels, cabinets and housings.
• Helps isolate vibrating components from appliance chassis to lower perceived sound.
• Commonly applied behind control panels, cabinet walls or on motor mounts to cut vibration transmission.
• Useful when worn, detached or hardened factory pads allow increased noise.

• One insul-sound deadening pad

• Disconnect power before servicing an appliance to avoid shock or injury.
• Clean and dry mounting surface; press pad firmly to ensure adhesive contact.
• Replace only in the original location; do not cover vents or moving parts.
• If adhesive is weak, use OEM-approved adhesive; avoid solvents that may damage finishes.

This is a defrost heater used in the refrigerator's freezer compartment to melt frost and ice buildup on the evaporator coils during the automatic defrost cycle. It is typically a glass tube or calrod-style element mounted near the evaporator. Replace this heater if the freezer is building up excessive frost, the refrigerator is not cooling properly, or the defrost cycle is not melting ice from the coils.

Rubber grommet cushions and seals wiring, hose, or shaft openings in your refrigerator. Replace if cracked, worn, or missing to prevent abrasion.

Refrigerator making strange noises or temperature uneven? This evaporator fan motor circulates cold air. Moderately difficult repair—video available.

Fridge not cooling but freezer works? A worn evaporator fan blade prevents cold air circulation. Easy 15-minute DIY fix with our video guide.

This bracket provides a secure mounting point for internal appliance components, restoring proper alignment and reducing vibration for smooth operation. Use it to replace a worn, bent or missing support bracket. What it does:

• Secures panels, assemblies or components to the appliance frame to prevent movement
• Restores proper alignment and fit where a bracket has failed or been removed
• Helps eliminate rattling, vibration or misaligned parts caused by a damaged bracket
• Simple, passive component—no electrical function

• Bracket

• Disconnect power (and water, if applicable) before starting any repair
• Inspect mounting holes and mating surfaces for damage before installing
• Reuse or replace original fasteners as appropriate; tighten securely but avoid over-torquing

Refrigerator not cooling or powering on? This wire jumper bridges terminals to complete electrical circuits between components. Simple 10-minute fix.

Fix a refrigerator not cooling properly with a new evaporator coil. This part absorbs heat to keep food cold. Moderate DIY repair for bottom-mount units.

This is a heater element installed in or near the upper condensate drain pan of a refrigerator. It warms the pan to help evaporate collected defrost water before it can overflow. Replace this heater if you notice water pooling beneath the refrigerator, water leaking onto shelves or the floor, or if the drain pan is not drying out between defrost cycles.

Seals openings where hoses or wires pass through cabinet walls. Replace if cracked, torn, or missing to prevent chafing and vibration noise. Verify fit.
