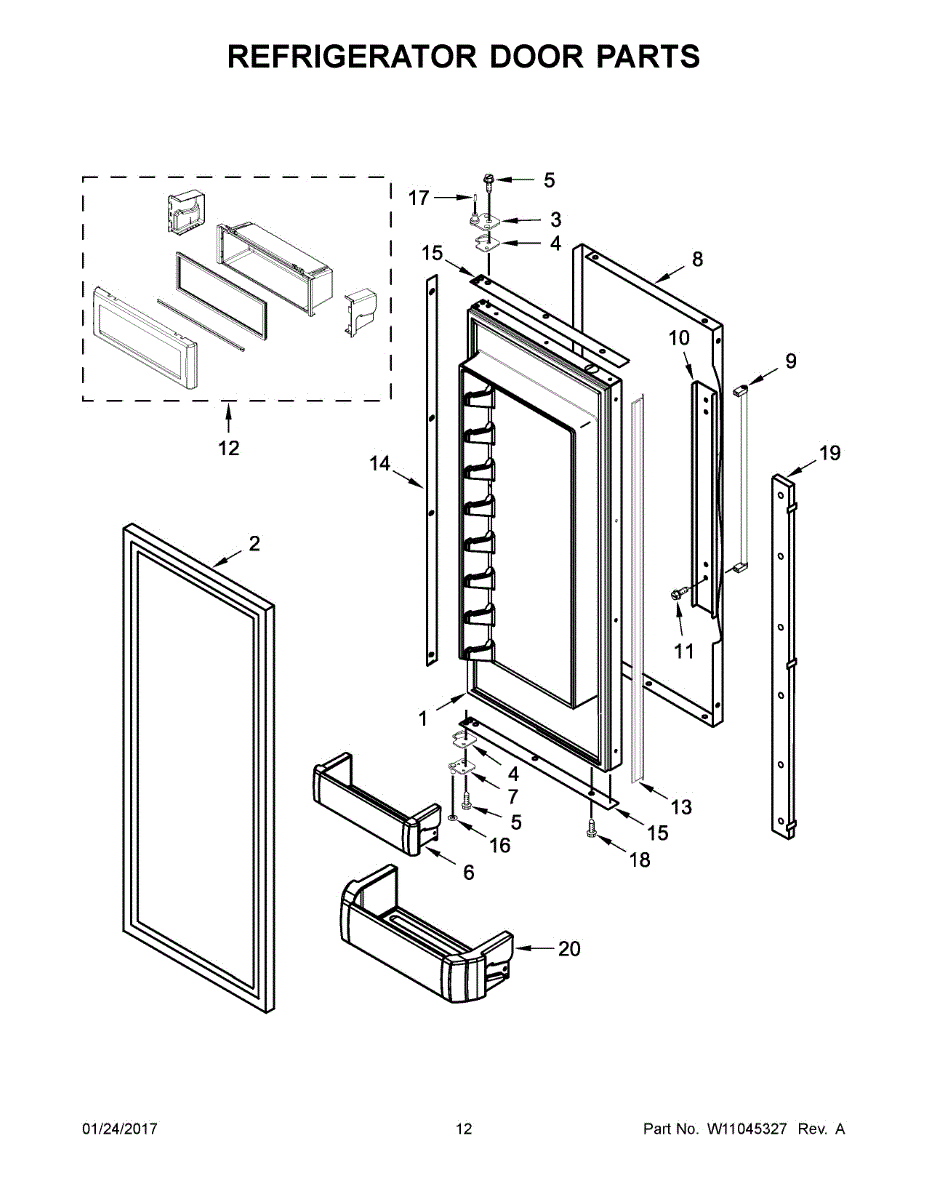

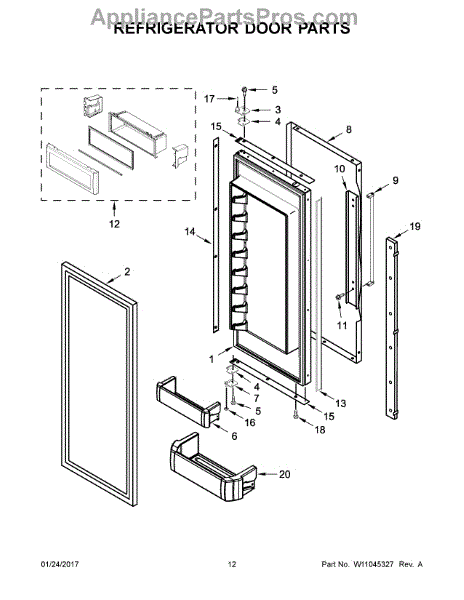

Parts for Kitchenaid KBFN502EBS02: 07 - Refrigerator Door Parts

This door hinge restores smooth, aligned door operation. Replacing a worn hinge ensures the door opens and closes properly, supports the door's weight, and helps the gasket seal evenly to reduce air or heat loss.

• Provides the pivot point that lets the door open and close smoothly
• Maintains door alignment so the seal sits flush against the cabinet
• Helps prevent sagging, rubbing, or binding at the door edge
• Common symptoms: door drops or won't close flush, squeaks/pops, visible play or hinge damage

• Disconnect power; turn off water supply if applicable
• Support the door before removing hinge fasteners to prevent strain or damage
• Transfer any spacers/bushings from the old hinge to the new hinge if present
• Reinstall and verify door alignment and seal contact; adjust as needed

This door hinge restores smooth, aligned door operation. Replacing a worn hinge ensures the door opens and closes properly, supports the door's weight, and helps the gasket seal evenly to reduce air or heat loss.

• Provides the pivot point that lets the door open and close smoothly
• Maintains door alignment so the seal sits flush against the cabinet
• Helps prevent sagging, rubbing, or binding at the door edge
• Common symptoms: door drops or won't close flush, squeaks/pops, visible play or hinge damage

• Disconnect power; turn off water supply if applicable
• Support the door before removing hinge fasteners to prevent strain or damage
• Transfer any spacers/bushings from the old hinge to the new hinge if present
• Reinstall and verify door alignment and seal contact; adjust as needed

The Screw is an OEM part for Whirlpool refrigerators. This screw plays a small but important structural role, securely fastening the refrigerator door hinges in place.

Causes of a bad screw include normal wear and tear, repeated door opening/closing stress, or accidental damage during cleaning or servicing of the hinge area.

Symptoms of a bad hinge screw include:

• Loose or sagging door that does not close or seal properly
• Increased vibration or noise from the hinge area
• Difficulty opening/closing the door smoothly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This genuine replacement door hinge lets a refrigerator or freezer door pivot smoothly and stay properly aligned so the door seals and closes correctly. Designed for direct fit where the original hinge is worn or damaged. What it does

• Provides a secure pivot point so the door opens and closes smoothly
• Restores proper door alignment to prevent gaps and uneven sealing
• Helps stop sagging or drooping doors that catch or don't latch
• Reduces stress on the door gasket by keeping the door square to the cabinet

• One door hinge

• Disconnect power and remove any stored items from the door before starting
• Support the door while removing the old hinge to prevent damage or dropping
• Use the same screw locations; tighten hardware securely but avoid over-torquing
• Check hinge screws and door strike adjustment

This is a fastener screw used to secure appliance panels and components where a 10-24 thread is required. It provides a reliable hold for reattaching parts during repairs and maintenance. What it does:

• Fastens panels, brackets, or components with a 10-24 threaded hole
• Restores original attachment points that have missing or damaged screws
• Helps reduce vibration and rattling when properly tightened
• Works with metal or reinforced plastic mating components designed for 10-24 hardware

• One screw (quantity: 1)

• Use the matching 10-24 driver/socket and turn until snug; avoid over-tightening
• Verify mating threads and alignment before driving to prevent cross-threading
• Disconnect power and follow appliance safety procedures before servicing
• Check for proper washer or spacer if originally present

This cantilever door shelf bin replaces a damaged or broken refrigerator door bin to restore secure storage for bottles and small items. It snaps into the door track to keep contents organized and prevent spills. What it does:

• Provides a sturdy shelf on the refrigerator door for bottles, condiments and jars
• Replaces cracked, chipped or missing door bins that allow items to fall
• Snaps into the cantilever door rails for a secure fit and easy access
• Restores original storage layout and helps keep the fridge organized

• Remove all items from the door before replacing the bin
• Lift the old bin out of the rail (or unhook if clipped) and slide the new bin into the same rails until it snaps into place
• Avoid excessive force; confirm the bin is fully seated and level before loading
• Wear gloves to protect hands from sharp edges and clean rails before installation

This door bearing fits the washer door assembly to restore smooth opening and closing and reduce noise, wobble, or binding. Replacing a worn bearing helps maintain proper door alignment for reliable operation. What it does:

• Supports the door hinge so the door pivots smoothly without sagging or sticking
• Reduces squeaks, grinding, or rough movement when opening or closing the door
• Helps keep the door aligned to reduce stress on the latch and door seal
• Addresses symptoms like door wobble, uneven closing, or noisy operation

• Disconnect power (and water if accessing near waterlines) before starting any repair
• Removing the door panel or inner door trim may be required; retain all fasteners and document their locations
• Inspect surrounding parts (hinge, seal, latch) and replace if damaged; improper alignment can cause premature wear

The Top Hinge Bushing is an OEM part for Whirlpool refrigerators. It provides support and movement for the refrigerator door's top hinge.

A bad top hinge bushing can be caused by regular use, wear and tear, or accidental damage. If you notice excessive door movement, sagging, or difficulty in opening or closing the refrigerator door, it may indicate a problem with the hinge bushing.

Symptoms of a bad top hinge bushing include:

• Excessive door movement or sagging
• Difficulty in opening or closing the door
• Squeaking or grinding noises

Replace your faulty top hinge bushing with this genuine OEM part to restore your refrigerator door.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This factory replacement screw secures appliance components. It replaces missing or worn hardware to restore a tight, aligned fit for panels, brackets, and assemblies—reducing rattles and keeping parts firmly in place during everyday use.

• Fastens covers, brackets, trim, or internal assemblies to the cabinet/frame
• Replaces stripped, rusted, or missing hardware
• Helps correct loose or misaligned panels or handles
• Can reduce vibration noise caused by unsecured parts

• Disconnect power; shut off water or gas supply if applicable
• Use the correct driver/bit; hand-start threads to avoid cross-threading
• Tighten snugly without overtightening to prevent damage
• Replace any companion clips or grommets if worn

The Screw is an OEM part compatible with Whirlpool dryers. This screw connects the back panel to the side panel, ensuring the dryer cabinet is securely assembled. It plays an integral role in maintaining the structural integrity of the dryer housing.

Symptoms of a bad screw can include loosening, corrosion, or breakage over time and use. This can compromise the bond between panels and weaken the overall dryer frame.

Causes of a bad screw include:

• Repeated expansion and contraction from heat cycles
• Vibrations loosening the connection point
• Stress or cracks developing at the screw head or threads

These issues can lead to:

• Gaps appearing between panels
• Components like controls detaching from the housing
• Cabinet unable to withstand pressure changes

This OEM Whirlpool replacement screw is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
