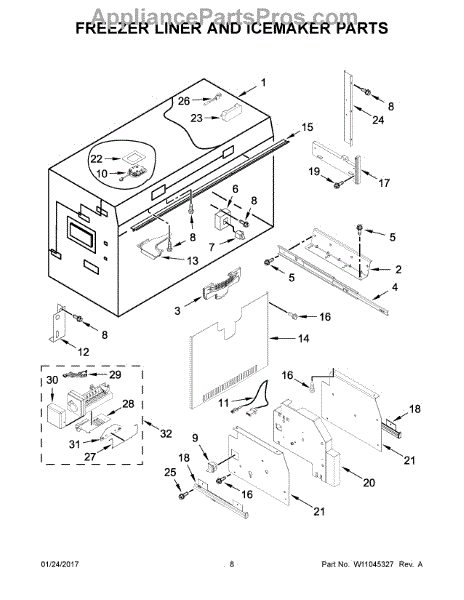

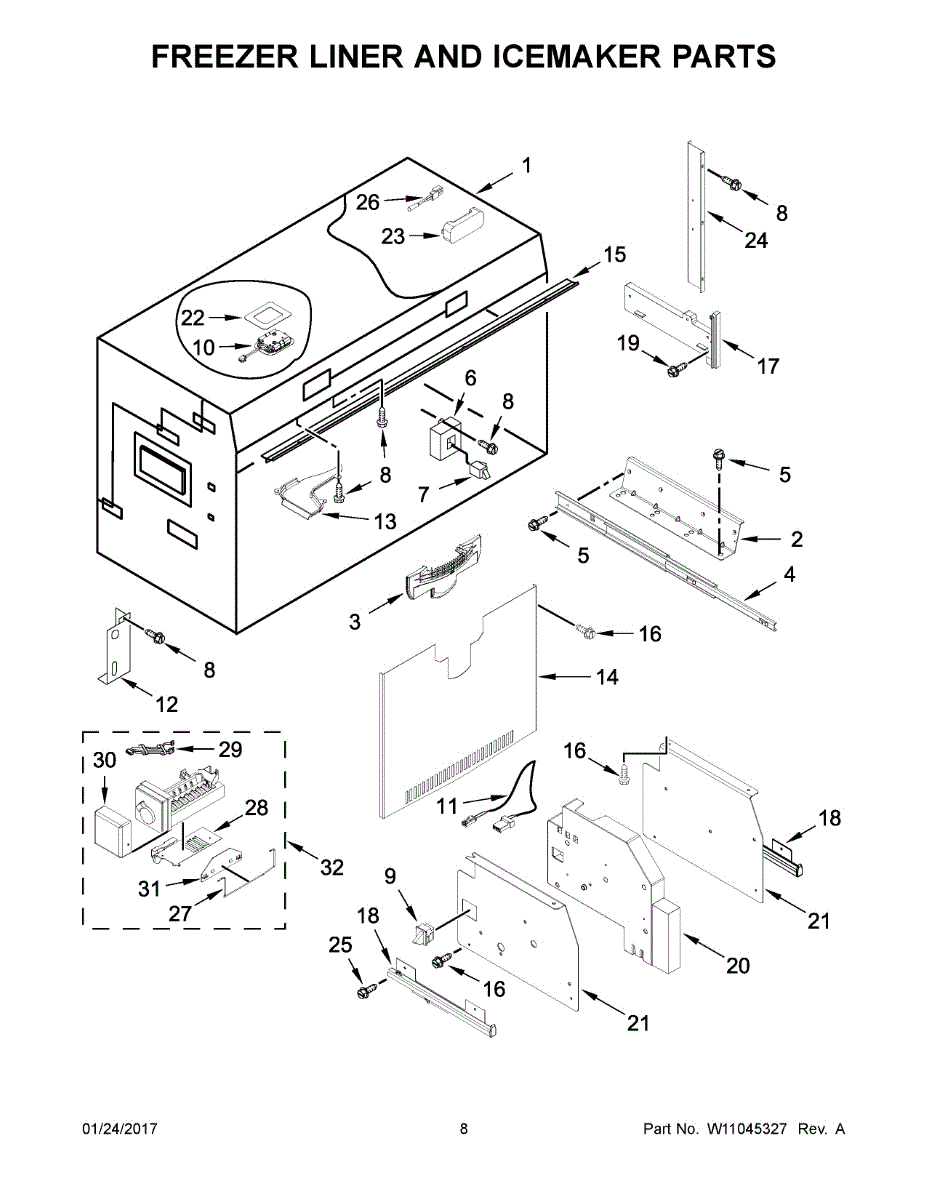

Parts for Kitchenaid KBFN502EBS02: 05 - Freezer Liner And Icemaker Parts

This replacement NC light switch restores proper operation of the appliance's light circuit, helping the light turn on and off as designed for safe use and visibility during service or operation. What it does

• Completes or breaks the light circuit when the door or control triggers the switch.
• Restores interior or indicator light operation that is dim, flickering, or nonfunctional.
• Prevents the light from staying on continuously if the switch is failed closed.
• Matches the OEM function for reliable, long-term use when replacing a worn switch.

• Disconnect power before servicing to avoid shock or injury.
• Access may require removing panels or door trim—refer to your model's service manual or tech sheet.
• Inspect wiring and connectors; replace any damaged harnesses or terminals.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Refrigerator Door Switch is an OEM replacement part for Whirlpool refrigerators. It is a crucial component that monitors the opening and closing of the refrigerator door, ensuring proper operation and energy efficiency.

Causes of a bad Door Switch can include physical damage, wear and tear over time, or electrical malfunctions.

Symptoms of a faulty Refrigerator Door Switch include:

• Interior lights remaining on even when the door is closed
• Compressor failing to cycle on and off as intended
• Condensation or frost buildup due to improper sealing
• Error codes or warning lights related to the door switch

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

This evaporator cover protects the freezer evaporator coil and helps direct cold airflow for even cooling. It restores proper airflow and prevents contact with the coil to reduce frost buildup and compressor strain. What it does:

• Shields the evaporator coil from debris and accidental contact
• Directs cold air through the freezer compartment for balanced cooling
• Helps reduce frost accumulation on the evaporator by maintaining airflow
• Can alleviate symptoms like uneven freezer temperature, excessive frost, or abnormal freezer noises

• One evaporator cover / evaporator shroud

• Disconnect power to the appliance before starting any repair
• Remove shelves, evaporator fan, or ice maker as needed for access
• Handle carefully around the evaporator and sharp sheet metal; avoid bending the cover
• Use OEM fasteners and follow manufacturer torque/placement; replace any damaged clips or screws

This deflector directs airflow inside the dryer to help maintain even drying and protect internal components from redirected heat. It's a simple replacement that restores proper air routing for more consistent performance. What it does:

• Guides hot air through the drum and exhaust path to promote even drying
• Helps prevent hotspots and reduces prolonged dry times caused by poor airflow
• Protects adjacent components by channeling heat away from sensitive areas
• Reduces abnormal noises caused by loose or damaged airflow parts

• One deflector

• Disconnect power before servicing to avoid shock or injury
• Access may require removing the dryer front or top panel; keep track of fasteners
• Replace with the correct orientation and secure all mounting points

This replacement slide guides and supports the oven rack so it moves smoothly and stays aligned during use. Replacing a worn slide restores stable rack movement and helps prevent the rack from catching or sagging. What it does:

• Guides an oven rack or drawer so it opens and closes smoothly
• Keeps the rack aligned to prevent tipping or sagging under load
• Reduces binding, sticking, or noisy operation when sliding the rack
• Addresses symptoms like a rack that falls, jolts, or won't slide evenly

• Disconnect power to the appliance before starting any repair
• Use basic hand tools; retain any original fasteners unless replacements are provided
• Replace them as well for best results

This slide is a replacement drawer guide that helps a dishwasher/drawer or appliance compartment open and close smoothly and stay aligned. It restores stable, low-friction movement for worn or damaged guides. What it does

• Guides and supports the drawer or compartment as it slides in and out
• Reduces sticking, binding, or uneven movement caused by a damaged guide
• Helps keep the drawer aligned and prevents sagging or dropping
• Works as a wear item replacement when original guide is cracked, worn, or broken

• One slide/drawer guide

• Designed for direct replacement
• Remove power and empty the drawer/compartment before starting any repair
• Keep fasteners and mounting clips from the old part for reuse if undamaged

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance

This cover housing protects internal components and keeps the appliance looking finished. It restores a secure enclosure to prevent debris intrusion and minimize exposure to wiring and mechanical parts. What it does:

• Shields internal components and wiring from dust, moisture and physical contact
• Helps reduce noise from loose parts when the appliance is running
• Restores the appliance's finished appearance after service or damage
• Can be replaced if cracked, warped or missing to maintain safe operation

• Disconnect power to the appliance before starting any repair
• Use basic hand tools; keep fasteners organized for reassembly
• Do not force-fit the cover; align tabs and screw holes before tightening
• If mounting points or clips are damaged, replace them to ensure a secure fit

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance

The Ice Level Arm is an OEM part for Whirlpool refrigerators. It is an component of the ice maker, responsible for sensing the ice level in the ice bin and controlling the ice production cycle. When the ice bin reaches capacity, the ice level arm signals the ice maker to stop producing ice, ensuring efficient operation.

You should replace this ice level arm if it becomes faulty. Causes of a bad ice level arm can include mechanical wear and tear, accidental damage, or issues with the connection to the ice maker mechanism.

Symptoms of a bad Ice Level Arm include:

• Continuous ice production, leading to overfilling
• The ice maker not producing ice even when the bin is empty
• The ice level arm not moving freely or appearing stuck

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This wire harness connects a unit's controls and components to deliver power and signals, restoring proper electrical connections for affected circuits. It's a direct-fit replacement designed to match the OEM routing and terminals. What it does

• Replaces a damaged or frayed harness to restore electrical continuity to controls and components
• Re-establishes secure connector connections used by control boards, switches, or sensors
• Commonly used when controls are unresponsive, intermittent, or when visible wiring is burned or broken
• Helps eliminate loose or exposed wires that can cause shorts or intermittent operation

• One replacement wire harness as shown

• Disconnect power (unplug or shut off breaker) before starting any repair
• Follow OEM routing and connector placements; secure harness with original clips and fasteners
• Inspect connectors and mating terminals for damage before installing; replace if corroded or melted

This ice maker cover shields the front of the ice maker assembly, protecting the module and moving parts from dust and accidental contact. Replacing a cracked or missing cover restores a clean, finished appearance and keeps components protected.

• Shields the ice maker's front components and control module
• Helps keep dust, splashes, and debris out of the mechanism
• Prevents accidental contact with moving ejector parts
• Replace if the cover is cracked, warped, missing, or will not stay attached

• Unplug the refrigerator before servicing
• Access the ice maker in the freezer compartment
• Carefully release the retaining tabs and remove the old cover; note orientation
• Align the new cover and press until it snaps securely into place—do not force the tabs

Note: Extension only. For shut off arm, order W11251736.
