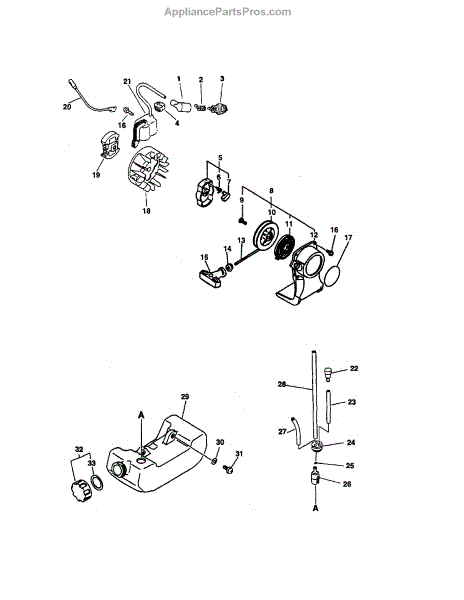

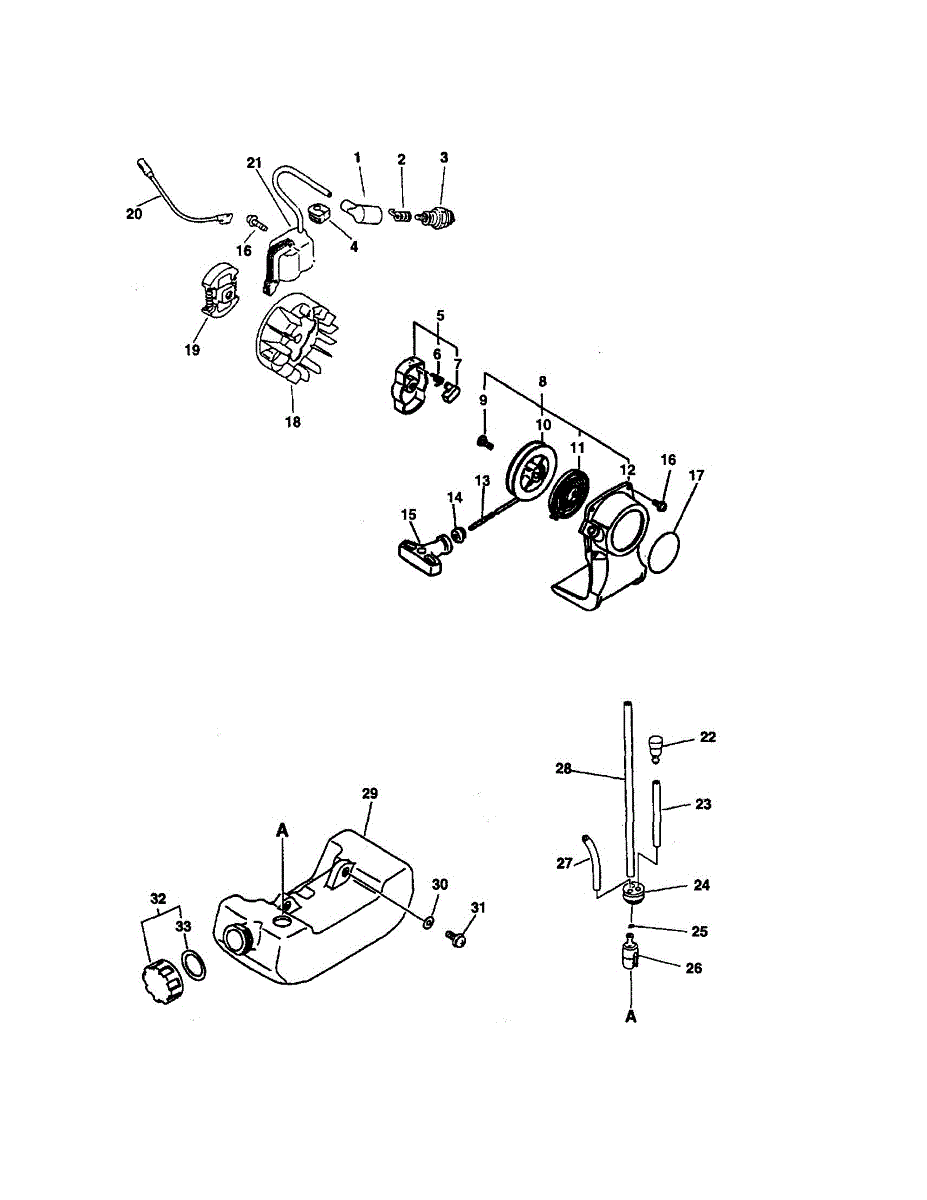

Parts for Echo SRM-2100SB: Starter / Ignition / Clutch / Fuel System Parts

It’s important to keep spark covers well maintained to prevent current leaking out from your spark plugs. The connection between the leads and the plug needs to be tight to keep the electric flow steady. Over time, spark plug covers can become dry and brittle. If the cover has failed, spark plugs will begin to go bad. Some signs of this are if your engine misfires or hard starts. Replacing the spark plug cover is as simple as removing the old cover and attaching a new one. This is an easy fix and shouldn’t require any special tools or additional parts. Be sure to let the engine cool completely before attempting any repairs. This genuine OEM part is a replacement spark plug cap for handheld gardening tools like chainsaws, leaf blowers, pole saws, hedge trimmers, edgers, chippers, shredders, sprayers, or tillers made by Echo, Mantis, or Shindaiwa. This item ships individually.

The spark plug cap spring is an important part of a handheld outdoor appliance’s ignition system. The spark plug makes a small electrical arc between two bits of wire, causing the ignition to combust, leading to the engine turning. But, to make sure there is good contact with the lead, you need a working spark plug cap spring. The spring holds the cap and plugs in place to ensure everything is grounded. With spark plugs, oil or carbon can build up in an aging engine and cause problems. If oil gets into the spark plug cap, the spring can come loose and the spark plug won’t work. This means the ignition will fail and the engine won’t start. This is an easy fix with this genuine OEM part sourced directly from the manufacturer. Just remove the cap and fish out the old spring with a pair of pliers. Replace it and reattach. It is compatible with Echo, Mantis, and Shindaiwa chainsaws, pole pruners, edgers, lawnmowers, tillers, and weed eaters. Sold individually.

This is a cylinder head gasket that is located between the cylinder head and the engine block on lawn and garden equipment. This gasket is responsible for sealing in the internal combustion process. It also prevents oil and coolant from mixing as they move from the engine block to the cylinder head. Some signs that a new cylinder head gasket may be needed include fouled spark plugs, leaking coolant, white smoke, an overheating engine, and milky white oil. As time goes on, gaskets can deteriorate and may crack, which means a replacement is required. Some of the tools that may be needed include a nut driver, socket driver, spark plug wrench, hex bit, screwdriver, Torx screwdriver, torque wrench, and a gauge. This is an expert replacement that requires a great deal of mechanical knowledge. First, get access to the head gasket and check it for flatness. Prepare the surface, remove the old head gasket, and install the new one. This is a genuine OEM component provided directly from the manufacturer. It is designed to be used in Echo, Little Wonder, and Mantis tillers, pole pruners, string trimmers, hedge trimmers, leaf blowers, and edgers. This component is sold individually.

The intake gasket is designed to act as a seal between the cylinder head and the heat dam. It keeps the engine sealed and protected during use. Not only does this reduce the risk of damage to the engine on various lawn equipment units, but it eliminates potential leaks that could reduce engine power or performance and ensures maximum flow to the engine. Gaskets can become worn or damaged over time with regular use or they can break unexpectedly. This Echo gasket is made from compound material that is durable and designed to withstand the high heat inside of an engine. Use it to replace the gasket in compatible lawn equipment. This gasket is an OEM part that is designed to fit many Echo and Little Wonder lawn and garden equipment engines. There are more than 150 compatible models in total, including blowers, pumps, reciprocating saws, cultivators, edgers, and other saws. Check your user manual for compatibility and to see if there are any special replacement instructions to consider.

This is a genuine pawl spring, also sometimes called a return spring, which can be found on select models of small power equipment engines. This part is designed as part of the recoil starter system. When the starter is engaged, the return spring is responsible for returning the starter pawl back to its original position once the engine is started. If the spring starts to wear or fail and cannot return the pawl, the engine will not operate properly and could have trouble starting in the future. It is always a good idea to inspect all starter housing components and replace them with genuine parts like this pawl spring when they are faulty. The OEM pawl spring is manufactured by Echo and made to exact standards to fit more than 150 compatible machines from the brand, as well as select models from Little Wonder and Shindaiwa. It can be used with edgers, trimmers, hedge trimmers, blowers, and paint sprayers. The pawl spring is made of durable metal and is sold as a single unit with no additional hardware or parts. Always allow the engine to cool completely and disengage the spark plug before working on the starter assembly, including replacing this spring.

This is a durable plastic starter pawl that is designed to secure the return spring inside of the starter pawl assembly. It connects the flywheel with the recoil pulley and spins when the starter rope is pulled. This makes the flywheel rotate, which causes the engine to start. If a trimmer or leaf blower isn’t working correctly, it could be caused by a defective starter pawl. The first step is removing the engine cover followed by removing the spark plug boot, taking off the engine cover, and taking out the starter assembly. Next, bind the engine and remove the starter pulley from the engine. At this point, take off the starter pawl return spring using a screwdriver and install the new starter pawl. Reassemble the unit before unbinding the engine and using the equipment again. This is a genuine OEM starter pawl for Echo, Mantis, Shindaiwa, and Little Wonder water pumps, trimmers, tillers, hedge trimmers, chipper shredders, leaf blowers, and pole saws. It is sold individually. A screwdriver and a hex key are needed to complete the replacement.

This part is a genuine replacement for Echo exhaust gaskets on select lawn and garden machines. It creates a seal between the exhaust shield and exhaust pipe. Gaskets are exposed to high temperatures and constant pressure, so they may wear down over time. They can deteriorate or become compressed, which affects the quality of the seal that they create. This could impact the engine performance in various ways. Replacing the gasket is generally the best solution. This OEM exhaust gasket is compatible with a variety of machines from Echo and Little Wonder, including blowers, pruners, cultivators, pups, drills, and reciprocating saws. Replacing gaskets requires the use of multiple tools. Gloves should be worn for hand protection and the engine should always be cool before any repairs are done. This durable gasket meets all EPA requirements and is made from durable composite material. It is sold as an individual item and those who need additional gaskets will have to purchase multiple quantities.

This is a starter kit meant to replace the starters used on a number of small gasoline powered Echo engines found in lawn and landscaping equipment. This is found on devices such as gasoline powered drills, edgers, trimmers, hedge clippers, brush cutters, and grass trimmers. This part actually replaces the complete starter assembly, including the pull rope, pulley, spring, and handle. Through normal use, starter pulleys eventually sustain damage. A sign of this is when a user pulls and pulls on the starter rope, but the flywheel that turns the engine simply does not engage. While individual pieces of the starter assembly can be replaced, it is generally considered wiser to replace the entire assembly, since every part will have sustained similar wear and tear. Replacing the assembly all at the same time saves money and added time spent working on a disassembled machine. Replacing the starter assembly with a new one is a comparatively easy task, since the user does not have to worry about compressing the recoil starter or tensioning the pull rope. The new assembly is simply bolted onto the device. It is most important, however, to use a starter assembly like this one that is OEM certified to match the original starter assembly perfectly.

The muffler gasket here is a replacement for use in various types of handheld outdoor equipment. The gasket will provide an airtight seal between the muffler and the exhaust guide on the equipment. Over time, the muffler gaskets could start to shrink and to become brittle. A bad muffler gasket could cause a noisier engine or a loss of power if air is getting into the engine. They may also crack. Any of these issues would require the gasket to be replaced. This is a genuine OEM replacement muffler gasket. It is made from durable material and is sold individually. It can work with many types of lawn and garden equipment including tillers, string trimmers, leaf blowers, edgers, pole pruners, and hedge trimmers. Brands that are compatible with the gasket include Mantis, Little Wonder, and Echo.

This screw is a necessary part in many pieces of outdoor lawn and garden equipment and especially in power machines. It is designed to be used with hedge trimmers, edgers, chainsaws, leaf blowers, chippers, shredders, trimmers, engines, power sprayers, pole saws, pruners, brush cutters, tillers, cultivators, and water pumps. It is designed to be compatible for use with products manufactured by the Echo and Shindaiwa companies.The basic function of a screw is to hold different pieces or materials together. Replacing screws like this one is a relatively simple process as it involves locating the faulty screw, or a spot with a missing screw, and replacing it with the new one.This screw is a genuine OEM part sourced directly from the manufacturer, and it is sold individually. It is manufactured by the Echo company. This screw is made out of metal.

A starter rope is wrapped around the recoil drum starter pulley. The starter spring creates tension for the rope to recoil. It is 2.25 inches in diameter on the outside of the pulley and 0.25 inches in diameter on the inside of the pulley. If the starter spring has gone bad, consider replacing the recoil drum starter pulley while repairing the other part. It may be that the damage of the starter spring has chipped the drum, or the drum may be worn from the friction of spinning as the rope uncoils and recoils. If the recoil drum starter pulley is damaged, it may not spin freely. This could prevent the engine from starting. The replacement of this part should be quick and easy and only requires a screwdriver and pliers to complete. The recoil drum starter pulley works with trimmers, hedge trimmers, pole saws and pruners, leaf blowers/vacuums, small engines, chipper shredders, edgers, tillers, and water pumps manufactured by Echo, Little Wonder, Mantis, and Shindaiwa brands. It is a genuine OEM part.

A starter rewind spring is made of metal and works in conjunction with pull starter lawn and garden equipment. If the starter rewind spring is damaged, the equipment’s engine won’t be able to start. The pull start may not provide any resistance when trying to start the machinery. If this is the case, inspect the starter rewind spring for damage. Replacing the starter rewind spring can be accomplished in just a few moments with only a screwdriver. Remove the old part and insert the new one. This starter rewind spring is compatible with string trimmers, hedge trimmers, leaf blowers/vacuums/ pole saws and pruners, edgers, chipper shredders, small engines, tillers, water pumps, and sprayers manufactured by Echo, Little Wonder, Mantis, and Shindaiwa brands. It is a genuine OEM part.

This is a rope guide that is used with various types of lawn and garden equipment. It connects the rope handle and the starter rope. It helps prevent damage to either of the ropes by covering them in durable plastic material. Over time or through use, the rope guide can become damaged or break. If this happens, the part will need to be replaced. First, put the equipment on a flat surface. Drain the fuel from the tool and disconnect the spark plug wire. Next, the starter will need to be removed from the tool to gain access to the rope guide. The rope guide and any other damaged components, such as the string and springs, can be removed from the tool before adding a replacement component. This is an authentic OEM replacement component that is sourced directly from the manufacturer. It is sold as an individual part. The rope guide is compatible with string trimmers, leaf blowers, hedge trimmers, and pole pruners manufactured by Little Wonder, Echo, and Shindaiwa.

Gas-powered machines for the lawn or garden means rely on the machine's electronics to create a spark that causes an ignition inside of the combustion engine. Any engine is going to need air, fuel, and that spark to create power and it is the job of the spark plug to generate it. However, the spark plug needs a current to generate that spark, and that is where the ignition coil comes into play. When an engine is not firing, it may be that there is a problem with the ignition coil. This replacement part works in trimmers and pruners made by Little Wonder and Echo. This is an OEM replacement part that will require a screwdriver and wrench to replace. It includes the plastic casing as well as the properly fitted wires that send electrical energy to the spark. It ships individually.

This fuel tank grommet creates a tight seal where the fuel line enters and exits the fuel tank. It is also commonly known as a fuel tank bumper, fuel line grommet, or rubber grommet. This particular grommet has three holes and is made of black rubber. The fuel line, the vent tube, and the fuel return line are inserted through the three holes. While the fuel tank grommet is made from durable rubber, it can get worn out over time and cause fuel to leak from the tank. At this point, it's time to replace the grommet, and it's advisable to change the fuel lines at the same time. It's a straightforward procedure that will take 15 to 30 minutes to complete. This part works with more than 150 tools and equipment. In particular, it works with outdoor power tools like the chipper, edger, grass trimmer, hedge trimmer, string trimmer, leaf blower, pole pruner, tiller, and water pump. It is compatible with brands like Echo, Little Wonder, Mantis, and Shindaiwa. This replacement part is sold individually and is supplied directly from the original equipment manufacturer.

This clip attaches the fuel line to the engine’s carburetor. This clip is important as it keeps your outdoor tool’s fuel line attached to the fuel filter. If this connection comes loose, fuel will not be filtered properly and might not reach the rest of the engine. Clips are prone to becoming brittle over time and can easily snap due to their small size and location against the vibrating engine. While a faulty fuel line clip might not be the most obvious of problems, it’s an easy fix that only requires a metal hook. Fish out the fuel line from the empty fuel tank and take off the filter. Remove the faulty clip and replace it with the new one. This item is a genuine OEM product shipped straight from the original manufacturer and is compatible with Echo, Mantis, and Shindaiwa appliances. It can be used with chainsaws, hedge trimmers, edgers, pole pruners, tillers, and string tillers, and even leaf blowers.

This felt fuel filter 125-527-1 is used to clean fuel before it reaches the carburetor. If clogged, this can restrict the flow of fuel to the carburetor, causing the engine not to start. Fits 3/16 inch ID fuel line and engines up to 30cc. This part is commonly used with blowers, chainsaws, edgers, shredders, and trimmers. Not compatible with greater than 10% ethanol fuel.

This is a genuine replacement for Echo 3 x 6 x 80 clear yellow pipe. The pipe is used on various engines and lawn and garden machines to transport fuel between the fuel tank and the carburetor. This pipe is made of durable plastic material, but it can become brittle and crack or break over time. This could lead to leaks or even a total engine failure, which is why it is important to replace pipes as soon as possible to ensure that further damage does not occur. This replacement part can repair various compatible machines that require a genuine Echo part. This clear fuel line pipe is designed to work with tillers, trimmers, blowers, and other lawn and garden equipment with small engines made by Echo. It is important to drain the fuel from the engine and the fuel tank before beginning any work on the fuel system. Allow the engine to cool completely and wear gloves whenever performing engine repairs. This pipe is sold as a single unit and does not include any hardware or additional parts.

This fuel line is made to take fuel from the fuel filter in the fuel tank into the carburetor, where it is mixed with air before being ignited with a spark. Over time, the fuel line can become damaged or clogged and cause problems with lawn and garden equipment. Some of the symptoms of a bad fuel line include an engine that cuts out, a smoking engine, or an engine that refuses to start. If the fuel line is cracked or brittle, a replacement is needed. When replacing the fuel line, the replacement part should be pushed through the fuel line grommet before being connected to the carburetor. This results in forcing fuel into the carburetor whenever the primer is pushed. Before starting the replacement, make sure to turn off the engine, remove any spark plugs, and remove fuel from the tank for safety purposes. This fuel line is a genuine OEM component that comes straight from the manufacturer. It can be used on various Echo water pumps, trimmers, hedge trimmers, pole saws, leaf blowers, and edgers. This item is sold individually. Replacement of the part does not require any tools or additional components.

Any gas-powered machine requires a way to store the fuel that will be used to operate it. Typically, the fuel will run to a primer or directly to the carburetor. If the tank holding the fuel is broken or damaged, it will allow leaks that can be dangerous or prevent the machine from operating. This replacement fuel tank is meant for use in drills, edgers, pumps, saws, and a long list of other machines manufactured by Echo. It is made of durable plastic for a long life. This is an OEM replacement part that does not include the lines, fuel cap or other essential components. It ships individually and will require a hex wrench and a screwdriver to install properly.

The replacement screw seen here is a standard piece of hardware that could have multiple applications for various machines. The screws are often found in outdoor equipment for the lawn and garden. Screws have a simple but important function. They are used to help keep different parts of the machine together and can often help to reduce noise and vibration that could otherwise occur. Screws could need to be replaced for many different reasons. When taking apart the machine to reach or repair other areas, the screws might become lost and will need to be replaced. Other times, the screws could become bent or there could be issues with the threads. They could also break or be damaged by corrosion. This is a genuine OEM replacement screw from Echo that is sold individually. The screw can work with many models of lawn mower, string trimmer, edger, hedge trimmer, chainsaw, pole pruner, and leaf blower. Compatible brands include Little Wonder, Echo, and Shindaiwa.

This fuel cap assembly is designed for a variety of lawn and garden equipment from Echo. It ensures fuel stays inside the fuel tank and prevents leakage from the tool. A fuel cap assembly can become broken, cracked, or damaged through hitting it against objects or general wear and tear. If the cap doesn't tighten correctly, fuel can be smelled, or damage is apparent, the fuel cap assembly will need to be replaced. Replacing a fuel cap assembly is a simple process. Take the tool into a ventilated area and remove the cap. Disconnect the spark wire to be safe while working. Next, the new fuel cap assembly can be installed just as easily as the old one comes off. Screw on the new fuel cap and reconnect the spark wire. Make sure the fuel tank is full so the tool can be tested to ensure it is in working order. This fuel cap assembly is a genuine OEM component that comes directly from the manufacturer. It is a single part and fits Echo tillers, string trimmers, pole pruners, leaf blowers, edgers, and hedge trimmers.

This is a genuine fuel cap gasket replacement designed for use in certain lawn and garden equipment engines. The fuel cap gasket is threaded onto the tank with the fuel cap, creating an airtight seal and ensuring that gasoline doesn't leak out while the machine is in use. This gasket can become corroded from the chemicals over time or simply become worn and ineffective at sealing as the rubber wears out. In some cases, the gasket is lost. A replacement with an OEM part like this will be required. This replacement fuel cap is manufactured to exact OEM standards by Echo and can be used for select models of hedge trimmers, blowers, edgers, and grass trimmers made by Echo, Little Wonder, and Shindaiwa. This gasket is sold as an individual unit and does not include any additional hardware or parts. This durable rubber gasket is easy to replace. Simply take off the fuel cap and remove the old gasket, if still present. Then, put the new gasket on the fuel tank or in the cap (depending on the requirement of the model being repaired) and replace the fuel cap. Be sure to allow the unit to cool and wear gloves when performing repairs.
