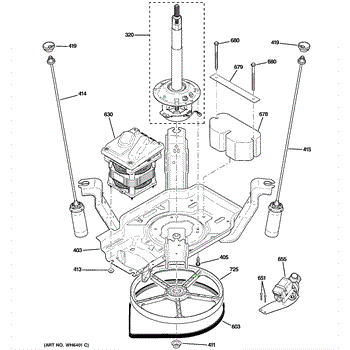

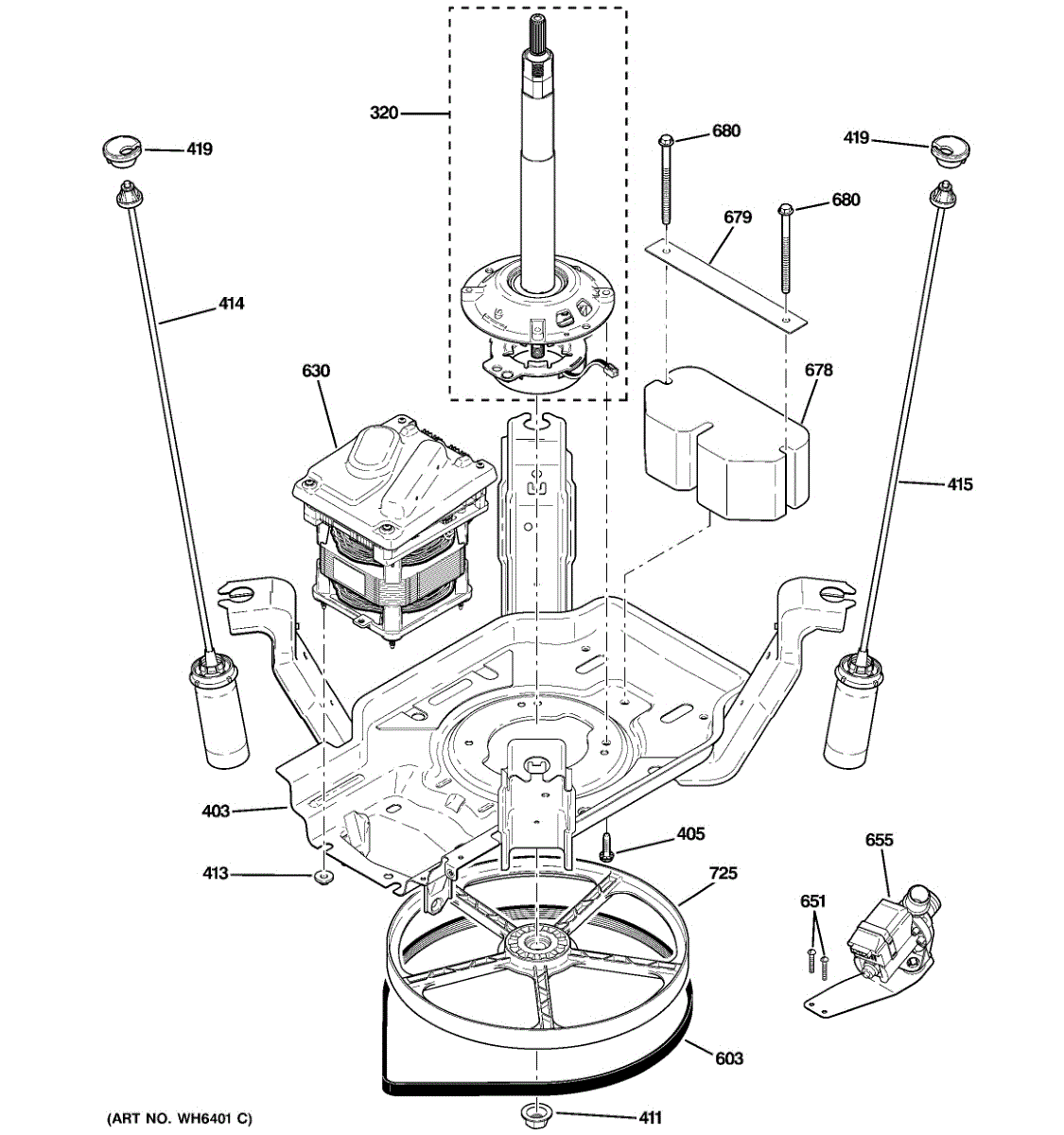

Parts for Hot Point HTWP1400F2WW: Suspension, Pump & Drive Components Parts

This shaft and tube assembly supports and drives the washer's inner basket during the spin cycle. Replacing a worn or bent assembly restores smooth rotation and helps reduce noise, vibration, and basket wobble.

• Supports and centers the inner tub for stable spinning
• Provides the rotating drive surface that turns the basket in spin
• Works with the washer's drive system to deliver spin power
• Common symptoms: no or weak spin, scraping/grinding noises, excessive vibration, or basket wobble

• Disconnect power and water supply before servicing; wear gloves and eye protection
• Access typically requires removing the top/console, agitator or wash plate, inner basket, and retaining hardware
• Inspect related parts and replace if worn or leaking during reassembly
• After installation, level the washer and run a spin test to check for proper operation and leaks

Size: 1/4 - 20 b.

Transmission drive pulley nut.

This hex nut overmold assembly secures appliance components while the molded sleeve protects surrounding surfaces and reduces vibration. It replaces worn or missing fasteners to restore a secure fit and help prevent rattling or movement. What it does:

• Provides a threaded fastening point for panels, trim, or internal brackets
• Molded overmold sleeve protects finishes and helps isolate vibration
• Restores secure mounting when a nut is stripped, missing, or loose
• Helps reduce rattling and movement of attached parts

• Disconnect power and follow appliance-specific safety procedures before starting
• Tighten by hand then snug with the appropriate wrench; avoid overtightening to prevent damaging the molded sleeve

The Rod & Spring Assembly is an OEM part for GE washing machines. This assembly helps support and stabilize the washing machine tub, reducing excessive movement and vibrations during the wash and spin cycles. It ensures the smooth operation of the washing machine, contributing to efficient and balanced performance.

Causes of a bad rod and spring assembly can include regular wear and tear, heavy loads that strain the components, or damage from repeated use. Over time, these factors can lead to decreased stability and increased noise during operation.

Symptoms of a bad rod and spring assembly include:

• Excessive shaking or vibrating during wash cycles
• Loud banging noises
• The washer moving or "walking" during operation
• The tub appearing off-center or imbalanced

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Rod and Spring is an OEM part for GE washing machines. This part stabilizes the washer tub, reducing vibrations, and maintaining balance during the wash and spin cycles.

Causes of a bad rod and spring can include wear and tear from frequent use, corrosion from exposure to moisture, and physical damage from overloading the washer or accidental impacts.

Symptoms of a bad rod and spring include:

• Excessive shaking or vibrating during wash or spin cycles
• Loud banging or knocking noises during operation
• The washer tub being off-balance or misaligned
• Visible wear, rust, or damage to the rod or spring

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Suspension Rod Support is an OEM part for GE washing machines. This part maintains the stability of the washing machine's drum by supporting the suspension rods, which help absorb vibrations and shocks during operation.

Causes of a bad suspension rod support can include wear and tear from regular use, corrosion due to exposure to moisture, or physical damage from overloading the washer.

Symptoms of a bad suspension rod support include:

• Excessive shaking or vibrating during the wash cycle
• Loud banging noises
• The washer moving or "walking" during operation
• The drum being off-balance

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Drive Belt is an OEM part for GE washing machines. This belt is responsible for connecting the motor to the drum, enabling the drum to spin during the wash and spin cycles. For the belt install tool, order part number WX05X20641.

Causes of a bad drive belt can include regular wear and tear from normal usage, overloading the washing machine, or exposure to harsh conditions that cause the belt to crack or fray. When the drive belt is compromised, it can affect the overall performance of the washing machine.

Symptoms of a bad drive belt include:

• The drum not spinning or spinning inconsistently
• A burning smell during operation
• Unusual noises such as squealing or thumping
• The washing machine stopping mid-cycle

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This genuine OEM part is a drive motor for washers. The drive motor is the main engine that drives the washer tub allowing it to rotate and wash clothes effectively. If the washer is no longer spinning or the power has significantly decreased, it might be a sign that the drive motor needs to be replaced. Luckily, replacing this part is a relatively simple repair.To replace the drive motor, start by unplugging the washer. Once unplugged, move the washer away from the wall to gain access to the back panel. Uninstall the back panel by removing the screws that attach it. After removal, locate the drive motor and proceed to unthread the mounting screws holding it to the washer. Proceed to pull the old motor out of its place and install the new motor by threading the screws that secure it. This replacement part is sold individually and is compatible with GE, RCA, and Hotpoint brand washers.

The Drain Pump is an OEM part for GE washing machines. It is essential for expelling used water from the washer during and after the wash cycle. This pump ensures that water flows efficiently out of the machine, preventing standing water which can lead to issues like mold and unpleasant odors.

Causes of a bad Drain Pump can include clogging from small garments or debris, motor failure, or damage to the pump impeller.

Symptoms of a bad Drain Pump include:

• Water not draining out of the washing machine,
• Unusual noises coming from the pump area during the drain phase,
• The washer stopping mid-cycle.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A replacement door counterweight that restores proper balance so doors and drawers open and close smoothly. Helps reduce sagging and uneven alignment for safer, quieter operation. What it does

• Adds weight to a door or drawer to maintain proper balance and alignment
• Helps prevent door sag, sticking, or uneven closing
• Reduces stress on hinges and tracks that can cause premature wear
• Can improve seal engagement and reduce rattling or vibration

• One counterweight

• Disconnect power to the appliance before starting any repair
• Support the door or drawer while removing fasteners to prevent dropping
• Use basic hand tools; follow the appliance service manual for specific steps

This drive pulley mounts to the washer basket shaft and routes the belt from the motor to spin the drum. Replacing a worn pulley can stop squeal and belt slippage and help restore smooth, reliable spin performance.

• Transfers motor power via the belt to rotate the wash basket during spin
• Keeps the belt tracking correctly; damage can cause squealing, fraying, or slippage
• Typical symptoms: no or slow spin, belt repeatedly coming off, grinding/squealing noises, burning rubber smell, or visible pulley wobble

• Disconnect power and water before servicing; pull the unit forward for access
• Remove the rear panel to access the belt and pulley
• Slip off the belt, remove the center fastener, and replace the pulley
• Reinstall the belt on the grooves; verify alignment by hand-rotating the drum before testing
