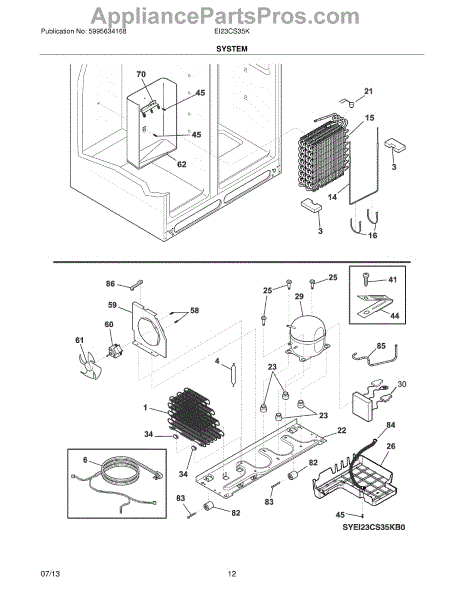

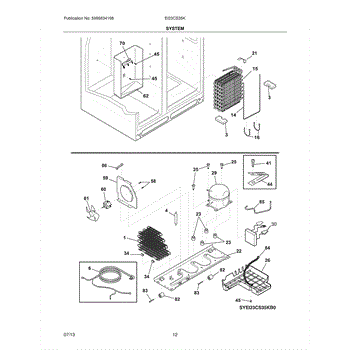

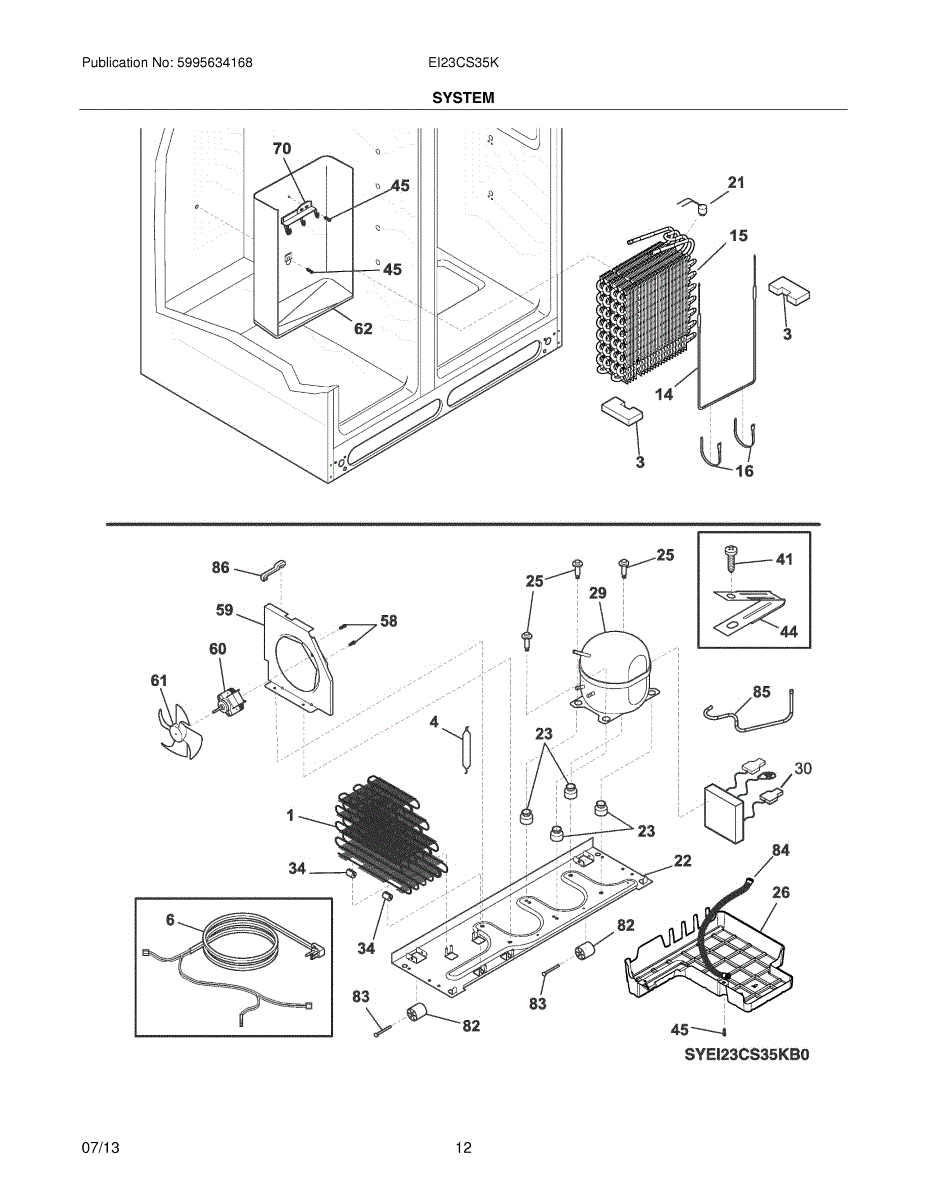

Parts for Electrolux EI23CS35KS2: 13 - System Parts

The Condenser Coil is an OEM part for Frigidaire refrigerators. The condenser coil works to expel heat from inside the refrigerator and transfer it to the outdoor condenser unit. Proper functioning of the condenser coil is vital for cooling efficiency and maintaining the desired temperatures inside the refrigerator and freezer compartments.

Causes of a bad condenser coil can include a buildup of dirt and dust over time obstructing airflow, or physical damage from handling that compromises the coil integrity.

Symptoms of a bad condenser coil include:

• Inefficient or ineffective cooling
• Higher compressor run times and electricity usage
• Fluctuating interior temperatures
• Frost or ice buildup in unusual areas
• Unusual noises from the refrigeration system

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Includes service line.

The Power Cord is an OEM part for Frigidaire refrigerators. It transmits electrical current from the wall outlet directly to the internal refrigerator components, allowing them to operate properly. As the critical link supplying energy, this power cord plays an essential role in refrigerator performance.

Causes can involve normal wear over many years, accidental punctures, harsh chemicals, or excessive bending/pulling that strains and weakens internal wiring. Rodent damage is another potential issue.

Symptoms of a bad power cord include:

• The refrigerator not powering on when plugged in
• Flickering lights or intermittent operation
• Warm temperatures inside the fridge compartment
• Evidence of cord damage like cracks, blisters, or exposed wires

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Defrost Heater is an OEM part for Frigidaire refrigerators. It plays a crucial role in the refrigerator's defrost cycle, melting away any frost that accumulates on the evaporator coils.

Causes of a bad Defrost Heater can include a burnt-out heating element, electrical issues such as faulty wiring, or a malfunctioning thermostat that fails to activate the heater when needed.

Symptoms of a failing Defrost Heater include:

• Buildup of frost or ice on the evaporator coils despite regular defrost cycles
• Increasingly warmer temperatures in the refrigerator or freezer compartments
• The refrigerator cycling on and off more frequently than usual
• Unusual noises from ice buildup that affects the fan

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This aluminum strap secures the defrost heater firmly against the evaporator coil to maintain proper contact during defrost. Correct contact improves heat transfer so frost melts evenly and helps prevent recurring ice buildup on the evaporator.

• Secures the defrost heater to the evaporator for proper contact and heat transfer
• Promotes complete, even defrosting across the evaporator coil
• Helps reduce repeat frost/ice accumulation caused by a shifted or loose heater
• Typical clues include a loose heater, uneven frost pattern, or rattling near the evaporator

• Disconnect power and allow ice to melt before accessing the evaporator
• Use care around sharp fins and fragile refrigerant tubing; do not puncture or deform the coil
• Position the heater per your model's parts diagram and tighten the strap for firm, even contact
• Verify wiring is routed clear of the fan and moving parts before reassembly

The Defrost Thermostat Kit is an OEM replacement part for Frigidaire refrigerators. This kit contains the defrost thermostat, which is a crucial component in the refrigerator's defrost system.

Symptoms of needing to replace the defrost thermostat kit include:

• Excessive frost or ice buildup on the evaporator coils
• Inadequate cooling or temperature fluctuations
• Increased energy consumption due to inefficient defrosting
• Condensation or moisture buildup within the refrigerator compartment

Causes of a faulty defrost thermostat can include normal wear and tear, exposure to extreme temperatures or moisture, or electrical malfunctions.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This rubber compressor mounting grommet cushions and isolates the compressor to reduce vibration and noise that can transfer to the cabinet. It helps maintain stable compressor positioning for quieter, smoother operation. What it does:

• Absorbs compressor vibration to lower noise and rattling
• Dampens movement that can cause abrasion or wear on mounting hardware
• Helps maintain proper alignment of the compressor assembly
• Common symptom: excessive buzzing, vibration, or rattling from the back of the appliance

• Always disconnect power to the appliance before servicing.
• Support the compressor before removing mounts to prevent shifting or damage.
• Inspect surrounding mounts and hardware; replace any worn or damaged pieces.

This inverter is the compressor control module that converts incoming power and regulates motor speed for variable-speed compressors, helping the fridge maintain consistent temperatures and energy-efficient cooling. What it does:

• Supplies and converts power to the compressor motor so the compressor runs at variable speeds
• Regulates compressor speed to maintain steady cooling and reduce temperature swings
• Can cause the compressor not to run or intermittent cooling when faulty
• Fault symptoms may include error codes, fridge not cooling, or unusual compressor behavior/noise

• One inverter (compressor control) module

• Disconnect power to the appliance before starting to avoid shock
• Handle the board carefully and avoid static discharge; use ESD protection if available
• Verify the replacement PN and wiring match the original before connecting

Color: Black. Rubber. Holds tube/wire

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

Galvanized Steel

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

This replacement mounting screw fastens panels and components in compatible Frigidaire appliances to restore secure assembly and reduce rattling or loose parts. Simple fastener sized for the original factory location. What it does:

• Secures panels, brackets, or trim to keep parts aligned and stable
• Prevents vibration and noise caused by loose fittings
• Restores proper attachment after repair or disassembly
• Matches the OEM thread and length for a correct fit when specified

• Use the correct screw hole and do not force; cross-threading can damage components
• Tighten to a snug fit—do not overtighten to avoid stripping threads or cracking plastic
• Power tools can be used with care; slow speed and proper bit help prevent slippage
• Turn off power and disconnect the appliance before accessing internal parts

This condenser fan shroud sits in the rear machine compartment and positions the fan and motor to move air through the condenser coil. A cracked or warped shroud can reduce cooling performance and increase noise or vibration.

• Directs and focuses airflow across the condenser coil and compressor to remove heat
• Holds the condenser fan motor and blade in proper alignment
• Helps maintain stable refrigerator/freezer temperatures and efficient operation
• When damaged, may cause weak airflow, warmer temps, vibration, or fan scraping/rubbing noises at the back of the unit

• Unplug the refrigerator and wear cut-resistant gloves
• Pull the unit forward and remove the lower rear access panel to reach the machine compartment
• Take a photo of fan/motor orientation; transfer components to the new shroud and reuse existing hardware
• Confirm blade spins freely with proper clearance before restoring power

The Condenser Fan Motor is an OEM part for Frigidaire refrigerators. It serves a critical role in the refrigerator's cooling system by driving the condenser fan, which cools the refrigerant as it passes through the condenser coils. This cooling process is essential for the refrigerant's efficient circulation throughout the system, ensuring that the refrigerator maintains the proper temperature for preserving food.

Causes of failure can include dust and debris accumulation blocking the fan, electrical issues such as worn or shorted wiring, or the motor wearing out over time due to continuous use.

Symptoms of a bad Condenser Fan Motor include:

• The refrigerator runs warmer than usual, leading to spoiled food.
• Unusual noises coming from the back of the refrigerator where the motor is located.
• The fan stops running, causing the refrigerator's compressor to overheat and cycle off too frequently.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Condenser Fan Motor Blade is an OEM replacement part for Frigidaire refrigerators. This part attaches to the condenser fan motor and works by drawing air through the condenser coils and over the compressor, dissipating heat and allowing the refrigerant to cool effectively.

Causes of damage to the Condenser Fan Motor Blade can include physical damage from moving or cleaning the refrigerator, obstruction from debris that impedes the blade's rotation, or wear and tear over time that can lead to cracks or the blade becoming loose.

Symptoms of a bad Condenser Fan Motor Blade include:

• The refrigerator running hotter than usual
• Unusual noises coming from the back of the refrigerator where the condenser fan is located
• The refrigerator compressor running for longer periods than normal or cycling on and off more frequently

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This trough drain channels defrost and condensation water from the evaporator area to the refrigerator drain pan, helping prevent pooling and ice buildup. Fits as the replacement evaporator-area drain trough in compatible refrigerators. What it does:

• Collects and directs defrost/condensation water away from the evaporator compartment
• Helps prevent water pooling inside the fresh food or freezer section
• Reduces ice formation around the evaporator area when functioning properly
• Works with the drain tube and pan to route water safely to the drain pan

• One trough drain

• Disconnect power to the appliance before starting any service
• Remove interior shelves, drawers, and the evaporator cover to access the trough
• Inspect surrounding seals and the drain tube for clogs; clear any debris before installing
• Reassemble panels and restore power; run a short defrost cycle or pour warm water to verify proper drainage

This evaporator cover mounting bracket secures the evaporator cover inside the freezer compartment to keep cooling airflow and components in place. Durable metal construction replaces a broken or bent bracket to restore proper cover alignment. What it does:

• Holds the evaporator cover in position for correct airflow and protection of the evaporator coil
• Helps stop rattling or loose cover movement that can cause noise
• Restores a secure mounting point after impact or corrosion damage
• Works with the evaporator cover assembly to maintain consistent cooling performance

• High-level replacement: remove the evaporator cover to access mounting points; fasten bracket with existing screws
• Use basic hand tools; keep screws and clips organized for reassembly
• Disconnect power to the appliance before starting any repair to avoid electrical hazard

This replacement rear compressor base roller supports the refrigerator compressor on the cabinet rear base, helping keep the compressor properly seated and reducing wear from vibration and movement. What it does

• Provides a rolling support under the compressor to keep it aligned and off the cabinet floor
• Helps reduce vibration and rattling that can occur from a loose or worn compressor mount
• Prevents compressor body from dragging or scraping the cabinet base
• Commonly replaced when the roller is cracked, worn flat, missing, or causing noise

• Disconnect power to the appliance before starting any work
• Support or secure the compressor and cabinet before removing the old roller to avoid sudden movement
• Basic hand tools usually required; inspect mounting hardware and replace any damaged fasteners
• Do not attempt sealed-system repairs.

This rivet is a metal fastener used to permanently secure panels, brackets, or internal components in your appliance. Replacing a damaged or missing rivet restores a tight fit and helps prevent vibration, rattles, and looseness.

• Permanently joins thin metal parts where screws or nuts aren't used
• Maintains alignment and structural integrity of housings and frames
• Helpful when panels or components are loose, rattling, or won't stay secured
• Direct replacement for a worn, broken, corroded, or drilled-out factory rivet

• Disconnect power and shut off gas/water (as applicable) before servicing
• Support the part being fastened; drill out the old rivet head if needed
• A hand riveter/rivet tool may be required to set the new rivet
• Wear eye and hand protection during drilling/riveting

This drain tube routes defrost water from the freezer evaporator to the drain pan at the bottom of the refrigerator, helping keep moisture out of the compartments and preventing puddles or ice from blocked or damaged tubing.

• Directs defrost meltwater from the evaporator drain to the rear drain pan for evaporation
• Replaces a clogged, cracked, or misshapen tube that can leak or back up
• Common symptoms include water under crisper drawers, ice on the freezer floor, or puddles beneath the unit
• Restores proper drainage to reduce repeat ice buildup and standing water

• Unplug the refrigerator before servicing and pull it forward for rear access
• Remove the old tube from the cabinet drain port and pan; clear the drain opening with warm water to melt any ice or debris
• Seat the new tube fully on both ends and avoid kinks or sharp bends
• After installation, pour a small amount of warm water into the drain to verify proper flow to the pan

This condenser tube spacer positions and secures the refrigerator's condenser tubing to maintain proper tube spacing and airflow. Replacing a worn or broken spacer helps reduce vibration, rattling, and rubbing that can damage tubing over time. What it does:

• Holds condenser tubing in the correct position to preserve airflow and cooling efficiency
• Cushions tubing to limit vibration and reduce rattling noises
• Prevents tubing from rubbing against the cabinet or other components, lowering wear risk
• Helps reduce the chance of tubing fatigue that can lead to damage

• Disconnect power to the appliance before accessing rear panels or condenser components.
• Handle condenser tubing gently; avoid kinking, bending, or putting stress on lines during installation.
• Installation may require removing the back or lower access panel to reach the condenser assembly.

This replacement fan shroud screw secures the evaporator/condenser fan shroud to the appliance, helping keep the fan assembly stable for proper airflow and quiet operation. Use it to replace stripped or missing mounting hardware. What it does:

• Secures the fan shroud or mounting bracket to the appliance cabinet or fan assembly
• Helps prevent fan wobble, rubbing, and airflow disruption caused by a loose shroud
• Restores proper clearance between fan blades and shroud to reduce noise and wear

• High-level replacement—remove power to the appliance before starting work
• Use appropriate-size driver to avoid stripping the screw head
• Inspect surrounding hardware and shroud for damage; replace any damaged parts before reassembly

The Screw is an OEM replacement part for Frigidaire refrigerators. This small but essential component is used to secure various parts of the appliance, such as panels, brackets, or internal fixtures, ensuring the refrigerator's structural integrity and proper operation.

Over time, screws may become loose, stripped, or corroded due to regular use, environmental factors, or maintenance work. A damaged or missing screw can lead to misaligned parts or reduced stability of the appliance.

Symptoms of a bad or missing screw include:

• Loose or wobbly components within the refrigerator
• Panels or fixtures coming apart or misaligned
• Difficulty securing parts during maintenance or repair
• Rattling or unusual noises during operation

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
