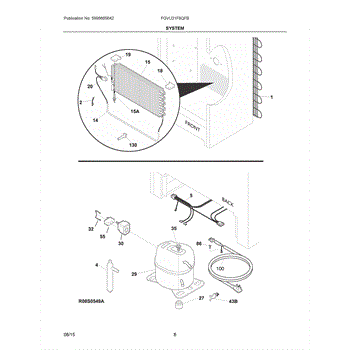

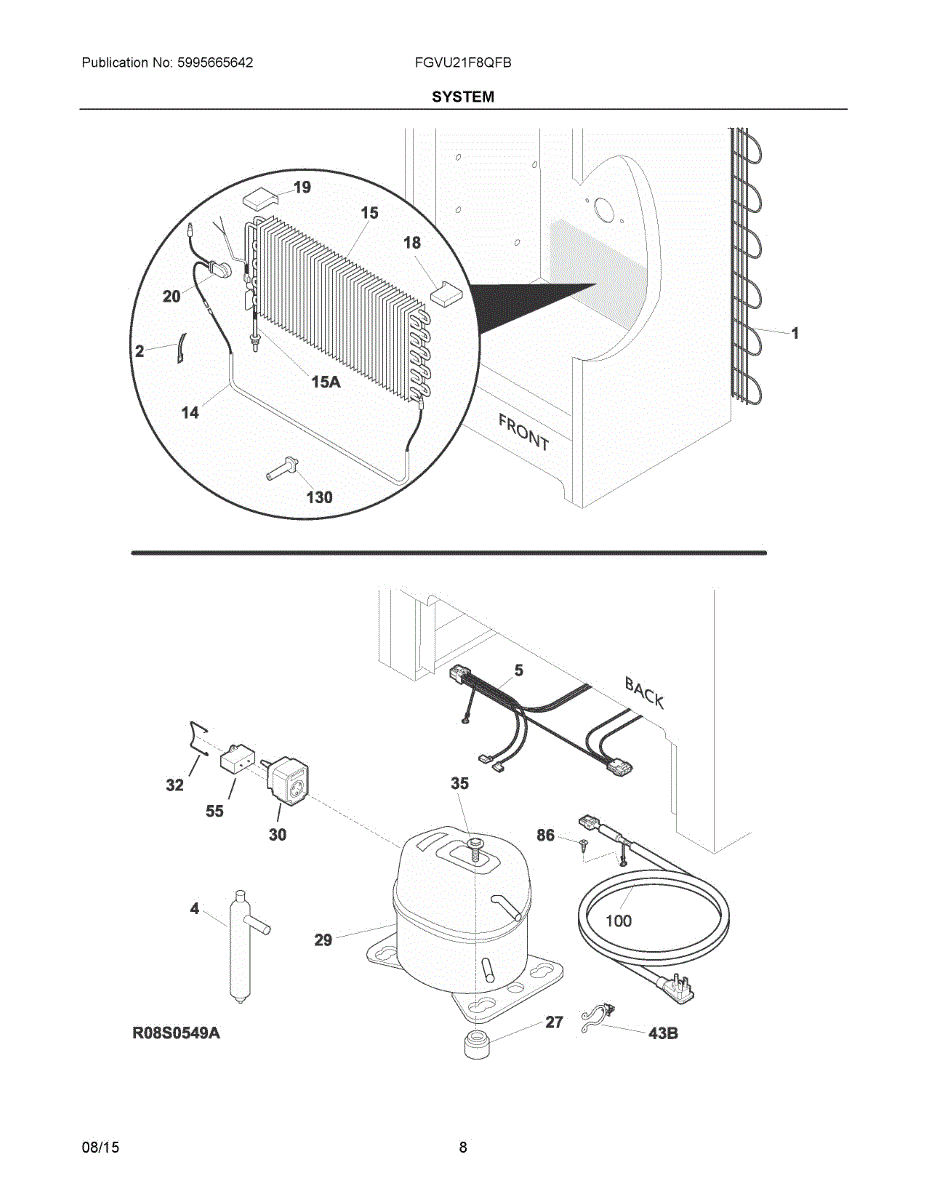

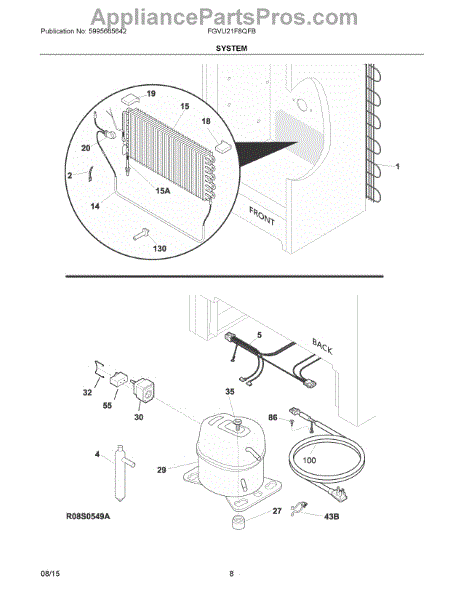

Parts for Electrolux FGVU21F8QFB: 04 - System Parts

This aluminum strap secures the defrost heater firmly against the evaporator coil to maintain proper contact during defrost. Correct contact improves heat transfer so frost melts evenly and helps prevent recurring ice buildup on the evaporator.

• Secures the defrost heater to the evaporator for proper contact and heat transfer
• Promotes complete, even defrosting across the evaporator coil
• Helps reduce repeat frost/ice accumulation caused by a shifted or loose heater
• Typical clues include a loose heater, uneven frost pattern, or rattling near the evaporator

• Disconnect power and allow ice to melt before accessing the evaporator
• Use care around sharp fins and fragile refrigerant tubing; do not puncture or deform the coil
• Position the heater per your model's parts diagram and tighten the strap for firm, even contact
• Verify wiring is routed clear of the fan and moving parts before reassembly

Includes service line.

The EVAPORATOR INSULATOR is an OEM part for Frigidaire refrigerators. It is a heat-resistant insulating pad or wrap that surrounds the evaporator coils. The insulator works to retain cool air and prevent warmer air from entering the refrigerated compartment.

Causes of a bad insulator can include deterioration or breakdown of insulating properties over time due to aging materials. Cracks, holes, or compressed sections of the insulator result in reduced insulation performance.

Symptoms of a bad evaporator insulator include:

• Inconsistently cool or warmer fridge temperatures
• Frost or ice buildup on evaporator coils or surrounding areas
• Higher than normal electric bills from inefficient cooling
• Warm or cold spots inside refrigerator shelves and compartments

This OEM Frigidaire replacement insulator is compatible with some Kitchenaid, Electrolux, Gibson, Kelvinator, and Kenmore side-by-side refrigerator models.

This compressor with mounting clip is the sealed refrigeration compressor assembly that circulates refrigerant to keep your refrigerator cold. Replacing a failed compressor restores the system's ability to cool when repairable. What it does:

• Compresses refrigerant vapor to maintain proper cooling cycle; primary sealed-system pump.
• Commonly linked to symptoms like no cooling, refrigerator runs but temperature rises, or compressor not cycling.
• Works as the sealed-system component; requires correct match to refrigerant and system specifications.

• One compressor assembly with mounting clip as shown.

• Replacement involves sealed-system work.
• Disconnect power before starting; follow all electrical safety practices.
• Use proper tools and gaskets/hoses; pressure-test and leak-check after repair.

The Start Device is an OEM part for Frigidaire refrigerators. This small electronic component plays a role in the refrigeration cycle by providing the necessary boost to start the compressor. Without a properly functioning start device, the refrigerator may not cool efficiently, leading to spoiled food and increased energy consumption.

Causes of a faulty Start Device can vary and may encompass electrical failures like short circuits or power surges, overheating of the component, and physical damage or wear due to aging.

Symptoms of a bad Start Device include:

• The refrigerator not starting
• Intermittent operation of the refrigerator
• Unusual noises coming from the back of the refrigerator where the compressor is located
• The refrigerator failing to maintain a consistent temperature

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This small mounting clip secures interior or cabinet components to keep panels and trim stable, helping reduce noise and maintain proper alignment. It's a simple replacement that restores a snug fit where the original clip has broken or worn. What it does:

• Holds panels, trim, or small components in place to prevent gaps or rattling
• Restores proper alignment of clipped parts after damage or wear
• Maintains a secure attachment point for adjacent parts during normal use
• Helps prevent moisture or debris from entering behind secured panels

• Disconnect power or unplug the appliance before accessing internal components
• Handle the clip and surrounding trim carefully to avoid cracking adjacent plastic
• Use basic hand tools as needed; do not force clips into place—align before snapping
• Replace any damaged mounting features for a secure fit

The Run Capacitor is an OEM replacement part for Frigidaire refrigerators. This electrical component plays a crucial role in providing the initial torque needed to start and run the compressor motor, ensuring efficient and reliable operation of your refrigerator's cooling system.

Causes of needing to replace the run capacitor can include normal wear and tear over time, exposure to high temperatures or electrical surges, or physical damage to the capacitor itself.

Symptoms that may indicate a failing run capacitor include:

• The refrigerator not running or cooling properly
• The compressor failing to start or running intermittently
• Humming or buzzing noises coming from the compressor area

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This replacement power cord delivers household electricity from the outlet to your appliance. Installing a new cord restores safe, reliable power when the original is damaged, worn, or causing intermittent operation.

• Supplies AC power from a household outlet to the unit
• Common fix for no power, flickering lights, or power loss when the cord is moved
• Replaces cords with cuts, cracks, burn marks, or melted areas
• Restores a secure electrical connection for safe, consistent operation

• Unplug the appliance and verify the wall outlet is working before replacing parts
• Access the cord routing and internal connections; note wire positions and routing before removal
• Transfer and secure any strain relief/clamp; keep wiring clear of sharp edges and hot surfaces
• After installation, ensure the cord isn't pinched and the plug seats fully in the outlet

This support is a small mounting bracket used inside the appliance to hold an interior component, such as a shelf or basket. Replacing a cracked or missing support restores a secure, level fit and helps prevent wobbling or dropping.

• Provides a stable mounting point for a shelf, basket, rail, or panel
• Keeps interior components aligned and level
• Common symptoms: shelf/basket tilts, won't seat, or falls; visible cracks or missing support
• Replace if broken, deformed, or worn to restore proper fit

• Disconnect power and clear the work area before starting
• Remove the affected shelf/basket/panel to access the mounting point
• Release the damaged support (snap tabs or remove screw), align, and install the new support
• Reinstall the component and verify it sits level and secure

This compressor start relay helps the refrigerator compressor start reliably, restoring proper cooling performance when the compressor fails to start. Designed to replace the factory start device on compatible Frigidaire compressors. What it does

• Provides the initial boost/current path to spin the compressor motor during startup
• Commonly replaced when the compressor hums but will not start or cooling is intermittent
• Helps prevent repeated hard starts that can overload the compressor
• Works with the compressor's overload to enable normal run operation once started

• One compressor start relay

• Disconnect power to the appliance before servicing to avoid electric shock
• Access compressor terminals at the rear base or service panel per your model's service instructions
• Remove and replace only the relay (verify terminals match and clip securely); do not attempt repairs on the sealed compressor
• If compressor still won't start after replacing the relay, further diagnosis of the compressor, overload, or controls is recommended

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

This hex head screw secures panels, brackets, and small components on appliances, restoring proper fit and stability. It's a direct replacement fastener when an original mounting screw is missing, loose, or damaged. What it does:

• Secures panels, brackets, trim, and internal components to prevent rattling or movement
• Replaces stripped, missing, or damaged mounting screws that cause loose parts or misalignment
• Restores reliable mechanical fastening so doors and panels sit flush and operate correctly
• Works as a general-purpose appliance mounting screw when original fasteners are worn

• Always disconnect power to the appliance before starting any repair
• Match the screw to the original location and thread engagement; start by hand to avoid cross-threading
• Use the correct driver or socket for the hex head and tighten until snug—do not overtighten
• If the original hole or threads are damaged, repair or replace the mating hardware before installing the screw
