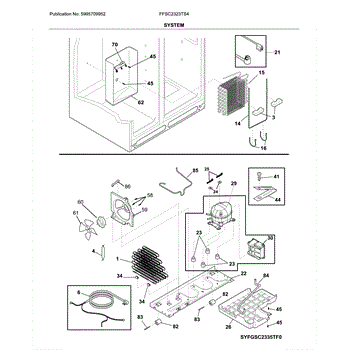

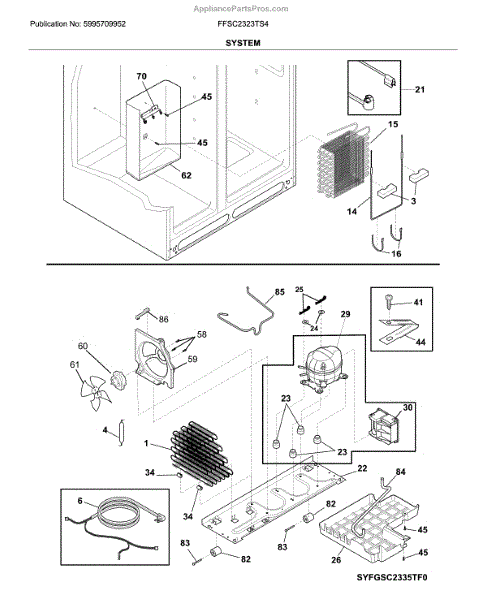

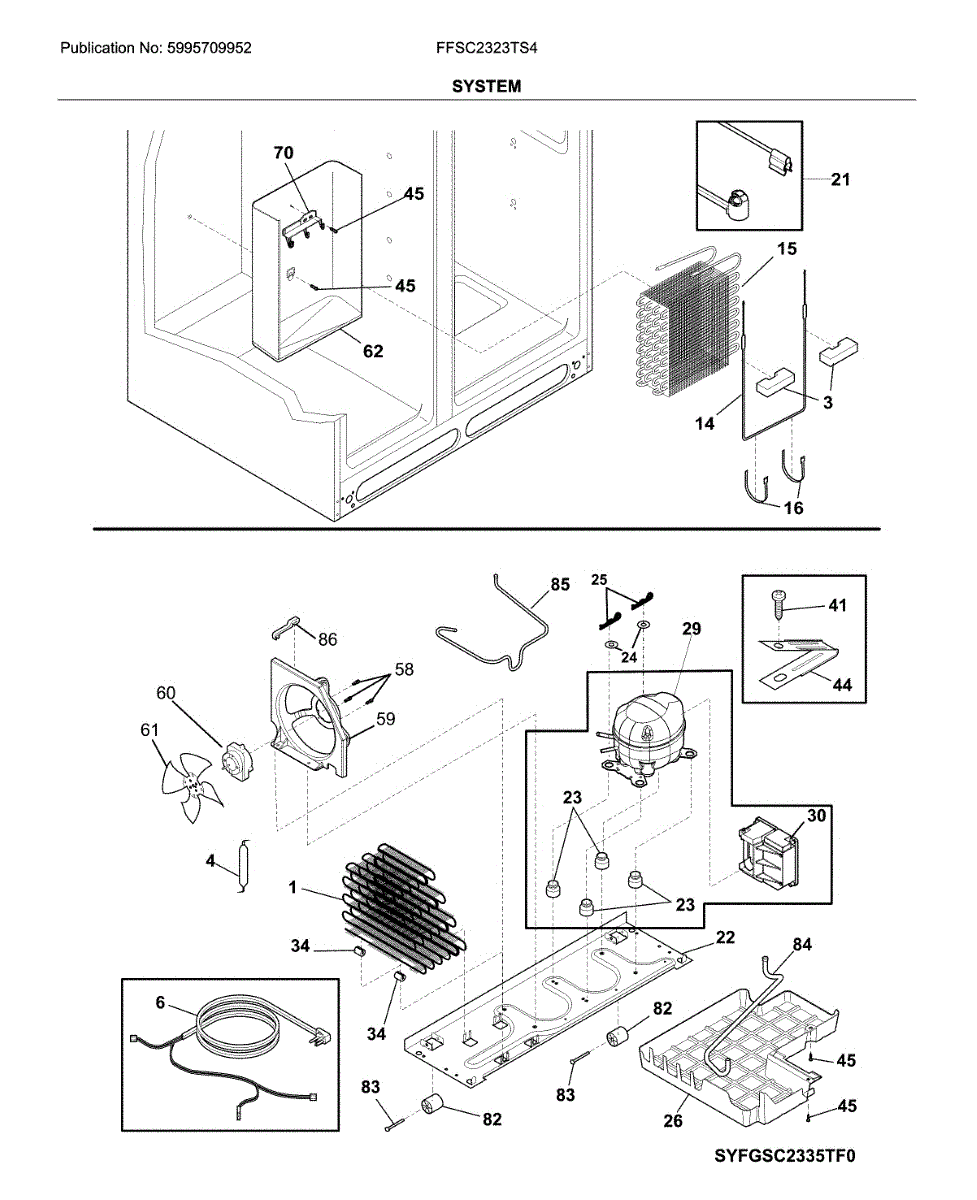

Parts for Frigidaire FFSC2323TS4: System Parts

The Air Filter is an OEM part for Frigidaire refrigerators designed to enhance the air quality inside the refrigerator, ensuring that food stays fresh and odor-free.

The Air Filter helps to remove unwanted odors and impurities from the refrigerator's circulating air. It absorbs and neutralizes common food odors, keeping your fridge smelling clean and pleasant. The activated carbon filter is 7 times more effective than baking soda at removing odors.

For best results, change filter every 6 months.
Color: Black.
Measures about 7 inches wide by 5 inches deep.

Symptoms of a bad air filter include:

• Lingering food odors inside the refrigerator
• Increased presence of stale or unpleasant smells
• Decreased effectiveness in eliminating odors

Replace your Air Filter with this genuine part to ensure a clean and fresh-smelling refrigerator. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Frigidaire PureSource Ultra II Refrigerator Water & Ice Filter is an OEM part for Frigidaire refrigerators provides clean, fresh-tasting water and ice. This advanced filtration system is specifically engineered to remove impurities and contaminants from your water supply, including lead, chlorine, mercury, and certain pesticides, without removing beneficial fluoride.

Regular replacement of the water and ice filter is crucial for maintaining the quality of your drinking water and the efficiency of your refrigerator's water and ice dispensing system. Over time, filters can become saturated with contaminants, reducing their effectiveness and potentially impacting the taste and safety of your water.

Symptoms of a filter in need of replacement include:

• Reduced water flow from the dispenser
• Unpleasant taste or odor in the water and ice
• The refrigerator's water filter indicator light turning on

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Condenser Coil is an OEM part for Frigidaire refrigerators. The condenser coil works to expel heat from inside the refrigerator and transfer it to the outdoor condenser unit. Proper functioning of the condenser coil is vital for cooling efficiency and maintaining the desired temperatures inside the refrigerator and freezer compartments.

Causes of a bad condenser coil can include a buildup of dirt and dust over time obstructing airflow, or physical damage from handling that compromises the coil integrity.

Symptoms of a bad condenser coil include:

• Inefficient or ineffective cooling
• Higher compressor run times and electricity usage
• Fluctuating interior temperatures
• Frost or ice buildup in unusual areas
• Unusual noises from the refrigeration system

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Includes service line.

The Power Cord is an OEM part for Frigidaire refrigerators. It transmits electrical current from the wall outlet directly to the internal refrigerator components, allowing them to operate properly. As the critical link supplying energy, this power cord plays an essential role in refrigerator performance.

Causes can involve normal wear over many years, accidental punctures, harsh chemicals, or excessive bending/pulling that strains and weakens internal wiring. Rodent damage is another potential issue.

Symptoms of a bad power cord include:

• The refrigerator not powering on when plugged in
• Flickering lights or intermittent operation
• Warm temperatures inside the fridge compartment
• Evidence of cord damage like cracks, blisters, or exposed wires

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Defrost Heater is an OEM part for Frigidaire refrigerators. It plays a crucial role in the refrigerator's defrost cycle, melting away any frost that accumulates on the evaporator coils.

Causes of a bad Defrost Heater can include a burnt-out heating element, electrical issues such as faulty wiring, or a malfunctioning thermostat that fails to activate the heater when needed.

Symptoms of a failing Defrost Heater include:

• Buildup of frost or ice on the evaporator coils despite regular defrost cycles
• Increasingly warmer temperatures in the refrigerator or freezer compartments
• The refrigerator cycling on and off more frequently than usual
• Unusual noises from ice buildup that affects the fan

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This aluminum strap secures the defrost heater firmly against the evaporator coil to maintain proper contact during defrost. Correct contact improves heat transfer so frost melts evenly and helps prevent recurring ice buildup on the evaporator.

• Secures the defrost heater to the evaporator for proper contact and heat transfer
• Promotes complete, even defrosting across the evaporator coil
• Helps reduce repeat frost/ice accumulation caused by a shifted or loose heater
• Typical clues include a loose heater, uneven frost pattern, or rattling near the evaporator

• Disconnect power and allow ice to melt before accessing the evaporator
• Use care around sharp fins and fragile refrigerant tubing; do not puncture or deform the coil
• Position the heater per your model's parts diagram and tighten the strap for firm, even contact
• Verify wiring is routed clear of the fan and moving parts before reassembly

The Wiring Harness is an OEM part for Frigidaire refrigerators. It connects various electrical parts within the refrigerator, ensuring proper communication and voltage.

A bad wiring harness can be caused by wear and tear, damage, or electrical issues. Signs of a faulty wire harness include malfunctioning or non-functional parts, intermittent electrical problems, or loose connections.

Symptoms of a bad wiring harness can include:

• Intermittent electrical issues or power loss
• Burnt or melted wires
• Visible damage or wear on the wire harness

Replace your worn or damaged wiring harness with this genuine OEM part to restore your refrigerator. This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


This rubber compressor mounting grommet cushions and isolates the compressor to reduce vibration and noise that can transfer to the cabinet. It helps maintain stable compressor positioning for quieter, smoother operation. What it does:

• Absorbs compressor vibration to lower noise and rattling
• Dampens movement that can cause abrasion or wear on mounting hardware
• Helps maintain proper alignment of the compressor assembly
• Common symptom: excessive buzzing, vibration, or rattling from the back of the appliance

• Always disconnect power to the appliance before servicing.
• Support the compressor before removing mounts to prevent shifting or damage.
• Inspect surrounding mounts and hardware; replace any worn or damaged pieces.

This defrost drain pan collects water from the refrigerator's automatic defrost cycle and channels it safely to the evaporator area for evaporation, helping prevent leaks and water pooling beneath the appliance. What it does:

• Collects and channels defrost water away from the freezer/refrigerator cabinet
• Prevents water from pooling under the unit, which can cause floor damage or odor
• Helps proper evaporation of defrosted water at the compressor/evaporator location
• Reduces risk of ice build-up from standing water in the cabinet

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove lower access panels or kickplate to reach and replace the pan
• Inspect and clear the drain tube and heater while replacing the pan for best results
• Handle gently to avoid bending or cracking the pan

This compressor inverter module powers and controls a variable-speed refrigerator compressor. When the inverter fails, the compressor may not start or modulate correctly, leading to warm temperatures or intermittent cooling. Replacing the module restores proper compressor drive.

• Converts AC line power to controlled 3-phase output for the variable-speed compressor
• Receives commands from the main control to start and regulate compressor speed
• Typical failure symptoms: refrigerator/freezer warm, compressor not running though fans/lights work, brief humming/clicking then stopping, intermittent cooling, or inverter/compressor error indications
• Mounts externally near the compressor and connects to the control harness and compressor terminals

• Disconnect power before servicing; high voltage is present at the inverter
• Access the rear lower compartment; transfer connectors one at a time to the new module and ensure tight terminal fits
• Reinstall on the original bracket/position to maintain cooling and ventilation around the inverter
• Restore power and allow up to 24 hours for temperatures to stabilize after repair

Color: Black. Rubber. Holds tube/wire

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

Galvanized Steel

This replacement screw fastens appliance components such as panels, brackets, and covers. Installing a new fastener restores a snug, rattle-free fit when the original screw is missing, stripped, or corroded.

• Secures covers, brackets, or trim to the cabinet or liner
• Replaces missing, stripped, or rusted hardware
• Helps reduce vibration and rattling from loose parts
• Supports proper alignment and stability of assemblies

• Disconnect power before servicing the appliance
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Do not overtighten, especially into plastic or thin sheet metal
• Retain and reinstall any original washers or spacers, if present

This condenser fan shroud sits in the rear machine compartment and positions the fan and motor to move air through the condenser coil. A cracked or warped shroud can reduce cooling performance and increase noise or vibration.

• Directs and focuses airflow across the condenser coil and compressor to remove heat
• Holds the condenser fan motor and blade in proper alignment
• Helps maintain stable refrigerator/freezer temperatures and efficient operation
• When damaged, may cause weak airflow, warmer temps, vibration, or fan scraping/rubbing noises at the back of the unit

• Unplug the refrigerator and wear cut-resistant gloves
• Pull the unit forward and remove the lower rear access panel to reach the machine compartment
• Take a photo of fan/motor orientation; transfer components to the new shroud and reuse existing hardware
• Confirm blade spins freely with proper clearance before restoring power

The Condenser Fan Motor is an OEM part for Frigidaire refrigerators. It serves a critical role in the refrigerator's cooling system by driving the condenser fan, which cools the refrigerant as it passes through the condenser coils. This cooling process is essential for the refrigerant's efficient circulation throughout the system, ensuring that the refrigerator maintains the proper temperature for preserving food.

Causes of failure can include dust and debris accumulation blocking the fan, electrical issues such as worn or shorted wiring, or the motor wearing out over time due to continuous use.

Symptoms of a bad Condenser Fan Motor include:

• The refrigerator runs warmer than usual, leading to spoiled food.
• Unusual noises coming from the back of the refrigerator where the motor is located.
• The fan stops running, causing the refrigerator's compressor to overheat and cycle off too frequently.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Condenser Fan Motor Blade is an OEM replacement part for Frigidaire refrigerators. This part attaches to the condenser fan motor and works by drawing air through the condenser coils and over the compressor, dissipating heat and allowing the refrigerant to cool effectively.

Causes of damage to the Condenser Fan Motor Blade can include physical damage from moving or cleaning the refrigerator, obstruction from debris that impedes the blade's rotation, or wear and tear over time that can lead to cracks or the blade becoming loose.

Symptoms of a bad Condenser Fan Motor Blade include:

• The refrigerator running hotter than usual
• Unusual noises coming from the back of the refrigerator where the condenser fan is located
• The refrigerator compressor running for longer periods than normal or cycling on and off more frequently

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This evaporator cover mounting bracket secures the evaporator cover inside the freezer compartment to keep cooling airflow and components in place. Durable metal construction replaces a broken or bent bracket to restore proper cover alignment. What it does:

• Holds the evaporator cover in position for correct airflow and protection of the evaporator coil
• Helps stop rattling or loose cover movement that can cause noise
• Restores a secure mounting point after impact or corrosion damage
• Works with the evaporator cover assembly to maintain consistent cooling performance

• High-level replacement: remove the evaporator cover to access mounting points; fasten bracket with existing screws
• Use basic hand tools; keep screws and clips organized for reassembly
• Disconnect power to the appliance before starting any repair to avoid electrical hazard

This drawer roller allows your refrigerator's bin or crisper drawer to glide smoothly along its track. Replacing a worn or missing roller helps restore easy opening and closing and prevents drawers from sticking or binding.

• Supports the drawer as it slides on the rail/track
• Helps correct stiff, rough, or noisy drawer movement
• Can reduce uneven sliding or a drawer that pops off the track
• Common wear item when drawers are overloaded or used heavily

• Unplug the refrigerator before servicing
• Remove the affected drawer to access the roller
• Note roller orientation and reuse existing fasteners if applicable
• Test drawer travel after replacement to ensure smooth operation

This drain tube routes defrost water from the freezer evaporator to the drain pan at the bottom of the refrigerator, helping keep moisture out of the compartments and preventing puddles or ice from blocked or damaged tubing.

• Directs defrost meltwater from the evaporator drain to the rear drain pan for evaporation
• Replaces a clogged, cracked, or misshapen tube that can leak or back up
• Common symptoms include water under crisper drawers, ice on the freezer floor, or puddles beneath the unit
• Restores proper drainage to reduce repeat ice buildup and standing water

• Unplug the refrigerator before servicing and pull it forward for rear access
• Remove the old tube from the cabinet drain port and pan; clear the drain opening with warm water to melt any ice or debris
• Seat the new tube fully on both ends and avoid kinks or sharp bends
• After installation, pour a small amount of warm water into the drain to verify proper flow to the pan

This tube connector is a small water-line fitting that joins refrigerator water and ice-maker tubing, restoring a secure path for water flow. It helps stop leaks and regain consistent water delivery to the dispenser or icemaker. What it does:

• Joins two sections of refrigerator water tubing to maintain a watertight connection
• Stops leaks at a damaged or worn tube joint
• Restores water flow to the ice maker or dispenser when a broken connector is the cause
• Compatible with rigid and soft tubing in typical refrigerator plumbing layouts

• One tube connector

• Shut off the refrigerator water supply before servicing
• Inspect tubing ends and replace damaged tubing or seals as needed
• Use proper fittings and tighten to manufacturer torque; avoid over-tightening

This condenser tube spacer positions and secures the refrigerator's condenser tubing to maintain proper tube spacing and airflow. Replacing a worn or broken spacer helps reduce vibration, rattling, and rubbing that can damage tubing over time. What it does:

• Holds condenser tubing in the correct position to preserve airflow and cooling efficiency
• Cushions tubing to limit vibration and reduce rattling noises
• Prevents tubing from rubbing against the cabinet or other components, lowering wear risk
• Helps reduce the chance of tubing fatigue that can lead to damage

• Disconnect power to the appliance before accessing rear panels or condenser components.
• Handle condenser tubing gently; avoid kinking, bending, or putting stress on lines during installation.
• Installation may require removing the back or lower access panel to reach the condenser assembly.

This replacement fan shroud screw secures the evaporator/condenser fan shroud to the appliance, helping keep the fan assembly stable for proper airflow and quiet operation. Use it to replace stripped or missing mounting hardware. What it does:

• Secures the fan shroud or mounting bracket to the appliance cabinet or fan assembly
• Helps prevent fan wobble, rubbing, and airflow disruption caused by a loose shroud
• Restores proper clearance between fan blades and shroud to reduce noise and wear

• High-level replacement—remove power to the appliance before starting work
• Use appropriate-size driver to avoid stripping the screw head
• Inspect surrounding hardware and shroud for damage; replace any damaged parts before reassembly

The Screw is an OEM replacement part for Frigidaire refrigerators. This small but essential component is used to secure various parts of the appliance, such as panels, brackets, or internal fixtures, ensuring the refrigerator's structural integrity and proper operation.

Over time, screws may become loose, stripped, or corroded due to regular use, environmental factors, or maintenance work. A damaged or missing screw can lead to misaligned parts or reduced stability of the appliance.

Symptoms of a bad or missing screw include:

• Loose or wobbly components within the refrigerator
• Panels or fixtures coming apart or misaligned
• Difficulty securing parts during maintenance or repair
• Rattling or unusual noises during operation

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
