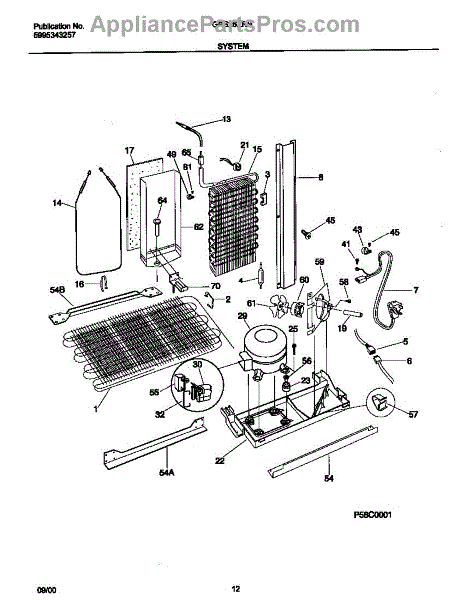

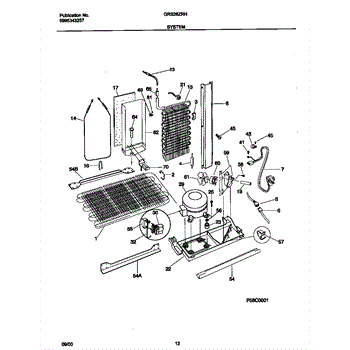

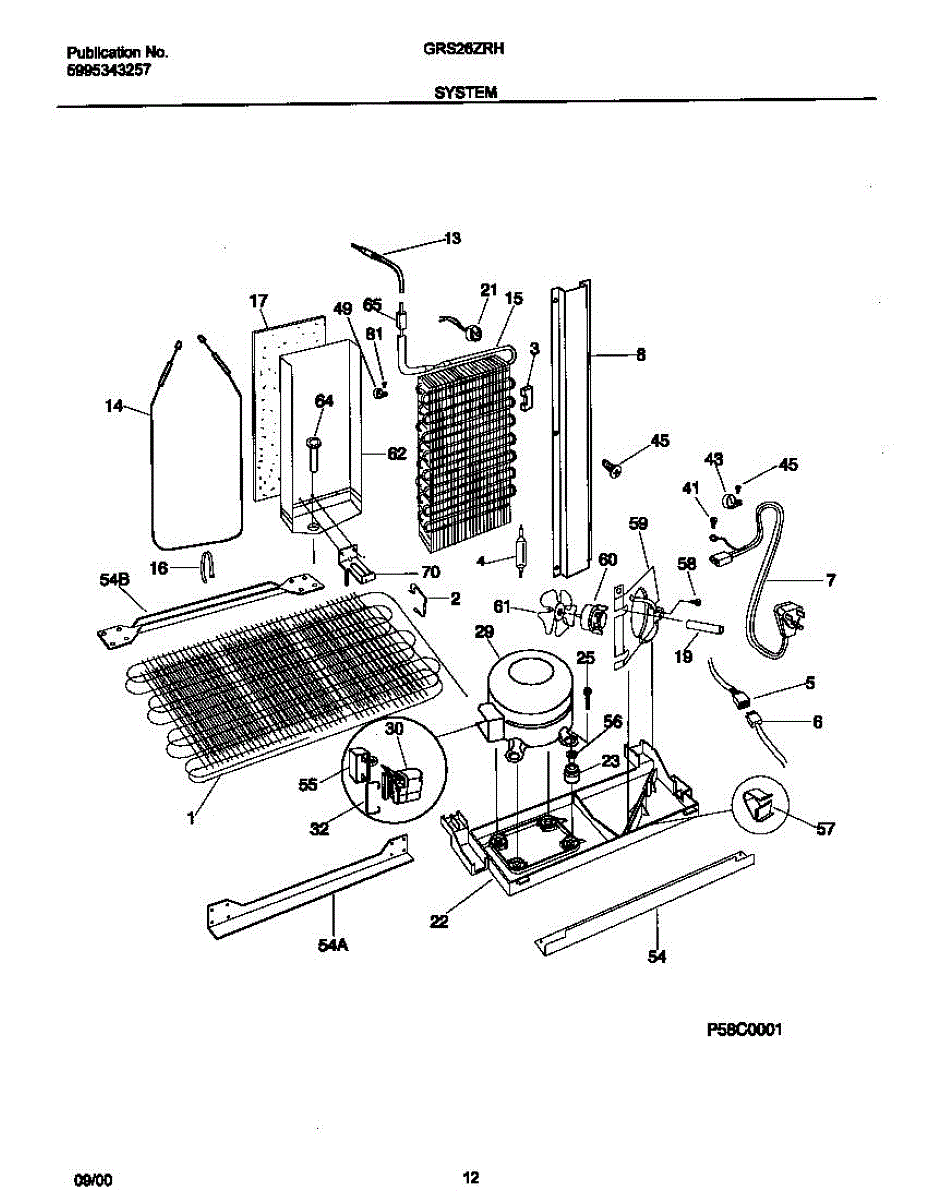

Parts for Frigidaire GRS26ZRHD5: 07 - System Parts

This styrofoam evaporator coil block cushions and insulates the refrigerator evaporator assembly to reduce vibration and help maintain proper airflow and temperature stability inside the freezer compartment. What it does:

• Positions and supports the evaporator coil inside the freezer housing to prevent contact and vibration
• Provides thermal insulation around the coil to help the system reach and hold the correct temperature
• Helps direct airflow evenly across the evaporator for consistent cooling
• Reduces noise and wear by dampening vibrations between metal components

• One styrofoam evaporator coil block

• For safety, disconnect power to the appliance before accessing the evaporator area
• Replacement may require partial disassembly of the freezer liner and removal of the evaporator cover; follow the service manual
• Handle the styrofoam gently to avoid cracks or breaks during installation

Includes service line.

Fixes frost buildup and warm refrigerator temps caused by failed defrost heater. Restores normal cooling and airflow. Moderate DIY repair, 30-60 minutes.

Fix a refrigerator that's not cooling properly or has ice buildup with a new evaporator coil. This part absorbs heat to keep your fridge cold.

Aluminum strap secures the defrost heater against the evaporator coil. Replace if broken, cracked, or missing to maintain proper heater contact.

Foam insulator that cushions the evaporator assembly where it meets the cabinet. Replace if cracked, compressed, worn, or missing to restore protection.

Freezer runs constantly or has frost buildup? The defrost thermostat regulates temperature to prevent ice on coils. DIY-friendly repair in 1-2 hours.

Rubber grommet that mounts and cushions the compressor to reduce vibration transfer. Replace if cracked, worn, or missing to restore quiet operation.

Secures the compressor to the refrigerator frame. Replace this hex washer head screw if broken, stripped, or missing during compressor service or repair.

Secures interior trim and panels in your refrigerator. Replace when trim becomes loose or rattles. Verify fit with your model number before ordering.

Secures and protects wiring harness from strain damage. Replace if cracked, broken, or wires show wear. Verify fit with your model number listed.

Replacement screw for various appliances. Used to secure panels, components, or housing. Replace if stripped, corroded, missing, or damaged hardware.

Secures the evaporator cover inside your refrigerator's freezer compartment. Replace this metal bracket if bent, broken, or missing to restore alignment.

Refrigerator not cooling or compressor won't start? A failed run capacitor prevents the compressor from running. DIY repair in 10-15 minutes with video guide.

Compressor mounting insert that secures the refrigerator compressor to the base. Replace if cracked, broken, or missing to restore proper support.

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

Refrigerator not cooling properly or making loud noises? The condenser fan motor shroud directs airflow for proper cooling. Moderate DIY repair.

Drain trough assembly that collects condensation and directs water to the drain pan. Replace if cracked, damaged, or causing leaks in your refrigerator.

Freezer drain tube that channels defrost water from the drain pan to the drip pan. Replace if cracked, leaking around the grommet, or causing floor leaks.

Factory fastener that secures panels, brackets, and internal components. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattling.

Color: Black

This spacer tube positions and supports a refrigerator tube or small component to keep lines aligned and reduce vibration. Replaces a worn or missing spacer to help stop rubbing, rattling, or misalignment of tubing or nearby parts. What it does:

• Holds and centers a tube or small assembly to maintain proper clearance
• Prevents tubing from rubbing against cabinet walls or other components
• Reduces vibration and noise caused by loose or misaligned lines
• Helps maintain correct routing to lower risk of chafing or wear

• Disconnect power and shut off water supply before starting
• Typically installs by sliding or snapping onto the tube or mounting boss; minimal tools needed
• Inspect surrounding tubing and clips; replace any damaged fasteners to ensure secure routing

Secures and protects wiring harness from strain damage. Replace if cracked, broken, or wires show wear. Verify fit with your model number listed.

This is a factory-style replacement screw used to secure appliance components. It restores proper fastening where the original screw is missing, stripped, or damaged so panels and assemblies stay firmly attached. What it does:

• Fastens panels, brackets, or components to the appliance frame or assemblies
• Replaces missing or damaged mounting hardware that can cause rattles or loose parts
• Provides the correct fit and thread engagement for a secure connection
• Helps maintain appliance alignment and safe operation

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Turn off power and remove any access panels before working on electrical components

Pan head mounting screw for refrigerator rails. Replace missing, stripped, or damaged screws during shelf or rail installation or repair work.

Pan head mounting screw for refrigerator rails. Replace missing, stripped, or damaged screws during shelf or rail installation or repair work.

Lower hinge tapping plate for refrigerators. Secures the bottom door hinge to the cabinet frame. Replace if cracked, stripped, or damaged.

Secures and protects wiring harness from strain damage. Replace if cracked, broken, or wires show wear. Verify fit with your model number listed.

This spacer tube positions and supports a refrigerator tube or small component to keep lines aligned and reduce vibration. Replaces a worn or missing spacer to help stop rubbing, rattling, or misalignment of tubing or nearby parts. What it does:

• Holds and centers a tube or small assembly to maintain proper clearance
• Prevents tubing from rubbing against cabinet walls or other components
• Reduces vibration and noise caused by loose or misaligned lines
• Helps maintain correct routing to lower risk of chafing or wear

• Disconnect power and shut off water supply before starting
• Typically installs by sliding or snapping onto the tube or mounting boss; minimal tools needed
• Inspect surrounding tubing and clips; replace any damaged fasteners to ensure secure routing

Refrigerator foam tape seals gaps and reduces vibration. Replace if worn, compressed, or causing air leaks. Verify fit with your model number.

Wiring harness that connects the auger motor to the refrigerator's electrical system. Replace if wires are frayed, damaged, or connections are loose.

Size: Approximate 2.5 inches thick, 33 inches wide and 70 inches long.

This is a replacement mounting screw used to secure the defrost timer assembly to the refrigerator control housing, restoring proper fastening and preventing the timer from shifting or vibrating during operation. What it does:

• Secures the defrost timer to the control housing so the timer stays in position.
• Prevents vibration or movement that can cause intermittent contact or noisy operation.
• Helps maintain reliable defrost cycle timing by keeping the timer properly aligned.
• Addresses symptoms such as a loose or missing fastener, rattling behind the control panel, or a timer that shifts when the door is opened.

• Unplug the appliance before starting work to prevent electrical shock.
• Access the control housing or timer bracket per your model's service instructions.
• Use the correct screwdriver or driver bit; do not overtighten—stop when snug to avoid stripping.
• Retain removed hardware for reference and compare screw length/threads before installing.

Replacement water line tube for refrigerators. Connects water supply to dispenser or ice maker. Replace if cracked, kinked, leaking, or damaged.

Secures cantilever shelves to prevent shifting or slipping. Replace if cracked, broken, or missing to restore stable shelf support. Confirm fit with model.

Water valve cap for side-by-side refrigerators. Covers and protects the water inlet valve connection. Replace if cracked, broken, or missing.

Color: Black

This is a factory-style replacement screw used to secure appliance components. It restores proper fastening where the original screw is missing, stripped, or damaged so panels and assemblies stay firmly attached. What it does:

• Fastens panels, brackets, or components to the appliance frame or assemblies
• Replaces missing or damaged mounting hardware that can cause rattles or loose parts
• Provides the correct fit and thread engagement for a secure connection
• Helps maintain appliance alignment and safe operation

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Turn off power and remove any access panels before working on electrical components

Right hand side. For left hand side use 215002301

Replacement shelf support grommet for refrigerators and freezers. Provides stability for shelves. Replace if broken, missing, or worn to restore proper shelf support.

Nylon washer for the evaporator fan motor shaft in refrigerators. Replace if worn, cracked, or missing to ensure proper fan alignment and operation.

Seals water filter housing to prevent leaks in your refrigerator. Replace if water leaks when changing filters. Verify fit with your model number.

This complete ice maker unit produces and dispenses ice cubes in your refrigerator's freezer compartment. It includes all internal mechanisms for water filling, freezing, and ice ejection cycles. Install this assembly if your ice maker has stopped producing ice, makes unusual noises, or produces malformed ice cubes.

Ice won't dispense through the door? A broken auger or cracked ice bin causes this. This complete ice container assembly is a simple slide-in fix in 5 minutes.
