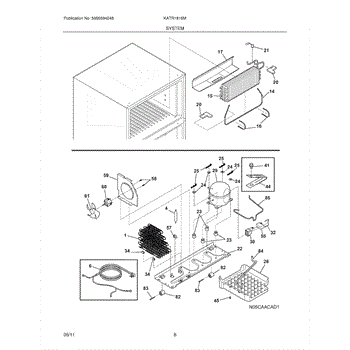

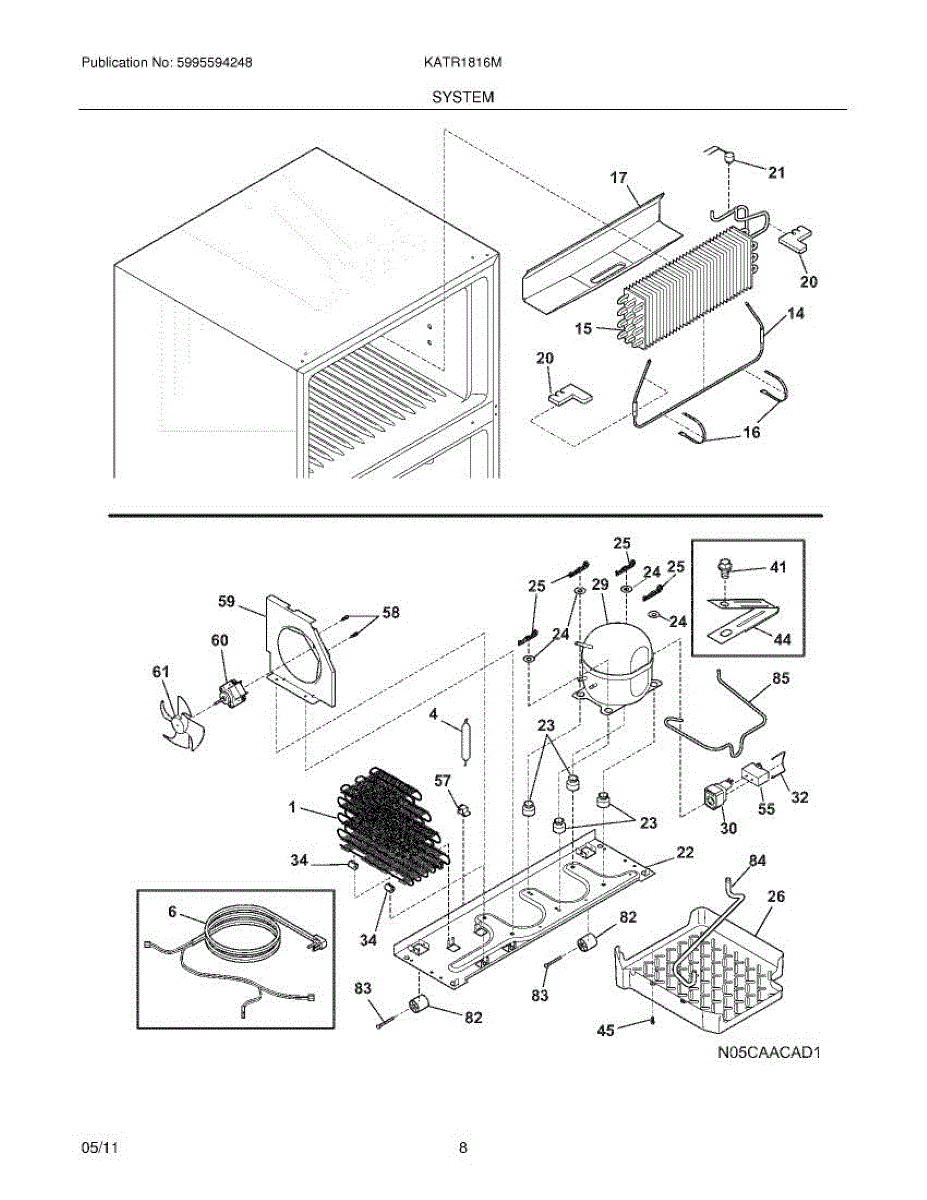

Parts for Kelvinator KATR1816MW0: 09 - System Parts

Refrigerator not cooling or running constantly? A faulty condenser coil prevents heat release. This repair requires moderate skill and 1-2 hours to complete.

Freezer not cooling below 32°F or water leaking under freezer? The drier filter removes moisture from the refrigerant system. Soldering required.

Replaces damaged, cut, frayed, or worn refrigerator power cord. Connects appliance to wall outlet. Order a new cord if yours is cracked or missing.

Fix ice buildup in freezer and warm fridge temperatures by replacing a failed defrost heater. Clear frost from evaporator coils. 30-minute DIY repair.

Refrigerator not cooling or freezing over? The evaporator coil absorbs heat to cool your fridge. Moderate DIY repair. Fits top-mount refrigerators.

Aluminum strap secures the defrost heater against the evaporator coil. Replace if broken, cracked, or missing to maintain proper heater contact.

Channels defrost water from the evaporator to the drain pan. Replace if cracked, broken, or leaking to prevent water pooling in the fresh-food compartment.

Foam insulation block that fills gaps inside the refrigerator cabinet to reduce heat transfer. Replaces damaged, compressed, or missing insulation.

Freezer frost buildup? Defrost thermostat regulates defrost cycles to prevent ice accumulation. DIY repair takes 15-30 minutes with basic tools.

Rubber grommet that mounts and cushions the compressor to reduce vibration transfer. Replace if cracked, worn, or missing to restore quiet operation.

Secures the compressor to the mounting bracket in your refrigerator. Replace if washer is missing, cracked, or worn to restore proper support.

Secures the compressor to the chassis, reducing movement and noise. Replace if your compressor shifts or rattles during operation. Confirm fit with model.

Fix floor puddles and musty odors caused by a cracked defrost drain pan. This pan collects defrost water and allows it to evaporate. Easy DIY fix.

Refrigerator not cooling or freezing? A failed compressor stops the cooling cycle. This sealed system repair requires a licensed technician to complete.

Fixes refrigerator not cooling with hum-click sound from compressor. This PTC start device energizes the compressor start winding. DIY repair in 10 minutes.

Black rubber mounting grommet that secures tubes and wires in your refrigerator. Replace if cracked, worn, or missing to properly hold components in place.

Mounting screw for refrigerators and freezers. Secures panels, brackets, and internal components. Replace when stripped, missing, or damaged.

Secures wire harnesses and ground wires to your refrigerator cabinet. Replace if broken or missing to prevent wire damage. Verify fit with your model.

Hex head screw that secures panels, brackets, and internal components in refrigerators and appliances. Replace when missing, stripped, or damaged.

Refrigerator not cooling or compressor won't start? A failed run capacitor prevents the compressor from running. DIY repair in 10-15 minutes with video guide.

Secures and organizes wiring harnesses in your refrigerator. Replace if broken, cracked, or wires are loose. Confirm fit with your model number.

Secures panels, brackets, and assemblies in refrigerators and freezers. Replace missing, stripped, or damaged screws to restore proper fit and alignment.

Fix a fridge that's not cooling or making loud airplane-like noises. This condenser fan motor kit circulates air through coils. 30min-2hr DIY install.

Refrigerator not cooling properly or running warm? A failing condenser fan motor prevents proper heat removal. This direct-fit motor restores cooling.

Refrigerator not cooling properly? A broken condenser fan blade prevents heat removal from coils. Easy DIY fix—just pull off and press on. Video included.

Supports the compressor on the refrigerator's rear base. Replace if cracked, broken, or worn to keep compressor properly seated and reduce vibration damage.

Metal rivet fastener permanently secures panels, brackets, and internal components in refrigerators. Replace damaged, missing, or worn rivets to restore fit.

Routes defrost and condensation water from freezer to drain pan. Replace if cracked, clogged, disconnected, or causing water pooling in compartments.

Secures tubes and wiring in your refrigerator. Replace if clips are broken or connections are loose. Confirm fit with your model number.

Refrigerator not cooling properly? This heat exchanger suction line kit restores refrigerant flow and maintains consistent temperatures in your fridge.

Foam seal tape creates airtight barriers around refrigerator components. Replace when worn, compressed, or damaged to restore proper sealing and efficiency.

Secures the evaporator or condenser fan shroud to the refrigerator cabinet. Replace this mounting screw if stripped, missing, or broken during repair.

Control box wiring harness assembly for refrigerators. Connects control board to components. Replace if wires are damaged, connector is cracked, or harness is worn.

Replacement mounting screw for refrigerator panels, handles, brackets, and internal fixtures. Order when original screws are stripped, lost, or damaged.
