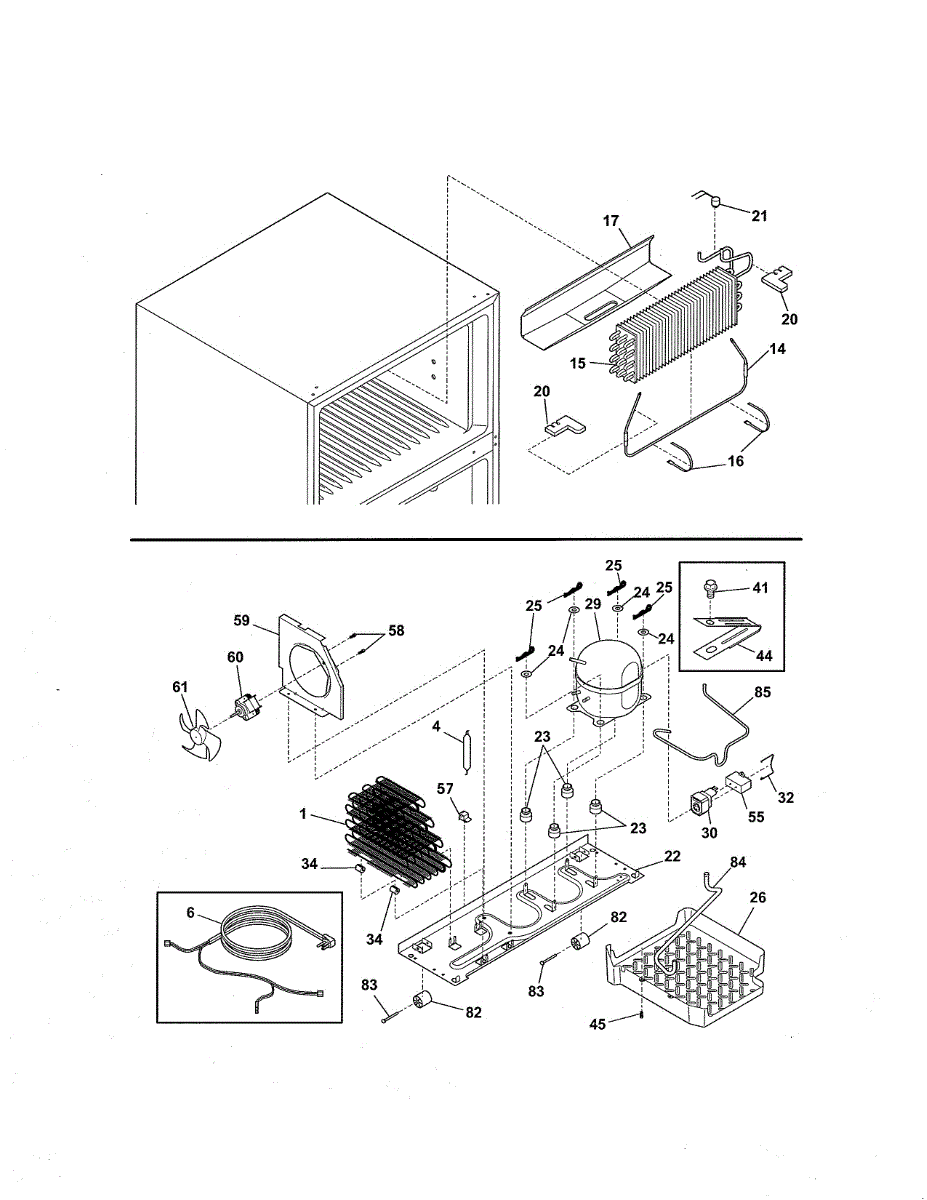

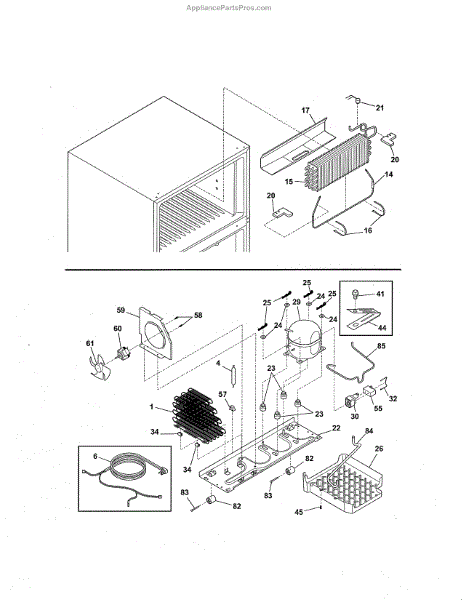

Parts for Kenmore 253.67872505 (25367872505, 253 67872505): System Parts

Refrigerator not cooling properly? A faulty condenser may be blocking heat release. This repair requires soldering skills and sealed system experience.

Color: White

Touch-up paint for appliances to cover scratches, chips, and worn areas on exterior surfaces. Restores appearance of refrigerators, ranges, and more.

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

• Visible scratches or chips on the appliance's surface.
• Areas of rust or corrosion that need to be covered after treating the rust.
• The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.

Includes service line.

Touch-up paint in bisque color for appliance exterior surfaces. Covers chips, scratches, and worn spots on refrigerator doors, range panels, and more.

Wiring harness for top-mount refrigerators. Connects electrical components throughout the unit. Replace if wires are frayed, damaged, or connectors broken.

Control box wiring harness assembly for refrigerators. Connects control board to components. Replace if wires are damaged, connector is cracked, or harness is worn.

This paper parts list provides the appliance's illustrated parts diagram and reference numbers to help identify replacement components quickly. Handy for checking part names and locating the correct service parts. What it does

• Shows exploded diagrams and reference numbers used by technicians and parts suppliers
• Helps you match the correct replacement part and part number before ordering
• Useful for planning repairs and parts needed for specific assemblies
• Reduces guesswork when describing fault or requesting service parts

• One printed repair parts list

• No installation required; store with appliance paperwork or service records
• Keep dry and away from solvents or oils to preserve legibility
• Use reference numbers from the diagram when ordering to ensure accuracy

Secures tubes and wiring in your refrigerator. Replace if clips are broken or connections are loose. Confirm fit with your model number.

This heat exchanger suction line kit replaces a damaged or corroded suction line assembly to restore proper refrigerant flow and heat transfer in the cooling system. It helps maintain consistent compartment temperatures and system efficiency. What it does:

• Transfers heat from the refrigerant suction line so the compressor and evaporator operate correctly
• Replaces cracked, kinked, or corroded tubing that can cause refrigerant loss or reduced cooling
• Helps address symptoms such as warm or inconsistent temperatures, visible oil or residue at fittings, or abnormal frost/ice patterns
• Restores a sealed refrigerant path after tubing damage or when corrosion has compromised the line

• Intended for qualified service technicians only; system access requires certified refrigerant handling
• Disconnect power to the appliance before servicing and follow all safety precautions
• Installation may require brazing, flare fittings, or specialty tools; verify leak-tight connections and pressure-test per OEM procedures
• Evacuate and recharge the refrigerant system to OEM specifications after installation

Frost buildup in freezer or warm fridge? This defrost heater melts ice on the evaporator coil during defrost cycles. DIY-friendly repair in 30-45 minutes.

Freezer not freezing or fridge too warm? The evaporator coil absorbs heat to cool your refrigerator. Professional installation recommended for this repair.

Aluminum strap secures the defrost heater against the evaporator coil. Replace if broken, cracked, or missing to maintain proper heater contact.

Channels defrost water from the evaporator to the drain pan. Replace if cracked, broken, or leaking to prevent water pooling in the fresh-food compartment.

Foam insulation block that fills gaps inside the refrigerator cabinet to reduce heat transfer. Replaces damaged, compressed, or missing insulation.

Freezer frost buildup? Defrost thermostat regulates defrost cycles to prevent ice accumulation. DIY repair takes 15-30 minutes with basic tools.

Refrigerator compressor base supports and secures the compressor unit. If your refrigerator is noisy or vibrating, this mounting base may need replacement.

Replacement mounting screw for refrigerator panels, handles, brackets, and internal fixtures. Order when original screws are stripped, lost, or damaged.

Rubber grommet that mounts and cushions the compressor to reduce vibration transfer. Replace if cracked, worn, or missing to restore quiet operation.

Secures the compressor to the mounting bracket in your refrigerator. Replace if washer is missing, cracked, or worn to restore proper support.

Secures the compressor to the chassis, reducing movement and noise. Replace if your compressor shifts or rattles during operation. Confirm fit with model.

Fix floor puddles and musty odors caused by a cracked defrost drain pan. This pan collects defrost water and allows it to evaporate. Easy DIY fix.

A replacement compressor kit designed to restore the refrigeration system's ability to cool by replacing failed compressor components. Use this kit when the compressor assembly needs service or replacement. What it does:

• Replaces failed compressor components to help restore normal cooling performance
• Stops intermittent or complete loss of cooling often caused by compressor failure
• Helps address loud humming, grinding, or continuous running tied to compressor problems
• Supports proper refrigerant flow when installed and serviced

• Disconnect power and unplug the appliance before beginning any repairs
• Compressor and sealed-system service (evacuation, vacuum, refrigerant charging) must be performed
• Use proper handling and tools for refrigerant-containing components to avoid leaks and injury

Fix a refrigerator that won't cool or clicks but won't start. This compressor start relay and overload protects against overheating. DIY repair in 30 minutes.

Black rubber mounting grommet that secures tubes and wires in your refrigerator. Replace if cracked, worn, or missing to properly hold components in place.

Mounting screw for refrigerators and freezers. Secures panels, brackets, and internal components. Replace when stripped, missing, or damaged.

Secures wire harnesses and ground wires to your refrigerator cabinet. Replace if broken or missing to prevent wire damage. Verify fit with your model.

Hex head screw that secures panels, brackets, and internal components in refrigerators and appliances. Replace when missing, stripped, or damaged.

Compressor clicks and won't start? Run capacitor helps start and run the compressor motor. Most DIYers replace in under 15 minutes with basic tools.

Secures and organizes wiring harnesses in your refrigerator. Replace if broken, cracked, or wires are loose. Confirm fit with your model number.

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

Foam seal tape creates airtight barriers around refrigerator components. Replace when worn, compressed, or damaged to restore proper sealing and efficiency.

Secures the evaporator or condenser fan shroud to the refrigerator cabinet. Replace this mounting screw if stripped, missing, or broken during repair.

Fix a fridge that's not cooling or making loud airplane-like noises. This condenser fan motor kit circulates air through coils. 30min-2hr DIY install.

Refrigerator running hot or making noise? A failed condenser fan motor stops airflow across coils. Moderate DIY repair restores cooling efficiency.

Refrigerator not cooling properly? A broken condenser fan blade prevents heat removal from coils. Easy DIY fix—just pull off and press on. Video included.

Supports the compressor on the refrigerator's rear base. Replace if cracked, broken, or worn to keep compressor properly seated and reduce vibration damage.

Metal rivet fastener permanently secures panels, brackets, and internal components in refrigerators. Replace damaged, missing, or worn rivets to restore fit.

Routes defrost and condensation water from freezer to drain pan. Replace if cracked, clogged, disconnected, or causing water pooling in compartments.

Tube connector for refrigerators. Connects tubing in water or refrigerant lines. Replace if cracked, leaking, or broken to restore proper connection.
