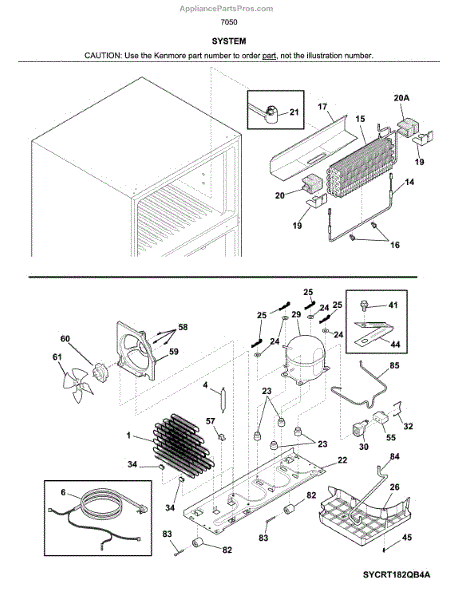

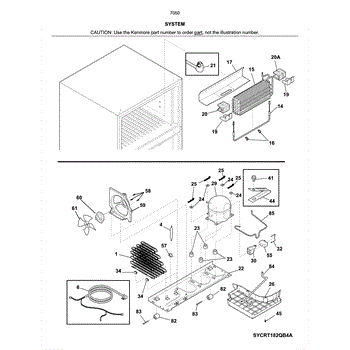

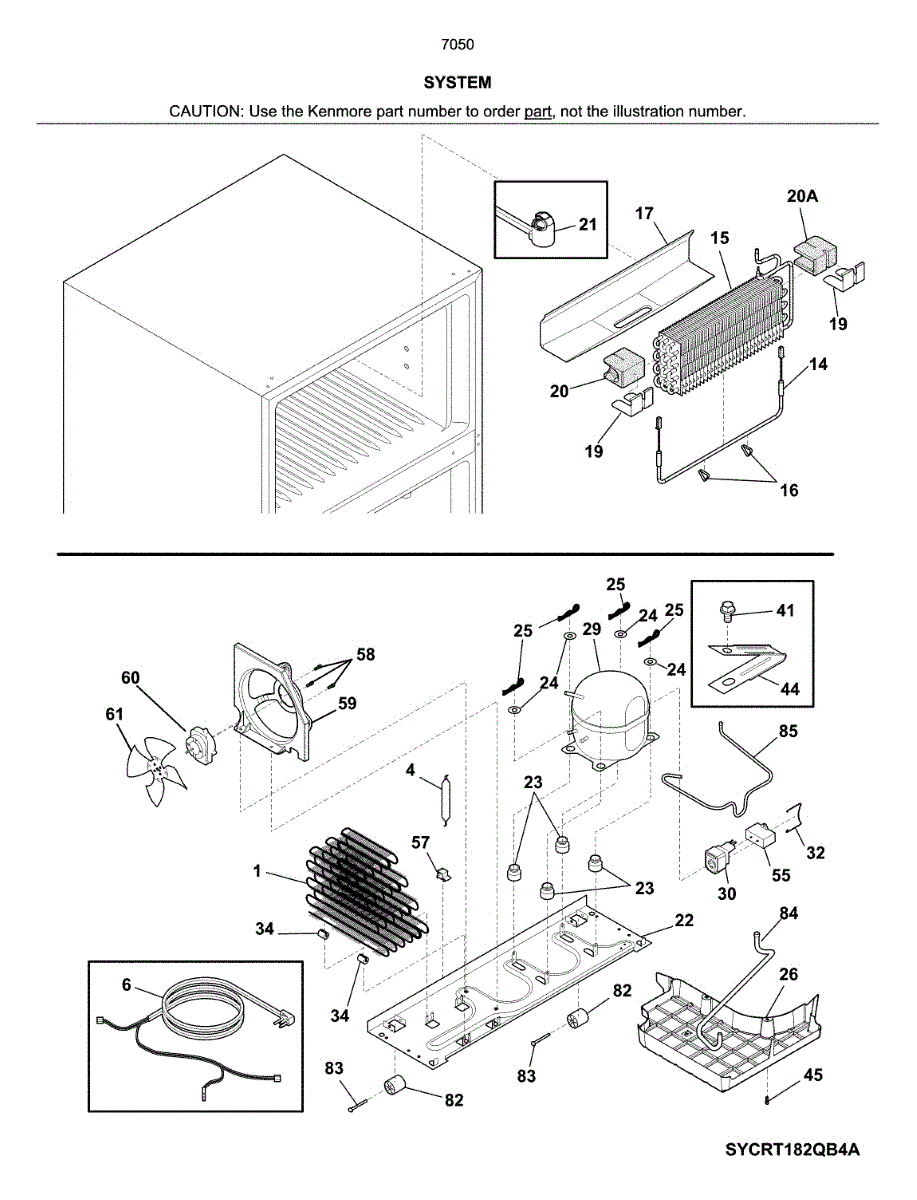

Parts for Kenmore 253.70505618 (25370505618, 253 70505618): System Parts

Includes service line.

The Power Cord is an OEM replacement part for Frigidaire refrigerators. As the lifeline connecting the appliance to a wall outlet, this cord safely delivers necessary voltage to operate refrigerator systems.

Potential causes for needing a new power cord include exposure to cuts, abrasions or rodent damage over time in the storage area. Repeated bending stress during installation or removal can also wear out plastic insulation faster.

Symptoms of a faulty power cord include:

• Refrigerator fails to power on at all
• Flickering lights or inconsistent runs of the compressor
• Shock, buzzing or humming sounds coming from the cord
• Bare copper wire showing through damaged insulation

This power cord also fits some Electrolux and Gibson refrigerators.

Replaces a failed defrost heater in the freezer section to clear frost from the evaporator coils. Restores normal airflow and temperature recovery when ice buildup causes warm spots, poor cooling, or fan noise from blades hitting frost.

What it does

• Heats the evaporator during defrost to melt accumulated ice.
• Helps prevent airflow blockages that lead to warm fridge temps.
• Reduces heavy frost on coils and around the fan shroud.
• Addresses symptoms like rapid frost return, ice-bound coils, or noisy fan contact.

What’s included
One defrost heater assembly.

Install notes

• Unplug the refrigerator before servicing.
• Access the evaporator cover in the freezer; carefully remove ice as needed to avoid damaging fins.
• Note wire routing/terminal orientation; transfer to the new heater one-for-one.
• After reassembly, run a test cycle and monitor temps once the unit completes a full defrost.

This genuine replacement part is an evaporator used in refrigerators. The evaporator is the part that exchanges heat to cool the refrigerator. It is the component of the refrigerator that absorbs the heat from the air inside, turning it cool through absorption. If the refrigerator is no longer cooling properly, this could mean it's time for a new evaporator.This is a genuine replacement evaporator compatible with Frigidaire, Electrolux, Gibson, Kelvinator, and Westinghouse brand refrigerators.

This aluminum strap secures the defrost heater firmly against the evaporator coil to maintain proper contact during defrost. Correct contact improves heat transfer so frost melts evenly and helps prevent recurring ice buildup on the evaporator.

• Secures the defrost heater to the evaporator for proper contact and heat transfer
• Promotes complete, even defrosting across the evaporator coil
• Helps reduce repeat frost/ice accumulation caused by a shifted or loose heater
• Typical clues include a loose heater, uneven frost pattern, or rattling near the evaporator

• Disconnect power and allow ice to melt before accessing the evaporator
• Use care around sharp fins and fragile refrigerant tubing; do not puncture or deform the coil
• Position the heater per your model's parts diagram and tighten the strap for firm, even contact
• Verify wiring is routed clear of the fan and moving parts before reassembly

This drain trough directs defrost water from the evaporator to the refrigerator drain, helping prevent pooling, leaks and ice build-up in the fresh-food compartment. A correct trough keeps defrost water flowing and reduces odors or floor damage. What it does:

• Channels defrost/condensate water from the evaporator to the drain system
• Prevents water pooling under shelves or in the crisper area
• Reduces ice buildup and attendant leaks when the drain path is clear
• Replace if cracked, warped, or if water is collecting where it shouldn't

• Disconnect power to the appliance before servicing
• Remove interior shelves/drawers as needed to access the trough
• Clean the drain channel and clear any debris before installing the new trough
• Make sure the trough is fully seated and aligned so water drains properly; follow OEM fastener/placement points

This shield is a replacement protective cover that shields internal components from debris and helps maintain proper airflow. It restores the cabinet protection that prevents contact damage and keeps parts working cleanly. What it does:

• Covers and protects internal components from dirt, spills, and accidental contact
• Helps direct airflow and maintain proper ventilation where applicable
• Prevents rubbing or contact that can cause noise or wear
• Visible damage or missing shield can lead to exposed parts or rattling sounds

• One replacement shield

• Disconnect power to the appliance before starting any repair
• Handle carefully; edges may be sharp and mounting tabs can be brittle on older units
• Verify correct orientation and secure all mounting tabs or fasteners
• If other parts are corroded or broken at the mount points, replace or repair them before final installation

This block secures and positions refrigerator components to help maintain proper alignment and reduce vibration. It replaces a worn or broken mounting block to restore fit and quiet operation. What it does

• Provides a stable mounting point for adjacent panels or components
• Helps prevent rattling, misalignment, or loose parts caused by a damaged block
• Supports correct spacing to ensure doors and panels close and seal properly
• Can be a service solution when visible cracks, breaks or missing material are present

• Disconnect power to the appliance before beginning any repair
• Access may require removing interior shelves or trim panels; keep fasteners in a safe place
• Use appropriate hand tools; do not force parts into place

The Defrost Thermostat Kit is an OEM replacement part for Frigidaire upright freezers.

Symptoms of a failed defrost thermostat include:

• Excessive ice buildup within evaporator coils over time
• Thermostat failure causing errors
• Improper or incomplete defrost cycles leaving frost accumulation

Causes related to prolonged exposure to vibration, temperature fluctuations, and refrigerant gases taking their toll on delicate thermostat circuitry and heating filaments over many years of use.

This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This rubber compressor mounting grommet cushions and isolates the compressor to reduce vibration and noise that can transfer to the cabinet. It helps maintain stable compressor positioning for quieter, smoother operation. What it does:

• Absorbs compressor vibration to lower noise and rattling
• Dampens movement that can cause abrasion or wear on mounting hardware
• Helps maintain proper alignment of the compressor assembly
• Common symptom: excessive buzzing, vibration, or rattling from the back of the appliance

• Always disconnect power to the appliance before servicing.
• Support the compressor before removing mounts to prevent shifting or damage.
• Inspect surrounding mounts and hardware; replace any worn or damaged pieces.

This compressor mounting clip secures the compressor to its chassis to reduce movement and noise for reliable operation. It replaces worn or broken clips that allow the compressor to shift during use. What it does:

• Holds the compressor in place on the mounting bracket to prevent shifting
• Reduces vibration and rattling noises caused by a loose mount
• Helps maintain proper compressor alignment for steady operation
• Useful when a cracked or bent clip no longer secures the compressor

• Disconnect power to the appliance before accessing compressor area
• Inspect surrounding mounts and rubber isolators; replace if damaged
• Secure clip fully so compressor is held without forcing or misaligning components

This defrost pan collects water from the refrigerator's automatic defrost cycle and sits over warm components so it can evaporate safely. Replace a cracked or deformed pan to help prevent floor puddles and musty odors. What it does:

• Collects defrost condensate and allows it to evaporate in the machine compartment
• Helps keep floors dry by managing defrost water
• Replace if the pan is cracked, warped, leaking, or missing
• Common symptoms include water under the refrigerator, recurring puddles, or musty odors

• 1 defrost drain pan

• Disconnect power and pull the refrigerator away from the wall before servicing
• Remove the rear access panel to reach the drain pan
• Slide out the old pan carefully and empty any water; reuse any original supports/brackets if present
• Set the new pan on its supports, ensure the drain outlet/tube drips into the pan, reinstall the panel, restore power, and check for leaks

Starter (start relay) that replaces the compressor/motor start device to help the appliance begin running reliably. Use this starter when the motor fails to spin up or shows hard-start symptoms to restore normal starting behavior. What it does:

• Provides the initial electrical boost required to start the compressor or motor.
• Commonly replaced when the compressor hums but won't start, cycles on and off, or the appliance fails to reach proper temperature.
• Reduces repeated hard-start attempts that can stress the compressor motor.
• Fits systems that use a separate start relay.

• Disconnect power (unplug appliance or switch off the circuit breaker) before servicing.
• Access relay at the compressor/motor area (typically at the rear); remove the old relay and install the new one using the existing mounting and terminals.
• Handle the compressor area carefully; avoid bending terminals or damaging wiring.

Color: Black. Rubber. Holds tube/wire

The Run Capacitor is an OEM replacement part for Frigidaire refrigerators. This electrical component plays a crucial role in providing the initial torque needed to start and run the compressor motor, ensuring efficient and reliable operation of your refrigerator's cooling system.

Causes of needing to replace the run capacitor can include normal wear and tear over time, exposure to high temperatures or electrical surges, or physical damage to the capacitor itself.

Symptoms that may indicate a failing run capacitor include:

• The refrigerator not running or cooling properly
• The compressor failing to start or running intermittently
• Humming or buzzing noises coming from the compressor area

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This replacement mounting screw fastens panels and components in compatible Frigidaire appliances to restore secure assembly and reduce rattling or loose parts. Simple fastener sized for the original factory location. What it does:

• Secures panels, brackets, or trim to keep parts aligned and stable
• Prevents vibration and noise caused by loose fittings
• Restores proper attachment after repair or disassembly
• Matches the OEM thread and length for a correct fit when specified

• Use the correct screw hole and do not force; cross-threading can damage components
• Tighten to a snug fit—do not overtighten to avoid stripping threads or cracking plastic
• Power tools can be used with care; slow speed and proper bit help prevent slippage
• Turn off power and disconnect the appliance before accessing internal parts

This replacement evaporator shroud directs airflow around the evaporator/fan assembly and protects internal components for more consistent cooling. Installing a sound shroud helps restore even temperatures and reduces frost buildup or fan contact. What it does:

• Directs cooled air from the evaporator for even temperature distribution throughout the compartment
• Shields the evaporator and fan motor from loose items and debris
• Helps reduce frost buildup and airflow obstructions that can cause uneven cooling
• Minimizes fan vibration and contact noise when correctly installed

• Disconnect power to the appliance before starting any repair.
• Remove interior panels, shelves, and any food before accessing the evaporator area.
• Handle edges carefully; plastic panels and sheet-metal openings can be sharp.
• Verify correct orientation and secure with the original fasteners; service diagram if fitment or mounting holes differ.

The Condenser Fan Motor is an OEM part for Frigidaire refrigerators. It serves a critical role in the refrigerator's cooling system by driving the condenser fan, which cools the refrigerant as it passes through the condenser coils. This cooling process is essential for the refrigerant's efficient circulation throughout the system, ensuring that the refrigerator maintains the proper temperature for preserving food.

Causes of failure can include dust and debris accumulation blocking the fan, electrical issues such as worn or shorted wiring, or the motor wearing out over time due to continuous use.

Symptoms of a bad Condenser Fan Motor include:

• The refrigerator runs warmer than usual, leading to spoiled food.
• Unusual noises coming from the back of the refrigerator where the motor is located.
• The fan stops running, causing the refrigerator's compressor to overheat and cycle off too frequently.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Condenser Fan Motor Blade is an OEM replacement part for Frigidaire refrigerators. This part attaches to the condenser fan motor and works by drawing air through the condenser coils and over the compressor, dissipating heat and allowing the refrigerant to cool effectively.

Causes of damage to the Condenser Fan Motor Blade can include physical damage from moving or cleaning the refrigerator, obstruction from debris that impedes the blade's rotation, or wear and tear over time that can lead to cracks or the blade becoming loose.

Symptoms of a bad Condenser Fan Motor Blade include:

• The refrigerator running hotter than usual
• Unusual noises coming from the back of the refrigerator where the condenser fan is located
• The refrigerator compressor running for longer periods than normal or cycling on and off more frequently

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This drawer roller allows your refrigerator's bin or crisper drawer to glide smoothly along its track. Replacing a worn or missing roller helps restore easy opening and closing and prevents drawers from sticking or binding.

• Supports the drawer as it slides on the rail/track
• Helps correct stiff, rough, or noisy drawer movement
• Can reduce uneven sliding or a drawer that pops off the track
• Common wear item when drawers are overloaded or used heavily

• Unplug the refrigerator before servicing
• Remove the affected drawer to access the roller
• Note roller orientation and reuse existing fasteners if applicable
• Test drawer travel after replacement to ensure smooth operation

This rivet is a metal fastener used to permanently secure panels, brackets, or internal components in your appliance. Replacing a damaged or missing rivet restores a tight fit and helps prevent vibration, rattles, and looseness.

• Permanently joins thin metal parts where screws or nuts aren't used
• Maintains alignment and structural integrity of housings and frames
• Helpful when panels or components are loose, rattling, or won't stay secured
• Direct replacement for a worn, broken, corroded, or drilled-out factory rivet

• Disconnect power and shut off gas/water (as applicable) before servicing
• Support the part being fastened; drill out the old rivet head if needed
• A hand riveter/rivet tool may be required to set the new rivet
• Wear eye and hand protection during drilling/riveting

This drain tube routes defrost and condensation water from the freezer compartment to the drain pan so moisture drains away cleanly and prevents pooling. Replaces a cracked, clogged or disconnected drain line. What it does:

• Channels defrost and condensation water out of the freezer to the drain system
• Prevents water pooling inside the freezer or refrigerator compartment
• Helps avoid leaks onto the floor when the original tube is cracked, pinched or disconnected
• Works with the appliance's drain trough and drain pan to maintain normal defrost drainage

• One drain tube

• Disconnect power before servicing and work with a cooled appliance to avoid burns
• Access may require removing interior panels or kickplate; handle panels and clips carefully
• Inspect and clear any debris or ice from the drain trough before installing the new tube
• Ensure the tube is routed without sharp bends or kinks and is securely seated at both ends

This tube connector is a small water-line fitting that joins refrigerator water and ice-maker tubing, restoring a secure path for water flow. It helps stop leaks and regain consistent water delivery to the dispenser or icemaker. What it does:

• Joins two sections of refrigerator water tubing to maintain a watertight connection
• Stops leaks at a damaged or worn tube joint
• Restores water flow to the ice maker or dispenser when a broken connector is the cause
• Compatible with rigid and soft tubing in typical refrigerator plumbing layouts

• One tube connector

• Shut off the refrigerator water supply before servicing
• Inspect tubing ends and replace damaged tubing or seals as needed
• Use proper fittings and tighten to manufacturer torque; avoid over-tightening

This heat exchanger suction line kit replaces a damaged or corroded suction line assembly to restore proper refrigerant flow and heat transfer in the cooling system. It helps maintain consistent compartment temperatures and system efficiency. What it does:

• Transfers heat from the refrigerant suction line so the compressor and evaporator operate correctly
• Replaces cracked, kinked, or corroded tubing that can cause refrigerant loss or reduced cooling
• Helps address symptoms such as warm or inconsistent temperatures, visible oil or residue at fittings, or abnormal frost/ice patterns
• Restores a sealed refrigerant path after tubing damage or when corrosion has compromised the line

• Intended for qualified service technicians only; system access requires certified refrigerant handling
• Disconnect power to the appliance before servicing and follow all safety precautions
• Installation may require brazing, flare fittings, or specialty tools; verify leak-tight connections and pressure-test per OEM procedures
• Evacuate and recharge the refrigerant system to OEM specifications after installation

This replacement fan shroud screw secures the evaporator/condenser fan shroud to the appliance, helping keep the fan assembly stable for proper airflow and quiet operation. Use it to replace stripped or missing mounting hardware. What it does:

• Secures the fan shroud or mounting bracket to the appliance cabinet or fan assembly
• Helps prevent fan wobble, rubbing, and airflow disruption caused by a loose shroud
• Restores proper clearance between fan blades and shroud to reduce noise and wear

• High-level replacement—remove power to the appliance before starting work
• Use appropriate-size driver to avoid stripping the screw head
• Inspect surrounding hardware and shroud for damage; replace any damaged parts before reassembly

The Harness Assembly is an OEM part for Frigidaire freezers. It is a bundle of color-coded wires that connect electronic and mechanical components inside the freezer, allowing them to communicate and function as intended. The harness assembly reliably transmits signals from the control board to things like fans, temperature sensors, and door alarms.

Symptoms of a bad harness assembly include:

• Components not receiving power or control signals
• Intermittent operation of internal lights or fans
• Temperature control or cooling issues
• Buzzing or humming noises from loose wires
• Error codes related to communicating with modules

Causes of a bad dispenser can include damage over time from repeated bending and flexing of wires, rodent chewing, or corroded connections.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Screw is an OEM replacement part for Frigidaire refrigerators. This small but essential component is used to secure various parts of the appliance, such as panels, brackets, or internal fixtures, ensuring the refrigerator's structural integrity and proper operation.

Over time, screws may become loose, stripped, or corroded due to regular use, environmental factors, or maintenance work. A damaged or missing screw can lead to misaligned parts or reduced stability of the appliance.

Symptoms of a bad or missing screw include:

• Loose or wobbly components within the refrigerator
• Panels or fixtures coming apart or misaligned
• Difficulty securing parts during maintenance or repair
• Rattling or unusual noises during operation

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
