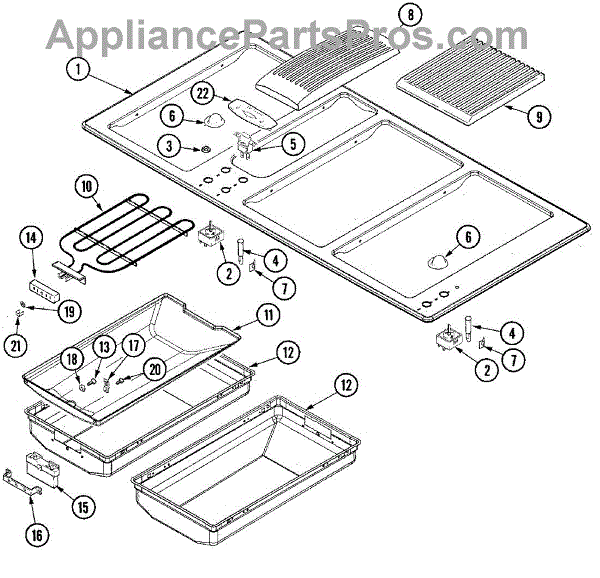

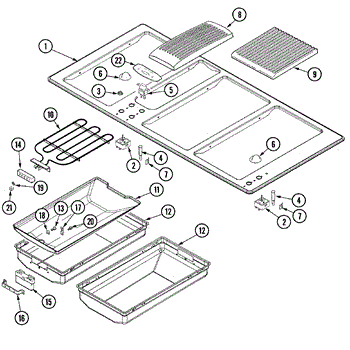

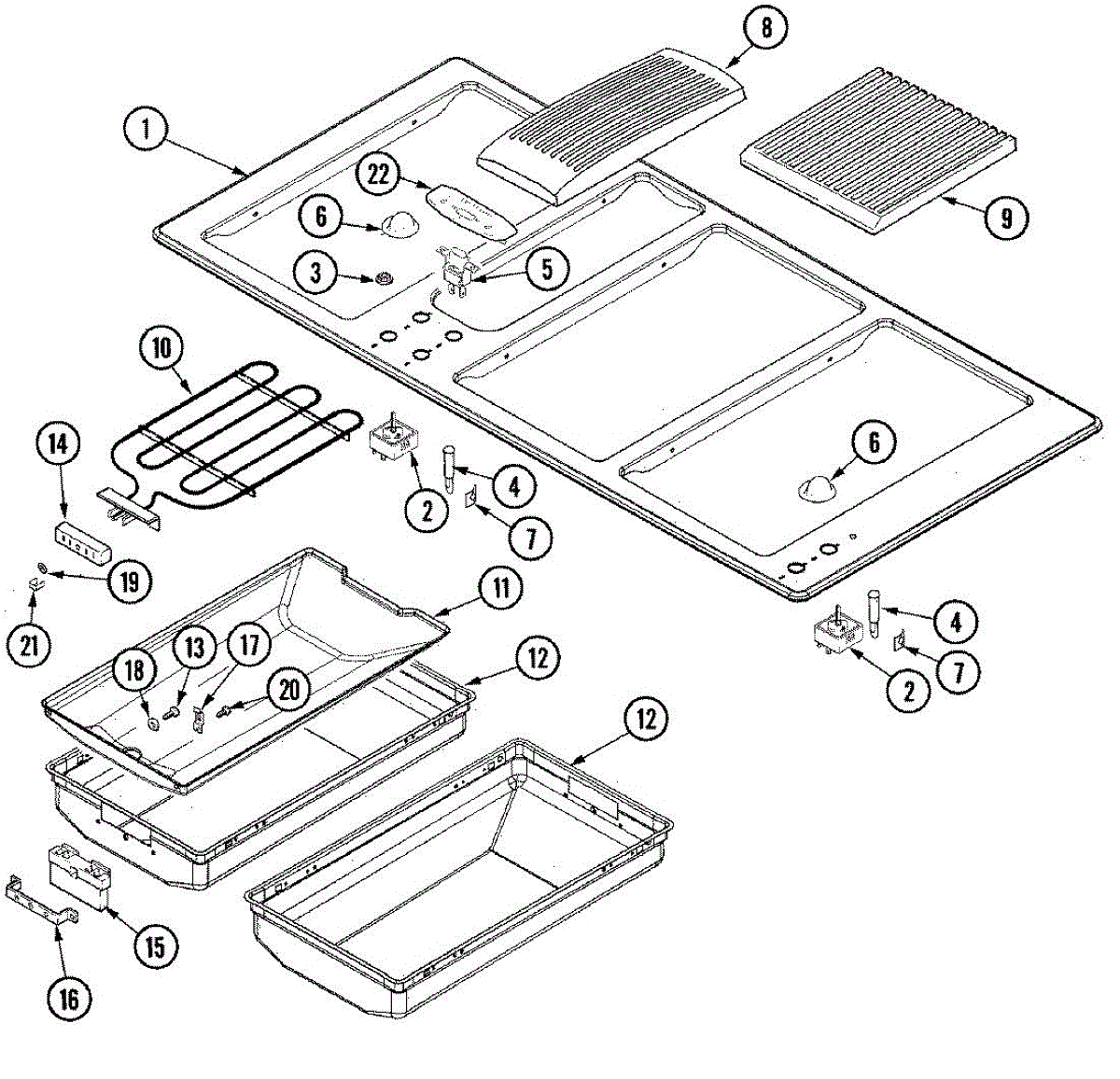

Parts for Jenn-Air JED8345ADB: 03 - Top Assembly Parts

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This genuine replacement screw secures appliance components so panels, brackets, and assemblies stay tight and properly aligned. Replacing stripped, rusted, or missing hardware restores a solid fit and helps prevent rattles, shifting, or looseness over time.

• Fastens panels, brackets, and internal parts to maintain proper alignment
• Helps resolve issues caused by missing or damaged screws
• Restores secure mounting after service where original hardware is lost
• Use when threads are stripped or the screw head is damaged and won't tighten

• Disconnect power; turn off gas supply if applicable before servicing
• Match screw location and length to your model's parts diagram for correct placement
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Snug firmly but do not overtighten to prevent damage to mounting points

The Infinite Switch is an OEM part for Whirlpool ranges. It controls the power levels of the surface heating elements, allowing users to adjust the heat intensity for cooking.

Causes of a bad infinite switch can include electrical malfunctions, wear and tear from regular use, or damage due to overheating.

Symptoms of a bad infinite switch include:

• Inconsistent heating of the burner
• The burner not turning on or off
• The burner staying at one heat level regardless of adjustment
• Sparking or unusual noises from the switch area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a red indicator light for a range/oven control panel. It illuminates to signal an active condition, helping you see at a glance when a function is on and enhancing operational awareness.

• Lights up to indicate an active status on the appliance's control panel
• Helps alert you that a function is energized
• Common symptoms of failure: light never turns on, stays on continuously, flickers, or is physically damaged
• Restores clear visual status indication after replacement

• Disconnect power to the appliance before servicing
• Access is typically from behind the control panel; retain original mounting hardware
• Note wire positions and transfer connectors one at a time
• Test operation before reassembling panels

This relay change kit replaces the failed relay assembly that controls motor or compressor power, restoring proper electrical switching for normal operation. Use this kit to replace a worn or intermittently working relay with an exact-fit factory component. What it does

• Switches power to the motor/compressor when the appliance calls for it
• Restores reliable start and run signals when a relay has failed or sticks
• Addresses symptoms like clicking on start, no motor/compressor operation, or intermittent runs
• Helps prevent damage from repeated failed start attempts

• One relay change kit

• Disconnect power before servicing to avoid shock or damage
• Replace only with the exact OEM relay kit for safe, reliable operation
• Verify wiring and connectors are secure and undamaged before restoring power

This fan switch restores dependable control of your appliance's ventilation fan. It routes power to the blower motor so you can turn the fan on and off from the control panel when the original switch becomes worn or fails.

• Controls electrical power to the blower motor
• Restores reliable on/off fan operation from the user interface
• Typical symptoms: fan won't start, won't shut off, runs intermittently, or the switch/rocker feels loose or broken
• Contacts can wear or arc over time from repeated use

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the switch from the control panel; note wire positions and take a photo for reference
• Move wires one at a time to the matching terminals on the new switch; replace any heat-damaged connectors
• Reassemble, restore power, and test fan operation

This replacement surface burner knob restores reliable control of your cooktop or range. It attaches to the control shaft so you can turn the surface element/burner on and accurately adjust the heat level. What it does:

• Mounts on the surface control valve/switch shaft to select OFF and adjust heat settings
• Replaces knobs that are cracked, stripped, loose, or missing
• Helps resolve issues like a knob spinning freely, wobbling, or not staying on the stem
• Restores confident, consistent control over the surface burner/element

• 1 surface burner knob

• Disconnect power and allow all burners to cool; if applicable, shut off gas
• Pull the old knob straight off the control shaft—do not pry against the panel
• Align the new knob with the shaft and press straight on until fully seated
• Verify smooth operation and OFF alignment; reseat if needed

This small replacement clip secures the appliance control panel or indicator assembly, keeping lights and switches properly positioned for reliable use and a finished appearance. It's a simple fix that restores panel alignment and prevents rattling. What it does:

• Holds the indicator or control panel trim in place to maintain proper alignment
• Prevents rattling, loose trim, or misaligned indicator lights
• Keeps switches and indicator assemblies seated for reliable operation
• Restores the finished fit between the control panel and console

• Disconnect power before servicing to avoid shock or injury
• Remove the console or trim per your model's service instructions to access the clip
• Pry or release the old clip carefully; avoid bending surrounding trim or damaging wiring
• Reinstall the new clip until it snaps into place; verify panel and indicators are seated correctly before restoring power

Includes one element and two grates. For the complete Jenn-air electric grill assembly order JEA8000ADBA.

Includes one element and two grates. For the complete Jenn-air electric grill assembly order JEA8000ADBA.

This is a replacement 6-32 x 3/8" screw used to secure panels and components on compatible Whirlpool appliances. It restores proper fastening for loose or missing fasteners so parts stay aligned and stable. What it does:

• Secures trim, panels, brackets or small components to the appliance frame
• Stops rattling or movement caused by a missing or stripped screw
• Helps maintain proper alignment of control panels and access panels
• Provides the correct thread engagement for safe, stable fastening

• One replacement screw (6-32 x 3/8")

• Disconnect power before accessing internal components
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to threads or components
• Keep removed hardware organized and compare sizes before installation

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer

This terminal block provides an insulated, secure junction for incoming power or harness leads inside the appliance. Replacing a cracked, loose, or heat-damaged block restores a safe, reliable connection and helps prevent arcing or intermittent power.

• Creates a fixed, insulated junction between external supply wires and internal appliance wiring
• Maintains tight screw-lug connections to minimize resistance and heat buildup
• Helps ensure steady power delivery to controls, motors, and heaters
• Common indicators of failure: melted/discolored block, burning odor, visible arcing, loose or stripped terminals, intermittent or no power

• Disconnect power at the breaker and verify zero voltage before servicing
• Photograph/label wire positions; transfer one lead at a time to the new block
• Tighten terminal screws firmly; do not overtighten into the insulator
• Inspect wire ends/ring terminals and strain relief; replace any heat-damaged components per the service information

This is a high-heat ceramic light receptacle used in select appliances. It provides a safe, insulated socket for the appliance light bulb so you can reliably see inside during use or service.

• Holds and insulates the bulb in high-temperature areas
• Restores lighting when the bulb is good but the light won't turn on
• Helps correct loose, flickering, or intermittent interior light
• Common signs include a cracked/scorched socket or arcing at the bulb base

• Disconnect power before servicing; allow the appliance to cool completely
• Access may be from inside the cavity or from the rear panel, depending on model
• Transfer wires one at a time to the new receptacle to maintain correct connections
• Install only the bulb type and wattage specified by the appliance manufacturer

This bracket supports the oven's grill/broiler pan, holding the pan securely during broiling and grilling so food cooks evenly and the pan stays stable. It replaces a worn or broken support bracket. What it does:

• Secures the grill/broiler pan in position so it doesn't shift during use
• Helps maintain proper pan alignment for even browning and cooking
• Prevents rattling or sagging caused by a damaged bracket
• Restores safe support for loading and removing the broiler/grill pan

• One grill pan support bracket

• Designed for oven internal use;
• Disconnect power to the appliance before servicing to avoid electrical or burn hazards
• Install with existing fasteners; replace any damaged clips or screws if needed

This clip secures appliance panels or small components to maintain alignment and reduce vibration, restoring the original fit where a worn or broken fastener allows movement or rattling. Simple, direct-fit replacement when the original clip fails. What it does:

• Holds trim, panels, or small components in position to prevent rattling and shifting.
• Replaces broken or missing fasteners that allow loose or misaligned parts.
• Helps keep wiring harnesses or insulation routed and secured in assemblies.
• Small, inexpensive part commonly used wherever a retaining clip is specified.

• Always disconnect power (unplug or shut off circuit) before servicing the appliance.
• Remove panels or trim per the manufacturer service sheet to access the clip; note the clip orientation before removal.
• Use appropriate tools (needle-nose pliers, trim tool) and avoid over-bending the clip or adjacent parts.
• Replace them with the correct OEM-specified clips for reliable fit.

Screw: 8-16 x 3/8 inch.

This fan switch restores dependable control of your appliance's ventilation fan. It routes power to the blower motor so you can turn the fan on and off from the control panel when the original switch becomes worn or fails.

• Controls electrical power to the blower motor
• Restores reliable on/off fan operation from the user interface
• Typical symptoms: fan won't start, won't shut off, runs intermittently, or the switch/rocker feels loose or broken
• Contacts can wear or arc over time from repeated use

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the switch from the control panel; note wire positions and take a photo for reference
• Move wires one at a time to the matching terminals on the new switch; replace any heat-damaged connectors
• Reassemble, restore power, and test fan operation

This wire harness, also called a contact wire assembly, restores reliable factory connections between the appliance's controls and components. Replacing a damaged harness helps resolve intermittent or failed operation caused by burnt, brittle, or loose wiring and terminals.

• Provides the electrical pathway between controls, switches, and related components
• Can help address intermittent operation or a component that won't run/respond
• Replaces wiring with burned, melted, cut, or corroded insulation/terminals
• Restores proper routing and insulation to reduce shorts, arcing, or overheating

• Disconnect power at the breaker before servicing; also shut off gas supply
• Access the harness by removing necessary panels/knobs; label or photograph connections for reference
• Route the new harness in the original clips/grommets, away from sharp edges and hot or moving parts
• Push connectors on fully until secure; reassemble and test operation
