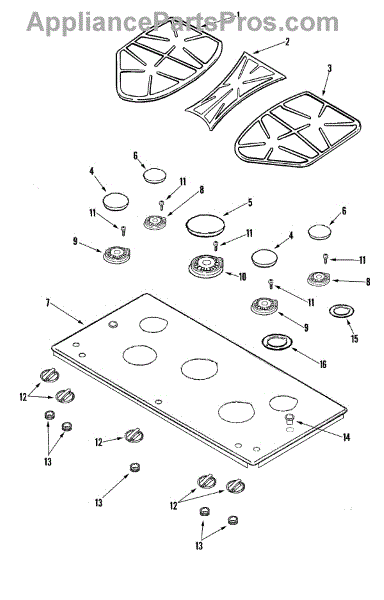

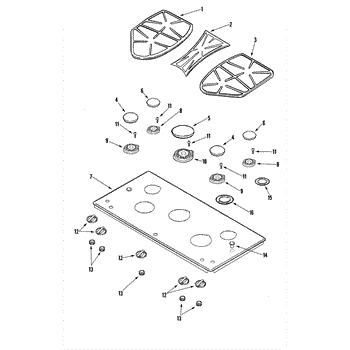

Parts for Jenn-Air JGC9536ADF: 03 - Top Assembly Parts

This large gray burner cap fits over a cooktop's burner head to protect burner ports and help shape the flame for even cooking. Replacing a damaged cap restores proper burner appearance and helps maintain consistent heat. What it does:

• Covers the burner head to protect ports from spills and debris
• Helps direct and stabilize the burner flame for more even heating
• Can reduce flame irregularities caused by warped or cracked caps
• Restores the cooktop's finished appearance when original cap is chipped or discolored

• One large gray burner cap

• Turn off the appliance and ensure all surfaces are cool before starting
• Remove old cap by lifting straight off; set new cap in place so it seats flat on the burner head
• Clean burner head and surrounding area of debris before installation

This small surface burner assembly replaces a worn or damaged top burner on your gas range or cooktop, restoring quick ignition and an even flame so the small burner heats predictably for simmering and everyday cooking.

• Distributes gas through the burner ports to create a steady, controllable flame at the small-burner position
• Works with the igniter/orifice holder to light reliably
• Common symptoms: burner won't light or only clicks, weak or uneven flame, yellow tips, delayed ignition, or flame that sputters out
• Visible cracks, warping, or heavy corrosion on the burner head

• Shut off gas supply and power; allow the cooktop to cool completely before servicing
• Remove grate and cap, then take out the old burner assembly; retain any screws or brackets as required by your model
• Align the new assembly over the orifice and igniter; seat fully and secure per the manufacturer's instructions
• Restore gas and power, then check for proper ignition and flame; verify there are no gas leaks

The Large Burner Head is an OEM part for Whirlpool gas ranges and cooktops. It is designed to fit over the burner base and distribute the gas evenly for efficient and consistent heating.

Causes of a bad burner head can include blockages from food debris or residue buildup, warping or damage from high heat exposure, or general wear and tear over time.

Symptoms of a bad Large Burner Head include:

• Uneven heating or hot spots on the burner
• Yellow or irregular flame patterns
• Difficulty igniting the burner or keeping it lit
• Loud popping or hissing noises during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Top Burner Igniter is an OEM part for Whirlpool gas cooktops and ranges. This thin metal coil provides the spark to light the burner flames during startup. It is a spark electrode with a male spade connection.

Causes involve cracking of fragile ceramic insulator casings allowing moisture ingress, compromised electrical connections cutting off sparking ability, or general wear reducing spark output strength.

Symptoms of failure consist of:

• Inability to light one or more front gas burners
• Click sounds but no flame present when turning burner knob
• Safety issues arising from unlit gas accumulating

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This surface burner head is a genuine Whirlpool part, sold individually. It can be used as a replacement part for a gas range. This surface burner head provides structure and support for the surface burner cap and the ignition, which all work in conjunction to ignite the spark plugs and power on the burner.Signs of damage to this part will include a gas ignition that glows but will not ignite, a gas range that will not start at all, or a heating element that will not heat up the appliance. If any of these signs of damage occur and are directly attributable to the surface burner head, the component should be removed and replaced with this genuine OEM replacement part.This is an OEM part sourced directly from the manufacturer. It is sold individually. This surface burner head is compatible with the following appliance brands: Whirlpool, Jenn Air, and KitchenAid.

The Range Burner Knob is an OEM replacement part for Whirlpool ranges. It is responsible for controlling the operation of the stove's burners, allowing for adjustments to burner temperature settings. The knob accepts a D-shaped shaft and is easy to install.

Causes of a bad burner knob can include wear and tear over time, damage due to impact or mishandling, or cracks or breaks in the knob material.

Symptoms of a bad burner knob include:

• Difficulty turning the knob
• Knob sliding out of position during burner use
• Inaccurate temperature settings
• Burners that cannot be turned on or off

This OEM replacement is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This small burner gasket seals the cooktop burner to help keep spills and debris out of the burner cavity for more reliable ignition and easier cleaning. It replaces a worn or brittle gasket to restore the burner's fit and seal. What it does:

• Creates a tight seal between the cooktop and the small surface burner to help prevent food, liquid, and debris from entering the burner area
• Helps maintain consistent burner alignment for reliable ignition and even heating
• Reduces the need for frequent deep cleaning by blocking spill penetration
• Commonly replaced when the gasket is cracked, flattened, burned, or missing

• One small burner gasket

• Disconnect power to the appliance before servicing; for gas ranges, turn off the gas supply when applicable
• Remove burner components and replace gasket, ensuring it seats evenly around the burner opening
• Do not force or stretch the gasket; inspect surrounding components for damage and clean surfaces before installing

This large fiberglass burner gasket seals the gap between the cooktop and burner to help keep heat, spills, and debris away from internal components. Fits where a durable, heat-resistant edge seal is needed. What it does:

• Provides a heat-resistant seal around a large cooktop burner to help protect internal components.
• Helps reduce burner wobble and keeps the burner assembly properly seated.
• Limits spills and food debris from falling under the cooktop, simplifying cleanup.
• Can reduce heat and steam exposure to adjacent parts that may cause premature wear.

• Disconnect power and allow the cooktop to cool fully before attempting service.
• Remove the burner and old gasket per the range manufacturer's instructions; clean mating surfaces before installing the new gasket.
• Press the gasket into place so it sits evenly around the burner opening; avoid stretching or twisting the gasket.
