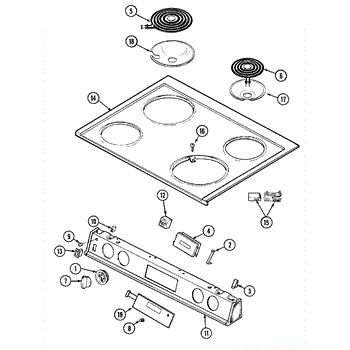

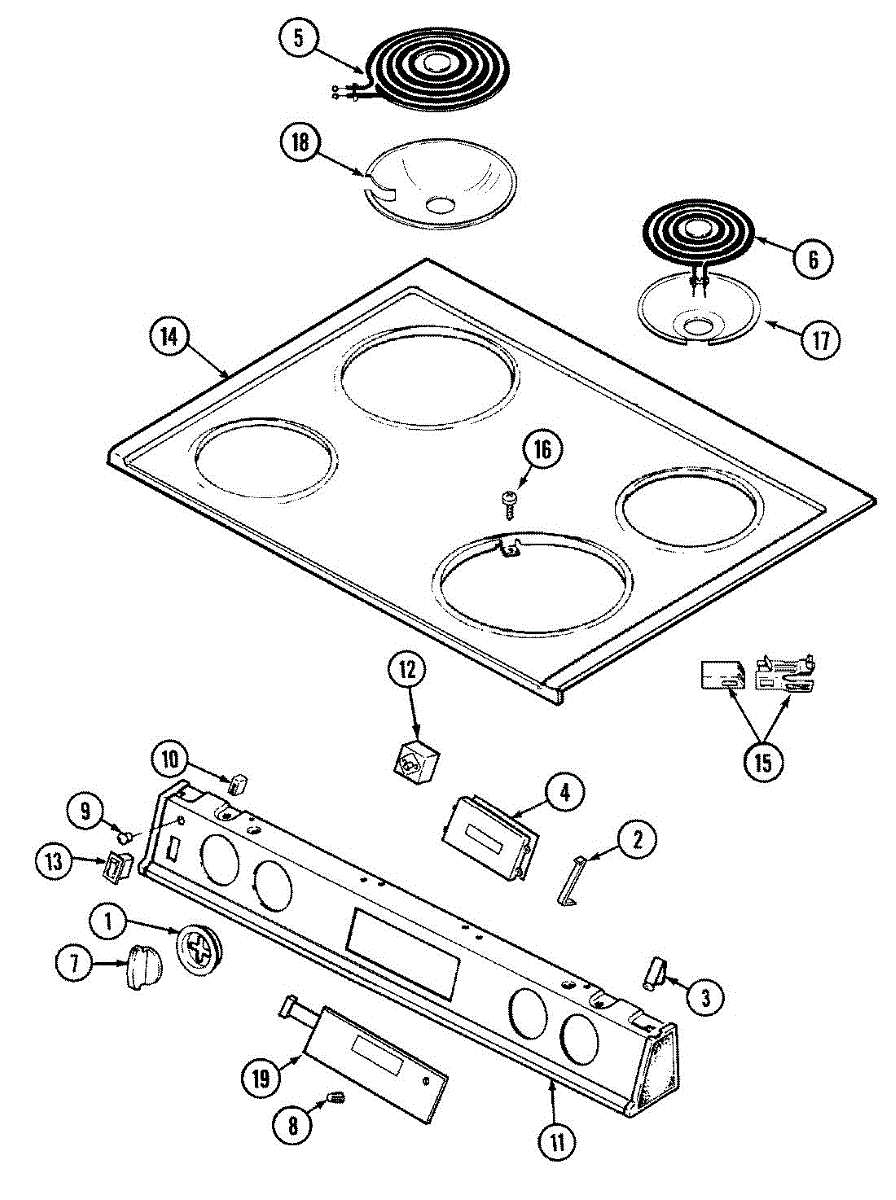

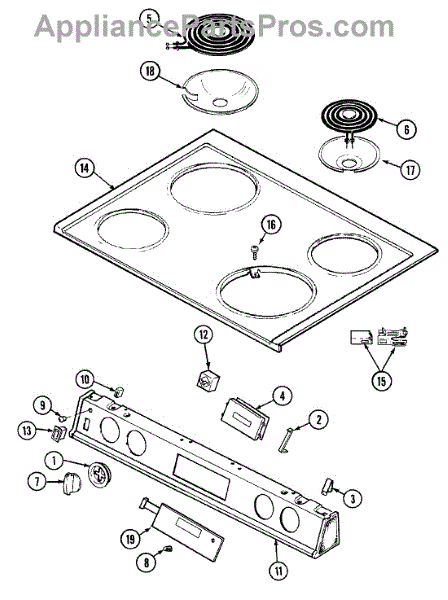

Parts for Magic Chef 6892XRS: 05 - Top Assembly Parts

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

This 8-inch surface element kit restores reliable heat on your electric range or cooktop. Replace a failed burner so pots heat evenly and settings respond as expected across your 8-inch cooking zone.

• Heats the 8-inch surface burner for everyday boiling, simmering, and frying
• Replaces a burned-out or damaged element to restore consistent performance
• Helps eliminate weak, uneven, or intermittent heating
• Common symptoms: surface burner won't heat, heats inconsistently, or shows obvious damage

• Disconnect power at the breaker or unplug the appliance before servicing; allow all components to cool completely
• Note wire/terminal positions and transfer any mounting parts from the old element if required
• Ensure terminals are fully seated and the element is properly supported/seated before use
• After installation, test on low and high settings to confirm proper operation

2100W. Size: 8 inch. Location: Right front.

This 6-inch radiant surface element is the heating source for a small burner beneath a glass-ceramic cooktop. Replacing a failed element restores reliable, controllable heat to that cooking zone. What it does:

• Heats the 6-inch cooking zone under the glass top when the control is turned on
• Cycles to help maintain the selected temperature during cooking
• Common symptoms of failure: small burner won't heat, heats unevenly or intermittently, or shows visible burn spots/damage

• 1 six-inch radiant surface element

• Disconnect power at the breaker and allow the cooktop to cool completely
• Lift the glass top or remove the cooktop to access the elements; support the glass to avoid stress or cracks
• Note wire positions and transfer connections to the new element one at a time
• Ensure the element sits flat in its mounting brackets before reassembly and testing

The 6 Inch Small Surface Element is an OEM part for Whirlpool electric ranges and cooktops. This component is essential for providing consistent, controlled heat to cookware on the stovetop.

Symptoms of a bad 6 Inch Small Surface Element include:

• Lack of heat production, with the element failing to warm up at all.
• Inconsistent heating, where the element may fluctuate in temperature or only partially heat.
• Visible damage such as blistering, bubbling, or cracks on the element's surface.
• A tripped circuit breaker when the element is turned on, indicating a short.

Causes of a bad surface element can include prolonged use leading to element burnout, electrical faults such as faulty wiring or internal failures, and physical damage from impact or heavy cookware being dropped on the element.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

8-inch element is part number WP660533.

The Range Clock Knob is an OEM part for Whirlpool ranges. It attaches to the center of the oven control panel and allows users to adjust the built-in clock, serving as the primary control for setting or correcting the time.

Over time, the clock knob can become faulty due to regular use leading to internal stripping or wear, exposure to heat causing cracks or warping, or accidental impacts damaging the knob.

Color: Black

Symptoms of a defective range clock knob include:

• Difficulty setting or adjusting the clock
• The knob spins freely without engaging the control shaft
• The knob feels loose, cracked, or broken

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ranges.

This replacement light lens covers the appliance's bulb, protecting it from contact, moisture, and splashes while diffusing illumination. Replacing a cracked or missing lens restores safe, even lighting and keeps the bulb properly shielded. What it does:

• Shields the bulb from contact, moisture, and debris
• Diffuses light for more even illumination with reduced glare
• Helps protect the socket area from contamination
• Typical symptoms: cracked, warped, or missing lens; discoloration; exposed bulb; harsh or uneven lighting

• Includes: 1 light lens

• Disconnect power to the appliance before servicing; allow the lamp/area to cool completely
• Wear gloves and eye protection when handling an old or broken lens
• Remove retaining screws, tabs, or clips and note lens orientation for reassembly
• Reuse existing hardware if required; do not overtighten; restore power and test light operation

Replacement indicator light for control panels that restores visible status and cycle feedback. Ideal when the control-panel light is dim, cracked, or not illuminating—helps active functions and cycle progress at a glance. What it does:

• Illuminates to indicate active functions and cycle/status information on the control panel.
• Replaces a cracked, burnt-out, dim, or non-functioning indicator light.
• Common symptoms it can fix: a dark, flickering, or intermittently working panel indicator.

• Disconnect power (unplug or shut off the circuit breaker) before servicing the appliance.
• Access may require removing the control panel or lens; follow the owner's manual or service guide for panel removal.
• Handle the light and lens carefully to avoid damage; avoid touching bulb surfaces with bare hands.

This genuine replacement screw secures appliance components so panels, brackets, and assemblies stay tight and properly aligned. Replacing stripped, rusted, or missing hardware restores a solid fit and helps prevent rattles, shifting, or looseness over time.

• Fastens panels, brackets, and internal parts to maintain proper alignment
• Helps resolve issues caused by missing or damaged screws
• Restores secure mounting after service where original hardware is lost
• Use when threads are stripped or the screw head is damaged and won't tighten

• Disconnect power; turn off gas supply if applicable before servicing
• Match screw location and length to your model's parts diagram for correct placement
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Snug firmly but do not overtighten to prevent damage to mounting points

The Whirlpool Infinite Switch is an OEM part for Whirlpool ranges. Whirlpool electric ranges. This switch controls the multiple heat settings of the small element, allowing the user to select their desired cooking temperature. It is an important electrical component that regulates burner heating cycles.

Symptoms of a bad infinite switch include:

• The element not heating up adequately or failing to maintain temperature
• Inability to select or change heat settings on the
• Burner operates intermittently or fails to heat properly

Causes of a bad infinite switch can include failure over many heating cycles. The electrical contacts within the switch may become corroded or deteriorate from repeated exposure to cooktop temperatures and cooking residue.

It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric range models.

The Whirlpool Infinite Switch is an OEM part for Whirlpool ranges. Whirlpool electric ranges. This switch controls the multiple heat settings of the large element, allowing the user to select their desired cooking temperature. It is an important electrical component that regulates burner heating cycles.

Symptoms of a bad infinite switch include:

• The element not heating up adequately or failing to maintain temperature
• Inability to select or change heat settings on the
• Burner operates intermittently or fails to heat properly

Causes of a bad infinite switch can include failure over many heating cycles. The electrical contacts within the switch may become corroded or deteriorate from repeated exposure to cooktop temperatures and cooking residue.

It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric range models.

Color: Black

The Terminal Block Kit is an OEM part for Whirlpool cooktops. It is a crucial component that provides a secure connection point for electrical wires and cables within the appliance's control system.

Symptoms of a faulty terminal block kit:

• Intermittent power supply or electrical issues
• Burnt or melted wires or connectors
• Appliance not receiving or responding to electrical signals correctly
• Visible damage or corrosion on the terminal block

Causes of a bad terminal block kit include excessive heat exposure, loose connections, moisture or water damage, or simply wear and tear over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement 6-32 x 3/8" screw used to secure panels and components on compatible Whirlpool appliances. It restores proper fastening for loose or missing fasteners so parts stay aligned and stable. What it does:

• Secures trim, panels, brackets or small components to the appliance frame
• Stops rattling or movement caused by a missing or stripped screw
• Helps maintain proper alignment of control panels and access panels
• Provides the correct thread engagement for safe, stable fastening

• One replacement screw (6-32 x 3/8")

• Disconnect power before accessing internal components
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to threads or components
• Keep removed hardware organized and compare sizes before installation

The Stove Top Drip Pan is an OEM replacement part for Whirlpool gas and electric ranges. It is located underneath the stove burners and grates to catch and contain grease drippings and spills. Over time, grease and cooking residue buildup can cause drip pans to crack, warp or corrode.

Symptoms of a bad stove top drip pan include:

• Grease spillovers outside of the drip pan area
• Flames or heating elements obstructed by built-up debris
• Warping or cracking of the pan surface
• Difficulty removing or cleaning the drip pan

Causes can be normal wear from heat and long-term grease exposure. Accidental damage during cleaning is also possible.

 This OEM part is also compatible with Maytag, Jenn-Air, Amana and some Kenmore models.

The Stove Top Drip Pan is an OEM replacement part for Whirlpool ranges. It is the shallow metal pan located below the stove burner elements that collects grease and food particles. The drip pan helps direct spills and drips away from the burner area to the bottom drawer for easy cleanup.

Symptoms of a bad drip pan include:

• Grease or food spilling below the burners outside of the pan
• Burner elements showing signs of corrosion or damage from drips
• The drip pan no longer fitting properly or securely in place

Causes can be warping or damage of the drip pan over time due to exposure to heat. Dents and structural changes compromise its ability to direct drips properly.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

If you require a compatible 6-inch drip bowl, suggest considering our WPW10196406 model for a perfect fit. For a black option include the 6-inch W10290353RW and 8-inch WPW10290350 models.
