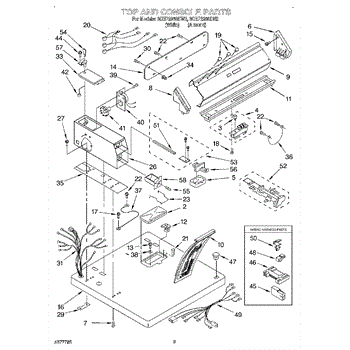

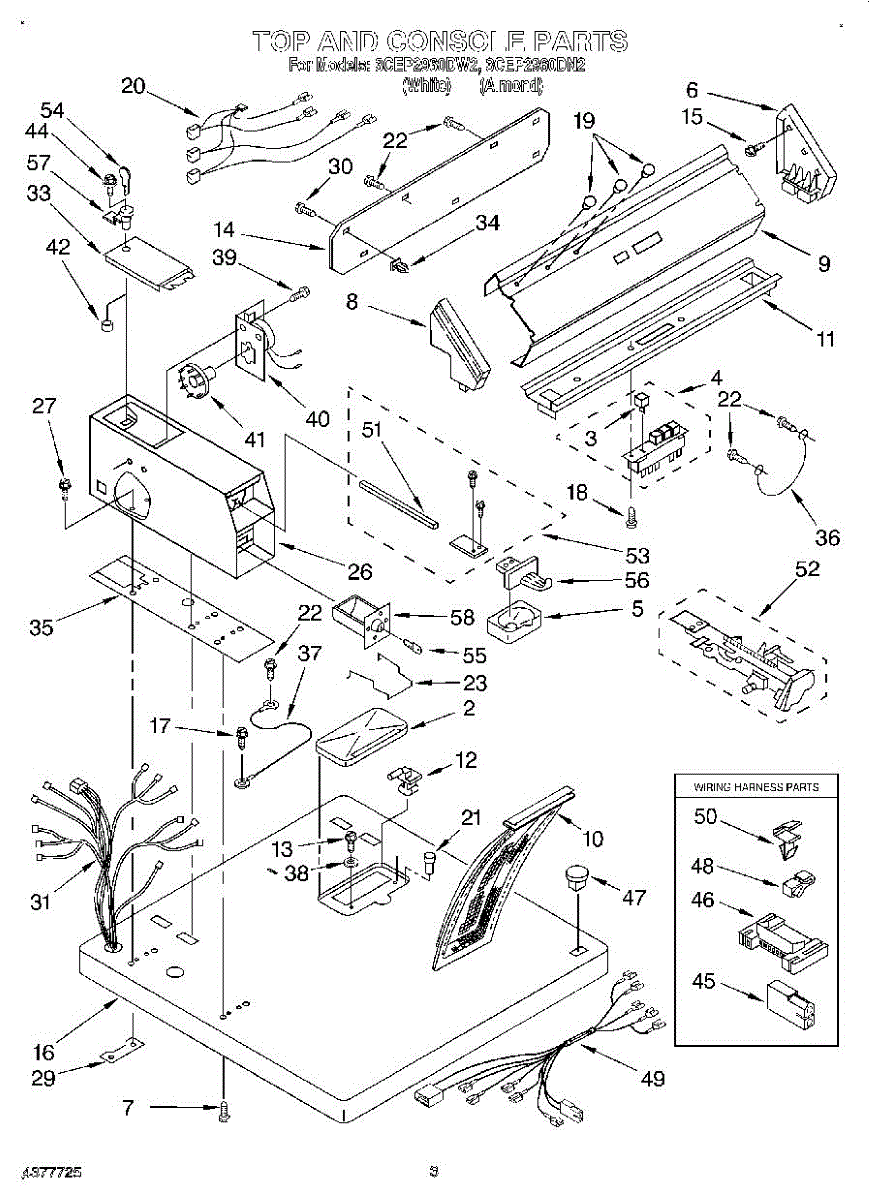

Parts for Whirlpool 3CEP2960DN2: 02 - Section Parts

This coin funnel channels coins from the coin slide/drop into the collection box on coin-operated laundry equipment. Replacing a damaged or missing funnel restores smooth coin flow and helps prevent jams and lost coins inside the cabinet.

• Guides coins from the slide/drop into the collection/coin box
• Helps prevent coins from spilling into the cabinet and causing jams
• Cracks, warping, or misalignment can cause coin back-ups or coins showing up inside the machine
• Visible damage or frequent coin jams indicate the funnel should be replaced

• Disconnect electrical power before servicing; for gas dryers, also shut off gas supply
• Remove coin box and open the meter case/console to access the funnel
• Reuse existing mounting hardware; install the new funnel in the same orientation
• Clear debris and test coin travel by hand before reassembly and returning to service

The Lint Screen is an OEM part for Whirlpool dryers. This component is designed to trap lint and debris that are generated during the drying process, preventing them from accumulating in the dryer's vent system. By capturing lint, the screen helps maintain proper airflow, reducing the risk of fire hazards and ensuring that the dryer operates efficiently. This lint screen measures approximately 19 x 7 inches.

Symptoms of a failing Lint Screen include:

• Visible tears or holes in the screen mesh
• The screen not fitting securely in its slot
• Lint buildup in the dryer or vent system
• Clothes taking longer to dry due to restricted airflow
• The screen being difficult to remove or replace

Causes of a bad lint screen can include regular wear and tear from frequent use, physical damage from heavy lint loads or improper handling, and the accumulation of residue from dryer sheets or fabric softeners that can clog the mesh.

This OEM part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

This lint screen lid hinge connects the dryer's lint lid to its mounting point, allowing smooth, aligned opening and secure closing. Replacing a bent or broken hinge restores proper lid operation and helps keep lint contained in the trap.

• Provides the pivot point for the lint screen lid/cover
• Helps the lid sit flush and stay aligned when closed
• Symptoms of a failed hinge can include a loose or misaligned lid, difficulty opening/closing, or squeaking/binding at the hinge
• Replace when the hinge is bent, cracked, or missing

• Disconnect power before servicing; sharp cabinet edges—wear cut-resistant gloves
• Support the lint lid to avoid bending or scratching
• Remove the mounting screws, note the hinge orientation, and transfer the new hinge in the same position
• After reassembly, cycle the lid open/closed to ensure smooth operation before restoring power

Right handed Hinge

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This replacement screw secures panels, brackets, and other components in your appliance to keep them aligned and rattle-free. Replacing worn, stripped, or missing hardware restores a tight fit and helps maintain safe, quiet operation.

• Fastens panels, brackets, or internal parts to the cabinet/frame
• Helps maintain alignment to reduce vibration and rattling
• Replaces lost, stripped, or corroded screws
• Common symptoms: loose panels/trim, rattles, or a screw that won't tighten

• Disconnect power; shut off water or gas if applicable
• Match thread and length to the original; replace one at a time to keep alignment
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten, especially into plastic or thin sheet metal

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

This amber light lens covers and diffuses an indicator/pilot light on the appliance's control panel. It restores proper color and visibility while protecting the opening when the original lens is cracked, discolored, or missing.

• Diffuses and colors the indicator light to amber for clear status visibility
• Shields the lamp opening from dust and incidental contact
• Helps maintain the original look of the control panel
• Common signs it's time to replace: cracked or missing lens, faded/discolored lens, glare or hard-to-see indicator

• Disconnect power to the appliance before servicing.
• Access the control panel area to reach the back of the lens.
• Release the old lens from its retainer/tabs and seat the new lens fully in the panel opening.
• Restore power and verify the indicator light is visible through the lens.

This rubber bumper cushions and protects moving parts and panels, reducing noise and preventing metal-to-metal contact. It restores proper spacing and stops rattles so doors, drawers or panels close smoothly and quietly. What it does:

• Acts as a shock-absorbing cushion to prevent damage from impact or slamming
• Reduces vibration and rattling noise from doors, drawers or panels
• Maintains proper clearance and helps parts align during operation
• Commonly replaced when worn, flattened, missing or causing noise

• One rubber bumper

• Typically press-fits into a hole or onto a mounting post
• Clean the mounting surface of dirt and old adhesive or debris for best retention
• No special tools required for most installs; use gentle pressure or a blunt tool to seat the bumper
• Unplug the appliance or disconnect power before servicing

Specs: 10-16 x 1/2 inch.

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

This is the factory replacement microwave door assembly. It restores a smooth, secure door closure and proper operation so the unit can open and close reliably and look like new. What it does:

• Provides a complete, aligned door to open/close the cavity smoothly
• Ensures latch hooks engage properly so the appliance can operate
• Replaces doors that are cracked, warped, or have broken handle mounts
• Addresses issues like the unit not starting unless the door is pressed, or stopping when the door is moved
• Helps resolve sparking/arcing around the door opening caused by a damaged door choke or screen

• One door assembly

• Disconnect power at the breaker before servicing; microwaves contain high-voltage components
• For over-the-range units, support or remove the microwave from the wall to safely access and handle the door
• Transfer any reusable hardware/hinge pins/trim from the original door as needed
• Align the hinges and verify the door closes, latches, and opens smoothly before remounting

6 Pin 30 minute

3 pin 60 minute

This cage nut has 5/16-18 threads and clips into a panel or frame opening to create a durable, replaceable threaded anchor. It restores a solid mounting point so screws can securely fasten panels, brackets, or hardware.

• Provides a 5/16-18 threaded anchor in thin sheet metal or chassis openings
• Secures panels, brackets, and components where factory threads are not possible or have stripped
• Helps eliminate looseness, rattling, or misalignment when a mounting point fails
• Symptoms of a failed/missing cage nut include a screw that won't tighten or hold, loose panels, and vibration noises

• Disconnect power and allow moving parts to stop before servicing
• Remove the screw and old cage nut; compress the new nut's tabs and snap it fully into the opening
• Align threads and start the screw by hand to avoid cross-threading
• Tighten the screw until snug; do not overtighten into sheet metal

This locking plug secures a mating connector or wire harness to prevent accidental disconnection and keep the connection stable during normal use. It's a small replacement part that restores proper retention where the original plug has broken or worn. What it does:

• Clips into place to hold a connector or cord securely and reduce movement
• Helps prevent intermittent electrical or signal loss caused by loose connections
• Stops connectors from working free during vibration or normal appliance operation
• Often used where a secured plug connection is required for reliable function

• One locking plug

• Disconnect power to the appliance before beginning any repair
• Verify the part number and connector orientation before installation
• Typically installs by snapping into the connector/housing; basic tools may be helpful

This harness clip secures appliance wiring to the cabinet or components to prevent rubbing, pinching, and interference with moving parts. It keeps wiring routed neatly for reliable operation and reduced risk of abrasion-related failures. What it does:

• Holds wire harnesses in place to prevent chafing against sharp edges or moving parts
• Reduces vibration-related noise and intermittent connections caused by loose wiring
• Helps maintain proper wire routing around panels, motors, and heaters
• Supports safe operation by keeping wires away from heat sources and pinch points

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove panels or access covers as needed to reach the original clip location
• Install by snapping or seating the clip into the original mounting point and securing the harness in the retainer; replace any broken mounts
• Inspect surrounding wiring and replace damaged wires or insulation before completing repair
