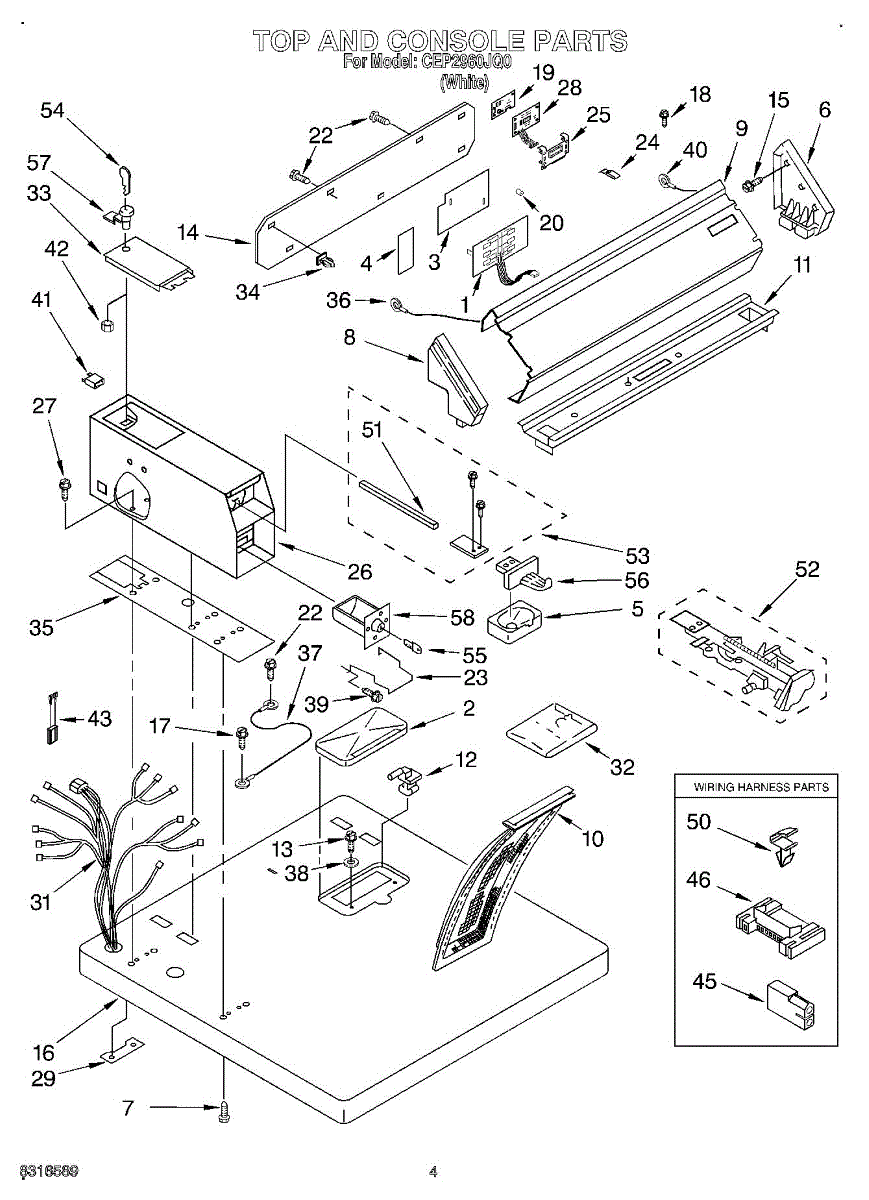

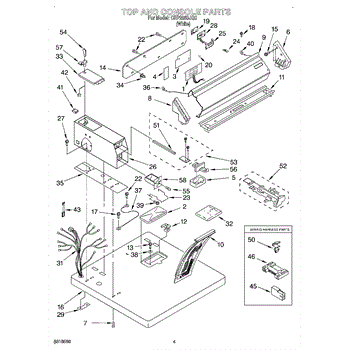

Parts for Whirlpool CEP2960JQ0: 03 - Top And Console Parts

This coin funnel channels coins from the coin slide/drop into the collection box on coin-operated laundry equipment. Replacing a damaged or missing funnel restores smooth coin flow and helps prevent jams and lost coins inside the cabinet.

• Guides coins from the slide/drop into the collection/coin box
• Helps prevent coins from spilling into the cabinet and causing jams
• Cracks, warping, or misalignment can cause coin back-ups or coins showing up inside the machine
• Visible damage or frequent coin jams indicate the funnel should be replaced

• Disconnect electrical power before servicing; for gas dryers, also shut off gas supply
• Remove coin box and open the meter case/console to access the funnel
• Reuse existing mounting hardware; install the new funnel in the same orientation
• Clear debris and test coin travel by hand before reassembly and returning to service

The Lint Screen is an OEM part for Whirlpool dryers. It is crucial for trapping lint and debris from clothes during the drying process, helping to prevent these materials from clogging the dryer vent or causing potential fire hazards. This lint screen measures approximately 20 1/2" x 7 1/2".

Symptoms of a bad Lint Screen include:

• Tearing or holes in the screen that allow lint to pass through
• Excessive lint accumulation in the dryer or vent
• The dryer taking longer than usual to dry clothes

Causes of a bad lint screen can stem from normal wear and tear, improper cleaning practices that lead to build-up and degradation, or accidental damage during handling.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For the 19 inch long filter order 339392V.

This lint screen lid hinge connects the dryer's lint lid to its mounting point, allowing smooth, aligned opening and secure closing. Replacing a bent or broken hinge restores proper lid operation and helps keep lint contained in the trap.

• Provides the pivot point for the lint screen lid/cover
• Helps the lid sit flush and stay aligned when closed
• Symptoms of a failed hinge can include a loose or misaligned lid, difficulty opening/closing, or squeaking/binding at the hinge
• Replace when the hinge is bent, cracked, or missing

• Disconnect power before servicing; sharp cabinet edges—wear cut-resistant gloves
• Support the lint lid to avoid bending or scratching
• Remove the mounting screws, note the hinge orientation, and transfer the new hinge in the same position
• After reassembly, cycle the lid open/closed to ensure smooth operation before restoring power

Right handed Hinge

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This replacement screw secures panels, brackets, and other components in your appliance to keep them aligned and rattle-free. Replacing worn, stripped, or missing hardware restores a tight fit and helps maintain safe, quiet operation.

• Fastens panels, brackets, or internal parts to the cabinet/frame
• Helps maintain alignment to reduce vibration and rattling
• Replaces lost, stripped, or corroded screws
• Common symptoms: loose panels/trim, rattles, or a screw that won't tighten

• Disconnect power; shut off water or gas if applicable
• Match thread and length to the original; replace one at a time to keep alignment
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten, especially into plastic or thin sheet metal

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement mounting screw secures appliance panels and small components to restore proper fit and reduce movement. It's a simple, direct part for repairing loose panels, trim, or interior assemblies. What it does:

• Fastens panels, brackets, or assemblies to prevent rattling and vibration
• Restores proper alignment for doors, control panels, or trim pieces
• Helps stop intermittent noise caused by loose hardware
• Use when original screw is missing, stripped, or corroded

• Disconnect power and unplug the appliance before beginning any repair
• Use the correct screwdriver bit and hand-tighten; avoid over-torquing which can strip threads
• Keep small parts away from children and pets; magnetic tray helps prevent loss
• If multiple screws are corroded or hardware threads are damaged, inspect mating parts and replace as needed

Specs: 10-16 x 1/2 inch.

This replacement funnel guides dryer airflow from the drum into the lint screen housing. Replacing a cracked or missing funnel helps restore a tight air path for efficient drying and keeps lint contained inside the proper ductwork.

• Directs exhaust air from the drum into the lint screen/duct path
• Helps prevent lint blowback and cabinet contamination
• A damaged or warped funnel can cause longer dry times and poor airflow
• Contribute to excess lint in the drum or overheating symptoms

• Disconnect power; for gas models, also shut off the gas supply
• Access is typically through the top or front panel; remove lint duct fasteners as needed
• Transfer and reuse existing mounting hardware and any seals
• Clean lint from mating ducts and ensure an airtight fit before reassembly

This is the factory replacement microwave door assembly. It restores a smooth, secure door closure and proper operation so the unit can open and close reliably and look like new. What it does:

• Provides a complete, aligned door to open/close the cavity smoothly
• Ensures latch hooks engage properly so the appliance can operate
• Replaces doors that are cracked, warped, or have broken handle mounts
• Addresses issues like the unit not starting unless the door is pressed, or stopping when the door is moved
• Helps resolve sparking/arcing around the door opening caused by a damaged door choke or screen

• One door assembly

• Disconnect power at the breaker before servicing; microwaves contain high-voltage components
• For over-the-range units, support or remove the microwave from the wall to safely access and handle the door
• Transfer any reusable hardware/hinge pins/trim from the original door as needed
• Align the hinges and verify the door closes, latches, and opens smoothly before remounting

This cage nut has 5/16-18 threads and clips into a panel or frame opening to create a durable, replaceable threaded anchor. It restores a solid mounting point so screws can securely fasten panels, brackets, or hardware.

• Provides a 5/16-18 threaded anchor in thin sheet metal or chassis openings
• Secures panels, brackets, and components where factory threads are not possible or have stripped
• Helps eliminate looseness, rattling, or misalignment when a mounting point fails
• Symptoms of a failed/missing cage nut include a screw that won't tighten or hold, loose panels, and vibration noises

• Disconnect power and allow moving parts to stop before servicing
• Remove the screw and old cage nut; compress the new nut's tabs and snap it fully into the opening
• Align threads and start the screw by hand to avoid cross-threading
• Tighten the screw until snug; do not overtighten into sheet metal

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

This harness clip secures appliance wiring to the cabinet or components to prevent rubbing, pinching, and interference with moving parts. It keeps wiring routed neatly for reliable operation and reduced risk of abrasion-related failures. What it does:

• Holds wire harnesses in place to prevent chafing against sharp edges or moving parts
• Reduces vibration-related noise and intermittent connections caused by loose wiring
• Helps maintain proper wire routing around panels, motors, and heaters
• Supports safe operation by keeping wires away from heat sources and pinch points

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove panels or access covers as needed to reach the original clip location
• Install by snapping or seating the clip into the original mounting point and securing the harness in the retainer; replace any broken mounts
• Inspect surrounding wiring and replace damaged wires or insulation before completing repair
