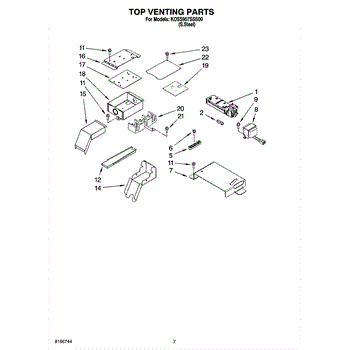

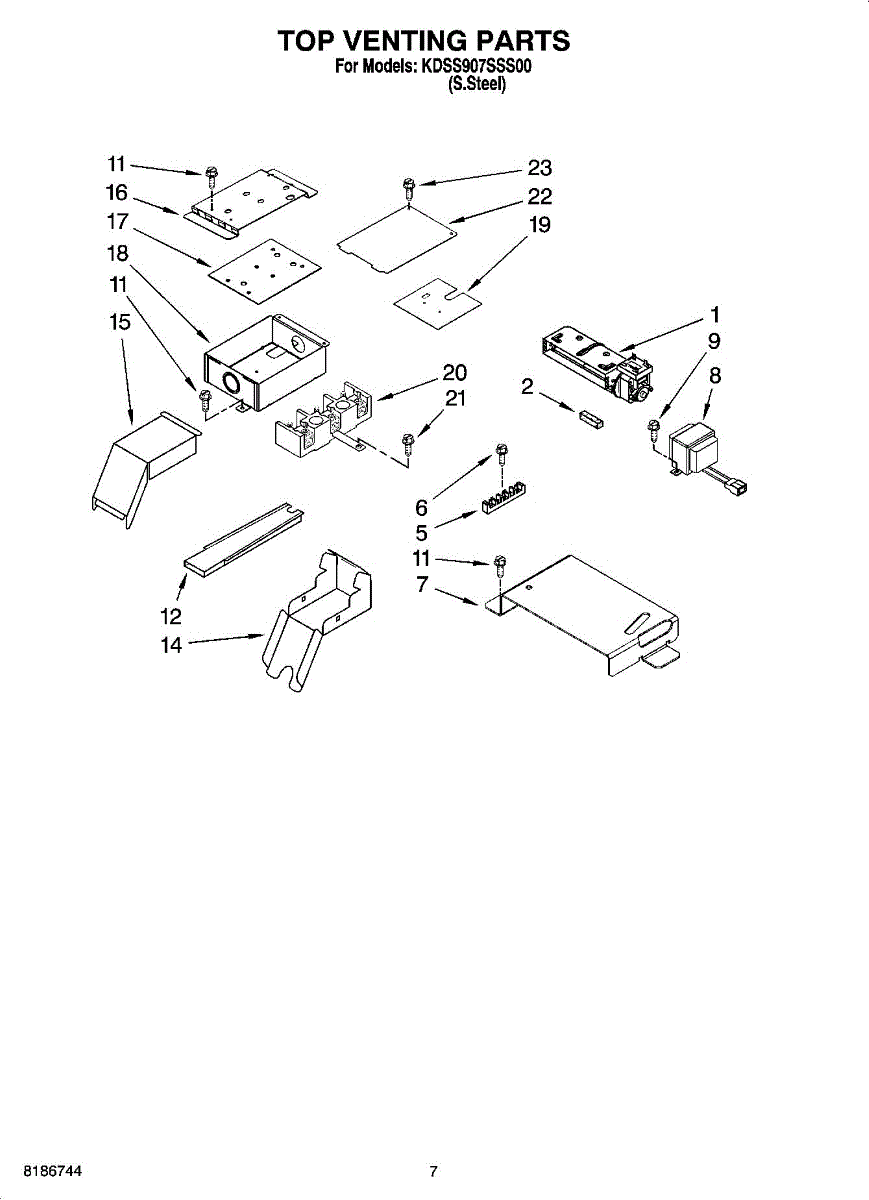

Parts for Kitchenaid KDSS907SSS00: 04 - Top Venting Parts

This blower moves air through your appliance to maintain proper cooling and ventilation. Replacing a worn or noisy blower restores airflow and helps protect internal components so the unit operates as designed. What it does

• Drives airflow through ducts or cooling channels to manage heat inside the appliance
• Helps expel heat and moisture or circulate cooling air, depending on the design
• Common symptoms of failure: fan won't run, weak/no airflow, loud rattling or squealing, burning smell, overheating or shutdown, or cooling/vent-related error messages

• Includes 1 blower

• Disconnect power before servicing; allow hot surfaces to cool
• Metal edges can be sharp—wear cut-resistant gloves and eye protection
• Note wire connections and mounting orientation; transfer any brackets or seals from the original unit if required
• After installation, confirm unobstructed airflow and correct blower orientation before fully reassembly and testing

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

This terminal block is the insulated connection point where the appliance's incoming power ties into the internal wiring. Replacing a heat-damaged or loose block restores a safe, reliable electrical path and helps prevent arcing and intermittent power loss.

• Connects the supply conductors to the unit's internal wiring
• Provides insulated posts to securely fasten and distribute power
• Helps maintain tight, low-resistance connections
• Common failure signs: melted/discolored plastic, burned or loose terminals, arcing, scorching, or intermittent/no power after confirming the cord and breaker

• Disconnect power at the breaker or unplug the appliance; verify no voltage before servicing
• Photograph or label wire positions to ensure correct reassembly
• Inspect and replace any heat-damaged wire ends or lugs; use appropriate terminals
• Tighten connections securely and ensure wires are fully seated and strain-relieved as originally installed

This control transformer reduces incoming line voltage to the low voltage required by the appliance's control circuit or lighting. Replacing a failed transformer restores proper power to the controls so the unit operates as designed. What it does:

• Steps down household line power to low voltage for control boards, relays, or lighting circuits
• Provides electrical isolation to help protect sensitive control components
• A failed transformer may leave the control/display dead or make low-voltage features (like lights) inoperative; may also blow a fuse

• Disconnect power at the breaker or unplug the appliance before servicing
• Use your model's wiring diagram; transfer wires one at a time to the matching terminals
• Mount securely in the original location; keep wires clear of sharp edges and heat sources
• If a fuse opened, inspect wiring and downstream loads for shorts before restoring power

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

This bushing is a small sleeve-style bearing that supports a rotating shaft and reduces metal-to-metal wear for smooth operation. It helps restore proper alignment and quiet operation when the original bushing is worn. What it does

• Guides and supports a rotating shaft or spindle to reduce friction and wear
• Prevents metal-to-metal contact that can cause grinding or scoring
• Helps stop rubbing, squeaking, or vibration caused by a worn bearing surface
• Restores proper alignment of the moving component for smoother operation

• Inspect the mating shaft and housing for wear or damage before installing a new bushing
• Press or seat the bushing evenly; avoid hammering directly on the bushing surface
• Use proper tools and safety gear; disconnect power or unplug the appliance before service
• If surrounding parts are worn (shafts, seals, clips), replace them to prevent premature bushing failure

The Terminal Block is an OEM part for Whirlpool ranges and ovens. It is designed to provide a secure connection point for the appliance's electrical wiring, ensuring the safe transmission of power to the heating elements and other components.

You should replace the terminal block if it becomes damaged or faulty. Causes of a bad terminal block can include electrical arcing, loose connections, or damage from overheating. A compromised terminal block can lead to electrical issues, affecting the performance and safety of the appliance.

Symptoms of a bad terminal block include:

• The oven or range not heating up properly
• Visible damage or burning around the terminal block
• Intermittent power issues or flickering display
• Unusual electrical smells or sparks from the terminal area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM replacement part for Whirlpool ranges. This screw is used to secure various components of the range, ensuring that parts such as panels, brackets, or burners remain firmly in place during operation. It is designed to withstand the high-heat environment of a range, providing long-lasting durability.

Symptoms of a bad or missing Screw include:

• Loose or misaligned range components
• Rattling or unusual noises during operation
• Difficulty maintaining the range's structural stability

Causes of a failing or missing screw can include normal wear over time, accidental loss during maintenance or repairs, or damage from overtightening. Replacing faulty screws ensures the appliance remains safe and functional.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
