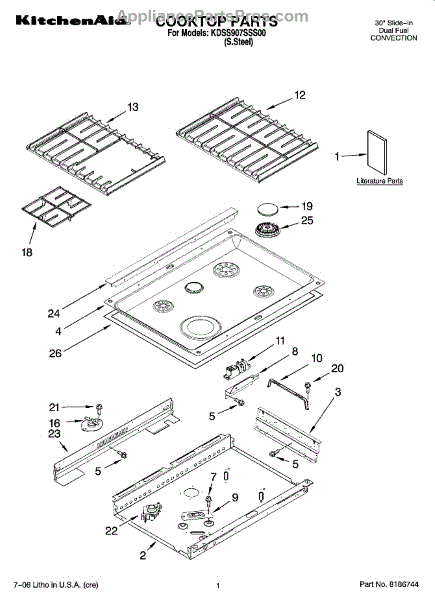

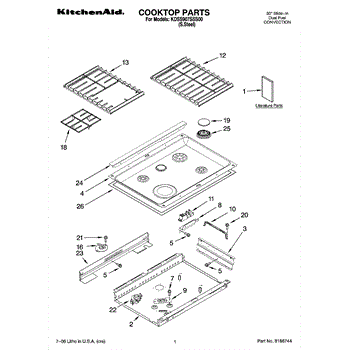

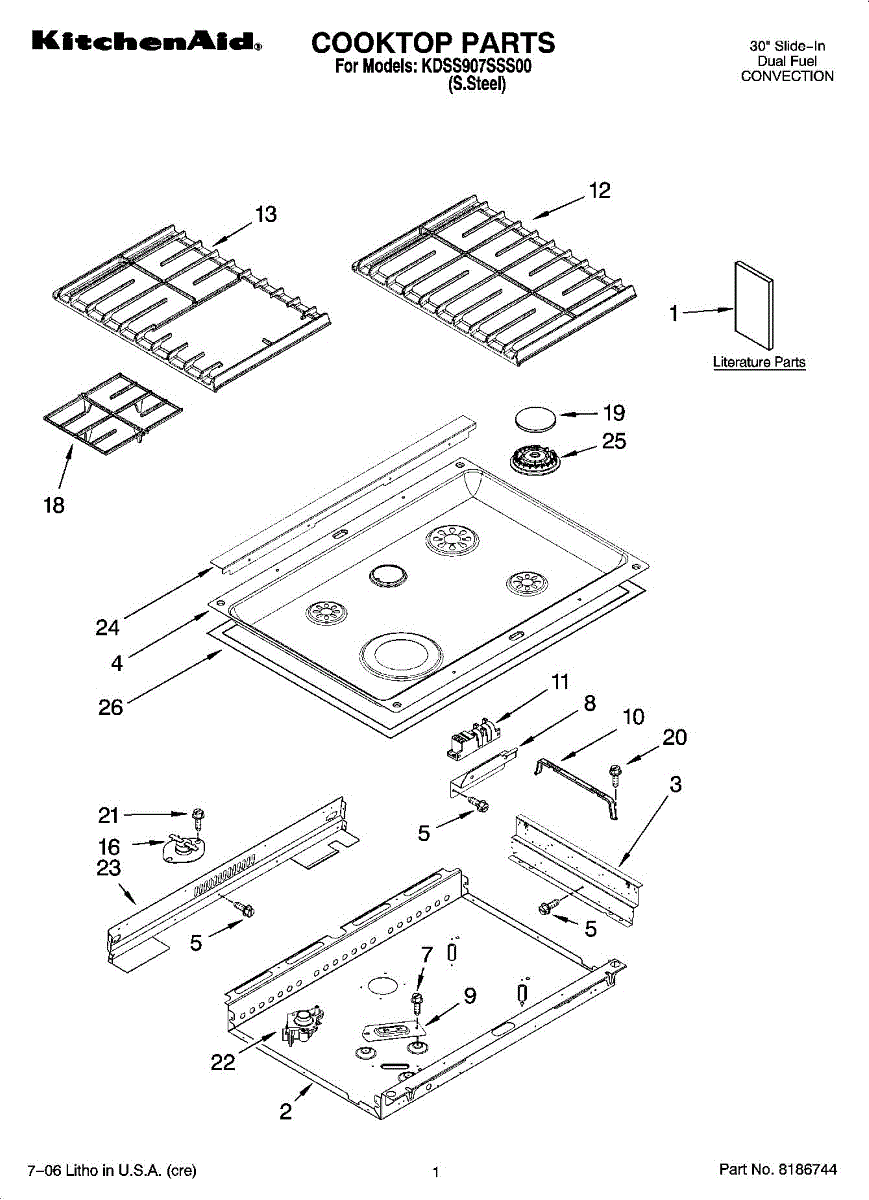

Parts for Kitchenaid KDSS907SSS00: 01 - Cooktop Parts

This part has been discontinued and is no longer available

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer

The Whirlpool spark module is an OEM replacement part responsible for controlling the ignition and sparking of the gas burners in a Whirlpool range or cooktop. The spark module is typically located behind the control panel or near the burners, and it generates the electrical sparks needed to ignite the gas for cooking.

Causes of a bad module can include electrical surges, physical damage, or simply wear and tear over time.

This part fixes the following symptoms:

• Gas burners fail to ignite or have weak or inconsistent sparks
• Continuous sparking even after the burner is lit
• No spark at all when attempting to ignite the burners
• Unresponsive or non-functional burner control knobs
• Visible damage, such as burn marks or corrosion, on the spark module

The Whirlpool spark module can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This fixed thermostat switches near 60C to control a heat-managed circuit—often the oven's cooling/blower fan. Replacing a failed unit restores proper fan cycling and helps protect the control area from excessive heat during and after cooking.

• Monitors temperature in the oven cabinet/control area and switches power based on heat level
• Cycles the cooling/blower fan on and off to manage cabinet temperature
• Helps safeguard electronic controls from heat buildup
• Failure may cause symptoms such as a fan that won't run, a fan that runs continuously, or an unusually hot control area

• Disconnect power at the breaker before servicing
• Access the thermostat per your model; it is typically mounted to a plenum or bracket near the oven cavity
• Move wires one at a time and mount the new thermostat flat against the surface for accurate sensing
• Restore power and verify the fan cycles during operation

The Burner Grate Insert is an OEM part for Whirlpool stoves. It provides a stable and heat-resistant surface for cookware, ensuring even heat distribution while cooking. The grate measures approximately 9" x 11".

You should replace the burner grate insert if it becomes damaged or worn out. Causes of a bad burner grate insert can include prolonged exposure to high heat, accidental impact, or regular wear and tear. These issues can compromise its stability and heat resistance, affecting cooking performance.

Symptoms of a bad burner grate insert include:

• Uneven or unstable cooking surface
• Visible cracks or chips
• Difficulty in placing or balancing pots and pans
• Discoloration or warping

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

6,000 BTU. Color: Coal matte black. Measures about 2 inches in diameter.

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This orifice holder secures the gas orifice in the G4 burner assembly so fuel flows correctly to the burner. It helps restore reliable ignition and a steady flame for safer, more consistent cooking. What it does:

• Holds the burner orifice in place to maintain correct fuel delivery to the burner.
• Helps correct ignition issues caused by a loose, misaligned, or damaged orifice holder.
• Promotes an even, stable flame and consistent heat across the burner.
• Used when burner flames are weak, uneven, or fail to light reliably.

• Turn off the appliance and shut off gas and electrical power before servicing. If you smell gas, stop.
• Remove burner grates and caps to access the orifice holder; reassemble components in original order.
• Inspect the orifice and threads for damage before installation; hand-tighten and avoid over-torquing.

This orifice holder assembly secures the gas orifice to the burner tube, helping maintain correct gas flow for reliable ignition and consistent, even burner flame performance on compatible gas ranges and cooktops. What it does:

• Positions and secures the burner orifice to ensure correct gas delivery to the burner.
• Helps maintain a steady, even flame and consistent heat output across burners.
• Common symptoms indicating replacement: burners fail to light, flame is weak or uneven, or ignition is delayed.
• Use when the holder is damaged, corroded, stripped, or not seating the orifice properly.

• Turn off the appliance's gas supply and power before servicing; follow local codes.
• Remove burner cap and grate, replace the holder, and hand-tighten securely—do not overtighten or cross-thread.
• Inspect the orifice and any seals or gaskets and replace if worn or damaged.
• After reinstalling, restore gas and power, confirm proper ignition and flame, and if you detect gas odor or unsafe operation, shut off gas.

This top rear cover protects the back of the appliance cabinet and helps keep internal components shielded from dust and debris. It restores a finished appearance and supports proper airflow routing at the cabinet's rear upper area. What it does:

• Covers and protects rear upper cabinet openings to prevent debris entry
• Helps maintain proper airflow path for exhaust or ventilation systems
• Restores a clean, finished look to the appliance rear panel
• Useful when the original cover is cracked, warped, or missing

• Basic snap- or screw-in replacement; refer to your model's cabinet disassembly diagram
• Disconnect power (and gas if applicable) before starting any repair
• Keep fasteners and clips from the original part for reuse if undamaged

This auxiliary surface burner head mounts over the orifice on your gas cooktop/range and distributes gas through precision ports for an even flame. Replacing a clogged or damaged head restores fast ignition and consistent heat on the small burner. What it does:

• Distributes gas through ports to produce a stable, even flame on the auxiliary burner
• Interfaces with the igniter electrode for quick, reliable lighting
• Common symptoms of a worn/clogged head: burner won't ignite or clicks without lighting; weak, uneven, or yellow flame; delayed ignition
• Helps restore proper simmer performance after corrosion, warping, or blocked ports

• 1 auxiliary burner head

• Shut off gas and disconnect power; allow the cooktop/range to cool completely
• Remove grate and burner cap, then lift off the old head; clear debris from the orifice and around the igniter (do not enlarge burner ports)
• Position the new head over the orifice and igniter; align locating features and seat fully; if your model uses screws, tighten them evenly without over-torquing
• Reinstall the cap and grate, restore gas/power, and verify even flame and normal ignition

The Burner Head is an OEM part for Whirlpool ranges. It is responsible for distributing gas to create an even flame for cooking on the stovetop. This burner head ensures efficient gas flow and optimal flame control, which are essential for consistent cooking performance.

Causes of a bad burner head can include clogging from food debris or grease, corrosion due to prolonged exposure to heat and moisture, or physical damage from impact. Such issues can obstruct gas flow and result in uneven heating or poor flame quality.

Symptoms of a bad burner head include:

• Uneven flame or poor flame control
• Difficulty igniting the burner
• Low or inconsistent heat output
• Unusual noises such as hissing or popping during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
