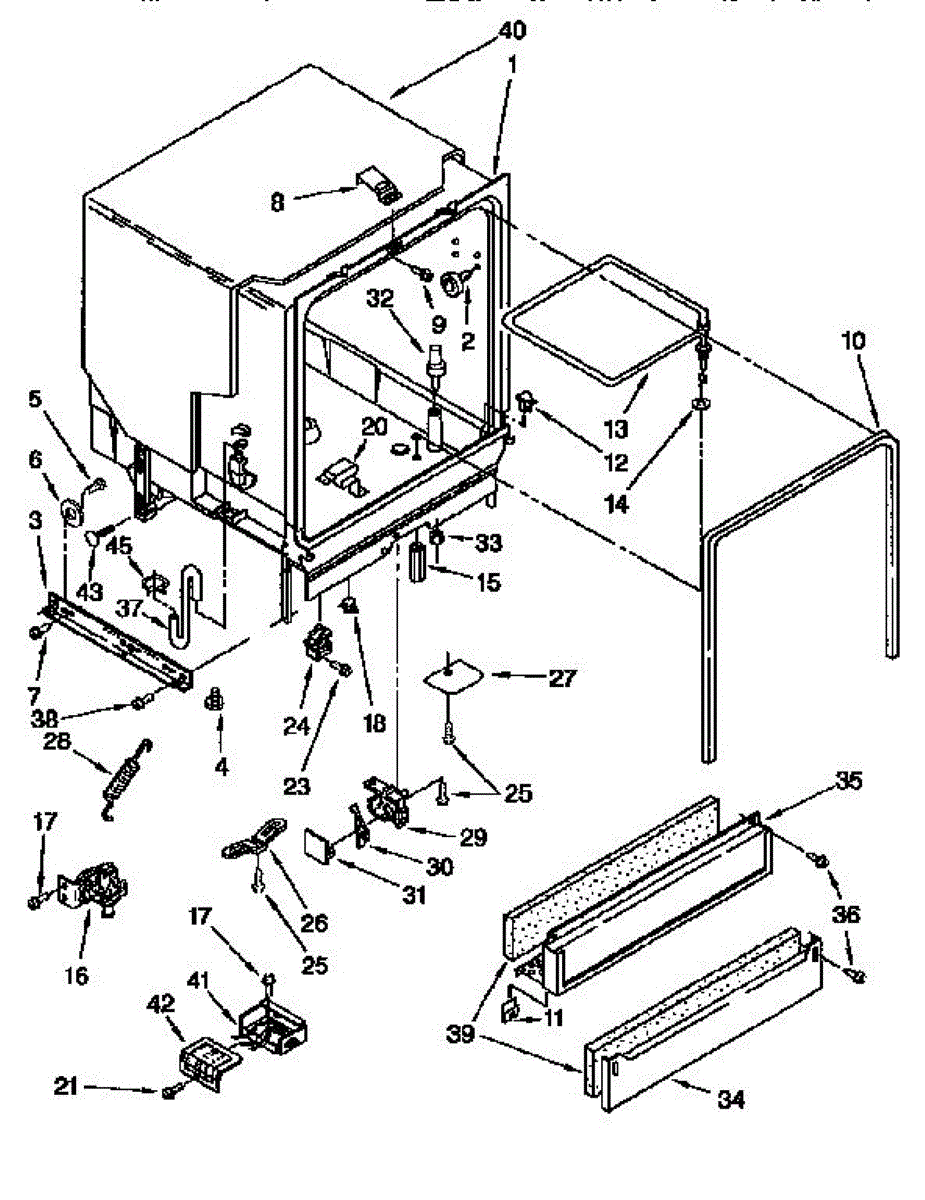

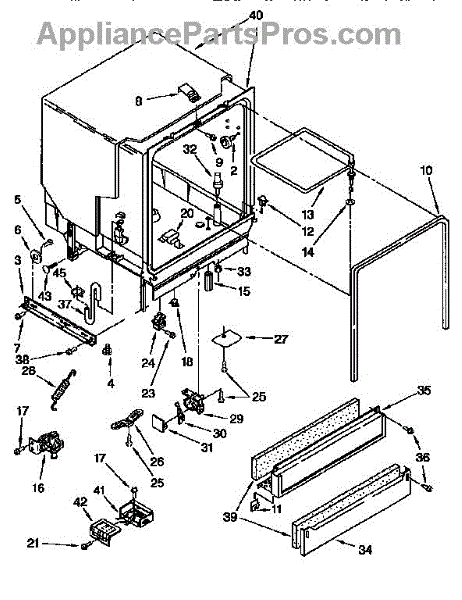

Parts for Kenmore 665.16625690 (66516625690, 665 16625690): Tub Assemblly Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

This adjustable leveling leg threads into the appliance base to set height and stabilize the cabinet. Replacing a worn or missing leg helps stop rocking and vibration and helps maintain proper alignment for reliable operation.

• Provides adjustable support at one corner of the appliance
• Helps level the unit for correct alignment with floor or cabinetry
• Reduces rocking, vibration, and rattling noises
• Replaces stripped, bent, cracked, or missing leg

• Disconnect power and, if applicable, shut off water before servicing
• Carefully support or brace the appliance to access the base safely
• Start the new leg by hand to avoid cross-threading; adjust height gradually
• Use a level to check side-to-side and front-to-back, then recheck after positioning

Size: 10-32 x 15/16 inch.

This is a small rolling caster wheel designed to support and allow easy movement of the appliance during installation or repositioning. It mounts to the underside of the unit to enable smooth transport across floors. Replace this wheel if it is broken, seized, or missing, which can make the appliance difficult to move and may cause floor damage.

This small clip secures your dishwasher door latch mechanism in the proper position. It ensures the door latch assembly stays aligned and functions correctly. If your dishwasher door won't latch properly or feels loose when closing, this clip may be missing or damaged.

Size: 8-32.

The Door Gasket is an OEM part for Whirlpool dishwashers. This gasket is designed to create a watertight seal around the dishwasher door, preventing water from leaking out during wash cycles. It ensures that the dishwasher operates efficiently by keeping water inside the unit, maintaining optimal cleaning performance, and protecting your kitchen from water damage.

Causes of a bad door gasket can include regular wear and tear from frequent use, exposure to high temperatures and harsh detergents, or damage from debris and foreign objects. Over time, these factors can lead to the gasket becoming brittle, cracked, or deformed, compromising its sealing ability.

Symptoms of a bad door gasket include:

• Water leaking from the dishwasher door during or after a cycle
• Visible cracks, tears, or deformities in the gasket
• The dishwasher door not closing properly or requiring extra force to close
• Mold or mildew buildup on the gasket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a water deflector or baffle that mounts inside the dishwasher tub, typically at a corner, to direct water flow during the wash and rinse cycles. It helps ensure water is properly channeled for effective cleaning and prevents leaks at the door seal area. Replace this part if it is cracked, missing, or if you notice water leaking from the dishwasher door during operation.

The Rubber Washer is an OEM part for Whirlpool dishwashers. This washer plays a role in ensuring a leak-proof seal at various connection points within the dishwasher, such as at the water inlet valve or hose connections. Its primary function is to prevent water from leaking out of the dishwasher during operation, thereby ensuring efficient and safe use of the appliance.

Over time, rubber washers can deteriorate due to the constant exposure to water and chemicals found in dishwasher detergents.

Symptoms of a bad Rubber Washer in a dishwasher include:

• Visible signs of wear or damage to the washer, such as cracks, brittleness, or deformation.
• Water leaking from the dishwasher, particularly around areas where hoses and valves connect.
• A decrease in dishwasher performance due to water not being contained properly during cycles.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This part has been discontinued and is no longer available.

For 3/8 inch tubing. 120V.

Size: 8-18 bw.

Thermostat has 1/4 inch terminals.

The High Limit Thermostat is an OEM part for Whirlpool dishwashers. This safety feature is designed to prevent the dishwasher from overheating by shutting off the power if the internal temperature exceeds a certain limit. It acts as a safeguard against potential hazards, such as fires, and ensures the dishwasher operates within safe temperature ranges.

Over time, the high limit thermostat can become defective due to normal wear or electrical issues within the dishwasher. A malfunctioning thermostat may not accurately respond to temperature changes, which can lead to overheating or the dishwasher not reaching the necessary temperature for optimal cleaning.

Symptoms of a bad High Limit Thermostat include:

• Dishwasher not starting or completing a cycle
• The dishwasher stops heating water, affecting cleaning performance
• Overheating, which could potentially damage dishes or the dishwasher itself

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.

Screw: 8-16 x 3/8 inch.

This part has been discontinued by the manufacturer and is no longer available.

If your dishwasher door drops or won't stay open, the door spring likely needs replacement. Requires pulling the unit out. Takes 30 minutes typically.

Fix dishwasher overfilling or not filling with water by replacing the float assembly. Common issue with sticky buildup preventing proper operation.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Color: Black. Includes insulation. Other colors: For almond use WP3384157, for biscuit use WP3384157, for white use WP3379921.

Color: Black. Screw for lower toe panel. For Biscuit screw use 3400865, for white screw use WP3400836.

Access panel insulation with glue is the foam or insulating material that attaches to the inside of your appliance's access panel to reduce heat transfer and improve energy efficiency. The pre-applied adhesive allows it to bond securely to the panel without additional materials. Replace this part if the insulation is torn, missing, or falling off, which can lead to temperature inconsistencies or reduced efficiency.

Secures knobs, trim, or linkages to shafts inside your dishwasher. Replace if broken, cracked, or missing to prevent components from loosening.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.

Touch-up paint for appliances in almond color. Repairs chips, scratches, and worn spots on ovens, refrigerators, microwaves, and dryers.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Touch-up paint. Color: Black. Size: 0.6 fl.oz. can.

Color: White.

Color: Almond.

Instruction sheet included. This is a heavy duty spring kit used for heavy doors. Kit includes 2 springs.

Color: Blue. Includes 125 caps used to cover damaged tips on your dishracks. For white order 675679. For gray order 676458. To attach these tine tips you will need to order the dishrack blue touch-up paint W10840471.

Color: White. 4oz bottle with brush used for touching up damage to your dishracks. For blue use W10840471. For grey use WP676455. For tips use 675679

Color: White. Includes 125 caps used to cover damaged tips on your dishracks. For blue order 12022. For grey order 676458. To attach these tine tips you will need to order the dishrack white touch-up paint WP676453.

Grey vinyl touch-up paint for repairing chipped, rusted, or damaged dishwasher rack coating. 4oz bottle with brush. Restores protective coating.

Gray protective caps cover damaged or rusting dishwasher rack tine tips. 125-pack slides over worn tine ends to restore your dishrack and protect dishes.

Touch-up paint for repairing chipped, scratched, or rusted dishwasher racks. Brush-on formula restores appearance where coating is worn or missing.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
