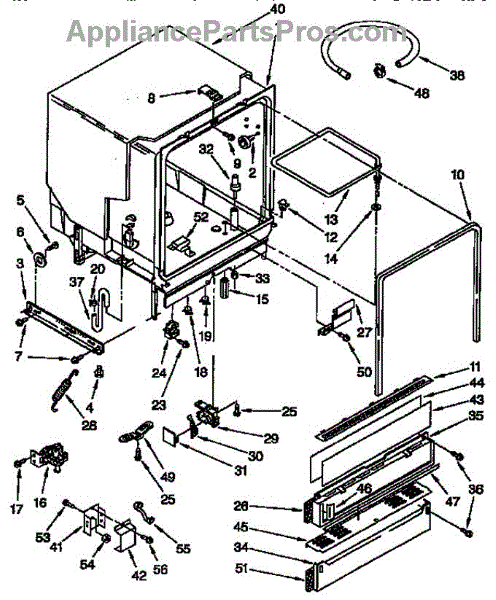

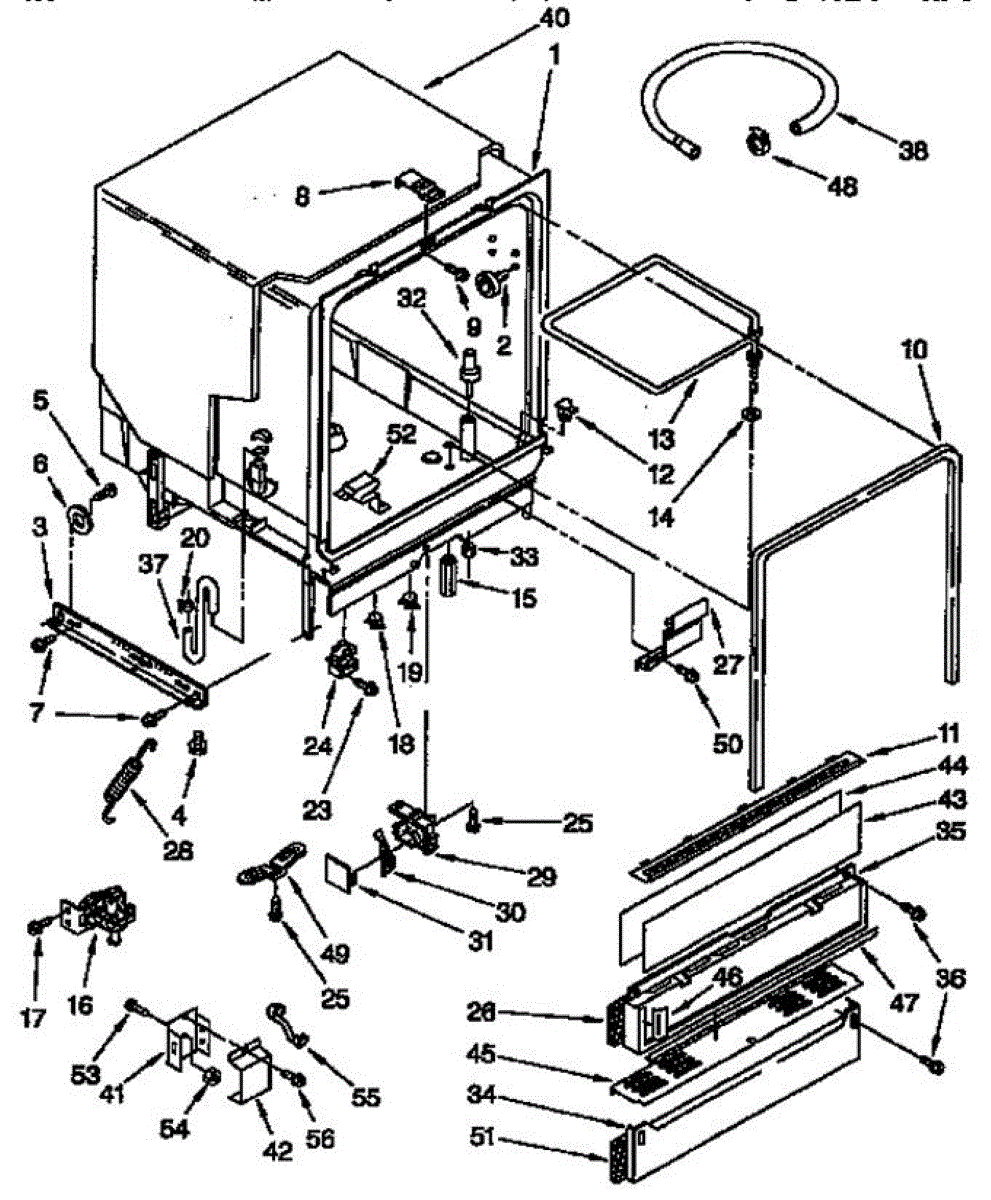

Parts for Whirlpool DU8700X4: Tub Assembly Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This adjustable leveling leg threads into the appliance base to set height and stabilize the cabinet. Replacing a worn or missing leg helps stop rocking and vibration and helps maintain proper alignment for reliable operation.

• Provides adjustable support at one corner of the appliance
• Helps level the unit for correct alignment with floor or cabinetry
• Reduces rocking, vibration, and rattling noises
• Replaces stripped, bent, cracked, or missing leg

• Disconnect power and, if applicable, shut off water before servicing
• Carefully support or brace the appliance to access the base safely
• Start the new leg by hand to avoid cross-threading; adjust height gradually
• Use a level to check side-to-side and front-to-back, then recheck after positioning

Size: 10-32 x 15/16 inch.

This wheel leg is a replacement support used to stabilize and allow smooth movement of the appliance's lower assembly. It restores proper leveling and reduces wobble so the appliance sits securely and rolls or rests as designed. What it does

• Supports the appliance chassis at the lower corner and transfers load to the floor
• Helps maintain correct appliance height and leveling to reduce vibration and rocking
• Restores proper rolling or stationary support where a worn or broken leg caused instability
• Commonly replaced when the leg is cracked, stripped, missing, or no longer holds weight

• Verify appliance is unplugged and empty before accessing lower cabinet or base
• Support the appliance with a block or jack to prevent shifting while replacing the leg
• Remove any access panels or retaining hardware as needed; install the new leg in the original orientation
• Replace any fasteners that are damaged and test stability before returning the appliance to service

Door latch strike.

The Door Gasket is an OEM part for Whirlpool dishwashers. This gasket is designed to create a watertight seal around the dishwasher door, preventing water from leaking out during wash cycles. It ensures that the dishwasher operates efficiently by keeping water inside the unit, maintaining optimal cleaning performance, and protecting your kitchen from water damage.

Causes of a bad door gasket can include regular wear and tear from frequent use, exposure to high temperatures and harsh detergents, or damage from debris and foreign objects. Over time, these factors can lead to the gasket becoming brittle, cracked, or deformed, compromising its sealing ability.

Symptoms of a bad door gasket include:

• Water leaking from the dishwasher door during or after a cycle
• Visible cracks, tears, or deformities in the gasket
• The dishwasher door not closing properly or requiring extra force to close
• Mold or mildew buildup on the gasket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Black. For white order WP3372413.

The Deflector is an OEM replacement part for Whirlpool dishwashers. Located in the lower corners of the tub, this component works to prevent leaks by keeping water from entering the cracks along the tub edges.

Causes of a bad corner deflector can include cracks, chips, or breaks from repeated impact or stress over time. Mineral buildup can also cause deflectors to warp or become misshapen, reducing their effectiveness.

Symptoms of a bad corner deflector include:

• Water leaks or moisture inside the cabinet below the dishwasher
• Puddles or drips near tub corners after cycles
• Mineral residue or pooling in lower tub corners

Replacing the corner deflector with a new OEM part restores a tight seal to prevent water from entering cracks and causing leaks or damaged components inside the cabinet.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Rubber Washer is an OEM part for Whirlpool dishwashers. This washer plays a role in ensuring a leak-proof seal at various connection points within the dishwasher, such as at the water inlet valve or hose connections. Its primary function is to prevent water from leaking out of the dishwasher during operation, thereby ensuring efficient and safe use of the appliance.

Over time, rubber washers can deteriorate due to the constant exposure to water and chemicals found in dishwasher detergents.

Symptoms of a bad Rubber Washer in a dishwasher include:

• Visible signs of wear or damage to the washer, such as cracks, brittleness, or deformation.
• Water leaking from the dishwasher, particularly around areas where hoses and valves connect.
• A decrease in dishwasher performance due to water not being contained properly during cycles.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This part has been discontinued and is no longer available.

For 3/8 inch tubing. 120V.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Thermostat has 1/4 inch terminals.

The High Limit Thermostat is an OEM part for Whirlpool dishwashers. This safety feature is designed to prevent the dishwasher from overheating by shutting off the power if the internal temperature exceeds a certain limit. It acts as a safeguard against potential hazards, such as fires, and ensures the dishwasher operates within safe temperature ranges.

Over time, the high limit thermostat can become defective due to normal wear or electrical issues within the dishwasher. A malfunctioning thermostat may not accurately respond to temperature changes, which can lead to overheating or the dishwasher not reaching the necessary temperature for optimal cleaning.

Symptoms of a bad High Limit Thermostat include:

• Dishwasher not starting or completing a cycle
• The dishwasher stops heating water, affecting cleaning performance
• Overheating, which could potentially damage dishes or the dishwasher itself

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Screw: 8-16 x 3/8 inch.

Size: 8-18 x 1/2 inch.

This part has been discontinued and is no longer available.

This dishwasher door spring restores proper counterbalance so the door opens smoothly and doesn't drop. The premium version provides the factory-specified tension used on select models for consistent, controlled door movement.

• Counterbalances the door for smooth opening and closing
• Helps prevent the door from slamming open or feeling heavy
• Supports stable, mid-position hold when springs are intact and matched
• Common signs of failure: door drops quickly, is hard to lift, or won't stay in position

• Disconnect power and water; remove the toe kick/access panel to reach the springs
• Note which frame/hinge holes the old spring used and install the new spring in the same positions to match tension
• Use pliers to relieve tension safely; if your model uses two springs, replace both for balanced operation
• Wear gloves and eye protection; keep hands clear of moving hinges

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Included with nut.

Color: Black. Includes insulation. Other colors: For almond use WP3384157, for biscuit use WP3384157, for white use WP3379921.

Color: Black. Other colors: For white use WP3369614.

Color: Black. Screw for lower toe panel. For Biscuit screw use 3400865, for white screw use WP3400836.

Size: 7 foot long.

Color: Almond on one side, black on the other.

The Spring Tension Hose Clamp is an OEM part for Whirlpool washing machines. It is designed to secure hoses in place, preventing leaks by maintaining consistent tension on the hose connections.

Over time, spring tension hose clamps can lose their effectiveness due to metal fatigue, corrosion, or damage from frequent tightening and loosening. This can lead to leaks and improper hose connections.

Symptoms of a bad spring tension hose clamp include:

• Water leaks around hose connections
• Loose or disconnected hoses
• Unusual noises or vibrations during operation
• Water pressure issues within the washing machine

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

Size: 8-32 x 1/2 inch.

Size: 8-18 bw.
