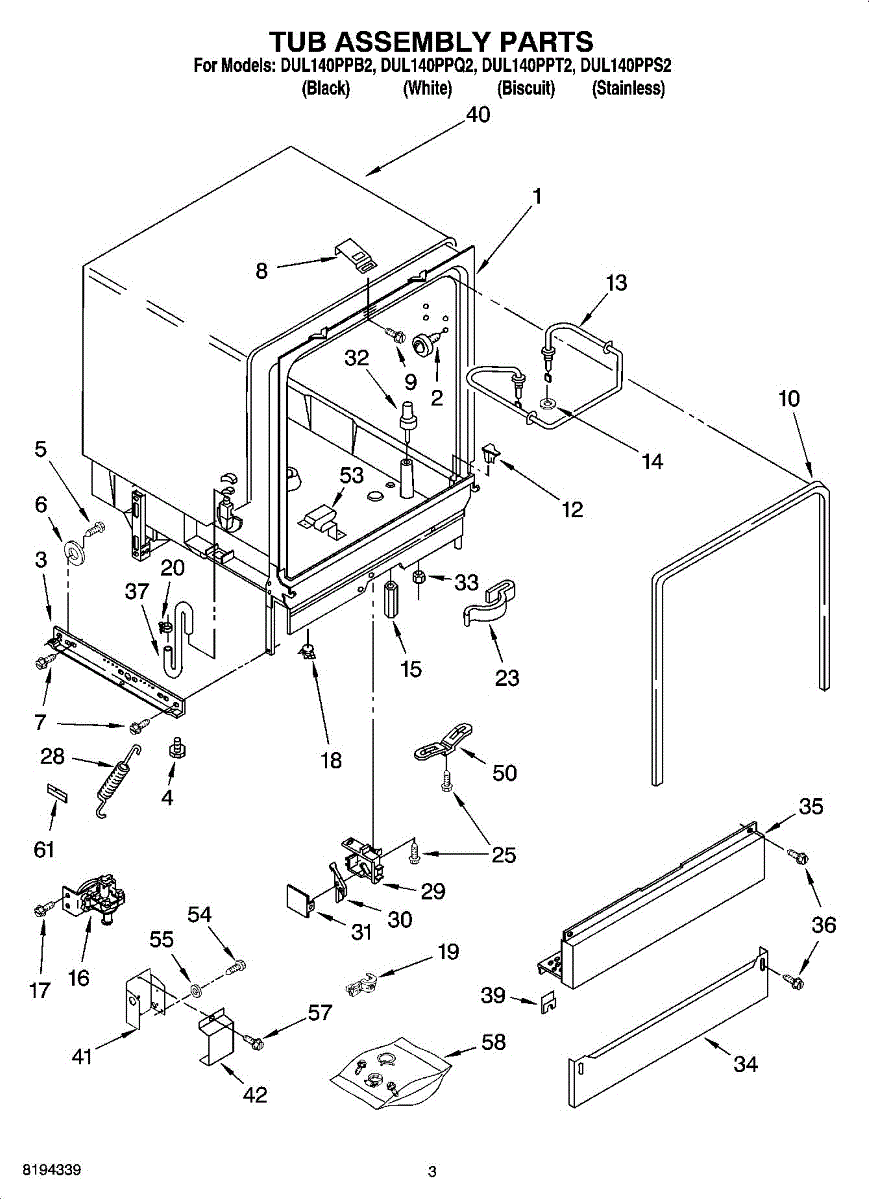

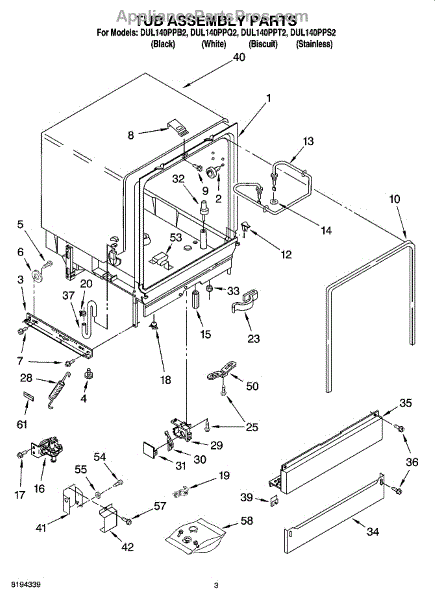

Parts for Whirlpool DUL140PPB2: 03 - Tub Assembly Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Secures the rack roller to the dishwasher tub wall for smooth gliding. Replace a cracked, broken, or loose mount to restore stable rack operation.

This adjustable leveling leg threads into the appliance base to set height and stabilize the cabinet. Replacing a worn or missing leg helps stop rocking and vibration and helps maintain proper alignment for reliable operation.

• Provides adjustable support at one corner of the appliance
• Helps level the unit for correct alignment with floor or cabinetry
• Reduces rocking, vibration, and rattling noises
• Replaces stripped, bent, cracked, or missing leg

• Disconnect power and, if applicable, shut off water before servicing
• Carefully support or brace the appliance to access the base safely
• Start the new leg by hand to avoid cross-threading; adjust height gradually
• Use a level to check side-to-side and front-to-back, then recheck after positioning

Size: 10-32 x 15/16 inch.

Replacement wheel leg support for refrigerators and ice makers. Restores stability, leveling, and smooth rolling when the original is cracked, broken, or worn.

Replacement mounting screw for securing panels, brackets, and components to your appliance chassis. Needed when original screws are stripped or missing.

Door latch strike.

Size: 8-32.

The Door Gasket is an OEM part for Whirlpool dishwashers. This gasket is designed to create a watertight seal around the dishwasher door, preventing water from leaking out during wash cycles. It ensures that the dishwasher operates efficiently by keeping water inside the unit, maintaining optimal cleaning performance, and protecting your kitchen from water damage.

Causes of a bad door gasket can include regular wear and tear from frequent use, exposure to high temperatures and harsh detergents, or damage from debris and foreign objects. Over time, these factors can lead to the gasket becoming brittle, cracked, or deformed, compromising its sealing ability.

Symptoms of a bad door gasket include:

• Water leaking from the dishwasher door during or after a cycle
• Visible cracks, tears, or deformities in the gasket
• The dishwasher door not closing properly or requiring extra force to close
• Mold or mildew buildup on the gasket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Deflector is an OEM replacement part for Whirlpool dishwashers. Located in the lower corners of the tub, this component works to prevent leaks by keeping water from entering the cracks along the tub edges.

Causes of a bad corner deflector can include cracks, chips, or breaks from repeated impact or stress over time. Mineral buildup can also cause deflectors to warp or become misshapen, reducing their effectiveness.

Symptoms of a bad corner deflector include:

• Water leaks or moisture inside the cabinet below the dishwasher
• Puddles or drips near tub corners after cycles
• Mineral residue or pooling in lower tub corners

Replacing the corner deflector with a new OEM part restores a tight seal to prevent water from entering cracks and causing leaks or damaged components inside the cabinet.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Includes washers.

The Rubber Washer is an OEM part for Whirlpool dishwashers. This washer plays a role in ensuring a leak-proof seal at various connection points within the dishwasher, such as at the water inlet valve or hose connections. Its primary function is to prevent water from leaking out of the dishwasher during operation, thereby ensuring efficient and safe use of the appliance.

Over time, rubber washers can deteriorate due to the constant exposure to water and chemicals found in dishwasher detergents.

Symptoms of a bad Rubber Washer in a dishwasher include:

• Visible signs of wear or damage to the washer, such as cracks, brittleness, or deformation.
• Water leaking from the dishwasher, particularly around areas where hoses and valves connect.
• A decrease in dishwasher performance due to water not being contained properly during cycles.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Dishwasher plastic heating element nut. Used to hold down the heating element.

Dishwasher won't fill or overfills with water? The water inlet valve controls fill cycles. Most DIYers complete this repair in under 60 minutes.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Thermostat has 1/4 inch terminals.

The High Limit Thermostat is an OEM part for Whirlpool dishwashers. This safety feature is designed to prevent the dishwasher from overheating by shutting off the power if the internal temperature exceeds a certain limit. It acts as a safeguard against potential hazards, such as fires, and ensures the dishwasher operates within safe temperature ranges.

Over time, the high limit thermostat can become defective due to normal wear or electrical issues within the dishwasher. A malfunctioning thermostat may not accurately respond to temperature changes, which can lead to overheating or the dishwasher not reaching the necessary temperature for optimal cleaning.

Symptoms of a bad High Limit Thermostat include:

• Dishwasher not starting or completing a cycle
• The dishwasher stops heating water, affecting cleaning performance
• Overheating, which could potentially damage dishes or the dishwasher itself

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Cable retainer link for dishwashers. Secures and holds cables in proper position inside the appliance. Replace if cracked, broken, or missing.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 8-18 x 1/2 inch.

This replacement door spring maintains proper tension so the door opens smoothly and doesn't drop. Replace a weakened or broken spring to restore controlled, balanced door movement and everyday usability. What it does:

• Provides tension to balance the door's weight during opening and closing
• Helps prevent the door from slamming open or falling unexpectedly
• Common fix for a door that feels heavy, drops open quickly, or won't hold a mid-position
• Replaces springs that are stretched, fatigued, or broken

• 1 door spring

• Disconnect power before servicing; springs are under tension—use gloves and eye protection
• Note the spring's routing and hook positions; take a photo before removal
• Use pliers to release and attach the spring carefully to avoid sudden release
• Some models use two springs; replace both for even tension if applicable

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Fix dishwasher overfilling or not filling with water by replacing the float assembly. Common issue with sticky buildup preventing proper operation.

Color: Biscuit. Includes insulation. Other colors: For almond use WP3384157, for black use WP3379920, for white use WP3379921.

Color: Black. Includes insulation. Other colors: For almond use WP3384157, for biscuit use WP3384157, for white use WP3379921.

Color: White. Includes insulation. Other colors: For almond use WP3384157, for biscuit use WP3384157, for black use WP3379920.

Color: Black. Other colors: For biscuit use 9743896, for white use WP9744143. This does not include clips.

Color: White. Other colors: For biscuit use 9743896, for black use WP9744142.

Color: Biscuit. Other colors: For white use WP9744143, for black use WP9744142.

Replace your dishwasher's worn, scratched, or outdated door panel. This exterior cover attaches to the front of the door for a fresh appearance.

Color: Black. Screw for lower toe panel. For Biscuit screw use 3400865, for white screw use WP3400836.

The Insulation is an OEM part for Whirlpool dishwashers, specifically engineered to enhance the appliance's efficiency by reducing heat loss and minimizing noise. This insulation wraps around the dishwasher, acting as a barrier that keeps heat within the appliance during cycles and dampens the sound of its operation, making for a quieter kitchen environment.

Causes of a bad insulation part can include wear and tear over time, moisture damage leading to mold or mildew buildup, or physical damage from pests or mishandling during installation or repairs.

Symptoms of inadequate insulation include:

• Noticeable increase in the dishwasher's noise level
• Exterior surfaces of the dishwasher feeling warmer than usual
• Longer wash cycles due to inefficient temperature maintenance

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Thermostat Clip is an OEM part for Whirlpool dishwashers. It plays an important supporting role by securely fastening the thermostat sensor inside the wash chamber.

Symptoms of a faulty Thermostat Clip can include:

• Fluctuating or inconsistent water temperatures between cycles
• Inability to properly detect temperature for desired heat levels
• Longer cycle times needed for reaching required temperatures
• Strange sounds or condensation around thermostat connection

Causes could arise from typical wear and tear stresses weakening plastic retaining clips. Exposure to harsh detergents may also erode clip material integrity over time.

This OEM replacement part is compatible with KitchenAid, Jenn-Air, Kenmore, and select Hotpoint and Roper dishwasher models as well.

Secures the heater assembly in place to maintain proper alignment and stability. Replace if your bracket is cracked, broken, or missing to restore support.

Size: 8-32 x 1/2 inch.

Pronged cup washer secures and cushions components in dishwashers and microwaves. Replace when worn to restore stable fit and reduce wobble.

Size: 8-18 bw.

Includes 2 screws and 2 hose clamps.
