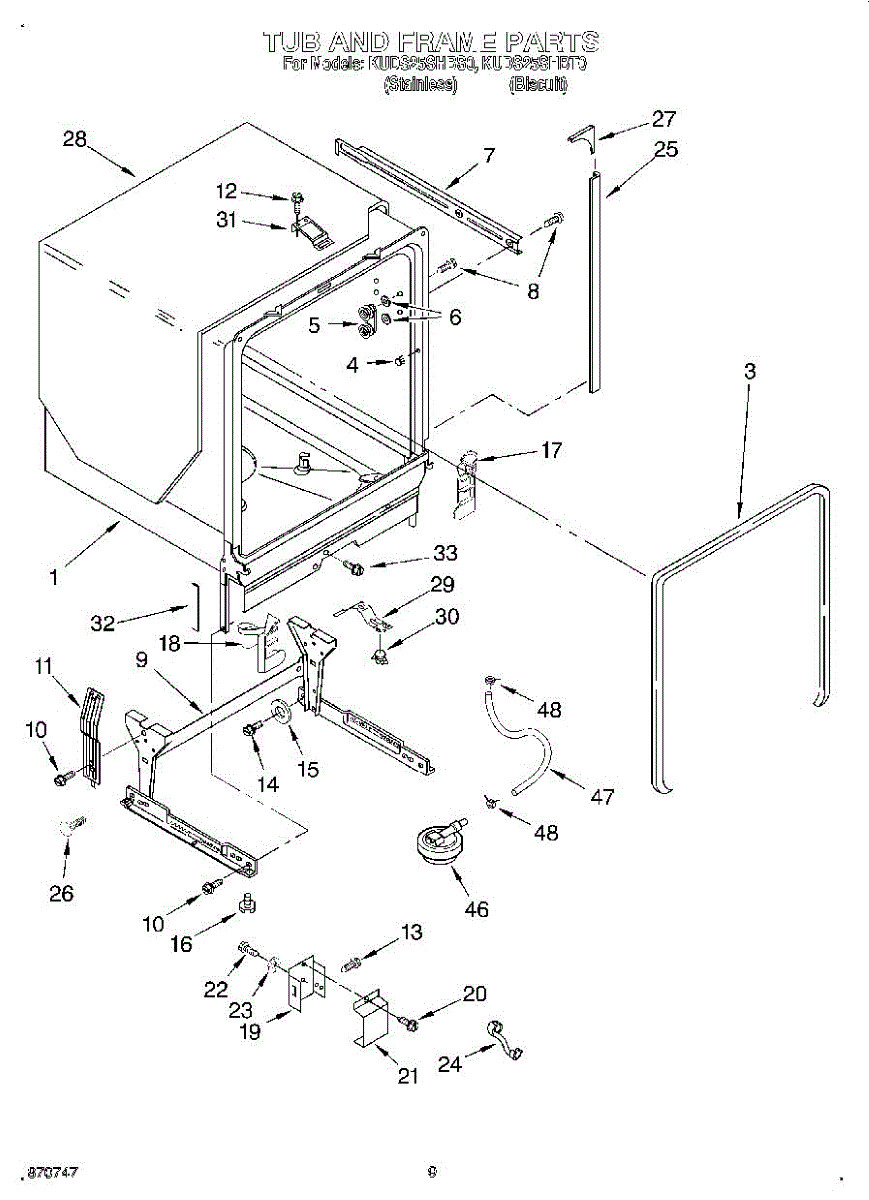

Parts for Kitchenaid KUDS25SHBS0: 08 - Tub And Frame Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Door Gasket is an OEM part for Whirlpool dishwashers. This gasket is essential for maintaining the efficiency and safety of your dishwasher, ensuring that water is contained within the unit to avoid kitchen floods and water damage.

Causes of deterioration can include regular wear and tear from opening and closing the dishwasher door, exposure to harsh detergents and high temperatures, and physical damage from loading and unloading dishes.

Symptoms of a bad Door Gasket include:

• Visible leaks or puddles of water around the dishwasher after use.
• The gasket is cracked, stiff, or has pieces missing.
• The door doesn't close as smoothly or as tightly as it used to.
• Mold or mildew buildup on the gasket due to moisture retention.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Gasket for upper wheel.

The Screw is an OEM part for Whirlpool dishwashers. It secures the spray arm to the dishwasher, ensuring it rotates properly to distribute water evenly throughout the dishwasher during cleaning cycles.

Common causes of a faulty spray arm screw include wear and tear from regular use, corrosion from exposure to water and detergents, or damage from improper installation or removal.

Symptoms of a bad spray arm screw include:

• The spray arm not rotating or functioning correctly
• Loose or wobbly spray arm
• Unusual noises coming from the spray arm during operation
• Poor cleaning performance due to inadequate water distribution

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

A replacement mounting screw to secure appliance panels and components so parts stay properly fastened during normal use. Small but essential hardware for stable, rattle-free operation and reliable repairs. What it does:

• Fastens panels, brackets or components to the appliance chassis
• Prevents loose panels, vibration noise, or parts shifting during operation
• Used when original screw is lost, damaged, or stripped
• Restores proper fit and alignment after disassembly for service

• Disconnect power and water before starting any repair
• Use the correct screw type and length; do not force or substitute oversized fasteners
• Tighten until snug—avoid overtightening to prevent stripped threads or cracked parts
• Keep small parts away from children and pets

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Size: 10-32 x 15/16 inch.

This wheel leg is a replacement support used to stabilize and allow smooth movement of the appliance's lower assembly. It restores proper leveling and reduces wobble so the appliance sits securely and rolls or rests as designed. What it does

• Supports the appliance chassis at the lower corner and transfers load to the floor
• Helps maintain correct appliance height and leveling to reduce vibration and rocking
• Restores proper rolling or stationary support where a worn or broken leg caused instability
• Commonly replaced when the leg is cracked, stripped, missing, or no longer holds weight

• Verify appliance is unplugged and empty before accessing lower cabinet or base
• Support the appliance with a block or jack to prevent shifting while replacing the leg
• Remove any access panels or retaining hardware as needed; install the new leg in the original orientation
• Replace any fasteners that are damaged and test stability before returning the appliance to service

This adjustable leveling leg threads into the appliance base to set height and stabilize the cabinet. Replacing a worn or missing leg helps stop rocking and vibration and helps maintain proper alignment for reliable operation.

• Provides adjustable support at one corner of the appliance
• Helps level the unit for correct alignment with floor or cabinetry
• Reduces rocking, vibration, and rattling noises
• Replaces stripped, bent, cracked, or missing leg

• Disconnect power and, if applicable, shut off water before servicing
• Carefully support or brace the appliance to access the base safely
• Start the new leg by hand to avoid cross-threading; adjust height gradually
• Use a level to check side-to-side and front-to-back, then recheck after positioning

The Lower Door Seal Kit is an OEM part for Whirlpool dishwashers. It is designed to create a watertight seal along the bottom of the dishwasher door, preventing leaks during the wash cycle. The kit comprises a main bottom seal, two corner seals, and installation instructions. The main seal measures approximately 22 inches x 1/2 inch.

You should replace this lower door seal kit if it becomes worn or damaged. Causes of a bad door seal can include deterioration from age, damage from repeated door closures, or buildup of grime and debris that compromise the seal's integrity.

Symptoms of a bad lower door seal include:

• Water leaking from the bottom of the dishwasher door
• Visible cracks or wear on the seal
• The dishwasher door not closing properly
• Increased humidity or water damage around the dishwasher area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Lower Door Seal Kit is an OEM part for Whirlpool dishwashers. It is designed to create a watertight seal along the bottom of the dishwasher door, preventing leaks during the wash cycle. The kit comprises a main bottom seal, two corner seals, and installation instructions. The main seal measures approximately 22 inches x 1/2 inch.

You should replace this lower door seal kit if it becomes worn or damaged. Causes of a bad door seal can include deterioration from age, damage from repeated door closures, or buildup of grime and debris that compromise the seal's integrity.

Symptoms of a bad lower door seal include:

• Water leaking from the bottom of the dishwasher door
• Visible cracks or wear on the seal
• The dishwasher door not closing properly
• Increased humidity or water damage around the dishwasher area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Size: 8-18 bw.

Size: 8-32 x 1/2 inch.

A pronged cup washer that secures and cushions mating parts on appliances, restoring proper fit and reducing wobble. Replaces worn or damaged cup-style washers to help maintain stable component alignment and reliable operation. What it does:

• Fits into a cup or socket to hold shafts, knobs, or trim pieces in place
• Pronged design grips the mounting surface to prevent rotation and slippage
• Helps reduce vibration and noise caused by loose or worn washers
• Commonly used when a knob, shaft, or trim feels loose or wobbly

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove the related knob or trim carefully to access the washer; note orientation for correct reassembly
• Press the washer fully into the cup or socket so the prongs engage the mounting surface
• Inspect the surrounding components for wear and replace any damaged parts

This push retainer is a small press-on fastener that secures components to shafts or studs inside your appliance. It restores a tight, reliable hold so knobs, trim, or linkages don't loosen or fall off during use. What it does:

• Presses onto a shaft or stud to secure knobs, trim, or linkages—no threads required
• Maintains spring tension to resist vibration during normal operation
• Replaces a missing, bent, or weakened retainer
• Common symptoms: loose or wobbly knobs/trim, parts slipping off, or a retainer that won't stay on

• 1 push retainer

• Disconnect power; for gas appliances, also shut off the gas supply
• Access the shaft/stud and carefully remove the old retainer with pliers; avoid damaging adjacent plastic parts
• Press the new retainer on squarely using a deep socket or nut driver; do not hammer directly
• If the mating shaft or component is damaged or deformed, address that before installing the new retainer

The Insulation is an OEM part for Whirlpool dishwashers, specifically engineered to enhance the appliance's efficiency by reducing heat loss and minimizing noise. This insulation wraps around the dishwasher, acting as a barrier that keeps heat within the appliance during cycles and dampens the sound of its operation, making for a quieter kitchen environment.

Causes of a bad insulation part can include wear and tear over time, moisture damage leading to mold or mildew buildup, or physical damage from pests or mishandling during installation or repairs.

Symptoms of inadequate insulation include:

• Noticeable increase in the dishwasher's noise level
• Exterior surfaces of the dishwasher feeling warmer than usual
• Longer wash cycles due to inefficient temperature maintenance

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This thermostat bracket holds the oven or range thermostat securely in place, ensuring accurate temperature sensing and stable oven performance. Replaces a worn or broken bracket to restore proper thermostat positioning. What it does:

• Secures the thermostat assembly to the oven/range interior so the thermostat bulb or probe senses temperature correctly
• Prevents the thermostat from shifting or contacting heating elements
• Commonly replaced when the bracket is cracked, bent, or missing and causes temperature or control issues
• Helps reduce temperature inconsistencies caused by a loose or damaged mounting

• Disconnect power to the appliance before servicing to avoid electrical shock or injury
• Handle the thermostat and sensor bulb carefully; avoid kinks or direct pressure on sensing elements
• Basic hand tools are typically required; verify part alignment before tightening fasteners

Thermostat has 1/4 inch terminals.

The High Limit Thermostat is an OEM part for Whirlpool dishwashers. This safety feature is designed to prevent the dishwasher from overheating by shutting off the power if the internal temperature exceeds a certain limit. It acts as a safeguard against potential hazards, such as fires, and ensures the dishwasher operates within safe temperature ranges.

Over time, the high limit thermostat can become defective due to normal wear or electrical issues within the dishwasher. A malfunctioning thermostat may not accurately respond to temperature changes, which can lead to overheating or the dishwasher not reaching the necessary temperature for optimal cleaning.

Symptoms of a bad High Limit Thermostat include:

• Dishwasher not starting or completing a cycle
• The dishwasher stops heating water, affecting cleaning performance
• Overheating, which could potentially damage dishes or the dishwasher itself

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Screw: 8-16 x 3/8 inch.
