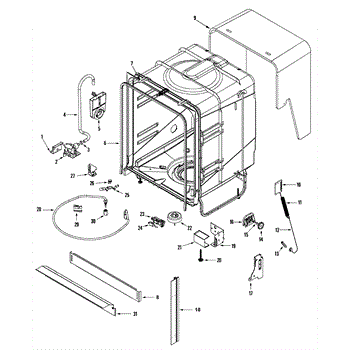

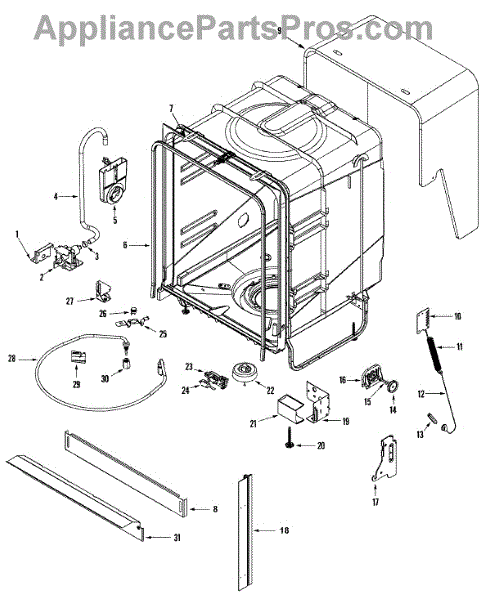

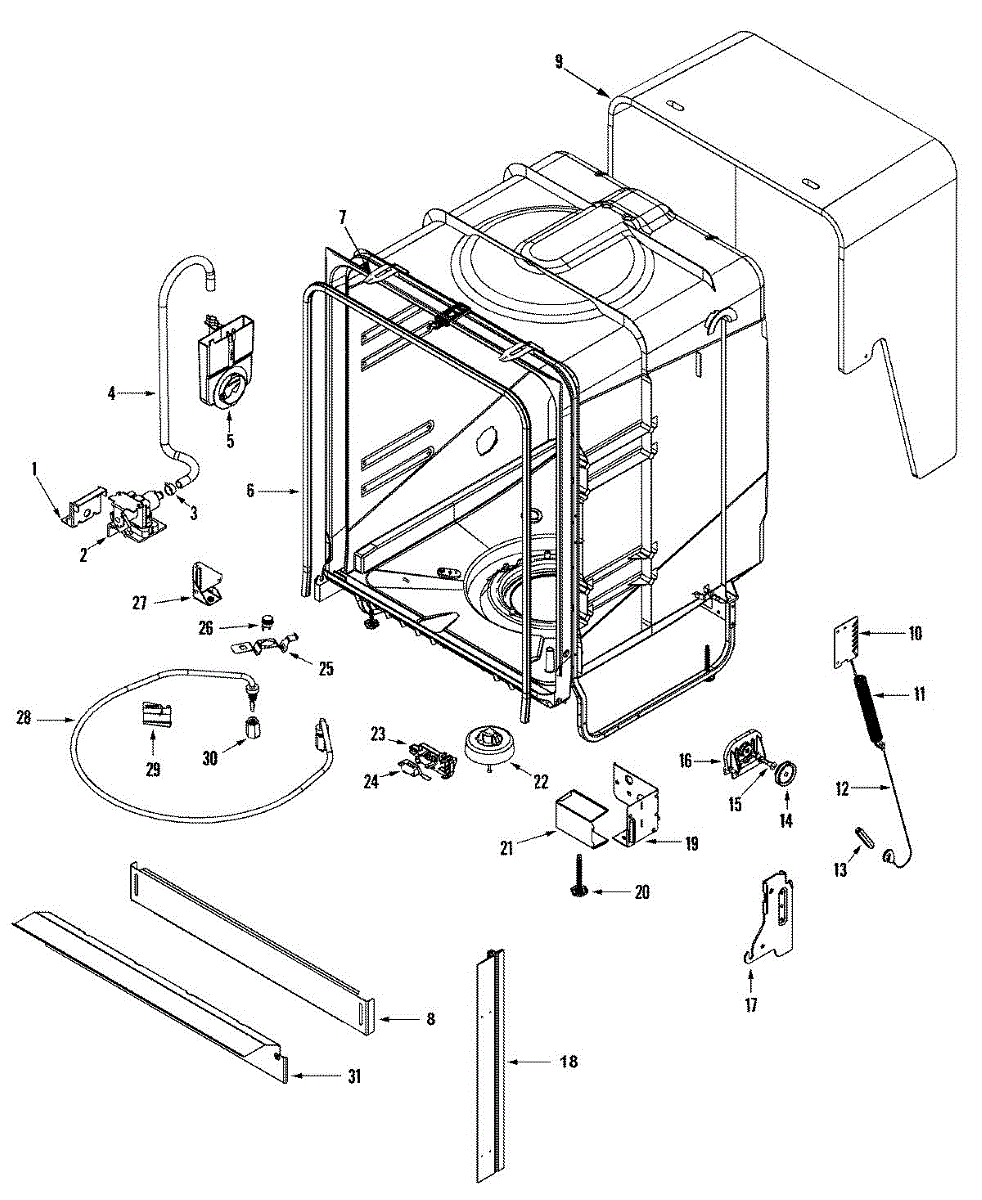

Parts for Magic Chef CDB1500AWZ: 06 - Tub Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Specs: 10-32X.400 (T-20 HEAD)

Screw: 8-16 x 3/8 inch.

This water inlet valve regulates the flow of household water into the appliance. When the control energizes the solenoid, it opens to deliver the correct amount of water for filling and operation, restoring proper flow and performance.

• Controls on/off flow from the household water supply
• Opens when signaled to provide the correct amount of water for fill functions
• Helps maintain consistent water flow to the system
• Common failure symptoms: no water flow, slow fill, intermittent filling, or leaking at the valve body

• Disconnect power and turn off the water supply before servicing
• Place a towel to catch residual water and relieve line pressure
• Note tubing and wire locations before removal; transfer any brackets or clips as needed
• After installation, restore water and power, check for leaks, and purge air from the lines

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This flexible injector hose routes liquid between the appliance's injector/dispenser and the pump or spray assembly, restoring proper dispensing and preventing leaks. It's a direct-replacement service part for affected injector connections. What it does

• Carries water or detergent solution from the injector/dispenser to the pump or spray assembly
• Restores normal dispensing when the original hose is cracked, split, or clogged
• Prevents leaks that can cause puddling or improper wash cycles
• Helps restore consistent flow so detergent and rinse/cleaning agents reach the tub

• One injector hose

• Disconnect power and shut off the water supply before starting
• Remove the old hose and reuse or replace any clamps or fittings as needed; install the new hose onto the same connection points
• After installation, restore power/water and run a short cycle to check for leaks and correct dispensing

This dishwasher door seal is used on some Amana, Maytag, Magic Chef, Crosley, Samsung, Admiral and Jennair dishwashers.

The Cabinet Mount Bracket secures a built-in appliance to the surrounding cabinetry. Replacing a bent or missing bracket restores a tight, rattle-free installation so the unit stays level and aligned during everyday use.

• Anchors the appliance to the cabinet or side walls to prevent shifting or tip-out
• Maintains flush, level alignment with adjacent cabinets and countertop
• Helps reduce vibration and rattling noises during operation
• Replace if the original bracket is bent, cracked, corroded, or missing

• Disconnect power and any utilities before starting work.
• Support the appliance and pull it forward enough to access the mounting area.
• Reuse manufacturer-specified screws or approved replacements; tighten securely without overtightening.
• Secure both sides as originally configured and test operation.

This is a machine screw used to secure appliance panels and components where an 8-32 thread fastener is specified. It provides a reliable hold for control panels, brackets, and interior assemblies. What it does:

• Fastens panels, brackets, and small components to the appliance chassis
• Holds control assemblies and trim pieces in place
• Maintains secure connections that prevent vibration-related loosening
• Works where an 8-32 coarse-thread machine screw of short length is required

• One 8-32 x 3/8" machine screw

• Use the correct driver (Phillips or slotted) to avoid stripping the head
• Thread into metal or nut/insert; do not overtighten to prevent thread damage
• Disconnect power and remove any panels as required for safe access

Color: Black

Specs: 10-32X.400 (T-20 HEAD)

This dishwasher door spring provides the counterbalance tension that lets the door open and close smoothly. Replacing a worn or broken spring restores proper door feel and helps prevent the door from dropping unexpectedly.

• Provides counterbalance tension so the door opens and closes smoothly
• Helps the door stay partially open without drifting
• Reduces slamming or sudden drop when opening
• Common failure signs: door feels heavy, drops quickly, opens unevenly, or a spring is visibly broken

• Disconnect power and shut off water; remove the toe-kick/access panel
• Support the door; note spring routing and which frame holes are used before removal
• Install the new spring in the same holes; adjust hole selection only per service information to fine-tune tension
• Springs are under tension—wear gloves/eye protection; consider replacing both springs together for balanced operation

The Door Cable Assembly is an OEM part for Whirlpool dishwashers. It plays a crucial role in connecting the dishwasher door to the door springs, ensuring smooth and balanced opening and closing. This assembly helps in controlling the door's tension and preventing it from falling open or slamming shut.

Causes of a bad door cable assembly can include wear and tear from frequent use, fraying or breaking of the cable, or damage due to accidental mishandling. Over time, the cable can become less effective, leading to issues with the door's functionality.

Symptoms of a bad door cable assembly include:

• The door falling open unexpectedly
• Difficulty in opening or closing the door
• The door not staying securely in place
• Noticeable slack or damage to the cable

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Cable Assembly is an OEM part for Whirlpool dishwashers. It plays a crucial role in connecting the dishwasher door to the door springs, ensuring smooth and balanced opening and closing. This assembly helps in controlling the door's tension and preventing it from falling open or slamming shut.

Causes of a bad door cable assembly can include wear and tear from frequent use, fraying or breaking of the cable, or damage due to accidental mishandling. Over time, the cable can become less effective, leading to issues with the door's functionality.

Symptoms of a bad door cable assembly include:

• The door falling open unexpectedly
• Difficulty in opening or closing the door
• The door not staying securely in place
• Noticeable slack or damage to the cable

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This roller fits the cable bracket assembly and helps guide the cable smoothly to reduce binding and wear. It restores proper cable tracking so the mechanism moves more quietly and reliably. What it does:

• Guides and supports the cable within the bracket so the cable runs true
• Reduces rubbing, binding, and premature cable wear
• Helps eliminate squeaks or grinding where the cable contacts the bracket
• Restores smoother operation of the affected door/assembly movement

• One roller for the cable bracket (quantity: 1)

• Disconnect power before starting any repair and follow all safety guidelines
• Requires basic hand tools; access the bracket per your model's service instructions
• Inspect the cable and bracket for wear or damage and replace if necessary
• Test operation after installation to ensure proper cable routing and smooth movement

Specs: 10-32X.400 (T-20 HEAD)

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Specs: 10-32X.400 (T-20 HEAD)

Right hand side. For left hand use WPW10117485

Left hand side. For right hand use W10117484

Specs: 10-32X.400 (T-20 HEAD)

A replacement leveling leg that stabilizes your appliance and allows height adjustment for a secure, level install. Restores proper alignment to reduce rocking, vibration and uneven door gaps. What it does:

• Raises and levels the appliance so all feet contact the floor evenly.
• Stops rocking and excessive vibration that can cause noise or wear.
• Helps restore proper drainage and door alignment by correcting tilt.
• Matches original fit and function for reliable support.

• Disconnect power (and water for appliances with plumbing) before servicing.
• Raise or support the appliance safely before removing or adjusting legs.
• Turn the leg to raise or lower; make small adjustments and recheck level.
• Use common hand tools (wrench or pliers) and avoid forcing damaged threads.

Screw: 8-16 x 3/8 inch.

Kit includes more than shown on picture. New kit is for both plastic and stainless tubs. Plastic tubs use only the float and the switch stainless tubs use all the parts.

Kit includes more than shown on picture. New kit is for both plastic and stainless tubs. Plastic tubs use only the float and the switch stainless tubs use all the parts.

Left hand side

Specs: 10-32X.400 (T-20 HEAD)

This heater warms the wash water inside the tub during selected cycles. Replacing a failed element restores proper water temperatures, supporting cleaning performance and preventing extended run times or incomplete cycles. What it does:

• Heats water in the washer tub during hot/sanitize/temperature-controlled cycles
• Helps maintain target temperature for effective cleaning and stain removal
• Common symptoms include water not heating, cycles taking unusually long, or cycles stopping early
• Accompany control errors related to water temperature or the heater circuit

• 1 heater

• Disconnect power and shut off water supplies before servicing
• Access is typically from the rear or bottom; be prepared for residual water when removing the old element
• Clean sealing surfaces and seat the element fully; tighten fasteners evenly to prevent leaks
• After installation, run a hot cycle to check for leaks and heating

This is a machine screw used to secure appliance panels and components where an 8-32 thread fastener is specified. It provides a reliable hold for control panels, brackets, and interior assemblies. What it does:

• Fastens panels, brackets, and small components to the appliance chassis
• Holds control assemblies and trim pieces in place
• Maintains secure connections that prevent vibration-related loosening
• Works where an 8-32 coarse-thread machine screw of short length is required

• One 8-32 x 3/8" machine screw

• Use the correct driver (Phillips or slotted) to avoid stripping the head
• Thread into metal or nut/insert; do not overtighten to prevent thread damage
• Disconnect power and remove any panels as required for safe access

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
