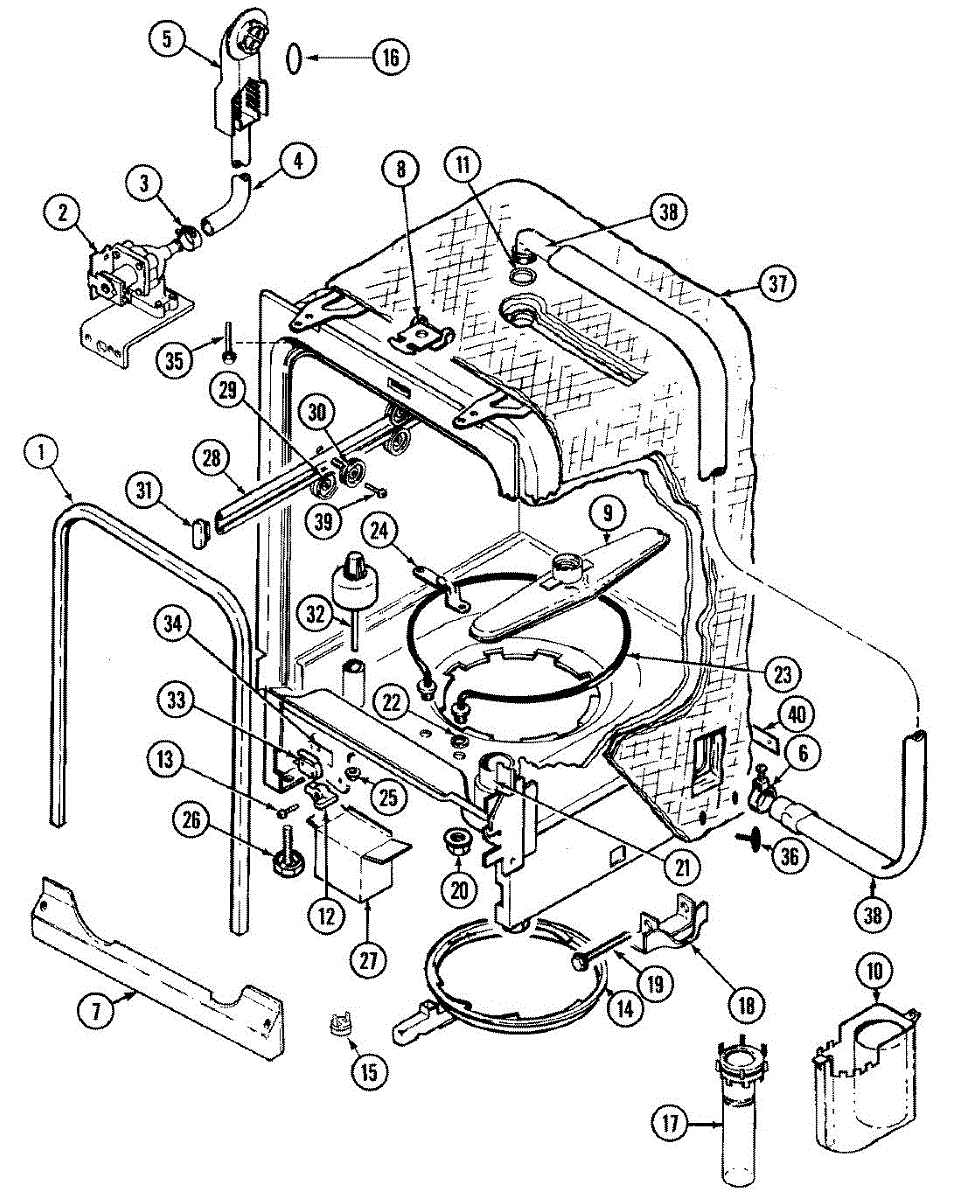

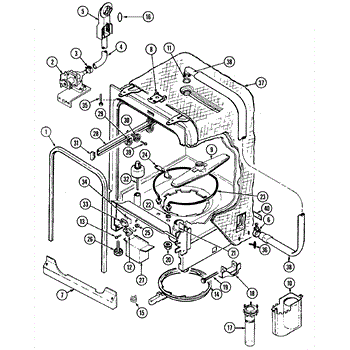

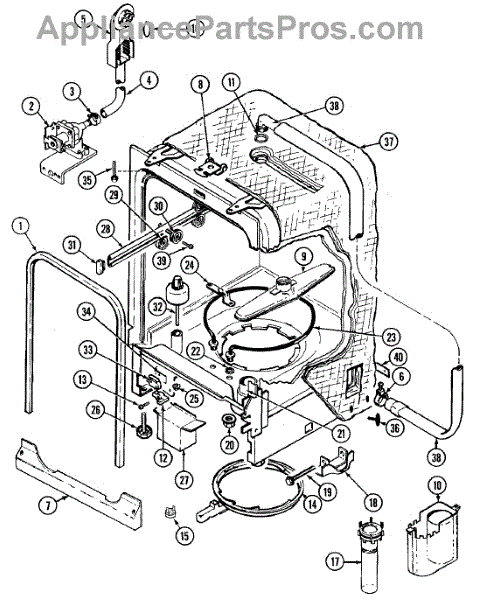

Parts for Magic Chef DC5J: 08 - Tub Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Whirlpool Dishwasher Door Gasket is an OEM part for Whirlpool dishwashers. It provides a watertight seal around the door to prevent water leaks during the wash cycle.  With a length of 66.5 inches, this part forms an airtight seal around the dishwasher door, preventing water leaks during operation.

Causes of a bad door gasket can include cracks and breaks developing from repeated exposure to temperature changes during wash cycles. Over time, rubber perishes leaving gaps that compromise the seal.

Symptoms of a failing door gasket:

• Water pools on the floor in front of the dishwasher
• Dishes remaining wet after a full cycle
• Visible cracks or tears in the rubber

This genuine OEM  part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dishwasher models.

Screw: 8-16 x 3/8 inch.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This hose clamp secures a hose connection to prevent leaks and keep your appliance running smoothly. It provides a tight, reliable hold on the hose fitting so water or air stays contained during operation.

• Tightens around a hose and fitting to maintain a secure seal
• Helps stop drips, seepage, or loose connections
• Common fix when you see moisture around a hose joint
• Useful if a clamp is rusted, stretched, or no longer holding tension

• Unplug power and shut off water (if applicable) before servicing
• Note clamp position/orientation before removal
• Use appropriate screwdriver or nut driver to tighten evenly
• Do not overtighten—ensure a snug, leak-free seal without damaging the hose

This is a machine screw used to secure appliance panels and components where an 8-32 thread fastener is specified. It provides a reliable hold for control panels, brackets, and interior assemblies. What it does:

• Fastens panels, brackets, and small components to the appliance chassis
• Holds control assemblies and trim pieces in place
• Maintains secure connections that prevent vibration-related loosening
• Works where an 8-32 coarse-thread machine screw of short length is required

• One 8-32 x 3/8" machine screw

• Use the correct driver (Phillips or slotted) to avoid stripping the head
• Thread into metal or nut/insert; do not overtighten to prevent thread damage
• Disconnect power and remove any panels as required for safe access

This upper spray arm sprays water across the top rack to help remove food and rinse dishes for better cleaning coverage. It replaces a damaged or clogged upper spray arm to restore normal spray pattern. What it does

• Directs pressurized water to clean dishes on the upper rack
• Helps reduce missed spots and improve rinse performance
• Replaces worn, cracked, or clogged upper spray arms
• Works with the dishwasher's existing spray system and fittings

• Disconnect power to the dishwasher (unplug or turn off circuit breaker) before servicing
• Turn off the water supply to the appliance if required by your model
• Remove the upper rack to access the spray arm; handle gently and avoid forcing fittings
• Run a short test cycle after installation to ensure proper fit and spray coverage

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This float palnut is a push-on retainer that secures the dishwasher's water-level float to its stem. Keeping the float anchored helps the overfill protection work properly, supporting correct fill levels and helping prevent leaks from overfilling. What it does:

• Holds the float in position so it can move freely with water level changes
• Helps the float reliably actuate the overfill/float switch
• Replace if cracked, loose, or missing
• Typical symptoms include a loose or wobbly float, the float popping off, erratic filling, overfilling, or leaks near the float area

• One float palnut

• Disconnect power and turn off water supply before servicing
• Remove the lower rack to access the float assembly
• Remove the old retainer; press the new palnut squarely onto the float stem until snug
• The float moves freely up and down before reassembling

A replacement leveling leg that stabilizes your appliance and allows height adjustment for a secure, level install. Restores proper alignment to reduce rocking, vibration and uneven door gaps. What it does:

• Raises and levels the appliance so all feet contact the floor evenly.
• Stops rocking and excessive vibration that can cause noise or wear.
• Helps restore proper drainage and door alignment by correcting tilt.
• Matches original fit and function for reliable support.

• Disconnect power (and water for appliances with plumbing) before servicing.
• Raise or support the appliance safely before removing or adjusting legs.
• Turn the leg to raise or lower; make small adjustments and recheck level.
• Use common hand tools (wrench or pliers) and avoid forcing damaged threads.

Screw: 8-16 x 3/8 inch.

This replacement rack track restores smooth, stable rack movement and keeps the oven rack aligned while sliding in and out. It helps prevent rack sagging, binding, or uneven travel so food and cookware stay level and secure. What it does

• Guides and supports the oven rack so it slides in and out smoothly.
• Prevents racks from sagging, tipping, or binding when pulled forward.
• Restores proper rack alignment to reduce scraping, catching, or loud banging.
• Works with standard oven/range racks that use a molded metal/plastic track system.

• High-level swap: remove the oven racks, unfasten the old track, and secure the replacement in the same mounting locations.
• Use appropriate hand tools and avoid forcing parts; aligning the track before tightening fasteners reduces binding.
• Disconnect power to the appliance or follow the manufacturer's safety guidance if servicing components near electrical connections.

This tub wheel mounts on the dishwasher's tub wall to guide and support the rack as it slides in and out. Replacing a worn wheel restores smooth rack movement and helps prevent binding, noise, and derailments.

• Mounts to the tub to provide rolling support for the dish rack/rail
• Replaces cracked, flattened, or missing wheels that impede rack travel
• Helps fix racks that stick, bind, are hard to pull/push, or derail
• Reduces grinding or squeaking from the rack area

• Disconnect power at the breaker before servicing
• Open the door and pull the rack forward for access
• Release the old wheel from its retainer/axle per your model's design; install the new wheel in the same orientation
• Ensure the wheel spins freely and the rack slides smoothly before use

The Tub Wheel supports and guides the washer's tub assembly on its base during wash and spin cycles. Replacing a worn wheel restores smoother, quieter operation and helps reduce vibration and rubbing as the machine operates.

• Provides rolling support so the tub can move and self-balance during cycles
• Reduces friction between the tub and the base/frame
• Helps keep the tub centered to minimize noise and vibration
• Failure symptoms include squeaking or grinding, scraping noises, dragging movement, or visible flat spots/cracks on the wheel

• Disconnect power and water supply before servicing; wear appropriate gloves and eye protection
• Access the base/suspension per the service information and support the tub to remove load from the wheel
• Remove the retainer/axle, install the new wheel, and free rotation and correct orientation
• Reassemble, level the appliance, and run a spin test to check for noise and balance

This rack stop clips onto the end of a dishwasher rack rail to keep the rack from sliding off the track. Replacing a worn or missing stop helps the rack glide securely and prevents accidental pull-outs during use.

• Prevents the rack from being pulled out too far and falling off the rail
• Helps restore smooth, secure rack operation
• Common fix for racks that slide out too far or feel unstable

• Disconnect power and turn off water before servicing
• Pull the rack forward, depress the old stop's locking tab, and remove
• Align and snap the new stop onto the rail end until it locks
• Check rack travel to ensure the stop is fully engaged

This float controls your dishwasher's water level. As the tub fills, it rises to signal the float switch to shut off incoming water, helping prevent overfilling and leaks.

• Lifts with the water to actuate the float switch and stop filling
• Helps protect against overfilling and door leaks
• Replace if the float is cracked, deformed, waterlogged, or sticks in its well
• Symptoms can include: won't fill or stops filling early; overfilling or leaks at the door

• Disconnect power and shut off the water supply before servicing
• Remove the lower rack and locate the float in the tub floor
• Lift the old float straight up; clear any debris; seat the new float and free up-and-down movement
• Restore power and run a fill test to proper operation and check for leaks

This water level switch senses the dishwasher's tub float and controls the water inlet. Replacing a worn switch restores correct filling, helping prevent overfilling or dry cycles that can reduce cleaning performance. What it does:

• Monitors the float position to open/close the fill circuit at the proper water level
• Common symptoms: dishwasher won't fill or stops filling too soon
• May also cause continuous filling/overfill if contacts are stuck closed
• Intermittent operation can leave the tub underfilled and washing performance poor

• 1 water level (float) switch

• Disconnect power and shut off the water supply before servicing
• Remove the toe/kick panel to access the switch near the float assembly under the tub
• Note wire positions; transfer connectors one at a time and secure the switch in its bracket
• The float moves freely and actuates the switch before reassembly and testing

Color: Stainless steel

Long tub insulation that fits the appliance's inner tub, reducing operating noise and helping stabilize temperature around the tub for quieter, more consistent performance. Replaces worn or damaged insulation to address rattles and drafts. What it does:

• Dampens noise and vibration when insulation is torn, compressed or missing.
• Helps limit heat loss and reduce cold spots that can cause condensation or longer warm-up times.
• Reduces rattling or knocking caused by loose or degraded insulation.
• Intended for specific Whirlpool tubs—verify model fit before ordering.

• Disconnect power (and water supply for washers) before starting any repair.
• Remove outer panels or drum components per the service manual; insulation may be held with clips, adhesive, or fasteners.
• Wear gloves and a dust mask—insulation fibers can irritate skin and lungs.

Attaches to the inner tub for the upper rack

Screw: 8-16 x 3/8 inch.
