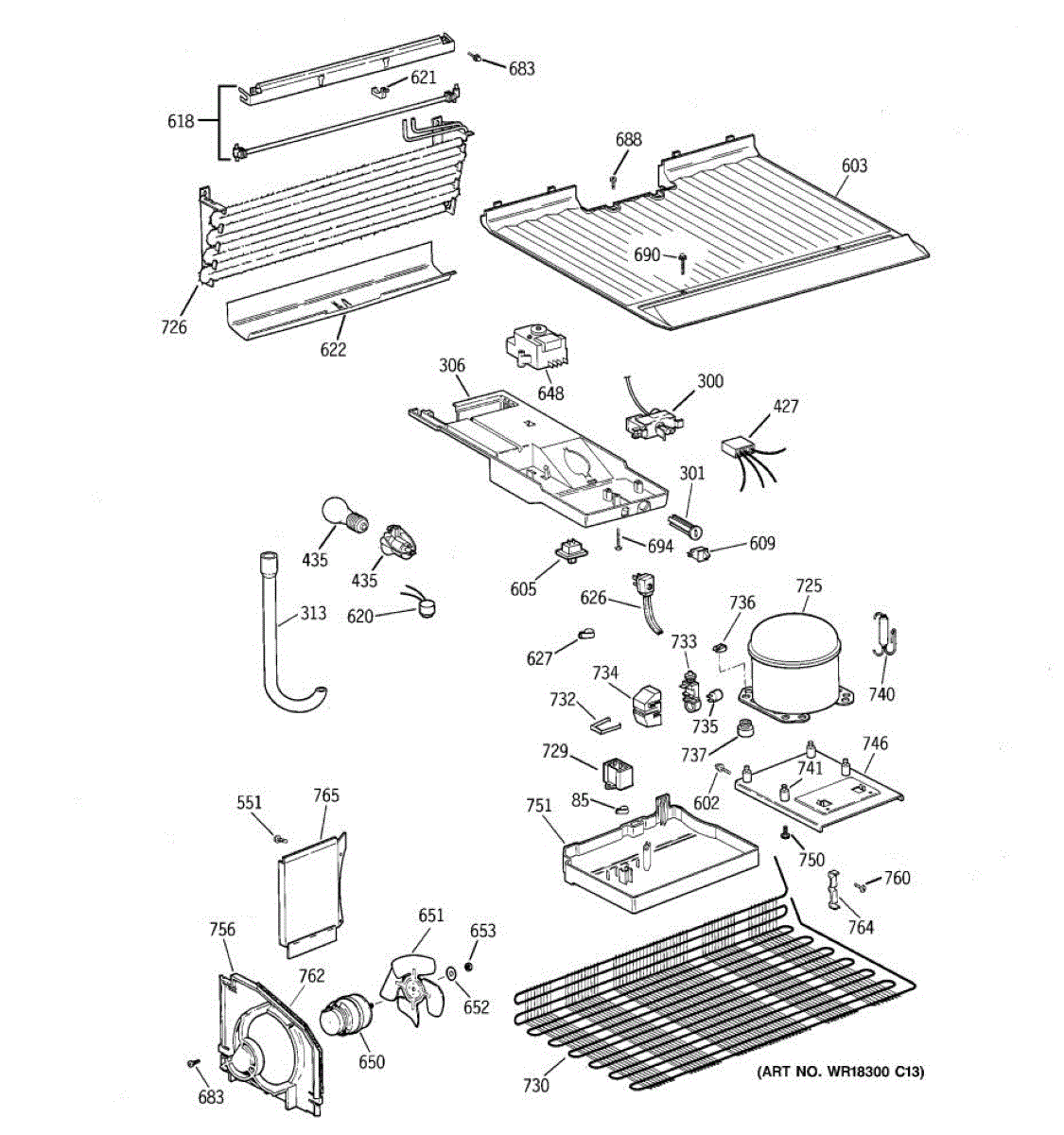

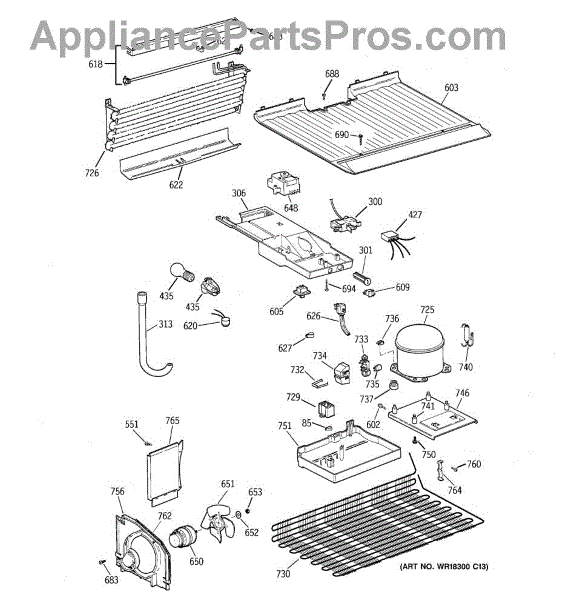

Parts for Ge TBT14DAZFRAD: 03 - Unit Parts

This vinyl sleeve fits over a rod, tube, or wire in the refrigerator to protect and cushion contact points. It reduces wear and vibration and helps keep components aligned for smooth, reliable operation.

• Provides a protective barrier at contact points to prevent abrasion or marring
• Helps maintain spacing and alignment for a snug, proper fit
• Cushions to damp vibration and reduce rattles or squeaks
• Replace if the sleeve is missing, cracked, hardened, or if components feel loose or make noise

• Disconnect power; turn off the water supply if working near water lines
• Note the sleeve's original location and orientation; take a photo for reference
• Remove the old sleeve and any debris; slide the new sleeve into the same position
• Check clearance and resecure related parts before restoring power

The Light Socket is an OEM part for GE refrigerators. It is responsible for holding the refrigerator's light bulb and ensuring it receives power to illuminate the interior when the door is opened.

You should replace the light socket if it becomes faulty. Causes of a bad light socket can include wear and tear from regular use, electrical issues such as short circuits or power surges, and corrosion from moisture exposure.

Symptoms of a bad light socket include:

• The refrigerator light not turning on when the door is opened
• Flickering or intermittent light operation
• Visible damage or corrosion on the socket
• The light bulb not fitting securely or falling out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Light Switch is an OEM replacement part for GE refrigerators. It controls the interior light, turning it on when the refrigerator door is opened and off when the door is closed. This ensures proper illumination for visibility when accessing the refrigerator's contents.

A malfunctioning light switch can result from wear and tear, electrical issues, or damage caused by repeated use. Over time, the internal mechanism may fail, or the housing can crack, leading to improper operation.

Symptoms of a bad light switch include:

• Interior light not turning on when the door is opened
• Light staying on even when the door is closed
• Flickering or inconsistent light operation
• Difficulty pressing or releasing the switch

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This defrost heater and bracket assembly mounts at the evaporator and melts frost during the automatic defrost cycle. Restoring airflow across the coils helps bring temperatures back to normal and keeps your refrigerator cooling efficiently.

• Heats the evaporator during defrost to clear frost and ice buildup
• Helps prevent heavy frost on the freezer back wall and improves airflow
• Supports stable refrigerator and freezer temperatures
• Failure symptoms include thick frost on the evaporator cover, warmer fresh-food section, evaporator fan hitting ice, or frequent manual defrosting

• Disconnect power before servicing; use gloves and eye protection
• Remove the freezer's rear interior panel to access the evaporator
• Route wiring and position the heater and bracket exactly as the original; transfer any clips/shields
• After installation, inspect related defrost components (thermostat and control) if defrost issues persist

This refrigerator defrost thermostat monitors the evaporator temperature and shuts the defrost heater off once the ice has melted. Replacing a failed thermostat restores automatic defrost, reducing frost buildup and helping maintain steady, reliable cooling.

• Senses evaporator coil temperature during defrost cycles
• Opens to terminate the heater when the coil warms; closes when cold for the next cycle
• Helps prevent overheating during defrost and ice accumulation on the evaporator
• Helps if you notice heavy frost on the back wall/evaporator, poor airflow, warming temps, or prolonged/absent defrost cycles

• Disconnect power before servicing; wear appropriate safety gear
• Access the evaporator behind the freezer's rear panel; clear ice as needed
• Mount the thermostat in the same position on the evaporator tubing and make secure, insulated wire connections; route wires away from sharp edges and heat sources
• Restore power and monitor the next defrost cycle for proper operation

This power cord assembly supplies electrical power from the wall outlet to your refrigerator. Replace a cut, frayed, or overheated cord to restore safe, reliable operation and eliminate intermittent power loss caused by a damaged cord. What it does:

• Provides the electrical connection between the household outlet and the refrigerator's wiring
• Helps resolve no-power or intermittent power when the cord is moved
• Addresses visible damage such as cuts, cracks, fraying, or a melted/discolored plug
• Mitigates arcing, sparking, or a burning odor originating from the cord or plug area

• One power cord assembly

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Pull the refrigerator forward for access; note the original cord routing and connections
• Install the new cord along the same path and secure any built-in strain relief; ensure the ground connection is properly seated
• Restore power and verify operation

This cable clamp secures refrigerator wiring to the cabinet, keeping harnesses organized and protected. Replacing a missing or damaged clamp helps prevent chafing and vibration noise while maintaining proper clearance from fans and other moving components.

• Anchors wire harnesses in their designed routing
• Helps prevent insulation wear from rubbing or vibration
• Keeps wires clear of sharp edges and moving parts
• Common signs it's needed: missing/broken clamp, loose or dangling wires, or new rattling/buzzing noises

• Disconnect power before servicing
• Access the clamp location and note original wire routing
• Position the clamp and secure with the existing fastener; do not overtighten
• Ensure wires aren't pinched and have clearance from the fan/compressor before restoring power

The Condenser Fan Motor is an OEM part for GE refrigerators. It is designed to circulate air through the condenser coils, helping to dissipate heat and keep the refrigerator's internal components cool. This ensures efficient operation and prevents the compressor from overheating, which is essential for maintaining the refrigerator's performance and longevity.

You should replace the condenser fan motor if it becomes faulty. Causes of a bad fan motor can include electrical failures, wear and tear from regular use, or blockages that cause the motor to overheat or burn out. A malfunctioning fan motor can lead to inadequate cooling, increased energy consumption, and potential damage to other refrigerator components.

Symptoms of a bad condenser fan motor include:

• The refrigerator not cooling properly
• Unusual noises coming from the back of the refrigerator
• The compressor running hot or cycling on and off frequently
• The condenser coils feeling excessively hot

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This Hi-Lo truss-head screw secures plastic and sheet-metal components in your refrigerator. Replacing stripped or missing fasteners restores a tight, rattle-free fit and keeps brackets, trim, and covers properly aligned.

• Fastens brackets, panels, trim, covers, and other components to the cabinet or liner
• Hi-Lo thread design grips plastic or thin metal for a strong, reliable hold
• Helps address loose or vibrating parts, rattling noises, and misaligned covers
• Direct replacement for a missing, worn, or damaged mounting screw

• Disconnect power before servicing any appliance
• Support the part being secured to avoid stress or misalignment
• Start the screw by hand to prevent cross-threading; use the correct driver
• Snug firmly but do not overtighten, especially when threading into plastic

This evaporator coil circulates refrigerant inside the freezer compartment to absorb heat and keep internal temperatures cold. Replacing a damaged evaporator restores proper cold transfer for reliable cooling performance. What it does:

• Absorbs heat from the freezer compartment by circulating refrigerant through the coil
• Helps maintain proper freezer and refrigerator temperatures when functioning correctly
• Common symptom: excessive frost or ice buildup on the evaporator fins
• Common symptom: warm freezer or refrigerator temps and longer run cycles
• Common symptom: compressor runs constantly or cooling becomes inconsistent

• Disconnect power to the appliance before any service to avoid electrical shock
• Refrigerant system access or refrigerant evacuation may be required; have a certified HVAC/refrigeration technician perform refrigerant work
• May require removal of interior panels, shelving, and insulation for access; follow factory service instructions
• Handle the coil carefully to avoid bending fins or damaging tubing

The Run Capacitor is an OEM part for GE refrigerators. It plays a crucial role in the refrigerator's cooling system by providing the necessary start and run voltage to the compressor. Without a properly functioning run capacitor, your refrigerator may struggle to maintain the desired temperature, leading to spoiled food and inefficient energy use.

Causes of a bad run capacitor include electrical surges, wear and tear over time, or overheating due to a malfunctioning refrigerator compressor or poor ventilation.

Symptoms of a bad Run Capacitor include:

• The refrigerator compressor fails to start.
• Unusual humming noises coming from the refrigerator.
• The refrigerator cycles on and off more frequently than normal.
• A noticeable increase in energy consumption as the refrigerator struggles to maintain the proper temperature.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement screw used to secure appliance components and panels so parts stay properly attached for safe operation. It's a direct-fit fastener matching OEM form and function. What it does

• Secures panels, trim, or internal components to prevent rattling or gaps
• Restores factory attachment where a screw is missing or stripped
• Helps maintain proper alignment of housing and service access
• Suitable when repair requires original-fit fasteners

• Disconnect power or unplug the appliance before servicing to avoid shock
• Use the matching screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed screws organized; replace only the screws that match the original locations
