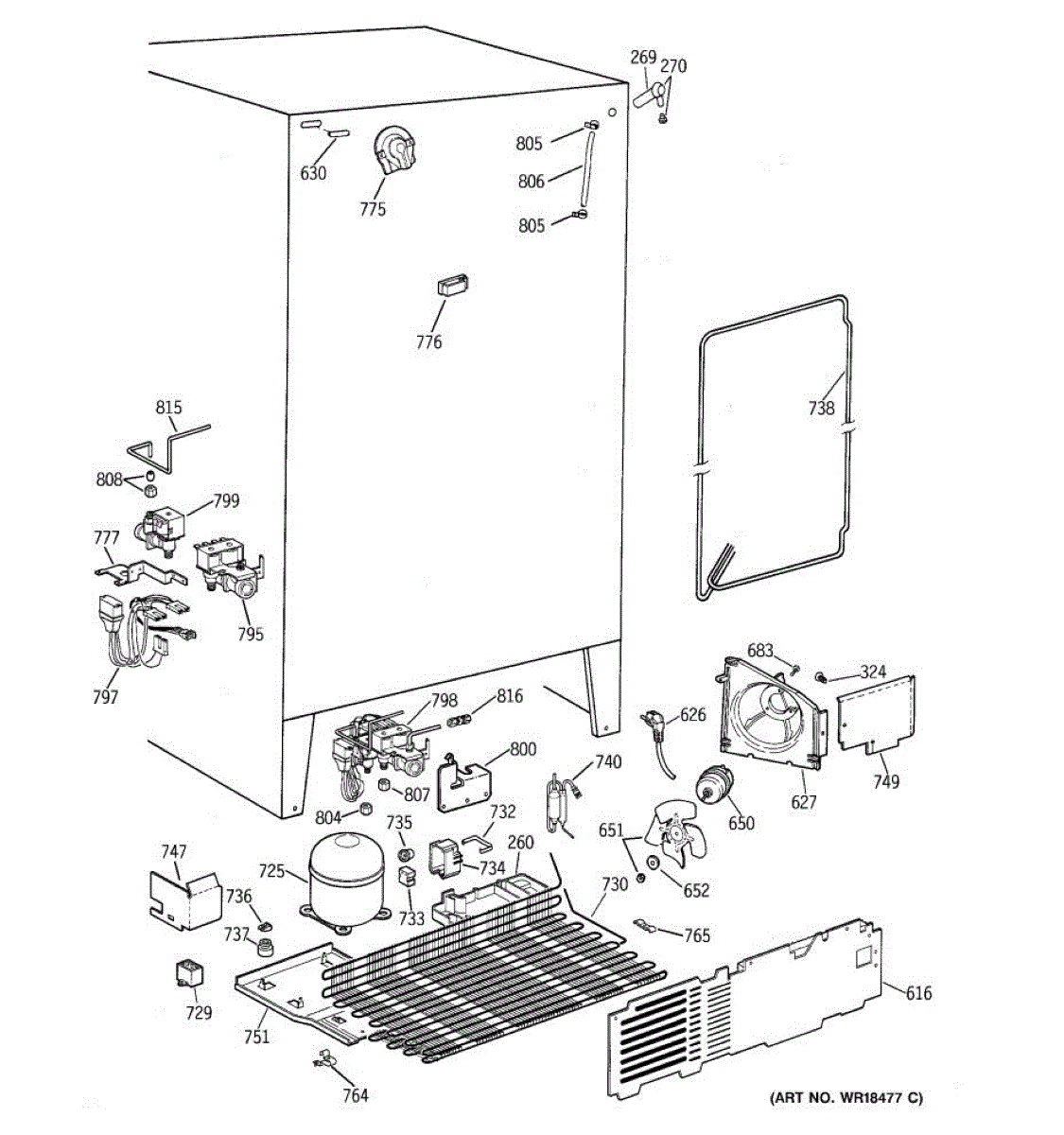

Parts for Ge TFX25PPZBBB: 06 - Unit Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This clamp secures small hoses or tubing and nearby wiring inside the appliance to keep lines held in place and reduce rubbing, leaks, or vibration noise. It's a direct-fit replacement designed to restore proper hose routing and stability. What it does:

• Holds water, drain or vent tubing securely to prevent sagging and rubbing that can cause leaks or wear
• Keeps hoses and wires aligned to reduce vibration and rattling during operation
• Helps maintain proper connections at fittings so seals stay seated and drip risk is minimized
• Simple mechanical clip action — no special tools or adhesives required

• Disconnect power and shut off the water supply before starting any repair
• Remove the old clamp and install this clamp in the same orientation; tubing sits fully in the fitting
• Use standard pliers (or the OEM-recommended tool) to compress/seat the clamp; avoid twisting or pinching the tubing
• Inspect surrounding tubing and fittings for wear; replace damaged hoses or seals if found

The Ice Maker Fill Tube Grommet is an OEM part for GE refrigerators. This grommet creates a seal between the ice maker fill tube and the refrigerator, preventing leaks and ensuring that water is properly directed into the ice maker during the filling process.

Causes of a bad grommet can include regular wear and tear, damage from exposure to freezing and thawing cycles, or degradation from exposure to water and moisture.

Symptoms of a bad ice maker fill tube grommet include:

• Water leaks around the ice maker fill tube area
• Ice maker not producing ice properly
• Visible cracks or deformation in the grommet
• Water pooling inside or around the refrigerator

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This cable clamp secures refrigerator wiring to the cabinet, keeping harnesses organized and protected. Replacing a missing or damaged clamp helps prevent chafing and vibration noise while maintaining proper clearance from fans and other moving components.

• Anchors wire harnesses in their designed routing
• Helps prevent insulation wear from rubbing or vibration
• Keeps wires clear of sharp edges and moving parts
• Common signs it's needed: missing/broken clamp, loose or dangling wires, or new rattling/buzzing noises

• Disconnect power before servicing
• Access the clamp location and note original wire routing
• Position the clamp and secure with the existing fastener; do not overtighten
• Ensure wires aren't pinched and have clearance from the fan/compressor before restoring power

This power cord assembly supplies electrical power from the wall outlet to your refrigerator. Replace a cut, frayed, or overheated cord to restore safe, reliable operation and eliminate intermittent power loss caused by a damaged cord. What it does:

• Provides the electrical connection between the household outlet and the refrigerator's wiring
• Helps resolve no-power or intermittent power when the cord is moved
• Addresses visible damage such as cuts, cracks, fraying, or a melted/discolored plug
• Mitigates arcing, sparking, or a burning odor originating from the cord or plug area

• One power cord assembly

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Pull the refrigerator forward for access; note the original cord routing and connections
• Install the new cord along the same path and secure any built-in strain relief; ensure the ground connection is properly seated
• Restore power and verify operation

This black plug button is a small snap-on cover that restores a finished look and protects openings on your appliance. It replaces a missing or damaged button so panels and trim look complete and resist debris. What it does:

• Covers exposed holes or fasteners to improve appearance
• Helps keep dirt and moisture out of small openings
• Replaces worn, cracked, or broken plug buttons
• Useful when a panel or trim piece looks unfinished or has a missing cap

• One black plug button

• Typically installs with a simple snap-fit; press into place until seated
• No tools usually required; verify seating and alignment before finishing
• If the original is fastened or a backing clip is present, retain or replace that hardware as needed
• Disconnect power to the appliance before accessing areas that expose electrical components

The Condenser Fan Motor is an OEM part for GE refrigerators. This part drives the fan that circulates air across the condenser coils, which helps to dissipate heat and allow the refrigerant to cool more efficiently.

Causes of a bad condenser fan motor can include wear and tear from continuous use, buildup of dust and debris that can impede fan operation, or electrical faults leading to motor burnout.

Symptoms of a bad Condenser Fan Motor include:

• Unusually high refrigerator temperatures
• Loud noises coming from the back of the refrigerator where the motor is located
• The refrigerator cycling on and off more frequently than usual

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 15 uF capacitor kit supports an AC motor by providing the phase shift needed to start and run smoothly. Replacing a weak or failed capacitor can help resolve hard-start or no-start issues and restore consistent performance. What it does

• Stores and releases energy to help a single-phase AC motor start and maintain proper torque
• Common symptoms include humming or buzzing without starting, repeated clicking, intermittent starting, or warmer-than-normal temperatures
• Visual clues of failure may include a swollen or cracked housing
• Matched 15 uF rating supports correct motor operation per the original design

• One 15 uF capacitor

• Disconnect power before servicing; verify the capacitor is fully discharged before handling
• Note wire positions; move one lead at a time to the new capacitor
• Match the microfarad (uF) rating to the original part for proper performance
• Secure the capacitor using the existing bracket/strap and route wires away from heat and moving parts

This part has been discontinued by the manufacturer and is no longer available.

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This water line cover protects and conceals the refrigerator's water supply tubing behind the lower kickplate for a finished look and reduced risk of accidental snagging. Durable plastic shields tubing from contact and helps keep the area tidy. What it does:

• Covers and protects the refrigerator water supply line from accidental pulls or abrasion
• Keeps the tubing out of sight for a neater appearance
• Helps reduce noise from loose tubing contact with other components
• Supports proper routing of the water line to the ice maker/water dispenser

• One water line cover

• Disconnect power and shut off the water supply before servicing
• Remove the kickplate or access panel per the owner's manual to reach mounting points
• Align cover with the routing area and secure with existing clips or fasteners; do not force or modify

This tube clamp secures flexible water tubing to its fitting in refrigerators. It helps maintain a tight seal to prevent leaks and keeps lines from slipping off under normal operating pressure.

• Holds plastic or rubber tubing firmly on a barbed fitting or nipple
• Helps prevent drips and leaks at tube connection points
• Addresses loose or disconnected water lines
• Useful when tubing slips off or won't stay seated

• Disconnect power and shut off the water supply before servicing
• Position the clamp over the tube and fitting; compress with pliers and release to lock in place
• Ensure the clamp is centered and fully seated; tug-test the tube
• Restore water and power; check all connections for leaks

This water valve kit controls the flow of water from your home supply to the refrigerator's icemaker and/or dispenser. Replacing a sticking or leaking valve helps restore proper fills and dispensing performance. What it does:

• Opens and closes to supply water during icemaker cycles or when the dispenser is activated
• Can improve slow or intermittent fills
• Addresses leaks originating at the valve body or its connections
• Symptom-based clue: audible buzzing from the valve with little/no water flow

• One water valve kit

• Disconnect power and shut off the household water supply before servicing
• Place a towel to catch residual water and relieve line pressure
• Note wire and tube locations; cut plastic tubing square and fully seat into push-in fittings
• Restore water and power, then check all connections for leaks and run a test fill

Nut for 1/4 inch tubing.

This cable clamp secures refrigerator wiring to the cabinet, keeping harnesses organized and protected. Replacing a missing or damaged clamp helps prevent chafing and vibration noise while maintaining proper clearance from fans and other moving components.

• Anchors wire harnesses in their designed routing
• Helps prevent insulation wear from rubbing or vibration
• Keeps wires clear of sharp edges and moving parts
• Common signs it's needed: missing/broken clamp, loose or dangling wires, or new rattling/buzzing noises

• Disconnect power before servicing
• Access the clamp location and note original wire routing
• Position the clamp and secure with the existing fastener; do not overtighten
• Ensure wires aren't pinched and have clearance from the fan/compressor before restoring power

The Ice Maker Water Line is an OEM replacement part for GE refrigerators. It is an important supply line that delivers water from the main water source to the icemaker component. The water line allows water to flow smoothly, facilitating the icemaking process.

Causes of a bad water line can include cracks or punctures from impact or bending, mineral deposits and corrosion building up inside the line restricting flow, or improper connection fittings causing leakage.

Symptoms of a bad ice maker water line include:

• Irregular or insufficient ice production
• No water delivery to the icemaker despite activation
• Noticeable leaks or drips near the water line attachment points
• Strange knocking or hammering sounds are heard when the icemaker is running

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Refrigerator Union Connector is an OEM replacement part for GE refrigerators. It is responsible for connecting the water supply lines from the kitchen plumbing to the refrigerator, allowing water to flow to the ice maker and water dispenser. The plastic connector assists your water dispenser by joining two 5/16 inch x 5/16 inch plastic water lines. Over time, Union Connectors can crack or break under pressure.

Causes of a bad Union Connector include wear and tear from repeated use, exposure to extreme fluctuations or surges in water pressure, or damage from accidental mishandling.

Symptoms of a bad Refrigerator Union Connector include:

• Water leaks at or near the connector area
• Inconsistent or no water flow to the ice maker/dispenser
• Fluctuations in water pressure to the fridge
• Water damage to surrounding kitchen areas from leaks

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
