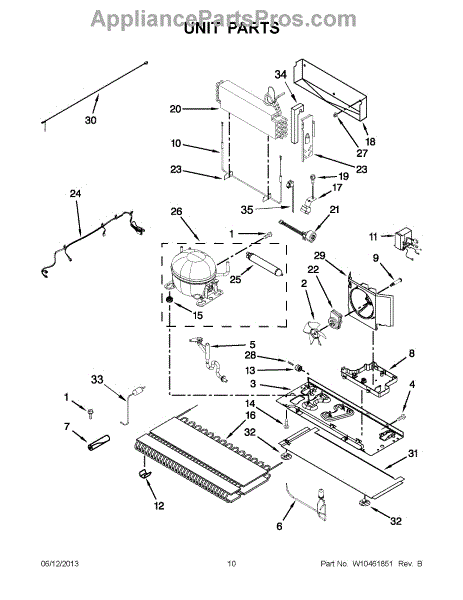

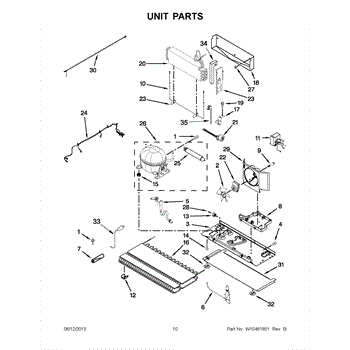

Parts for Kitchenaid KFIS29BBBL00: 05 - Unit Parts

The Fan Blade is an OEM part for Whirlpool refrigerators. It is essential for circulating air throughout the refrigerator, ensuring that the temperature remains consistent and the cooling process is efficient. The fan blade helps distribute cold air from the evaporator coils to different parts of the refrigerator and freezer compartments, maintaining an even temperature throughout.

Over time, the fan blade can become damaged due to wear and tear, obstruction by debris, or impact from moving items within the refrigerator. If the fan blade is cracked, broken, or loose, it will not be able to circulate air effectively, leading to cooling issues and potential food spoilage.

Symptoms of a bad fan blade include:

• Unusual noises coming from the refrigerator
• Inconsistent cooling or warm spots within the compartments
• The refrigerator running more frequently or for longer periods
• Frost buildup in the freezer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

The Valve is an OEM component specifically designed for Whirlpool refrigerators. It regulates the flow of refrigerant through the cooling system.

Causes of a faulty valve can include mineral buildup or debris obstructing flow over many years of use. Internal seals may deteriorate with exposure to refrigerants.

Symptoms of a bad valve include:

• Increased buzzing or vibrating noises from the refrigeration unit
• Fluctuating temperatures with foods not staying consistently fresh
• Advanced warming inside refrigerator without cause

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This evaporator tray collects and directs defrost/condensate away from the evaporator area to prevent pooling and help maintain proper drainage. It restores normal water flow and reduces interior or under-appliance leaks. What it does:

• Catches defrost and condensation runoff from the evaporator and channels it to the drain
• Helps prevent water from pooling inside the appliance or beneath the cabinet
• Reduces ice or frost buildup caused by trapped water around the evaporator
• Restores proper drainage when the original tray is cracked, warped, or clogged

• One evaporator/drip tray

• Disconnect power to the appliance before beginning any repair
• Remove access panels and shelving as needed to reach the evaporator area
• Replace any damaged fasteners or seals and ensure the tray seats flat and drains freely
• Handle edges carefully;

This genuine replacement screw secures appliance components for reliable fit and function, helping restore proper assembly and reduce rattling or loose panels. Use it to replace a stripped or missing fastener during repairs. What it does:

• Fastens panels, brackets, or components to maintain structural stability
• Prevents movement that can cause noise, vibration, or misalignment
• Replaces stripped, corroded, or missing screws to restore secure assembly
• Compatible where the OEM mounting screw is required for safe operation

• Turn off and unplug the appliance before performing any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Do not overtighten; snug until secure to prevent damage to parts
• If other fasteners show wear, inspect and replace as needed for safe operation

This heater is the dishwasher heating element that raises wash and dry temperatures so dishes clean and dry more effectively. It replaces a failed or damaged heating element to restore normal water heating and drying performance. What it does

• Heats wash water and supports the dry cycle so detergent works properly and dishes dry.
• Fails open or shorted when damaged, causing little or no water heating or poor/no drying.
• Can cause error codes or interrupt normal cycle operation when the element or its connections fail.
• Works with the dishwasher's control system and thermostats to maintain proper operating temperature.

• Disconnect power and water supply before beginning any repair.
• Access typically requires removing the toe panel or lower access cover—follow your model's service manual.
• Inspect wiring and terminals for heat damage; replace any damaged connectors.

This inverter box is the electronic module that conditions and routes power to the refrigerator compressor, helping restore variable-speed compressor operation and consistent cooling when the inverter has failed. What it does:

• Regulates and converts power for the compressor's inverter drive to support variable-speed operation.
• Replaces a failed inverter module that can cause the compressor not to start or to run intermittently.
• Commonly used when the refrigerator runs warm, cycles abnormally, or displays inverter-related errors.
• Houses the control electronics for compressor power management.

• Always disconnect power before servicing the appliance to avoid shock.
• Access may require removing the rear or control housing panels; note wire routing and connector positions before disconnecting.
• Handle as an electronic component: protect from moisture, impact, and static discharge.

This rear roller is a replacement for the rollers in a refrigerator. The rollers are not used often, but they have an important purpose. They make it easier to move the refrigerator from one area to another. If the roller had been damaged and is not working properly, it will be difficult to maneuver the refrigerator. Replacing the damaged roller with a new one before moving the refrigerator a long distance is a good idea.The rollers on the refrigerator are meant to handle a lot of pressure. However, they can still wear down and break eventually. They could also be damaged during a previous move. Before replacing the rear roller, unplug the refrigerator and remove the connection to the water supply. The replacement will require only a few tools, such as a screwdriver. It may require moving other parts of the refrigerator to get access to the rear rollers.The rear roller will work for certain models of refrigerators from Whirlpool, GE, KitchenAid, Inglis, Maytag, Admiral, International, Amana, Jenn-Air, Crosley, and Magic Chef. This is a genuine OEM replacement part that is sold individually.

This grommet is a small protective seal used where a hose, tube, wire, or component passes through or mounts to the appliance cabinet. It cushions the connection and helps prevent leaks, vibration, and wear for reliable operation.

• Provides a snug barrier between parts and metal openings to protect hoses, tubes, and wiring
• Helps seal against moisture to reduce seepage
• Dampens vibration and rattling noises
• Replace if cracked, hardened, missing, or no longer stays seated; symptoms may include drips at a pass-through, buzzing/rattling, or a loose fit

• Disconnect power; shut off water supply if applicable
• Access the grommet location and note orientation/routing
• Remove the old grommet and clean the opening
• Press the new grommet fully into place; reassemble and test for leaks/noise

This drip tray collects and channels defrost and condensation water away from the refrigerator cabinet to prevent leaks and puddles. It helps keep the interior base area dry and directs meltwater to the drain system. What it does:

• Catches meltwater from the evaporator during defrost cycles to prevent pooling under the cabinet
• Channels water toward the refrigerator's drain system to reduce leaks and floor damage
• Helps limit ice buildup and moisture-related odors around the freezer base
• Common symptom: visible water or puddling under or beside the fridge, or excessive moisture in the base pan area

• One drip tray as shown

• Disconnect power to the appliance before servicing to avoid electrical shock
• Remove food and, if needed, the lower access panel or kickplate to access the tray
• Inspect adjacent drain tubing and grommets while replacing the tray to ensure proper drainage
• Reinstall panels and restore power; run a short defrost or water cycle to ensure proper drainage

A replacement machine screw with 8-32 threads used to secure panels and components on compatible Whirlpool appliances. Installs quickly to restore proper fit and stop rattling or loose parts. What it does:

• Secures panels, trim, brackets or components that use 8-32 machine-thread fasteners
• Restores proper alignment and prevents vibration-related noise
• Replaces missing, stripped, or damaged screws that allow parts to come loose
• Works where a standard 8-32 machine screw is specified by the manufacturer

• Disconnect power and/or gas before servicing the appliance to reduce shock or injury risk
• Use the proper screwdriver or nut driver for the screw head to avoid stripping
• Thread gently and stop when snug; do not overtighten to prevent stripping or damage
• If threads are damaged, replace with the correct-size screw rather than forcing it

This solenoid valve coil energizes the refrigerant service valve to help control refrigerant flow in compatible refrigeration systems. Replaces a worn or failed coil to restore valve actuation and reliable cooling system operation. What it does

• Energizes the refrigerant service valve so the valve can open or close when the system calls for it
• Common replacement when the valve won't actuate or the compressor cycle is abnormal
• Helps stop intermittent cooling caused by a stuck or non-responsive valve coil
• Fits into the valve assembly and provides the magnetic force needed for proper valve movement

• Disconnect power to the appliance before servicing to prevent shock or unintended compressor operation
• Inspect the valve and connector for corrosion or damage; replace the valve if body damage is found

The Condenser Fan Motor is an OEM part for Whirlpool refrigerators. This motor is responsible for powering the fan that cools the condenser coils, which helps dissipate heat from the refrigerator. Proper functioning of the condenser fan motor is crucial for maintaining the efficiency and cooling performance of the refrigerator.

Causes of a bad condenser fan motor can include wear and tear from regular use, dust and debris buildup, or electrical failures. A faulty fan motor can lead to overheating of the condenser coils, which can cause the refrigerator to operate inefficiently or stop cooling altogether.

Symptoms of a bad Condenser Fan Motor include:

• The refrigerator running warmer than usual
• The condenser coils being hot to the touch
• The fan not spinning or making unusual noises
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Due to a manufacturing change, if your original fan motor has a 3-terminal connector, order fan motor W10124096 which includes an adapter harness to convert to the new 4-terminal connector.

The Compressor is an OEM component specifically designed for Whirlpool refrigerators. Located inside the refrigerator cabinet, the compressor circulates refrigerant throughout the cooling system, regulating temperatures inside food compartments. Its efficient operation is crucial to food freshness and refrigerator function.

Symptoms of a bad compressor include:

• Elevated interior temperatures unable to be maintained
• Louder than normal buzzing or humming sounds coming from inside
• Frost or ice building up in areas where it typically would not
• Refrigerator lights repeatedly cycling on and off

Causes of compressor failure involve normal wear of internal parts over time, loss of refrigerant allowing components to overwork, or disruption in the flow and pressure of circulating coolant.

This OEM Whirlpool part is compatible with Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

This axle roller is the replacement support shaft that lets the appliance's rotating assembly turn smoothly and quietly. Installing a new axle roller corrects wobble and reduces grinding or squealing caused by a worn shaft. What it does:

• Supports the rotating drum or rack so it spins freely and stays aligned
• Helps prevent metal-to-metal contact that causes loud noise or scraping
• Stops uneven rotation and vibration that can lead to further wear
• Restores smooth operation when an original axle is bent, worn, or broken

• Disconnect power (and gas, if applicable) before starting any repair
• Access location and removal steps vary by model; follow the OEM service manual or diagram
• Inspect related parts (pulleys, idler, glides, bearings) and replace if they show wear
• Use basic hand tools; keep fingers and loose clothing clear of moving parts during testing

This condenser fan shroud secures and directs airflow around the condenser fan to help efficient heat dissipation. Replaces a damaged or missing shroud to restore proper fan positioning and airflow around the condenser coil. What it does:

• Holds the condenser fan motor and blade in the correct position relative to the condenser coil
• Channels airflow for more effective heat transfer from the condenser
• Prevents the fan blade from contacting nearby components
• Can reduce noisy operation caused by a loose or damaged shroud

• Intended to be installed by someone comfortable with basic appliance repair
• Disconnect power to the appliance before accessing the condenser area
• Inspect surrounding components (fan blade, motor mounts, fasteners) and replace any damaged parts
• Use the OEM mounting hardware and torque to manufacturer recommendations when reassembling

Power cord assembly that replaces a worn or damaged supply cord to restore reliable electrical connection. Ideal when the appliance won't power on, has intermittent power, visible cord damage, or a burning odor. What it does:

• Replaces the appliance's supply cord to deliver mains power and restore normal operation.
• Replaces frayed, cut, or otherwise damaged cords that can cause intermittent power or failure to start.
• Helps address arcing, burning smells, or nuisance breaker trips caused by damaged wiring.

• Always disconnect power at the wall outlet and switch off the circuit breaker before servicing the appliance.
• Follow the original cord routing and secure the cord with the factory strain relief to prevent chafing.
• Do not attempt to splice or repair a damaged power cord — replace it to maintain safety.

This cover-unit is the outer housing cover that protects internal appliance components and helps keep the cabinet sealed from dust and debris. It restores proper enclosure and helps maintain safe operation. What it does:

• Protects internal components from dust, lint and accidental contact
• Helps maintain cabinet alignment and reduces minor rattles or vibration
• Preserves airflow paths and seals that affect performance
• Restores proper mounting for adjacent panels and controls

• Use basic hand tools; follow the appliance service manual for disassembly and reassembly
• Disconnect power (and water, if applicable) before starting any repair
• Inspect adjacent seals, fasteners and mounting hardware; replace any damaged pieces for best fit

The Motor-Evap is an OEM part for Whirlpool refrigerators. It circulates cool air within the refrigerator compartment to maintain even temperatures throughout. The evaporator motor works in conjunction with the cooling system, drawing in warm air and distributing cold air via its high-efficiency fan blades.

Causes of a bad evaporator motor can include normal wear over many operating hours, damages from dust or debris buildup, and failures in the motor winding or power control mechanisms.

Symptoms of a bad evaporator motor include:

• Inability to properly cool food items
• Warm spots developing within the refrigerator
• Unusual noise or vibrations from the cooling system area
• Issues maintaining set temperatures even when cycling

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.
