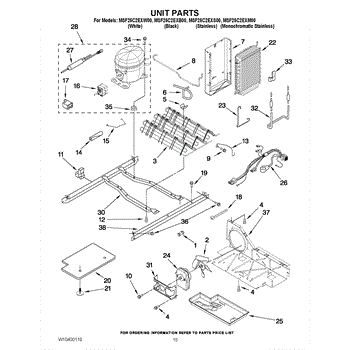

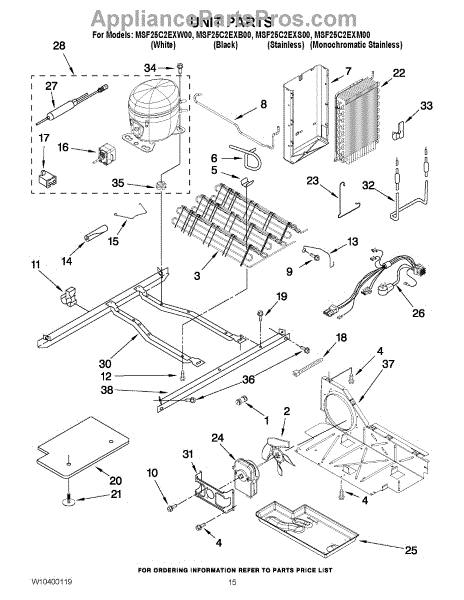

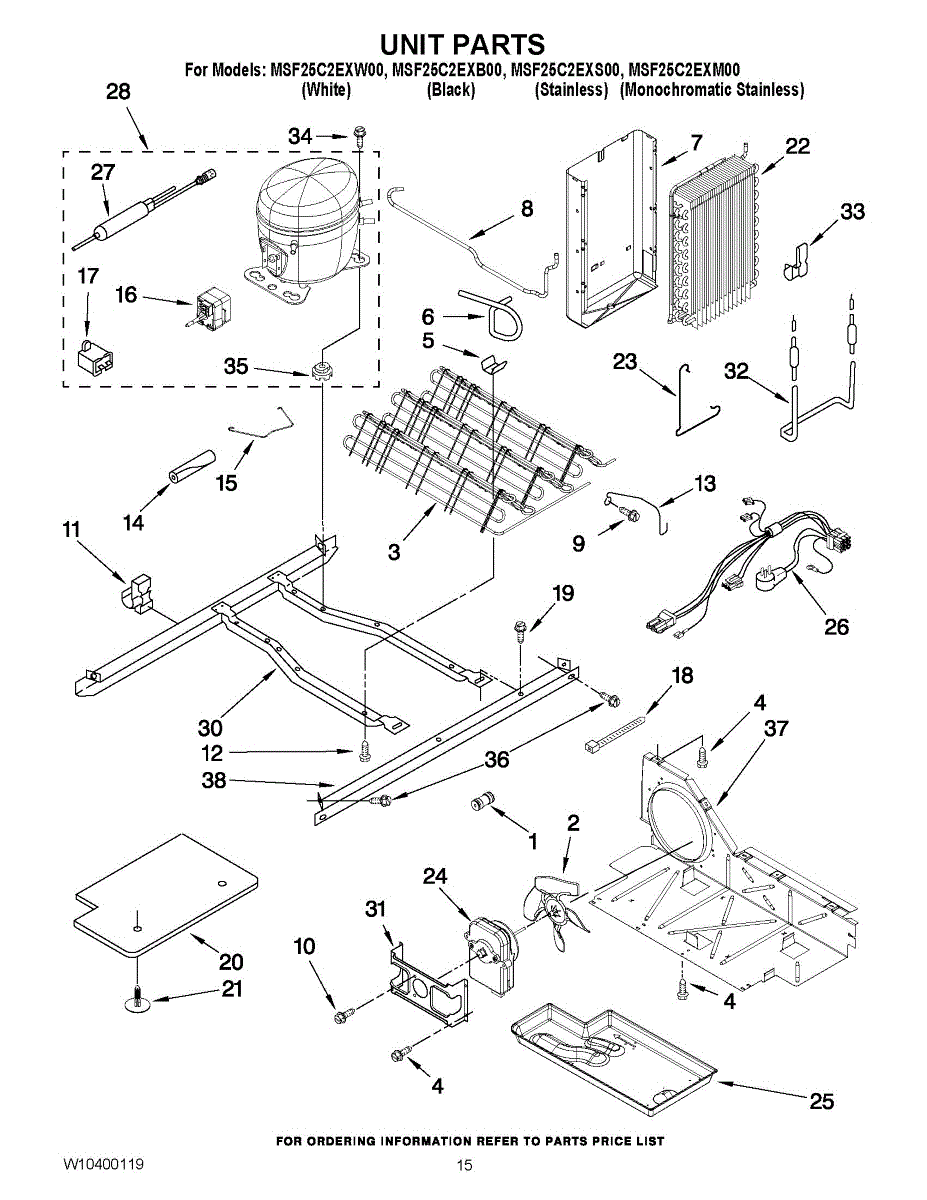

Parts for Maytag MSF25C2EXB00: 11 - Unit Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

Water tube connector that joins two sections of a refrigerator's water tubing for a secure, leak-resistant connection. Replacing a cracked or leaking connector can help restore consistent water flow to the dispenser and ice maker.

• Connects two lengths of refrigerator water tubing in the supply, filter, dispenser, or ice maker circuit
• Helps maintain a sealed connection to reduce leaks and air intrusion
• Common symptoms of failure: dripping at the fitting, water under the unit, weak/no dispensing, or ice maker not filling
• Replace if the connector is cracked or will not hold tubing securely

• Unplug the refrigerator and shut off the water supply
• Dispense water to relieve line pressure; place a towel under the connection
• Cut tube ends square; push each tube fully into the connector until seated, then tug gently to confirm engagement
• Restore water and check carefully for leaks before reconnecting power

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

Size: 8 x 1/2 ab.

This is a replacement mounting screw used to secure appliance panels and small components. It provides a correct-fit fastener to restore secure attachment and eliminate rattles or loose parts. What it does:

• Secures trim, panels, brackets, or small assemblies to prevent movement and vibration
• Restores proper alignment when a worn or missing screw causes loose parts or noise
• Works as a direct-replacement fastener where the OEM screw specification is required

• One replacement screw

• Use the correct driver bit to avoid stripping the head; do not overtighten
• Disconnect power and follow appliance safety guidelines when accessing internal components
• If the original mounting hole or threads are damaged, repair or replace the mounting hardware before reinstalling

This bale strap is a direct-replacement part that helps secure the dryer's latch/bale assembly so the door closes and stays closed during operation. Replacing a worn or broken strap restores reliable door engagement and safer drying cycles. What it does:

• Anchors the dryer door's latch/bale so the door remains properly closed during operation
• Prevents intermittent door opening that can stop cycles or cause heat loss
• Replaces a stretched, torn, or broken strap that no longer holds the latch securely
• Works with the door/latch mechanism to maintain safe operation during drying

• One bale strap

• Disconnect power before beginning any repair to avoid electrical shock
• Verify strap routing and attachment points match the original before reinstalling
• Basic hand tools are typically required; avoid forcing plastic clips to prevent breakage

The Start Device Assembly is an OEM part for Whirlpool refrigerators. It is a kit that includes the start relay and overload, both of which are crucial components for the proper operation of the compressor. The start relay is responsible for initiating the compressor's operation by providing an electrical boost to start the motor.

Causes of a faulty start device kit can include electrical component failure, power surges, or damage due to wear and tear over time.

Symptoms of a bad start device kit may include:

• The compressor not running or cycling on and off frequently
• Inadequate cooling or fluctuations in temperature
• Unusual noises coming from the refrigerator

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a replacement 1/4-20 threaded screw used to secure appliance components and panels. It restores proper fastening where a matching screw is missing, loose, or stripped and helps stop rattling or misalignment. What it does:

• Secures panels, brackets, and assemblies to maintain proper alignment and reduce vibration
• Replaces missing or damaged fasteners that cause loose or rattling parts
• Works wherever a 1/4-20 threaded screw is specified by the manufacturer
• Simple mechanical fastener—no electrical or calibration changes required

• Disconnect power to the appliance before servicing to avoid injury
• Use the matching driver and thread engagement; do not overtighten to prevent stripping
• Verify screw length and head type match the original before installing
• If threads are damaged, repair or replace the mating component rather than forcing the screw

This evaporator assembly circulates refrigerant and removes heat inside the freezer section to enable proper cooling and frost control. Replaces a damaged or corroded evaporator to restore normal temperature performance. What it does:

• Holds refrigerant and transfers heat so the freezer evaporates moisture and cools the compartment.
• Commonly used when frost builds up, freezer runs warm, or cooling is intermittent.
• Works with the sealed refrigeration system and defrost components to maintain proper cold temperatures.
• Designed to match OEM fit and function for compatible refrigerators.

• System evacuation, recharge, and leak testing are required after installation.
• Disconnect power before servicing to avoid electrical shock and appliance damage.
• Inspect related defrost and sealing components during replacement.

The Condenser Motor Kit is an OEM part for Whirlpool refrigerators. It includes a motor, fan blade, wire harness, and hardware, designed to replace the existing condenser motor in your refrigerator. This kit is crucial for maintaining the appliance's cooling efficiency by circulating air through the condenser coils and over the compressor, helping to dissipate heat and prevent overheating.

Over time, the condenser motor can fail due to mechanical wear, electrical issues, or blockages that restrict airflow and cause the motor to overheat.

Symptoms of a bad Condenser Motor Kit include:

• The refrigerator does not cool adequately
• Unusual noises from the back of the refrigerator where the motor is located
• The refrigerator compressor runs hotter than normal
• Increased electrical consumption as the refrigerator tries to maintain cooling efficiency

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Evaporator Drip Tray is an OEM replacement part for Whirlpool refrigerators.

Causes of a bad drip tray can include cracks developing in the plastic over time. Mineral deposits may also accumulate, reducing the tray's drainage functionality.

Symptoms of a bad Evaporator Drip Tray include:

• Water leaks or overflow detected inside the freezer base
• Potential freezing or short circuits from excess pooled moisture
• Inability to effectively direct condensate away from coils
• Promotes conditions for mold or odor development

This OEM Whirlpool part is also compatible with Maytag, KitchenAid and some Kenmore models.

The Compressor is an OEM part for Whirlpool refrigerators. It is the main component responsible for cooling the fridge interior and freezing food. The compressor operates the refrigeration cycle by compressing and condensing refrigerant which allows for the critical exchange of heat.

Symptoms of a bad compressor include:

• Inconsistent or fluctuating interior temperatures
• Frozen foods not freezing properly
• Abnormal vibrations or sounds emanating from the rear of the fridge
• The fridge failing to cool at all

Causes of compressor failure can be a gradual decline in performance over many years of use. Manufacturing defects or damage from moisture or impact can also cause premature failure.

Note: Includes start device, capacitor, drier, and grommets. Also, order tubing kit AP3083228

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

This condenser fan motor bracket secures the condenser fan motor to the appliance chassis, keeping the cooling fan stable so it can move air across the condenser for proper cooling performance and prevent wobble or contact. What it does:

• Holds the condenser fan motor in the correct position so the fan blades clear surrounding components.
• Stabilizes the motor to reduce vibration and noise caused by a loose or damaged mount.
• Helps maintain proper condenser airflow to avoid overheating or reduced cooling.
• Can be replaced when the original bracket is bent, cracked, or broken and no longer supports the motor.

• Disconnect power before starting any repair to avoid electric shock.
• Verify motor and fan assembly alignment when reinstalling the bracket; secure mounting hardware snugly but do not overtighten.
• Inspect related fasteners and fan components for wear and replace as needed.

The Heater is an OEM part for Whirlpool refrigerators. This part prevents frost buildup by heating the evaporator coils during the defrost cycle. This part ensures that air flows freely over the coils, improving the efficiency of the cooling system and maintaining the refrigerator at the optimal temperature.

Causes of a bad heater can include electrical failures, such as a blown fuse or a faulty wiring connection, or physical damage to the heater element itself.

Symptoms of a bad Heater include:

• Frost buildup on the evaporator coils
• The refrigerator and freezer not maintaining the desired temperatures
• Increased energy consumption as the refrigerator works harder to cool
• Unusual noises from the refrigerator as the fan hits frost buildup

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement clip secures the defrost heater to the evaporator so the heater stays in proper contact and defrosts frost buildup efficiently. Durable, OEM-style retention clip designed for refrigerators. What it does

• Secures the defrost heater to the evaporator assembly to ensure consistent defrost cycles
• Prevents the heater from shifting or coming loose, which can cause frost buildup or interrupted defrosting
• Helps maintain proper contact for efficient heat transfer during defrost
• Small, inexpensive part that can prevent larger ice/frost-related issues

• Disconnect power to the appliance before accessing the evaporator compartment.
• Handle the evaporator fins and heater element carefully to avoid damage.
• Typically installs with basic hand tools; replace any damaged or corroded clips.

This part is a grommet. This is a genuine OEM part made by Whirlpool and has been sourced directly from the manufacturer. This part is intended to replace a broken or misplaced grommet in a variety of different appliance models.Grommets have a number of uses in different appliances. Typically, grommets are important for letting water pass through the appliance without leaking. Over time, grommets can become brittle, cracked, or lost and may need replacing. Please follow appropriate safety precautions when attempting to replace any appliance parts. Make sure the appliance is completely disconnected from its gas, water, and power sources before attempting any repairs or replacements. Proper tools might be required to replace this part. For more accurate information on how and where to install this replacement grommet, reference the appropriate manufacturer owner's manual and diagrams. As an authentic replacement part, this grommet is suitable for use on several different models of refrigerators, freezers, and washers manufactured by Whirlpool, Kenmore, KitchenAid, Roper, and other Whirlpool brands. Please note that this is a genuine part made of high-quality, durable, rubber material and is sold individually.

This compressor mounting grommet kit replaces worn or damaged rubber mounts that secure the compressor and reduce vibration. Restoring proper mounts helps cut down on compressor noise and prevents movement-related wear. What it does:

• Cushions and isolates the compressor to reduce vibration and rattling noise
• Keeps the compressor secured to its mounting bracket during operation
• Helps prevent stress and wear on mounting hardware and tubing
• Addresses symptoms like excessive vibration, banging, or unusual compressor noise

• Disconnect power to the appliance before beginning any repairs
• Support the compressor while removing and installing mounts to prevent strain or shifting
• Use appropriate hand tools and avoid over-tightening fasteners that can compress or damage grommets

8 x 1/12

This air baffle directs airflow inside the appliance to help maintain proper ventilation and consistent operation. Replacing a worn or damaged baffle restores correct airflow routing and can reduce noise or uneven performance. What it does

• Guides internal airflow to support proper ventilation and component cooling
• Helps prevent turbulence that can cause noise during operation
• Supports even performance by keeping airflow directed where the OEM design intended
• Commonly replaced when cracked, warped, or missing

• Turn power (and gas, if applicable) off before beginning any repair
• Access may require removing panels or the drum/inner cavity
• Inspect surrounding mounting tabs and fasteners; replace any damaged hardware

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.
