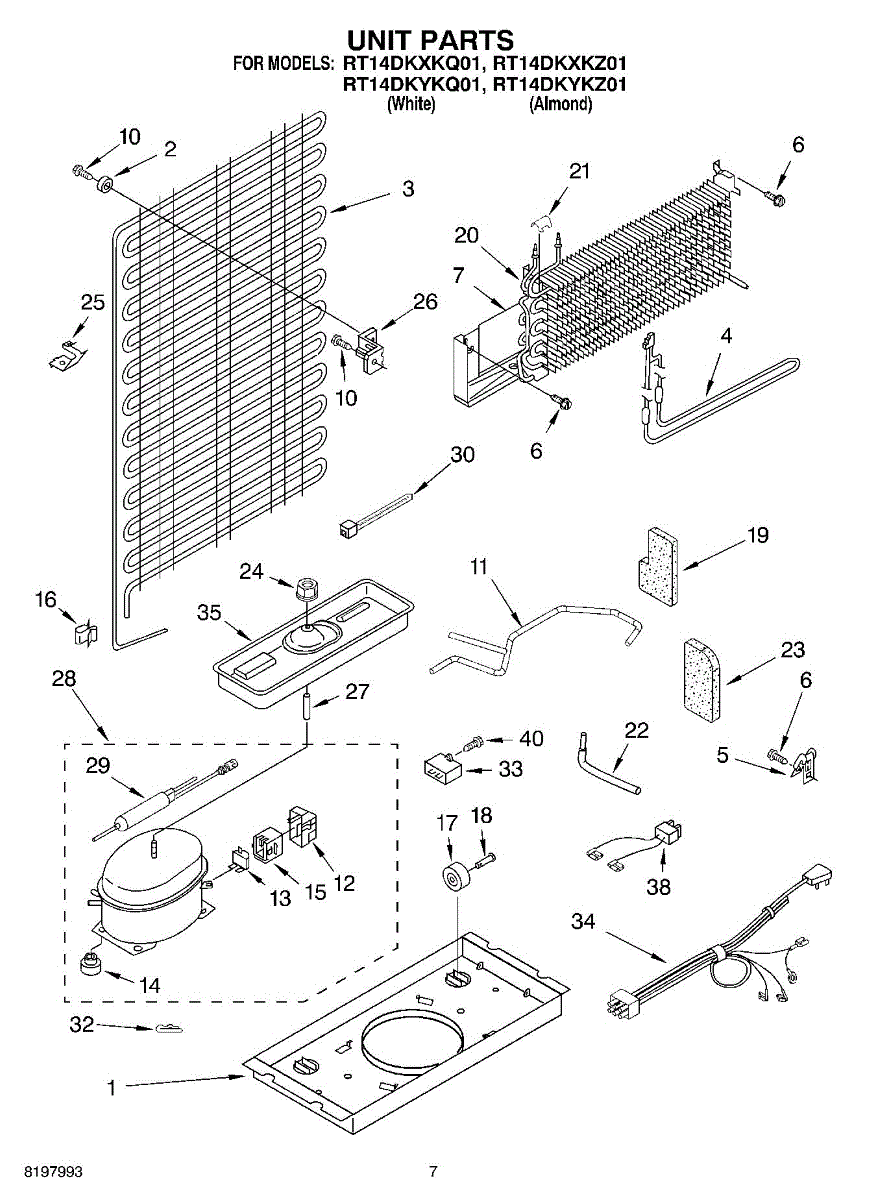

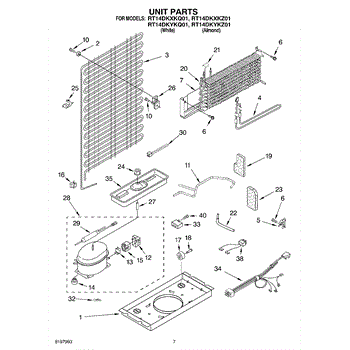

Parts for Roper RT14DKXKQ01: 04 - Unit Parts

The Defrost Heater is an OEM part for Whirlpool refrigerators. This heater turns on during the defrost cycle to melt the frost on the evaporator coils. If you need the defrost thermostat order WP4387490

Causes may include cracked heater elements reducing heat output or open circuit damage limiting functionality over time.

Symptoms of a faulty heater involve:

• Periodic refrigerator odors
• Prolonged defrost cycles or remaining ice
• Frost and ice buildup beyond normal amounts

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Size: 8-18 x 1/2 inch.

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance

This terminal block cover protects the appliance's electrical connection area from accidental contact and debris, helping reduce the risk of shorts and corrosion while keeping wiring secure and contained. What it does:

• Covers and shields the power terminal/block where the power cord connects
• Helps prevent accidental contact with live terminals and reduces short risk
• Keeps out dust, lint and debris that can cause corrosion or arcing
• Useful when the original cover is cracked, missing or showing burn marks

• Always disconnect power (unplug or switch off breaker) before servicing electrical components
• Typically installs over the terminal block and secures with the existing fastener(s); inspect mounting hardware for wear
• Replace if cracked, melted or if terminals are exposed; ensure cover seats fully before restoring power

This compressor overload is the thermal protector for your refrigerator's compressor. It opens the circuit when the motor overheats or draws excessive current, helping prevent damage and restoring reliable starts when the original protector fails.

• Interrupts power to protect the compressor during overheat or overcurrent conditions
• If failed, symptoms include: compressor won't start, repeated clicking or brief hum then stop, warm refrigerator/freezer, and an unusually hot compressor shell
• A weak protector may trip repeatedly and reset after cooling, causing intermittent cooling
• Works in tandem with the start relay/device to manage compressor startup current

• Disconnect power before servicing and pull the unit forward for rear access
• Remove the rear cover; note wire positions and take a photo for reference
• Pull the old overload straight off the compressor terminal; transfer leads and firmly seat the new overload in the same orientation
• Capacitors can retain a charge—handle with care; reinstall cover and restore power to test

This compressor overload is a thermal protector that opens the circuit if the compressor overheats or draws excessive current. Replacing a failed overload restores reliable starts and helps prevent compressor damage when your refrigerator won't cool.

• Protects the compressor by interrupting power during overheat/overcurrent conditions
• Common symptoms: refrigerator not cooling, compressor won't start, repeated clicking or brief hum then shutoff
• Mounts on the compressor terminal and works alongside the start relay on applicable models
• Built for proper fit and dependable operation in the start circuit

• Unplug the refrigerator and remove the rear access panel to reach the compressor
• Note wire positions; pull the old overload straight off the compressor pin
• Push the new overload fully onto the correct terminal and reconnect wiring/terminal cover
• Restore power and verify the compressor starts without repeated clicking

This rubber grommet cushions and secures the compressor to the fridge frame, helping reduce vibration and noise while protecting mounting hardware. It's a direct-fit replacement for a single compressor mounting point. What it does:

• Absorbs compressor vibration to reduce operational noise and rattling
• Protects compressor studs and mounting bracket from metal-on-metal wear
• Helps keep the compressor properly positioned during operation
• Commonly replaced when cracked, flattened, or missing and causing vibration or noise

• One compressor-mount grommet

• Disconnect power to the appliance before beginning any repair
• Support the compressor or work with the unit tilted to relieve pressure on mounts
• Remove old grommet(s) and clean mounting surfaces before installing the new grommet
• If multiple mounts show wear, replace them as a set for balanced support

This small rubber grommet cushions and supports a fan motor, helping reduce vibration and noise while the appliance is running. It fits into the motor bracket to provide a snug, insulated mounting point.

• Isolates fan motor vibration to cut rattling or buzzing
• Helps keep the motor aligned in its bracket
• Can wear, crack, or compress over time, causing vibration or noise
• Replacing a deteriorated grommet restores smooth, quieter operation

• Disconnect power before servicing
• Access the fan assembly and support the motor to relieve strain
• Note grommet orientation; transfer any sleeves or hardware as found
• Seat the new grommet fully in the bracket before remounting the motor

This PTC start relay mounts on the compressor and momentarily powers the start winding to get the motor running, then disengages for normal operation. Replacing a weak relay can stop repeated clicking and help restore cooling.

• Provides initial boost to the compressor's start winding for reliable startup
• Automatically drops out after startup so the compressor runs on the run winding
• Helps address symptoms like warm temperatures, compressor clicking or humming without starting, or frequent overload trips
• Failure may show as rattling, burn marks, or a melted relay housing

• Disconnect power and remove the rear access panel to reach the compressor
• Allow components to cool; note wire locations and take a reference photo
• Pull the old relay straight off the compressor pins; align and firmly seat the new relay in the same orientation, then reconnect wires
• If your unit uses a run capacitor and/or separate overload protector, reconnect per the wiring diagram before restoring power

The Roller is an OEM part for Whirlpool refrigerators. It is designed to facilitate the smooth movement of your refrigerator, making it easier to position and clean underneath the appliance. The roller supports the weight of the refrigerator and allows for easy adjustments in placement.

Causes of a bad fridge roller can include wear and tear from frequent movement, exposure to heavy loads that can damage the roller, or accumulation of dirt and debris that can impede its function. When a roller is damaged, it can affect the stability and mobility of the refrigerator.

Symptoms of a bad Roller include:

• Difficulty moving the refrigerator
• Unusual noises when the refrigerator is moved
• Uneven leveling of the refrigerator
• The refrigerator not staying in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Axle is an OEM part for Whirlpool refrigerators. This axle allows it to be easily repositioned or moved for cleaning and maintenance. It supports the rollers that enable the refrigerator to glide across the floor.

Common causes of a bad axle include prolonged use, excessive weight, or impact damage, which can lead to the axle bending or breaking.

Symptoms of a bad refrigerator roller axle include:

• Difficulty moving the refrigerator
• Uneven or wobbling movement
• Scratches or damage to the floor
• The refrigerator not staying level

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

A small metal retaining clip that secures a bi-metal thermostat or temperature sensor in place, helping maintain proper contact and accurate temperature sensing for reliable appliance operation. Simple, durable replacement part. What it does

• Holds a bi-metal thermostat or temperature sensor firmly against its mounting point or probe.
• Maintains consistent contact to support accurate temperature sensing and control.
• Can help stop intermittent temperature-related issues caused by a loose or damaged clip.
• Designed for direct replacement where a spring-style or formed metal retainer is required.

• One bi-metal retaining clip (single clip).

• Disconnect power to the appliance before attempting any repair.
• Removal/installation typically requires small pliers or a flat screwdriver; avoid excessive force to prevent damage.
• Verify clip orientation and that the sensor/thermostat is seated fully before securing.

This retaining clip secures trim, panels or small assemblies to keep parts aligned and prevent rattling. It's a simple replacement that restores a snug, stable fit where the original clip has broken or gone missing. What it does:

• Holds plastic or metal trim and panels in place to prevent gaps and movement
• Restores proper alignment and reduces vibration or rattling noises
• Keeps assembled components from shifting during normal use
• Useful when a damaged or missing clip causes loose or sagging parts

• One retaining clip

• Disconnect power and/or water to the appliance before beginning any repair
• Use needle-nose pliers or a flat screwdriver to remove the old clip and snap the replacement into place
• Verify the clip is fully seated and the panel/trim is secure before returning the appliance to service
• If the original clip required additional fasteners, retain and reuse them as needed

This kit is used to mount evaporator trays on compressors.

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This wire assembly connects the capacitor to the appliance's motor or control, restoring a secure electrical path for reliable start/run operation. Replaces a damaged or worn harness to help resolve starting and intermittent power issues. What it does:

• Provides insulated wiring and terminals to link the capacitor to the motor or control
• Ensures a secure electrical connection for proper start/run signaling
• Can resolve symptoms such as failure to start, humming or intermittent motor starting
• Prevents shorts or arcing from frayed or damaged wiring when functioning correctly

• Always disconnect power at the breaker or unplug the appliance before servicing
• Capacitors can hold a dangerous charge — have the capacitor safely discharged before disconnecting wires
• Match connectors and routing to the original harness; secure wires away from moving parts and heat sources

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/16 inch.

Screw: 8-16 x 3/8 inch.
