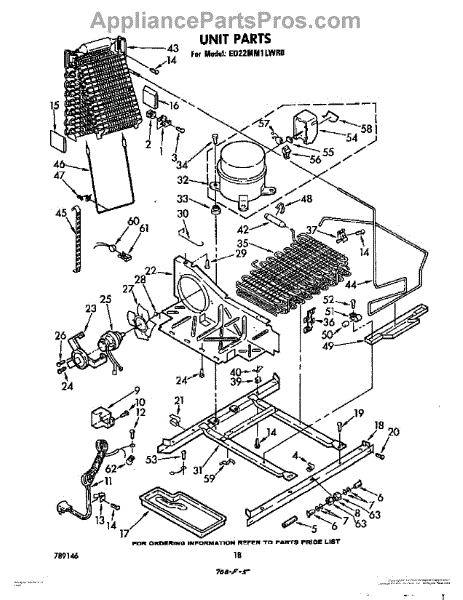

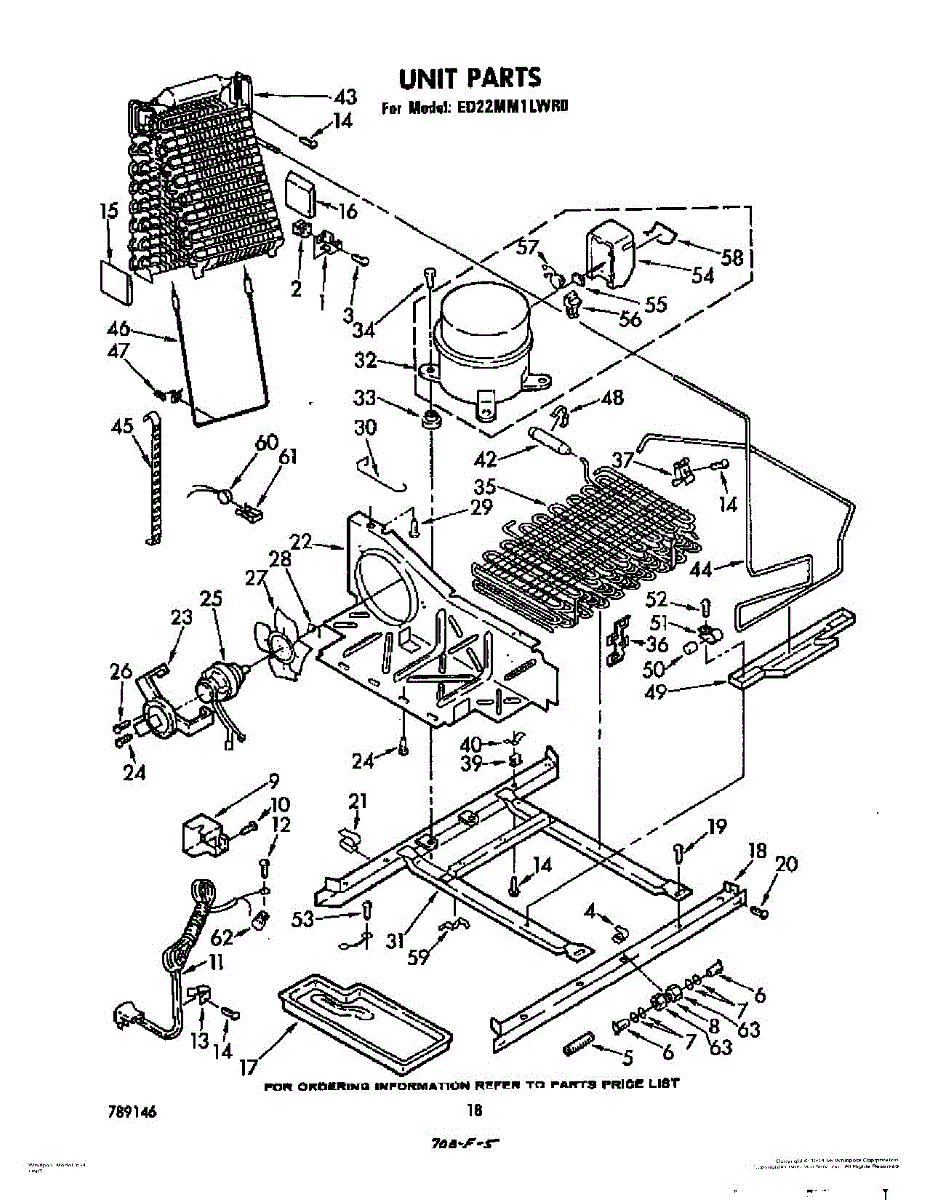

Parts for Whirlpool ED22MM1LWR0: 10 - Unit Parts

Specs: 10-16 x 1/2 inch.

Replace cracked or missing compression fitting inserts for 1/4-inch water tubing in refrigerators and ice makers. Prevents leaks at connections.

This tube union connector joins two water or refrigerant tubes to restore a sealed flow path and stop leaks. It's a direct-replacement plumbing fitting used on refrigerators and ice/water systems. What it does

• Joins two sections of tubing to maintain a sealed water line connection.
• Restores proper water flow to the dispenser or ice maker when a damaged union causes leaks or loss of supply.
• Provides a threaded/press-fit junction to prevent drips and reduce pressure loss.
• Helps avoid water damage from a cracked or corroded tube joint.

• One tube union connector

• Turn off the water supply and unplug the appliance before starting work.
• Confirm tube sizes and connection type before installation; tighten fittings per manufacturer guidance to avoid overtightening.
• Inspect tubing ends for damage and cut squarely if needed for a proper seal.
• After installation, restore water and power, then check the connection carefully for leaks.

This part has been discontinued by the manufacturer and is no longer available.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

8 x 1/12

Refrigerator runs warm or freezer not cooling properly? The condenser fan motor circulates air over the coils. DIY repair takes 15-60 minutes with basic tools.

The Nut is an OEM replacement part for Whirlpool refrigerators. This small yet essential component is used to secure various parts of the refrigerator, such as shelves, panels, or brackets, ensuring stability and proper alignment. Its durable design ensures reliable performance in the demanding environment of a refrigerator.

Causes of a bad or missing Nut can include wear over time, accidental stripping of threads, or loss during maintenance or repairs. A damaged or missing nut can lead to loose components and reduced functionality.

Symptoms of a bad or missing Nut include:

• Loose or wobbly shelves, brackets, or panels
• Difficulty keeping refrigerator components securely in place
• Rattling or unusual noises during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Drier tube for refrigerators. Installs in the sealed refrigeration system to remove moisture. Replace if cracked, corroded, or during compressor repairs.

Excessive frost in freezer? This refrigerator defrost heater melts ice buildup on the evaporator coil to restore airflow and normal cooling.

This part has been discontinued by the manufacturer and is no longer available.

A replacement machine screw with 8-32 threads used to secure panels and components on compatible Whirlpool appliances. Installs quickly to restore proper fit and stop rattling or loose parts. What it does:

• Secures panels, trim, brackets or components that use 8-32 machine-thread fasteners
• Restores proper alignment and prevents vibration-related noise
• Replaces missing, stripped, or damaged screws that allow parts to come loose
• Works where a standard 8-32 machine screw is specified by the manufacturer

• Disconnect power and/or gas before servicing the appliance to reduce shock or injury risk
• Use the proper screwdriver or nut driver for the screw head to avoid stripping
• Thread gently and stop when snug; do not overtighten to prevent stripping or damage
• If threads are damaged, replace with the correct-size screw rather than forcing it

Fix a refrigerator that won't cool or has frost buildup with this defrost thermostat. Located on the evaporator coils in the freezer compartment.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/16 inch.

Replacement hex nut secures panels, trim, and brackets in refrigerators. Needed when original nut is worn, missing, or stripped, causing loose components.
