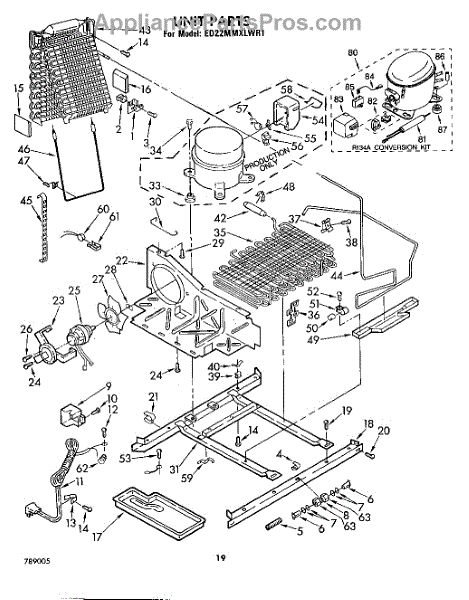

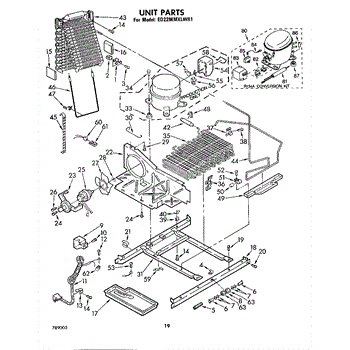

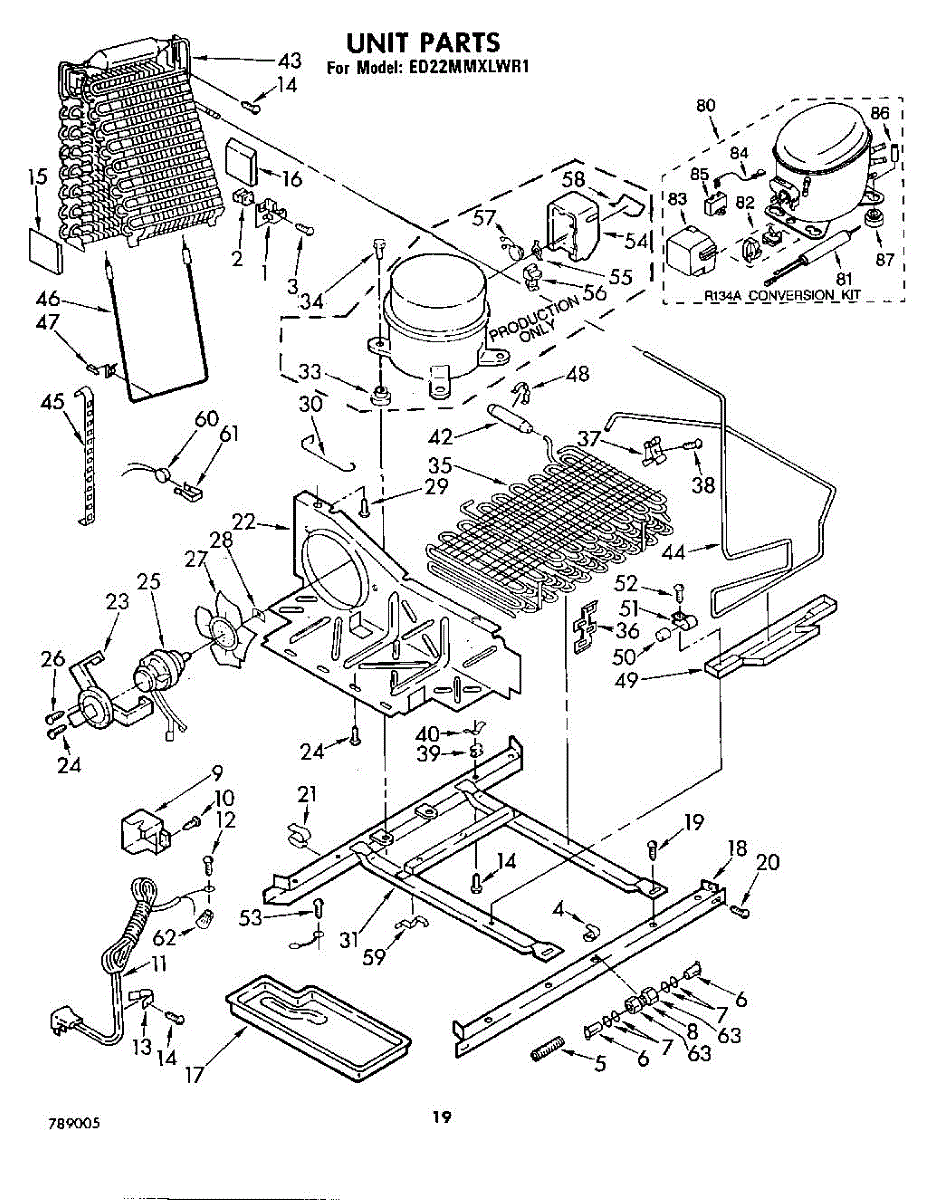

Parts for Whirlpool ED22MMXLWR1: 11 - Unit Parts

Specs: 10-16 x 1/2 inch.

These inserts are for 1/4 inch plastic tubing. Package of 4.

This tube union connector joins two water or refrigerant tubes to restore a sealed flow path and stop leaks. It's a direct-replacement plumbing fitting used on refrigerators and ice/water systems. What it does

• Joins two sections of tubing to maintain a sealed water line connection.
• Restores proper water flow to the dispenser or ice maker when a damaged union causes leaks or loss of supply.
• Provides a threaded/press-fit junction to prevent drips and reduce pressure loss.
• Helps avoid water damage from a cracked or corroded tube joint.

• One tube union connector

• Turn off the water supply and unplug the appliance before starting work.
• Confirm tube sizes and connection type before installation; tighten fittings per manufacturer guidance to avoid overtightening.
• Inspect tubing ends for damage and cut squarely if needed for a proper seal.
• After installation, restore water and power, then check the connection carefully for leaks.

This part has been discontinued by the manufacturer and is no longer available.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

8 x 1/12

This OEM Replacement Part is a high-quality, 2-watt condenser fan motor for Whirlpool refrigerators.The motor is designed to optimize your refrigerator's cooling performance. This 115-volt motor operates with a clockwise rotation.

Symptoms of a bad condenser fan motor kit include:

• Gradual rise in interior freezer temperatures
• Inability to maintain consistent cooling performance
• Loud buzzing or grinding noises coming from inside
• Tripped breakers or failure to restart after service

Causes stem from normal wear of ball bearings as the high-efficiency motor operates continuously. Exposure to dust or debris introduced through openings accelerates wear over many years of use.

This OEM part is also compatible with brands including Kenmore, KitchenAid, and Danby.

The Nut is an OEM replacement part for Whirlpool refrigerators. This small yet essential component is used to secure various parts of the refrigerator, such as shelves, panels, or brackets, ensuring stability and proper alignment. Its durable design ensures reliable performance in the demanding environment of a refrigerator.

Causes of a bad or missing Nut can include wear over time, accidental stripping of threads, or loss during maintenance or repairs. A damaged or missing nut can lead to loose components and reduced functionality.

Symptoms of a bad or missing Nut include:

• Loose or wobbly shelves, brackets, or panels
• Difficulty keeping refrigerator components securely in place
• Rattling or unusual noises during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size; 8-18 x 1/2 inch.

This Incoloy defrost heater melts frost buildup on the evaporator to help restore normal airflow and cooling. Replaces a failed heater to reduce excessive frost and recurring defrost cycles. What it does

• Heats the evaporator coil during the defrost cycle to remove ice and frost buildup.
• Helps restore proper airflow and consistent cooling when frost is preventing normal operation.
• Common symptom: heavy frost or ice on the evaporator and reduced cooling performance.
• Designed for use in the refrigerator/freezer defrost system; replaces a burned-out or open heater.

• High-level installation: power off and unplug appliance before servicing; access the evaporator compartment per your model's service manual.
• Verify heater continuity with a multimeter before replacement; handle the element carefully to avoid bending or damage.
• Reassemble panels and restore power, then confirm normal defrost cycles and cooling.

This part has been discontinued by the manufacturer and is no longer available.

A replacement machine screw with 8-32 threads used to secure panels and components on compatible Whirlpool appliances. Installs quickly to restore proper fit and stop rattling or loose parts. What it does:

• Secures panels, trim, brackets or components that use 8-32 machine-thread fasteners
• Restores proper alignment and prevents vibration-related noise
• Replaces missing, stripped, or damaged screws that allow parts to come loose
• Works where a standard 8-32 machine screw is specified by the manufacturer

• Disconnect power and/or gas before servicing the appliance to reduce shock or injury risk
• Use the proper screwdriver or nut driver for the screw head to avoid stripping
• Thread gently and stop when snug; do not overtighten to prevent stripping or damage
• If threads are damaged, replace with the correct-size screw rather than forcing it

Compressor relay & overload combination kit with all related mounting hardware. Replaces old style relay and overload.

Ref Defrost Thermostat L70 Comes With Bracket

This is a replacement hex nut used to secure appliance components and fasteners. It restores a tight, reliable connection where a worn or missing nut causes loose panels, trim, or bracketing. What it does:

• Secures threaded studs, bolts, or fasteners to keep panels and components in place
• Restores proper fastening when original nut is stripped, corroded, or lost
• Helps eliminate rattling, vibration, or loose parts caused by a missing/failed nut
• Compatible with the appliance locations that use a standard hex nut for mounting

• Turn off and unplug the appliance before accessing interior panels or fasteners
• Use the correct wrench or socket size to avoid rounding the nut
• Replace only like-for-like nuts; if thread damage is present, inspect and replace the mating bolt/stud as needed

This overload is a compressor protector that helps prevent motor damage by interrupting power if the compressor draws excessive current or overheats. It's a small, snap-on device that keeps the refrigeration system from running under harmful conditions. What it does:

• Senses excessive current/temperature at the compressor and opens the circuit to stop the compressor
• Helps prevent compressor burnout and extended system damage
• Common symptom fixes: refrigerator not cooling, compressor runs but system won't start, humming or clicking from the compressor area
• Works with the compressor starter system to allow safe restart after a fault clears

• Disconnect power to the appliance before inspecting or replacing the overload
• Typically mounts on or near the compressor terminals; may require gently pulling compressor boot or terminal cover
• Handle carefully to avoid bending terminals; ensure secure terminal connections on installation

This terminal block cover protects the appliance's electrical connection area from accidental contact and debris, helping reduce the risk of shorts and corrosion while keeping wiring secure and contained. What it does:

• Covers and shields the power terminal/block where the power cord connects
• Helps prevent accidental contact with live terminals and reduces short risk
• Keeps out dust, lint and debris that can cause corrosion or arcing
• Useful when the original cover is cracked, missing or showing burn marks

• Always disconnect power (unplug or switch off breaker) before servicing electrical components
• Typically installs over the terminal block and secures with the existing fastener(s); inspect mounting hardware for wear
• Replace if cracked, melted or if terminals are exposed; ensure cover seats fully before restoring power

This wire assembly connects the capacitor to the appliance's motor or control, restoring a secure electrical path for reliable start/run operation. Replaces a damaged or worn harness to help resolve starting and intermittent power issues. What it does:

• Provides insulated wiring and terminals to link the capacitor to the motor or control
• Ensures a secure electrical connection for proper start/run signaling
• Can resolve symptoms such as failure to start, humming or intermittent motor starting
• Prevents shorts or arcing from frayed or damaged wiring when functioning correctly

• Always disconnect power at the breaker or unplug the appliance before servicing
• Capacitors can hold a dangerous charge — have the capacitor safely discharged before disconnecting wires
• Match connectors and routing to the original harness; secure wires away from moving parts and heat sources

Capacitor supplies a short burst of stored electrical energy to help the appliance motor start and run efficiently. Replacing a failing capacitor can restore reliable motor startup and reduce humming or intermittent operation. What it does

• Provides the electrical boost motors need to start and maintain proper speed.
• A failing capacitor commonly causes motors to hum, struggle to start, run slowly, or stop unexpectedly.
• Used on motors and fans that require a start/run assist; replacing a bad capacitor often resolves startup and intermittent operation issues.

• Always disconnect power to the appliance before accessing electrical components.
• Discharge the capacitor safely (use insulated tools and gloves) before touching terminals — capacitors can hold a dangerous charge.
• Photograph or label wiring and terminal locations before removal so replacements reconnect exactly the same way.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

This small rubber grommet cushions and supports a fan motor, helping reduce vibration and noise while the appliance is running. It fits into the motor bracket to provide a snug, insulated mounting point.

• Isolates fan motor vibration to cut rattling or buzzing
• Helps keep the motor aligned in its bracket
• Can wear, crack, or compress over time, causing vibration or noise
• Replacing a deteriorated grommet restores smooth, quieter operation

• Disconnect power before servicing
• Access the fan assembly and support the motor to relieve strain
• Note grommet orientation; transfer any sleeves or hardware as found
• Seat the new grommet fully in the bracket before remounting the motor
