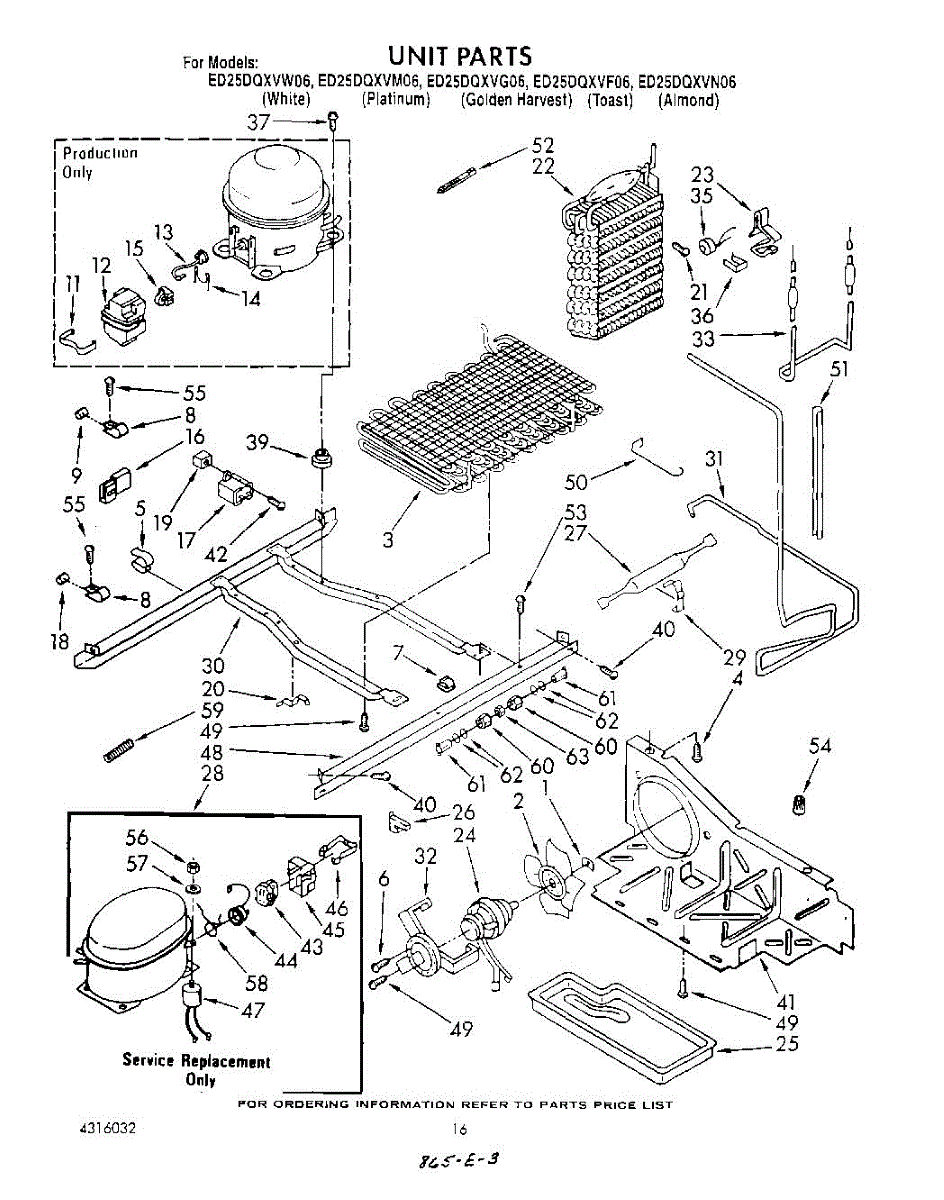

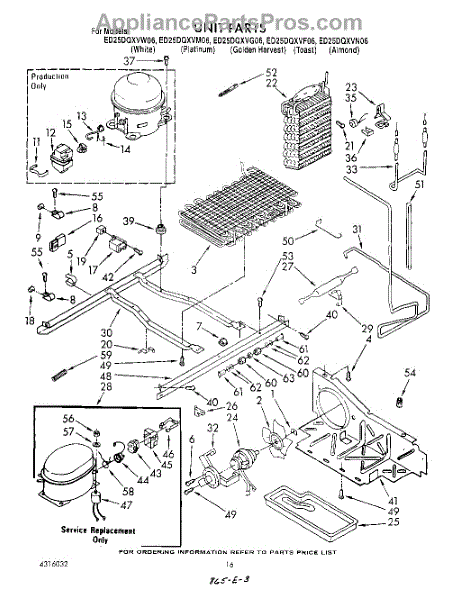

Parts for Whirlpool ED25DQXVM06: 10 - Unit Parts

The Nut is an OEM replacement part for Whirlpool refrigerators. This small yet essential component is used to secure various parts of the refrigerator, such as shelves, panels, or brackets, ensuring stability and proper alignment. Its durable design ensures reliable performance in the demanding environment of a refrigerator.

Causes of a bad or missing Nut can include wear over time, accidental stripping of threads, or loss during maintenance or repairs. A damaged or missing nut can lead to loose components and reduced functionality.

Symptoms of a bad or missing Nut include:

• Loose or wobbly shelves, brackets, or panels
• Difficulty keeping refrigerator components securely in place
• Rattling or unusual noises during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This genuine replacement screw secures panels and components so your appliance stays stable and trim pieces fit properly. It's a simple, exact-fit fastener intended to replace a missing or damaged mounting screw. What it does:

• Fastens panels, trim, control housings or brackets to the appliance frame
• Restores secure fit when a screw is missing, stripped, or corroded
• Helps eliminate rattling or loose panels caused by a missing fastener
• Matches OEM thread and head style for correct seating and torque

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until parts are firmly seated
• Disconnect power and follow appliance safety guidelines before servicing

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a rubber or foam dampener designed to reduce vibration and noise from the compressor or refrigerant tubing. It attaches to the tubing or compressor mount to absorb vibrations during normal operation. Replace this dampener if you hear excessive rattling, buzzing, or vibration noises coming from the back or bottom of the refrigerator.

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

Specs: 10-16 x 1/2 inch.

Refrigerator runs warm or freezer not cooling properly? The condenser fan motor circulates air over the coils. DIY repair takes 15-60 minutes with basic tools.

Drier tube for refrigerators. Installs in the sealed refrigeration system to remove moisture. Replace if cracked, corroded, or during compressor repairs.

Support frame for refrigerators. Mounts internally to provide structural support. Replace if cracked, broken, or damaged to restore proper alignment.

Refrigerator warming up or frost building in freezer? The defrost thermostat monitors evaporator temperature. DIY-friendly repair in under 15 minutes.

Rubber grommet for refrigerators and freezers. Protects wires and components from sharp edges. Replace if cracked, worn, or missing for proper fit.

Rubber grommet for refrigerators and freezers. Protects wires and components from sharp edges. Replace if cracked, worn, or missing for proper fit.

8 x 1/12

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.

Fix a refrigerator that won't cool and clicks repeatedly. This compressor start relay powers the motor's start winding. Easy DIY repair in under an hour.

Compressor relay & overload combination kit with all related mounting hardware. Replaces old style relay and overload.

This is a metal mounting rail used to secure the compressor unit to the base of the refrigerator. It provides stable support and helps reduce vibration during compressor operation. Replace this rail if it is bent, cracked, or corroded, or if you notice excessive vibration or unusual noise coming from the bottom of the refrigerator.

A replacement machine screw with 8-32 threads used to secure panels and components on compatible Whirlpool appliances. Installs quickly to restore proper fit and stop rattling or loose parts. What it does:

• Secures panels, trim, brackets or components that use 8-32 machine-thread fasteners
• Restores proper alignment and prevents vibration-related noise
• Replaces missing, stripped, or damaged screws that allow parts to come loose
• Works where a standard 8-32 machine screw is specified by the manufacturer

• Disconnect power and/or gas before servicing the appliance to reduce shock or injury risk
• Use the proper screwdriver or nut driver for the screw head to avoid stripping
• Thread gently and stop when snug; do not overtighten to prevent stripping or damage
• If threads are damaged, replace with the correct-size screw rather than forcing it

Replacement hex nut secures panels, trim, and brackets in refrigerators. Needed when original nut is worn, missing, or stripped, causing loose components.

Replace cracked or missing compression fitting inserts for 1/4-inch water tubing in refrigerators and ice makers. Prevents leaks at connections.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/16 inch.

This tube union connector joins two water or refrigerant tubes to restore a sealed flow path and stop leaks. It's a direct-replacement plumbing fitting used on refrigerators and ice/water systems. What it does

• Joins two sections of tubing to maintain a sealed water line connection.
• Restores proper water flow to the dispenser or ice maker when a damaged union causes leaks or loss of supply.
• Provides a threaded/press-fit junction to prevent drips and reduce pressure loss.
• Helps avoid water damage from a cracked or corroded tube joint.

• One tube union connector

• Turn off the water supply and unplug the appliance before starting work.
• Confirm tube sizes and connection type before installation; tighten fittings per manufacturer guidance to avoid overtightening.
• Inspect tubing ends for damage and cut squarely if needed for a proper seal.
• After installation, restore water and power, then check the connection carefully for leaks.

Bottle with brush. Color: Toast. Size: 0.6 fl.oz.

230 - 115 volt

Spray paint. Color: Toast. Size: 12 oz. can.

Spray paint. Color: Platinum. Size: 12 oz. can.

Epoxy repair kit - aluminum tubing.

Size: 1/2 inch.

Size: 5/8 inch.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Spray paint. Color: Harvest gold. Size: 12 oz. can.

Touch-up paint. Color: Harvest gold. Size: 1 qt. can.

Touch-up paint. Color: Toast. Size: 1 qt. can.

Touch-up paint. Color: Platinum. Size: 1qt. can.

Size: 3/4 inch.

Size: 1/4 lb.

This insulation bag fits inside the refrigerator or freezer door panel to help maintain consistent internal temperatures. It acts as a thermal barrier that prevents warm outside air from affecting the sealed compartment. Replace it if you notice condensation forming on the door interior, inconsistent temperatures, or if the existing insulation is torn, compressed, or missing.

Sealer for refrigerant line insulation.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Foam insulation panel that fits inside refrigerator doors to maintain temperature efficiency. Replace if cracked, compressed, or missing.

Putty sealer adhesive for refrigerators and freezers. Seals joints, gaps, and connections. Replace when old sealant is cracked, dried out, or missing.

Size: 3/16 inch.

Touch up paint for appliances with chips, scratches, or worn spots. Includes brush applicator. Restores finish on damaged surfaces. 0.6 fl oz.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

This specialized Torx wrench is designed to remove and install screws with star-shaped heads commonly found in refrigerator components. It provides the proper grip and torque needed for secure fastening of internal parts. Use this tool when replacing refrigerator components that require Torx screws for assembly.

Fix loose wiring or rattling sounds in your refrigerator with this terminal block clip kit. Secures harnesses and panels to restore proper fit.

Fix squeaking or grinding ice makers with appliance-grade grease. Lubricates moving parts in refrigerators and freezers. Simple DIY application.

0.6 oz. platinum touch-up paint with brush for appliances. Repairs scratches, chips, and gouges on doors, handles, and trim panels. Acrylic formula.

Color: White. Size: 13 oz. Spray paint primer. can.

White porcelain touch-up paint for repairing chipped, scratched, or worn surfaces on ranges, ovens, and refrigerators. Restores appearance on exterior panels and trim. 2 oz. can.

Touch-up paint for appliances in almond color. Repairs chips, scratches, and worn spots on ovens, refrigerators, microwaves, and dryers.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

The Alumilastic Cement is an OEM part for Whirlpool appliances, typically used in refrigerators and freezers. It serves as a thermal mastic compound, designed to provide a secure and heat-conductive bond between various components, such as evaporator coils and the interior walls of the appliance.

Causes of a bad alumilastic cement can include drying out, cracking, or losing its adhesive properties over time. This can occur due to age, exposure to temperature fluctuations, or improper application. When the cement fails, it can lead to poor thermal conductivity and decreased cooling efficiency.

Symptoms of a bad alumilastic cement include:

• Reduced cooling performance
• Unusual noises from the cooling system
• Components becoming loose or detaching
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.
