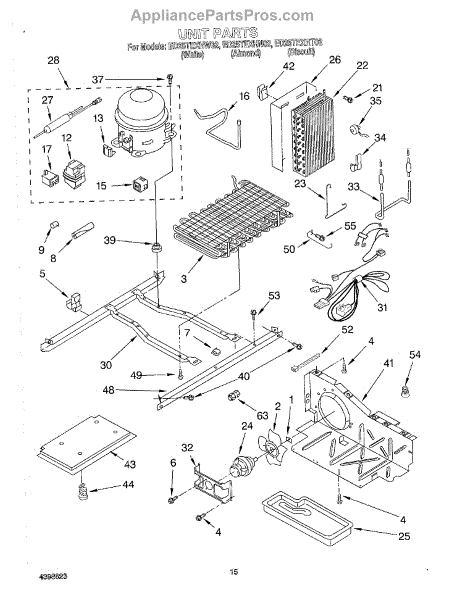

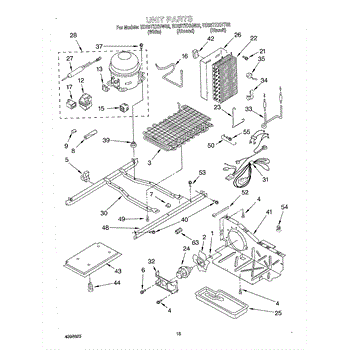

Parts for Whirlpool ED25TEXHT02: 09 - Unit Parts

Secures shelves, panels, and brackets in your refrigerator. Replace if loose, stripped, or missing to restore stability. Verify fit with your model.

Loose panels or rattling components? This mounting screw secures body panels and electronics in appliances. Quick 5-minute fix for most models.

Genuine mounting screw secures panels, trim, and brackets inside your refrigerator. Replace missing, stripped, or damaged screws to keep components stable.

Guide sleeve for washer drum or agitator assembly. Replaces worn, cracked, or missing sleeves that cause misalignment or rattling during operation.

Cushions and stabilizes the washer tub during spin cycles to reduce vibration and noise. Replace when experiencing excessive shaking or loud operation. Verify fit by model number before ordering.

Protects electrical connections from shorts and corrosion. Covers power terminal where cord connects to compressor. Simple screwdriver removal.

Refrigerator not cooling or clicking but not starting? This compressor start relay and overload kit fixes failed starting systems. DIY repair in 30 minutes.

Refrigerator not cooling or compressor not starting? This start device kit includes relay, overload, and cover. Easy DIY repair, no tools needed.

Replace your refrigerator's suction tube if cracked, kinked, or leaking. This tube connects internal components in the cooling system. Exact fit part.

Fixes compressor that won't start or hums without running. This capacitor provides the electrical boost motors need for reliable startup and operation.

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

Freezer not cooling or excessive frost buildup? The evaporator assembly circulates refrigerant to remove heat. Moderately difficult repair for DIYers.

Fix frost buildup in your refrigerator with this defrost heater mounting clip. Secures heater to evaporator for consistent defrosting performance.

Refrigerator not cooling or making loud noise? A failing condenser fan motor prevents proper heat exchange. Typical DIY repair takes 30 minutes or less.

Water leaking from bottom of fridge? Cracked evaporator drip tray lets defrost water escape. Moderate DIY repair, about 45-60 minutes with our guide.

Drier tube for refrigerators. Installs in the sealed refrigeration system to remove moisture. Replace if cracked, corroded, or during compressor repairs.

Refrigerator not cooling or making unusual noises? This compressor tubing kit repairs sealed system issues. Advanced repair requiring proper tools.

Refrigerator not cooling or running too warm? A failed compressor stops refrigerant circulation. This is an advanced repair requiring special tools.

Support frame for refrigerators. Mounts internally to provide structural support. Replace if cracked, broken, or damaged to restore proper alignment.

Refrigerator not cooling properly? A damaged condenser fan motor bracket causes fan wobble and poor airflow. This mounting bracket restores stability.

Ice buildup in freezer or warm fridge? This defrost heater melts frost from evaporator coils during the defrost cycle. Moderate DIY repair with video guide.

Freezer icing up or not defrosting? This refrigerator defrost thermostat monitors evaporator coil temperature. DIY repair in 15-30 minutes with video.

Rubber grommet for refrigerators and freezers. Protects wires and components from sharp edges. Replace if cracked, worn, or missing for proper fit.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

8 x 1/12

Fix uneven cooling and warm spots in your refrigerator with this air baffle. Directs cold air properly throughout compartments. Simple DIY fix.

Secures components in your coffee maker. Replace if broken, loose, or missing to prevent leaks or rattling. Verify fit with your model number.

Door shelf support rail for side-by-side refrigerators. Mounts inside the door to hold shelves and bins. Replace if cracked, broken, or missing.

Secures wiring bundles inside your microwave. Replace this wire tie if it's cracked, broken, or missing to keep internal wires organized and secure.

Replacement 1/4-20 threaded screw for securing refrigerator panels, brackets, and assemblies. Restores proper fastening when original is missing or stripped.

Replacement 8-32 machine screw for refrigerators. Secures panels, trim, and internal brackets. Needed when original fastener is stripped, lost, or damaged.

Size: 1/2 inch.

Size: 5/8 inch.

Fix refrigerant leaks or low cooling with this 3/4 inch service valve. Essential for AC system pressure testing and refrigerant recharge procedures.

Refrigerator not cooling properly? A faulty 1/4 inch service valve can prevent proper refrigerant flow. This valve connects refrigerant lines in your system.

Service valve for refrigerators, freezers, and ice makers. Used for refrigerant system service and maintenance. 5/16 inch fitting size for technicians.

Fix refrigerant leaks or cooling issues with this 3/8 inch service valve. Essential for refrigeration system repairs and maintenance on multiple models.

Connects two refrigerator water line tubes to restore a sealed flow path. Replace when leaking or damaged to maintain reliable water flow to your appliance.

Fix refrigerant leaks or low cooling with this 3/16 inch service valve. Essential for AC recharging and system maintenance on multiple models.
