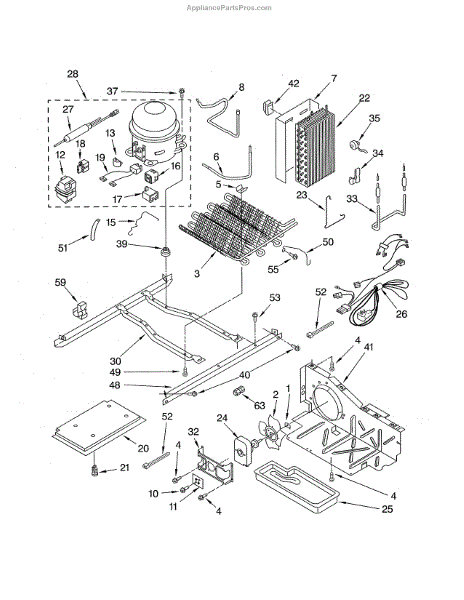

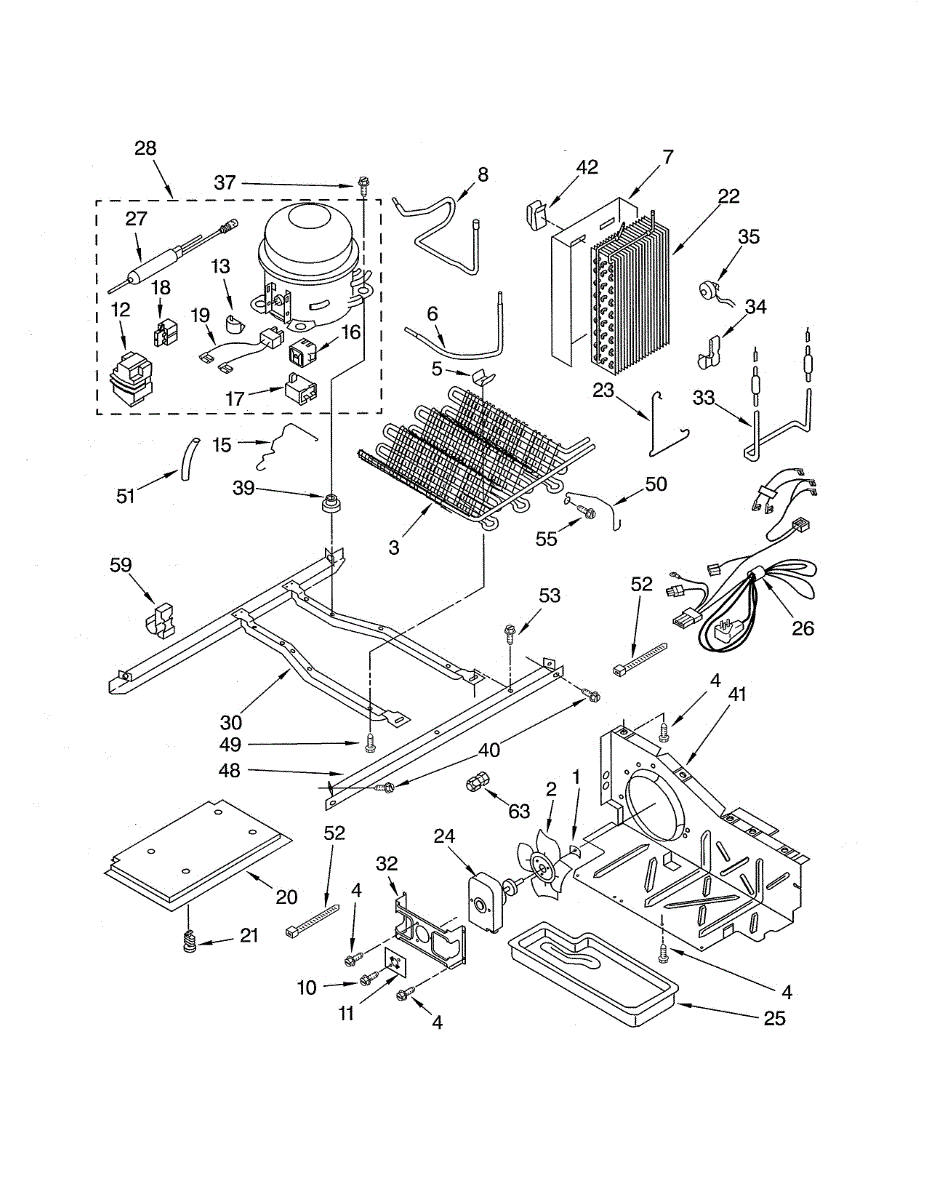

Parts for Whirlpool ED5SHEXMT10: Unit Parts

Replace your refrigerator water filter every 6 months for clean, fresh-tasting water and ice. Simple twist installation. Verify fit with your model number.

Secures shelves, panels, and brackets in your refrigerator. Replace if loose, stripped, or missing to restore stability. Verify fit with your model.

Loose panels or rattling components? This mounting screw secures body panels and electronics in appliances. Quick 5-minute fix for most models.

Replacement clip for refrigerators and freezers. Secures shelves, bins, or internal components. Order a new clip if yours is broken, cracked, or missing.

Replace your refrigerator's suction tube if cracked, kinked, or leaking. This tube connects internal components in the cooling system. Exact fit part.

Mounting screw for refrigerator assembly and component installation. Replace missing, stripped, or damaged screws to secure panels, shelves, or hardware.

Protects electrical connections from shorts and corrosion. Covers power terminal where cord connects to compressor. Simple screwdriver removal.

Refrigerator not cooling or stops running after a few days? This compressor overload protector prevents motor damage from overheating. Easy 15-minute fix.

Refrigerator not cooling or compressor clicking every few minutes? The start device relay often fails, causing short cycling. DIY repair in minutes.

Refrigerator stopped cooling or compressor won't start? The run capacitor provides electrical charge to keep the compressor motor running smoothly.

Refrigerator stopped cooling or compressor won't start? The run capacitor provides electrical charge to keep the compressor motor running smoothly.

The Compressor Start Relay is an OEM part for Whirlpool refrigerators. This part provides the necessary power boost to start the compressor.

Causes of a bad start relay can include electrical issues, wear and tear from regular use, or damage from power surges or overheating.

Symptoms of a bad compressor start relay include:

• The refrigerator not cooling properly
• The compressor not starting or frequently shutting off
• Clicking noises coming from the compressor area
• The refrigerator running but not reaching the desired temperature
• Increased energy consumption

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Fixes freezer that won't start or runs intermittently. This capacitor wire assembly restores secure electrical connections to the motor for reliable operation.

Secures components in your coffee maker. Replace if broken, loose, or missing to prevent leaks or rattling. Verify fit with your model number.

Freezer not cooling or excessive frost buildup? The evaporator assembly circulates refrigerant to remove heat. Moderately difficult repair for DIYers.

Fix frost buildup in your refrigerator with this defrost heater mounting clip. Secures heater to evaporator for consistent defrosting performance.

Refrigerator not cooling or making noise? This condenser fan motor kit fixes cooling issues and noisy operation. DIY-friendly with video guide.

Water leaking from bottom of fridge? Cracked evaporator drip tray lets defrost water escape. Moderate DIY repair, about 45-60 minutes with our guide.

No power to your fridge? This wire harness assembly restores electrical connections between components, fixing power loss and intermittent failures.

Drier tube for refrigerators. Installs in the sealed refrigeration system to remove moisture. Replace if cracked, corroded, or during compressor repairs.

Drier tube for refrigerators. Installs in the sealed refrigeration system to remove moisture. Replace if cracked, corroded, or during compressor repairs.

Refrigerator not cooling or running too warm? A failed compressor stops refrigerant circulation. This is an advanced repair requiring special tools.

Support frame for refrigerators. Mounts internally to provide structural support. Replace if cracked, broken, or damaged to restore proper alignment.

Refrigerator not cooling properly? A damaged condenser fan motor bracket causes fan wobble and poor airflow. This mounting bracket restores stability.

Ice buildup in freezer or warm fridge? This defrost heater melts frost from evaporator coils during the defrost cycle. Moderate DIY repair with video guide.

Freezer icing up or not defrosting? This refrigerator defrost thermostat monitors evaporator coil temperature. DIY repair in 15-30 minutes with video.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

Fix excessive buzzing or rattling noise from your refrigerator's fan area. This rubber grommet cushions the fan motor mount to reduce vibration and noise.

8 x 1/12

Fix uneven cooling and warm spots in your refrigerator with this air baffle. Directs cold air properly throughout compartments. Simple DIY fix.

Door shelf support rail for side-by-side refrigerators. Mounts inside the door to hold shelves and bins. Replace if cracked, broken, or missing.

Replacement mounting screw for refrigerators and freezers. Secures panels, brackets, or internal components. Order if original is stripped, lost, or damaged.

Guide sleeve for washer drum or agitator assembly. Replaces worn, cracked, or missing sleeves that cause misalignment or rattling during operation.

Replacement 1/4-20 threaded screw for securing refrigerator panels, brackets, and assemblies. Restores proper fastening when original is missing or stripped.

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

Connects water tubes of different sizes at the base of your refrigerator door. Replace if leaking, cracked, or calcified to restore a watertight seal.
