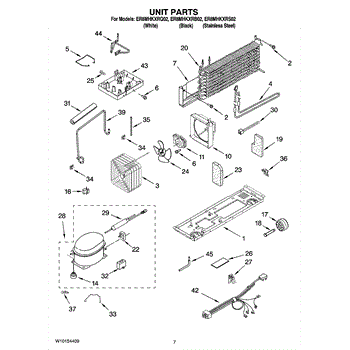

Parts for Whirlpool ER8MHKXRB02: 04 - Unit Parts

Refrigerator making excessive noise or vibrating? This compressor support plate stabilizes the compressor assembly, reducing vibration and noise issues.

Size: 8-18 x 1/2 inch.

Fix freezer icing and blocked vents with this defrost heater. Melts frost buildup on evaporator coils during defrost cycle. 30-minute DIY repair.

Mounting screw for refrigerator assembly. Secures internal components and panels. Replace if stripped, rusted, missing, or damaged during repairs.

Air baffle directs airflow in your refrigerator's freezer or fresh food compartment. Replace if cracked, broken, or missing to restore proper air circulation.

Refrigerator not cooling but freezer works? A failed condenser fan motor prevents heat from escaping. DIY repair takes 10-20 minutes with basic tools.

Excessive vibration or loud humming from your fridge? This rubber compressor mount grommet reduces noise and vibration. Simple DIY fix in minutes.

Fix excessive buzzing or rattling noise from your refrigerator's fan area. This rubber grommet cushions the fan motor mount to reduce vibration and noise.

This refrigerator roller supports the unit's weight and enables smooth movement for positioning and cleaning. Replace when wheels crack or roll roughly.

Rivet for refrigerators. Secures components and panels inside the cabinet. Replace if rivet is loose, missing, or broken during repair work.

Fix water leaking on the floor or cooling issues with this refrigerator evaporator assembly. Located behind the freezer back panel. Moderate repair.

The compressor start device provides the initial electrical boost needed to start the refrigerator's compressor motor. Located near the compressor at the back of the refrigerator, replace it when the compressor won't start, runs intermittently, or the refrigerator isn't cooling properly.

Hex washer head screw for refrigerator panel and component fastening. Replace when screw is stripped, missing, or corroded to secure loose parts.

Refrigerator not cooling or freezer icing up? A faulty compressor may be the cause. This part is the heart of your cooling system, requiring expertise.

Refrigerator not cooling properly? A clogged filter drier prevents proper refrigerant flow. Requires professional installation due to sealed system.

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This retainer is a small retaining clip used to secure trim, panels, or internal components in place so moving parts stay aligned and vibration is reduced. It restores proper fit and helps stop rattles or loose trim. What it does:

• Secures panels, trim pieces, or small assemblies to their mounting points
• Prevents migration and vibration of the attached part that can cause rattling
• Restores proper alignment and fit of the secured component
• Common symptom: loose trim, rattling, or a panel that won't stay seated

• One retainer clip

• Disconnect power before starting any repair to avoid electrical hazard
• Remove surrounding trim or access panel to reach the retaining location
• Press or snap the retainer into place; use appropriate hand tools if needed and avoid excessive force
• Inspect mating parts and replace any damaged clips or fasteners for a reliable repair

Replacement clip for refrigerators and freezers. Secures shelves, bins, or internal components. Order when original clip is broken, cracked, or missing.

This extension is a replacement support piece that helps restore proper alignment and secure fit for the affected appliance component, improving function and preventing binding. It's a small structural part used where a factory extension is required. What it does

• Provides structural support and alignment for the mating part or assembly
• Helps restore smooth movement and prevent rubbing or binding of sliding components
• Addresses symptoms such as loose trim, uneven panels, or a drawer/panel that won't seat properly
• Useful when the original extension is cracked, broken, or missing

• One extension piece as pictured

• Disconnect power (and water if applicable) before beginning any repair
• Basic hand tools are typically required; avoid forcing fasteners or assemblies
• Inspect mating parts for damage and replace any additional worn components for best results

Collects condensation beneath the evaporator coils in your top-mount refrigerator. Replace if cracked, warped, or missing to prevent water leakage.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.
