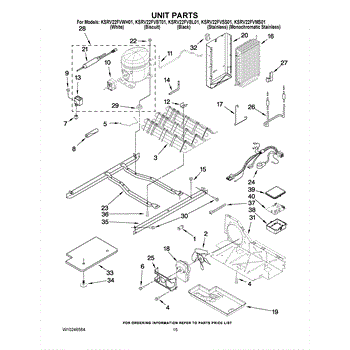

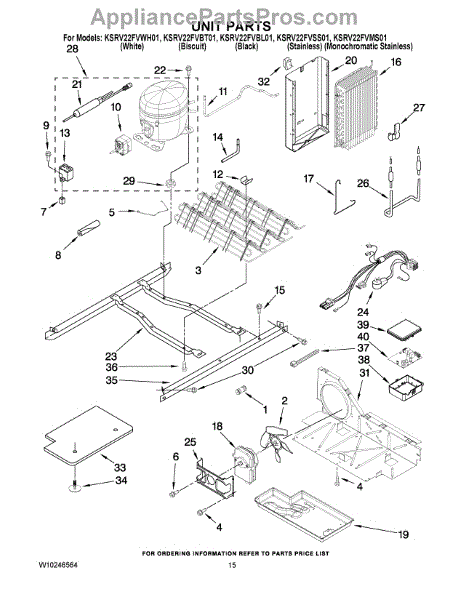

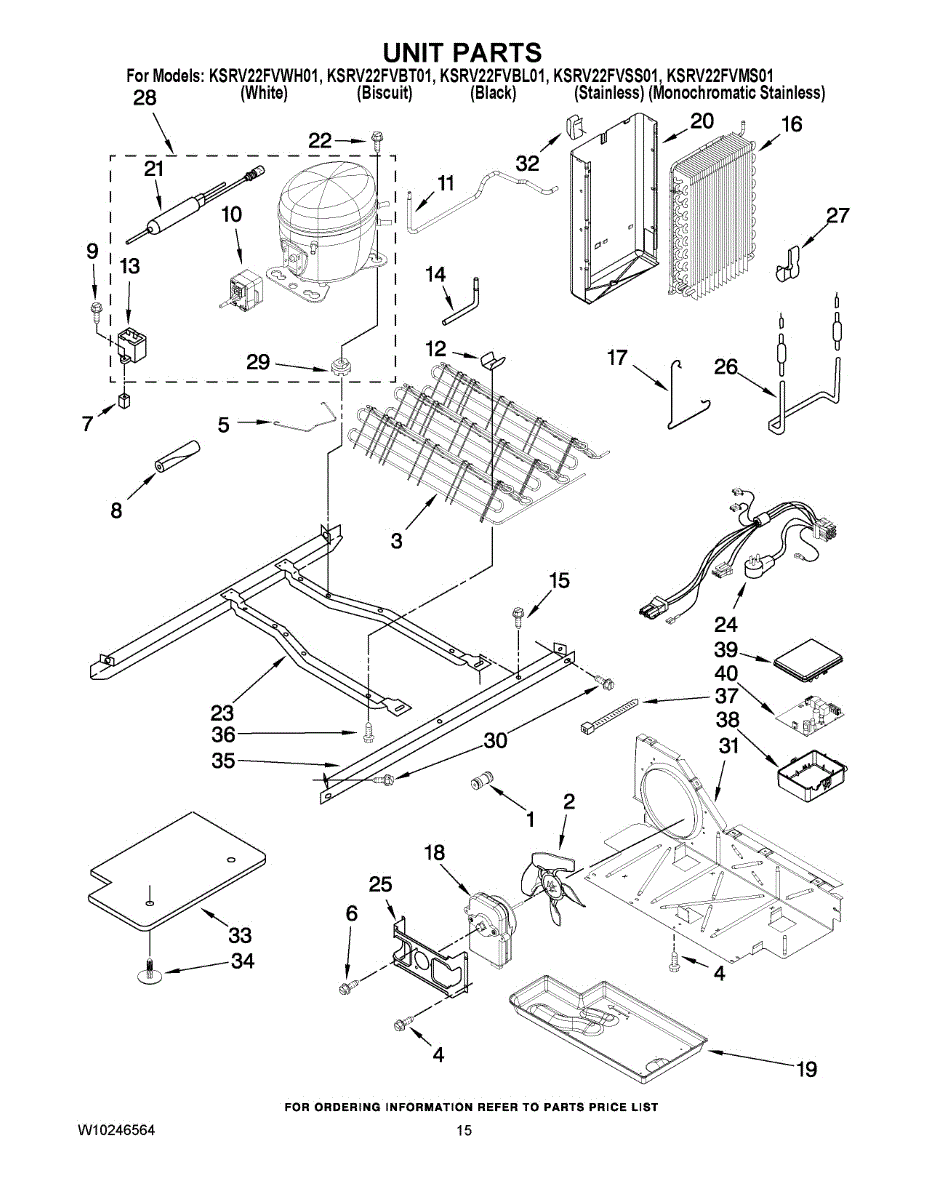

Parts for Kitchenaid KSRV22FVBT01: 09 - Unit Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

Water tube connector that joins two sections of a refrigerator's water tubing for a secure, leak-resistant connection. Replacing a cracked or leaking connector can help restore consistent water flow to the dispenser and ice maker.

• Connects two lengths of refrigerator water tubing in the supply, filter, dispenser, or ice maker circuit
• Helps maintain a sealed connection to reduce leaks and air intrusion
• Common symptoms of failure: dripping at the fitting, water under the unit, weak/no dispensing, or ice maker not filling
• Replace if the connector is cracked or will not hold tubing securely

• Unplug the refrigerator and shut off the water supply
• Dispense water to relieve line pressure; place a towel under the connection
• Cut tube ends square; push each tube fully into the connector until seated, then tug gently to confirm engagement
• Restore water and check carefully for leaks before reconnecting power

The Fan Blade is an OEM part for Whirlpool refrigerators. It is essential for circulating air throughout the refrigerator, ensuring that the temperature remains consistent and the cooling process is efficient. The fan blade helps distribute cold air from the evaporator coils to different parts of the refrigerator and freezer compartments, maintaining an even temperature throughout.

Over time, the fan blade can become damaged due to wear and tear, obstruction by debris, or impact from moving items within the refrigerator. If the fan blade is cracked, broken, or loose, it will not be able to circulate air effectively, leading to cooling issues and potential food spoilage.

Symptoms of a bad fan blade include:

• Unusual noises coming from the refrigerator
• Inconsistent cooling or warm spots within the compartments
• The refrigerator running more frequently or for longer periods
• Frost buildup in the freezer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

This bale strap is a direct-replacement part that helps secure the dryer's latch/bale assembly so the door closes and stays closed during operation. Replacing a worn or broken strap restores reliable door engagement and safer drying cycles. What it does:

• Anchors the dryer door's latch/bale so the door remains properly closed during operation
• Prevents intermittent door opening that can stop cycles or cause heat loss
• Replaces a stretched, torn, or broken strap that no longer holds the latch securely
• Works with the door/latch mechanism to maintain safe operation during drying

• One bale strap

• Disconnect power before beginning any repair to avoid electrical shock
• Verify strap routing and attachment points match the original before reinstalling
• Basic hand tools are typically required; avoid forcing plastic clips to prevent breakage

This is a replacement mounting screw used to secure appliance panels and small components. It provides a correct-fit fastener to restore secure attachment and eliminate rattles or loose parts. What it does:

• Secures trim, panels, brackets, or small assemblies to prevent movement and vibration
• Restores proper alignment when a worn or missing screw causes loose parts or noise
• Works as a direct-replacement fastener where the OEM screw specification is required

• One replacement screw

• Use the correct driver bit to avoid stripping the head; do not overtighten
• Disconnect power and follow appliance safety guidelines when accessing internal components
• If the original mounting hole or threads are damaged, repair or replace the mounting hardware before reinstalling

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

The Start Device Assembly is an OEM part for Whirlpool refrigerators. It is a kit that includes the start relay and overload, both of which are crucial components for the proper operation of the compressor. The start relay is responsible for initiating the compressor's operation by providing an electrical boost to start the motor.

Causes of a faulty start device kit can include electrical component failure, power surges, or damage due to wear and tear over time.

Symptoms of a bad start device kit may include:

• The compressor not running or cycling on and off frequently
• Inadequate cooling or fluctuations in temperature
• Unusual noises coming from the refrigerator

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a replacement 1/4-20 threaded screw used to secure appliance components and panels. It restores proper fastening where a matching screw is missing, loose, or stripped and helps stop rattling or misalignment. What it does:

• Secures panels, brackets, and assemblies to maintain proper alignment and reduce vibration
• Replaces missing or damaged fasteners that cause loose or rattling parts
• Works wherever a 1/4-20 threaded screw is specified by the manufacturer
• Simple mechanical fastener—no electrical or calibration changes required

• Disconnect power to the appliance before servicing to avoid injury
• Use the matching driver and thread engagement; do not overtighten to prevent stripping
• Verify screw length and head type match the original before installing
• If threads are damaged, repair or replace the mating component rather than forcing the screw

This is an evaporator that is located inside many refrigerators. It has a part to play in ensuring the items inside the appliance stay cold. When the refrigerator turns from a liquid into a gas through evaporation, it cools the area nearby and makes it ideal for storing perishable food items. The evaporator pulls air from the refrigerator and blows it over the coils to keep it at the appropriate temperature. There are several signs that the evaporator is damaged or no longer working correctly. Sometimes it will make a chirping or squealing noise. It may cause the refrigerator to be too warm, which may cause issues with the food items inside. Frost buildup on the coils is also a bad sign. If the evaporator is damaged, it needs to be replaced. Unplug the refrigerator and remove the panel over the evaporator. Remove the clamps to uninstall the part. The new part can be installed in the same place. Make sure to test before use.This evaporator is made to be compatible with Maytag, Whirlpool, KitchenAid, and Kenmore refrigerators. It is directly sourced from the manufacturer and sold on an individual basis. This is an authentic OEM replacement component.

This replacement clip secures the defrost heater to the evaporator so the heater stays in proper contact and defrosts frost buildup efficiently. Durable, OEM-style retention clip designed for refrigerators. What it does

• Secures the defrost heater to the evaporator assembly to ensure consistent defrost cycles
• Prevents the heater from shifting or coming loose, which can cause frost buildup or interrupted defrosting
• Helps maintain proper contact for efficient heat transfer during defrost
• Small, inexpensive part that can prevent larger ice/frost-related issues

• Disconnect power to the appliance before accessing the evaporator compartment.
• Handle the evaporator fins and heater element carefully to avoid damage.
• Typically installs with basic hand tools; replace any damaged or corroded clips.

The Condenser Fan Motor is an OEM part for Whirlpool refrigerators. This motor is responsible for powering the fan that cools the condenser coils, which helps dissipate heat from the refrigerator. Proper functioning of the condenser fan motor is crucial for maintaining the efficiency and cooling performance of the refrigerator.

Causes of a bad condenser fan motor can include wear and tear from regular use, dust and debris buildup, or electrical failures. A faulty fan motor can lead to overheating of the condenser coils, which can cause the refrigerator to operate inefficiently or stop cooling altogether.

Symptoms of a bad Condenser Fan Motor include:

• The refrigerator running warmer than usual
• The condenser coils being hot to the touch
• The fan not spinning or making unusual noises
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Due to a manufacturing change, if your original fan motor has a 3-terminal connector, order fan motor W10124096 which includes an adapter harness to convert to the new 4-terminal connector.

The Evaporator Drip Tray is an OEM replacement part for Whirlpool refrigerators.

Causes of a bad drip tray can include cracks developing in the plastic over time. Mineral deposits may also accumulate, reducing the tray's drainage functionality.

Symptoms of a bad Evaporator Drip Tray include:

• Water leaks or overflow detected inside the freezer base
• Potential freezing or short circuits from excess pooled moisture
• Inability to effectively direct condensate away from coils
• Promotes conditions for mold or odor development

This OEM Whirlpool part is also compatible with Maytag, KitchenAid and some Kenmore models.

This compressor mounting grommet kit replaces worn or damaged rubber mounts that secure the compressor and reduce vibration. Restoring proper mounts helps cut down on compressor noise and prevents movement-related wear. What it does:

• Cushions and isolates the compressor to reduce vibration and rattling noise
• Keeps the compressor secured to its mounting bracket during operation
• Helps prevent stress and wear on mounting hardware and tubing
• Addresses symptoms like excessive vibration, banging, or unusual compressor noise

• Disconnect power to the appliance before beginning any repairs
• Support the compressor while removing and installing mounts to prevent strain or shifting
• Use appropriate hand tools and avoid over-tightening fasteners that can compress or damage grommets

The Condenser Fan Motor is an OEM part for Whirlpool refrigerators. This motor is responsible for powering the fan that cools the condenser coils, which helps dissipate heat from the refrigerator. Proper functioning of the condenser fan motor is crucial for maintaining the efficiency and cooling performance of the refrigerator.

Causes of a bad condenser fan motor can include wear and tear from regular use, dust and debris buildup, or electrical failures. A faulty fan motor can lead to overheating of the condenser coils, which can cause the refrigerator to operate inefficiently or stop cooling altogether.

Symptoms of a bad Condenser Fan Motor include:

• The refrigerator running warmer than usual
• The condenser coils being hot to the touch
• The fan not spinning or making unusual noises
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Due to a manufacturing change, if your original fan motor has a 3-terminal connector, order fan motor W10124096 which includes an adapter harness to convert to the new 4-terminal connector.

This defrost heater warms the evaporator during automatic defrost to melt built-up frost so air can move freely and temperatures stay consistent. Replace a failed heater to restore normal cooling and end recurring frost on the freezer panel.

• Melts ice from the evaporator coil during the defrost cycle
• Prevents frost buildup that restricts airflow and causes warm spots
• Helps maintain stable refrigerator and freezer temperatures
• Typical failure signs: heavy frost on the back wall, reduced cooling, fan noise from ice contact, frequent manual defrosting

• Disconnect power before servicing; wear cut-resistant gloves
• Access through the freezer compartment; remove shelves/ice bin and rear panel to reach the evaporator
• Match wire connections and route leads exactly as original; keep wiring clear of the fan and sharp edges
• After reassembly, restore power and monitor a defrost cycle; if frost quickly returns, also evaluate the defrost thermostat and control

This replacement clip secures the defrost heater to the evaporator so the heater stays in proper contact and defrosts frost buildup efficiently. Durable, OEM-style retention clip designed for refrigerators. What it does

• Secures the defrost heater to the evaporator assembly to ensure consistent defrost cycles
• Prevents the heater from shifting or coming loose, which can cause frost buildup or interrupted defrosting
• Helps maintain proper contact for efficient heat transfer during defrost
• Small, inexpensive part that can prevent larger ice/frost-related issues

• Disconnect power to the appliance before accessing the evaporator compartment.
• Handle the evaporator fins and heater element carefully to avoid damage.
• Typically installs with basic hand tools; replace any damaged or corroded clips.

The Compressor is an OEM part for Whirlpool refrigerators. It is the main component responsible for cooling the fridge interior and freezing food. The compressor operates the refrigeration cycle by compressing and condensing refrigerant which allows for the critical exchange of heat.

Symptoms of a bad compressor include:

• Inconsistent or fluctuating interior temperatures
• Frozen foods not freezing properly
• Abnormal vibrations or sounds emanating from the rear of the fridge
• The fridge failing to cool at all

Causes of compressor failure can be a gradual decline in performance over many years of use. Manufacturing defects or damage from moisture or impact can also cause premature failure.

Note: Includes start device, capacitor, drier, and grommets. Also, order tubing kit AP3083228

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

This compressor mounting grommet kit replaces worn or damaged rubber mounts that secure the compressor and reduce vibration. Restoring proper mounts helps cut down on compressor noise and prevents movement-related wear. What it does:

• Cushions and isolates the compressor to reduce vibration and rattling noise
• Keeps the compressor secured to its mounting bracket during operation
• Helps prevent stress and wear on mounting hardware and tubing
• Addresses symptoms like excessive vibration, banging, or unusual compressor noise

• Disconnect power to the appliance before beginning any repairs
• Support the compressor while removing and installing mounts to prevent strain or shifting
• Use appropriate hand tools and avoid over-tightening fasteners that can compress or damage grommets

8 x 1/12

This air baffle directs airflow inside the appliance to help maintain proper ventilation and consistent operation. Replacing a worn or damaged baffle restores correct airflow routing and can reduce noise or uneven performance. What it does

• Guides internal airflow to support proper ventilation and component cooling
• Helps prevent turbulence that can cause noise during operation
• Supports even performance by keeping airflow directed where the OEM design intended
• Commonly replaced when cracked, warped, or missing

• Turn power (and gas, if applicable) off before beginning any repair
• Access may require removing panels or the drum/inner cavity
• Inspect surrounding mounting tabs and fasteners; replace any damaged hardware

This control box is the appliance's main electronic control module that manages cycles, user controls and timed functions. Replacing a failed control box restores proper command and sequencing of the appliance's electrical operations. What it does:

• Receives input from user controls and sensors, then directs power to motors, valves and heaters
• Manages cycle timing, displays, and mode selection for normal operation
• Common symptom: appliance won't start, does not respond to controls, or displays control-related errors
• Replacing a malfunctioning control box can resolve intermittent operation, unresponsive buttons, or stuck cycles

• One control box (electronic control module) as shown

• Disconnect power to the appliance before starting any repair to avoid shock
• Handle the control module by its edges and avoid touching circuit contacts to prevent static damage
• Verify connector locations and secure all wiring harnesses before reassembly

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/16 inch.
