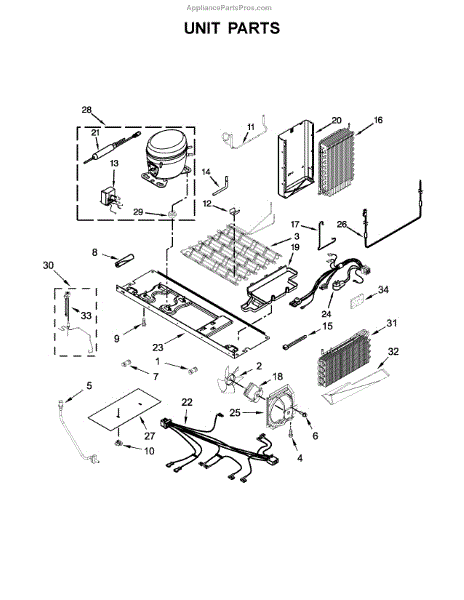

Parts for Kitchenaid KRSF505ESS01: Unit Parts

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

This water tube connector joins sections of your refrigerator's water line for the dispenser and ice maker. It restores a secure, leak-resistant connection when the original coupling is damaged or leaking.

• Connects two segments of refrigerator water tubing
• Helps maintain proper water flow to dispenser and ice maker
• Resolves leaks caused by a cracked, worn, or loose connector
• Useful when replacing or rerouting water lines during service

• Disconnect power and shut off the water supply before servicing
• Dispense water to relieve line pressure
• Cut tubing square and insert fully until seated; tug gently to confirm a secure fit
• Restore water and check all connections for leaks; replace any damaged tubing as needed

The DRAIN TUBE is an OEM part specifically engineered for Whirlpool refrigerators. This essential component plays a crucial role in efficiently removing excess water or condensation from the refrigerator. Its precise design and compatibility ensure proper fitting and functionality within the appliance, preventing moisture buildup and potential water damage.

A damaged or clogged drain tube can result in issues related to excess moisture within the refrigerator. Causes of a malfunctioning drain tube might include blockages due to debris accumulation, physical damage, or wear and tear over time, leading to inadequate drainage or water pooling.

Symptoms of a faulty DRAIN TUBE may include:

• Water pooling or leakage inside the refrigerator
• Excessive condensation or moisture buildup
• Inadequate drainage resulting in water accumulation in the refrigerator

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

This water connector is an inlet fitting that connects the household water line to the appliance, providing a secure path for water to reach the valve, dispenser or ice system. It helps maintain proper water flow and prevents leaks when installed correctly. What it does:

• Connects the incoming water supply to the appliance's inlet valve or ice/dispenser plumbing
• Provides a sealed transition between supply tubing and appliance fittings
• Restores normal water flow for ice makers and dispensers when damaged or corroded
• Can prevent dripping or pooling from a failing or broken connector

• Turn off the appliance power and shut off the house water supply before replacing
• Inspect and replace any worn tubing, O-rings, or clamps for a proper seal
• Hand-start threads to avoid cross-threading, then snug with a wrench—do not overtighten
• After installation, restore water and power and check all connections carefully for leaks

This genuine replacement screw secures appliance panels and components for reliable operation. Use it to replace stripped, missing, or corroded fasteners and restore proper fit and alignment for safe appliance use. What it does

• Secures panels, brackets, and small components to restore proper alignment and reduce vibration
• Replaces stripped or missing fasteners that can cause loose parts or rattling
• Helps maintain safe electrical and mechanical connections by holding components in place
• Works wherever the original matching screw was used on the appliance

• Disconnect power and water before beginning any repair
• Use the correct driver bit to avoid cam-out and head damage
• Tighten securely but avoid overtightening to prevent stripping threads or cracking plastic
• If threads are damaged, replace mating hardware or use appropriate repair inserts rather than forcing the screw

The Inverter Box is an OEM component specifically designed for Whirlpool French door refrigerators. Located inside the refrigerator compartment top behind removable panels, the inverter box houses electronic components that control the compressor motor and refrigeration systems.

Causes of a bad inverter box include failure of internal circuit boards over several years of regulating refrigeration cycles or damage from liquid spills inside the unit.

Symptoms of a bad inverter box include:

• Failure of the refrigerator section to adequately cool and maintain temperatures
• Erratic fluctuations in cold air dispensing from vents
• Repeated triggering of defrosting modes unnecessarily
• Inability to regulate between freezer and refrigerator settings

This Whirlpool replacement part is compatible with Maytag, Jenn-Air, Amana, Magic Chef, and Kenmore side-by-side refrigerators.


This is an evaporator that is located inside many refrigerators. It has a part to play in ensuring the items inside the appliance stay cold. When the refrigerator turns from a liquid into a gas through evaporation, it cools the area nearby and makes it ideal for storing perishable food items. The evaporator pulls air from the refrigerator and blows it over the coils to keep it at the appropriate temperature. There are several signs that the evaporator is damaged or no longer working correctly. Sometimes it will make a chirping or squealing noise. It may cause the refrigerator to be too warm, which may cause issues with the food items inside. Frost buildup on the coils is also a bad sign. If the evaporator is damaged, it needs to be replaced. Unplug the refrigerator and remove the panel over the evaporator. Remove the clamps to uninstall the part. The new part can be installed in the same place. Make sure to test before use.This evaporator is made to be compatible with Maytag, Whirlpool, KitchenAid, and Kenmore refrigerators. It is directly sourced from the manufacturer and sold on an individual basis. This is an authentic OEM replacement component.

This replacement clip secures the defrost heater to the evaporator so the heater stays in proper contact and defrosts frost buildup efficiently. Durable, OEM-style retention clip designed for refrigerators. What it does

• Secures the defrost heater to the evaporator assembly to ensure consistent defrost cycles
• Prevents the heater from shifting or coming loose, which can cause frost buildup or interrupted defrosting
• Helps maintain proper contact for efficient heat transfer during defrost
• Small, inexpensive part that can prevent larger ice/frost-related issues

• Disconnect power to the appliance before accessing the evaporator compartment.
• Handle the evaporator fins and heater element carefully to avoid damage.
• Typically installs with basic hand tools; replace any damaged or corroded clips.

The Condenser Fan Motor is an OEM replacement part for Whirlpool refrigerators. Located inside the machine compartment, it powers the condenser fan needed for heat exchange.

Causes involve standard motor degradation from prolonged usage. Excess dirt buildup over time may also hinder adequate blade movement.

Symptoms of a faulty condenser fan motor include:

• Inability to adequately cool interior compartments
• The refrigerator runs continuously with the exterior surface staying hot
• Grinding or buzzing noises emanating from the refrigerator's rear
• Visible condenser fan blades stalled or rotating slowly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

This evaporator tray collects and directs defrost/condensate away from the evaporator area to prevent pooling and help maintain proper drainage. It restores normal water flow and reduces interior or under-appliance leaks. What it does:

• Catches defrost and condensation runoff from the evaporator and channels it to the drain
• Helps prevent water from pooling inside the appliance or beneath the cabinet
• Reduces ice or frost buildup caused by trapped water around the evaporator
• Restores proper drainage when the original tray is cracked, warped, or clogged

• One evaporator/drip tray

• Disconnect power to the appliance before beginning any repair
• Remove access panels and shelving as needed to reach the evaporator area
• Replace any damaged fasteners or seals and ensure the tray seats flat and drains freely
• Handle edges carefully;

This wire harness links the appliance's electrical components, providing reliable power and signal paths. Replaces damaged or overheated wiring to help restore consistent operation and prevent intermittent failures caused by loose terminals, open circuits, or shorts.

• Routes power and control signals between the main control and key components
• Helps address intermittent operation or components that won't run due to broken/shorted wires
• Resolves issues associated with burned, brittle, or chafed wiring and damaged connectors
• Clears fault codes traced to open/short circuits once properly diagnosed

• Disconnect power to the appliance before servicing
• Document original routing; move one connector at a time and ensure locking tabs engage
• Route through all original clips and channels; keep clear of sharp, hot, or moving parts
• Handle connectors by the housings; use ESD precautions when attaching to a control board

Power cord assembly that replaces a worn or damaged supply cord to restore reliable electrical connection. Ideal when the appliance won't power on, has intermittent power, visible cord damage, or a burning odor. What it does:

• Replaces the appliance's supply cord to deliver mains power and restore normal operation.
• Replaces frayed, cut, or otherwise damaged cords that can cause intermittent power or failure to start.
• Helps address arcing, burning smells, or nuisance breaker trips caused by damaged wiring.

• Always disconnect power at the wall outlet and switch off the circuit breaker before servicing the appliance.
• Follow the original cord routing and secure the cord with the factory strain relief to prevent chafing.
• Do not attempt to splice or repair a damaged power cord — replace it to maintain safety.

This fan mounting bracket secures the evaporator/condenser fan assembly and helps direct airflow for consistent cooling performance. It restores proper fan alignment and airflow when the original bracket is damaged or loose. What it does:

• Holds the fan motor/blade assembly in the correct position to prevent wobble and contact with housing
• Channels airflow for efficient heat exchange and temperature control
• Reduces vibration and noise caused by a broken or bent bracket
• Helps prevent fan-related contact damage to nearby components

• Inspect surrounding components for damage before installing; replace any worn fasteners
• Use appropriate hand tools; avoid overtightening to prevent cracking the bracket
• Disconnect power to the appliance before beginning work to avoid injury

This defrost heater mounts at the freezer's evaporator and melts frost during the automatic defrost cycle, keeping airflow unobstructed and temperatures stable. Replace a failed heater to clear ice buildup and restore proper cooling performance. What it does:

• Heats the evaporator coil at set intervals to melt accumulated frost/ice
• Prevents ice from blocking airflow between freezer and refrigerator sections
• Helps maintain consistent temperatures and efficient cooling
• Common symptoms of failure: thick frost on the back freezer wall, weak airflow, refrigerator warming while the freezer seems cold, fan noise from ice contact

• Disconnect power before servicing; allow heavy ice buildup to thaw safely
• Access the heater behind the freezer's rear panel at the evaporator
• Transfer any clips/shields as needed; route wires exactly as the original and keep the element clear of plastic parts
• Handle the element carefully; avoid bending or stressing it, then reassemble and monitor temperatures over several hours

This cover-unit is the outer housing cover that protects internal appliance components and helps keep the cabinet sealed from dust and debris. It restores proper enclosure and helps maintain safe operation. What it does:

• Protects internal components from dust, lint and accidental contact
• Helps maintain cabinet alignment and reduces minor rattles or vibration
• Preserves airflow paths and seals that affect performance
• Restores proper mounting for adjacent panels and controls

• Use basic hand tools; follow the appliance service manual for disassembly and reassembly
• Disconnect power (and water, if applicable) before starting any repair
• Inspect adjacent seals, fasteners and mounting hardware; replace any damaged pieces for best fit

This compressor mounting grommet kit replaces worn or damaged rubber mounts that secure the compressor and reduce vibration. Restoring proper mounts helps cut down on compressor noise and prevents movement-related wear. What it does:

• Cushions and isolates the compressor to reduce vibration and rattling noise
• Keeps the compressor secured to its mounting bracket during operation
• Helps prevent stress and wear on mounting hardware and tubing
• Addresses symptoms like excessive vibration, banging, or unusual compressor noise

• Disconnect power to the appliance before beginning any repairs
• Support the compressor while removing and installing mounts to prevent strain or shifting
• Use appropriate hand tools and avoid over-tightening fasteners that can compress or damage grommets

The Drip Pan is an OEM replacement part for Whirlpool refrigerators. It is designed to collect and catch any excess water that forms during the defrosting process, preventing it from pooling or causing any damage to the refrigerator.

A bad drip pan can occur due to clogging, cracking, or damage. If you notice symptoms such as water leakage, excessive moisture, or a musty smell within your refrigerator, it may be time to replace the drip pan.

Symptoms of a bad drip pan include:

• Water leakage or pooling in the refrigerator
• Excessive moisture or condensation inside the refrigerator
• Unpleasant odors emanating from the refrigerator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This insul-sound deadening pad reduces vibration and noise by dampening panels and components in laundry and kitchen appliances. It's a small adhesive-backed sound/isolation pad used where noise or rattles transfer through metal surfaces. What it does

• Dampens rattles and reduces structure-borne noise from panels, cabinets and housings.
• Helps isolate vibrating components from appliance chassis to lower perceived sound.
• Commonly applied behind control panels, cabinet walls or on motor mounts to cut vibration transmission.
• Useful when worn, detached or hardened factory pads allow increased noise.

• One insul-sound deadening pad

• Disconnect power before servicing an appliance to avoid shock or injury.
• Clean and dry mounting surface; press pad firmly to ensure adhesive contact.
• Replace only in the original location; do not cover vents or moving parts.
• If adhesive is weak, use OEM-approved adhesive; avoid solvents that may damage finishes.
