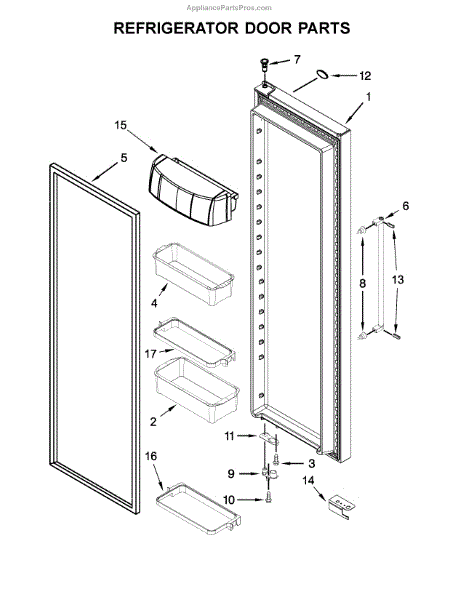

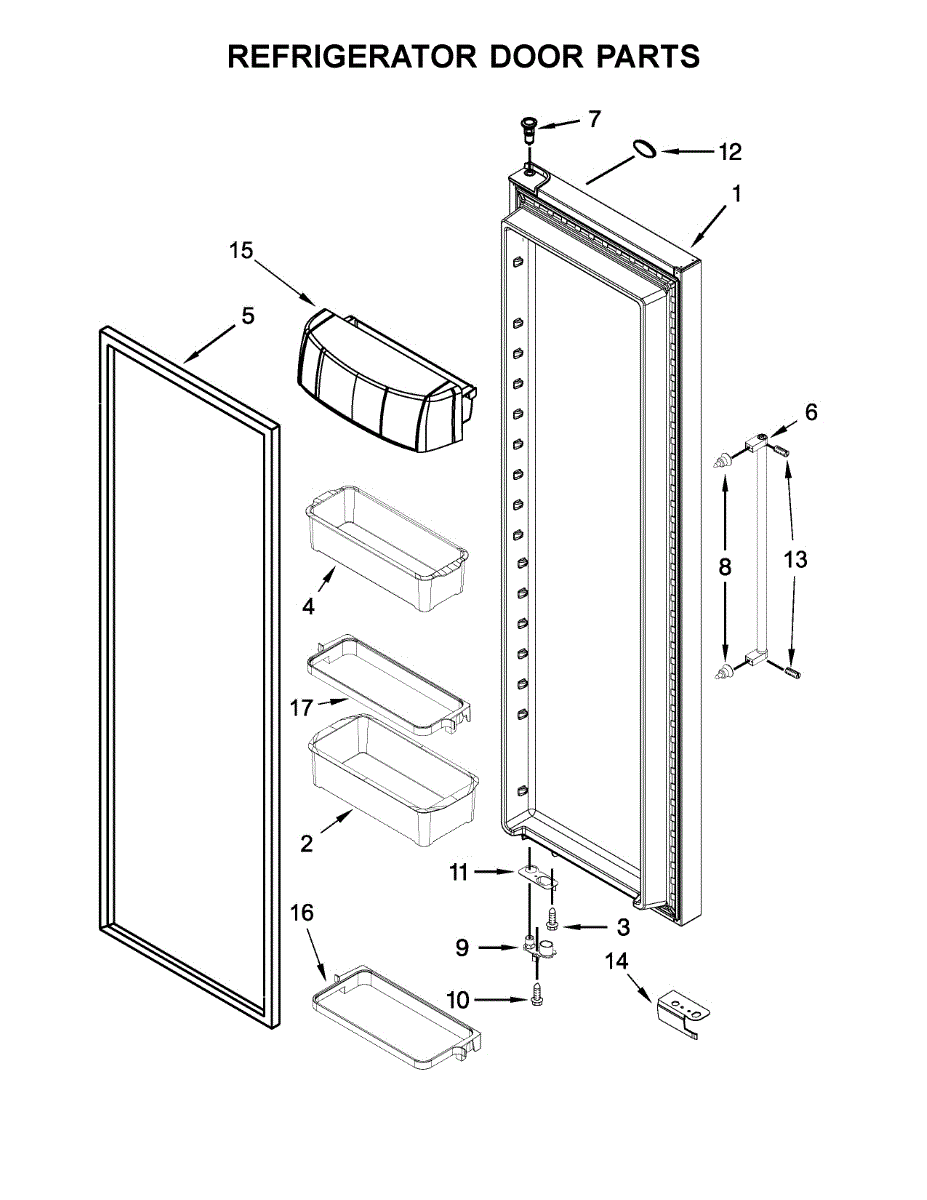

Parts for Kitchenaid KRSF505ESS01: Refrigerator Door Parts

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

This refrigerator door bin mounts on the fresh food door to replace a cracked or missing shelf. Restores secure, organized storage for bottles and condiments and helps keep items from tipping when you open the door. What it does

• Mounts to the refrigerator compartment door liner to add shelf storage
• Holds jars, bottles, condiments, and small items securely
• Common failure signs: cracked plastic, broken tabs, bin falls off or won't stay seated
• Loss of door storage space or items tipping/spilling during door use

• 1 door bin

• Remove items from the door; lift the old bin up and out of the slots
• Align the new bin's hooks/tabs with the door slots and press down until fully seated
• Do not force; if it won't seat easily, verify the bin's position and your model's diagram
• Confirm the door closes freely before reloading; avoid overloading to prevent damage

This factory fastener secures appliance components and panels. Replacing worn, stripped, or missing screws restores a tight, rattle-free fit and keeps parts properly aligned for dependable performance.

• Fastens brackets, panels, and internal parts in the specified location
• Helps maintain alignment and reduces vibration or rattling
• Direct replacement for a missing, damaged, or stripped screw
• Symptoms include loose or shifting parts, gaps, or buzzing/rattle noises

• Disconnect power; turn off water or gas supply if applicable
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten until snug—do not overtighten
• Inspect/repair stripped threads or damaged mating hardware before installation

The Door Bin is an OEM replacement part for Whirlpool refrigerators. It provides handy storage space within the refrigerator door for smaller food items like condiments, eggs, and snacks. Measures about 14 inches wide by 4 inches high by 6 inches deep.

Causes of a bad door bin can include cracks or breaks developing from repeated opening/closing of the door over time, or misalignments that prevent proper sliding and seating of the bin.

Symptoms of a bad door bin include:

• Difficulty removing or replacing the bin
• Sliding issues where the bin does not slide smoothly
• Gaps that allow cold air to escape
• The bin coming loose during opening/closing of the door

This OEM Whirlpool part restores useful storage functionality to the door. It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerators.

Color: Beige

Color: Black

The Gasket-FIP (GRY) is an OEM part for Whirlpool refrigerators. This gray gasket forms a seal around the refrigerator or freezer door, ensuring a tight closure that keeps cold air inside and warm air out.

Causes of a bad gasket can include frequent opening and closing of the door, which can lead to wear and tear, exposure to extreme temperatures, or physical damage from mishandling.

Symptoms of a bad gasket include:

• Warm spots inside the refrigerator or freezer
• Excessive frost buildup
• Increased energy consumption
• The door not sealing properly or appearing misaligned

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Handle is an OEM part for Whirlpool refrigerators. This sturdy handle serves as a convenient way to open and close the doors of your appliance. The handle offers a comfortable grip and provides  an easy way to access your refrigerator and freezer compartments.

A bad door handle can occur due to excessive force, accidental impacts, or simply regular use over time. If you notice symptoms such as a loose or wobbly handle, difficulty in opening or closing the doors, or visible cracks or damage, it may be time to replace this part.

Symptoms of a bad door handle include:

• Loose or wobbly handle
• Difficulty in opening or closing the doors
• Visible cracks or damage

Restore your Whirlpool refrigerator by replacing the worn or damaged door handle with this genuine OEM part.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Door Thimble, Top is an OEM part for Whirlpool refrigerators. This component is used to support and secure the door hinge, ensuring smooth and stable opening and closing of the refrigerator door.

You should replace the door thimble if it becomes damaged or worn out. Causes of a bad door thimble include wear and tear from frequent use, stress from heavy door loads, or damage from accidental impacts. A faulty thimble can lead to misalignment of the door, causing it to sag or not seal properly.

Symptoms of a bad Door Thimble, Top include:

• Difficulty in opening or closing the door
• The door not aligning correctly with the refrigerator frame
• Noticeable sagging or wobbling of the door
• Unusual noises when the door is moved

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Handle Mounting Screw is an OEM part for Whirlpool refrigerators. It secures the door handle to the refrigerator door.

Causes of a bad door handle mounting screw can include wear and tear over time, improper installation, or excessive force applied to the handle. These factors can result in a loose or wobbly handle, compromising the functionality and aesthetics of your refrigerator.

Symptoms of a bad door handle mounting screw may include:

• A loose or unstable handle
• Difficulty in opening or closing the refrigerator door
• The handle becoming detached

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This door closing cam thimble fits the refrigerator door hinge assembly. It creates the smooth ramp/detent action that helps the door self-close and seal properly, restoring consistent door movement when the original cam surfaces are worn.

• Provides the hinge cam action that pulls the door closed during the last inches of travel
• Helps keep the door aligned and reduces wobble at the hinge
• Typical symptoms of wear: door won't stay closed or bounces open, popping/clicking sounds, rough or uneven door swing, visible flat spots on cam surfaces
• Helps maintain a reliable gasket seal by guiding the door to its closed position

• Disconnect power before servicing; clear and support the door to prevent drops
• Remove hinge cover and fasteners; lift the door off the hinge as needed for access
• Replace the cam thimble on the hinge/door bracket; reassemble and tighten hardware
• Verify door alignment and full gasket contact after reinstallation

This thimble fits inside the refrigerator-compartment door cam and acts as a low-friction bushing on the hinge pin. It helps the door swing smoothly and close securely so the gasket can seal properly.

• Provides a smooth bearing surface between the hinge pin and RC door cam
• Supports proper door alignment and closing action
• Can reduce clicking/squeaking and rough feel during opening or closing
• Wear may show as door drop, poor self-close, or uneven door movement

• Disconnect power and remove items from the door before servicing
• Lift the refrigerator-compartment door off the bottom hinge to access the cam
• Remove the worn thimble from the door cam and press the new thimble fully into place
• Reinstall the door, verify smooth operation, and check the gasket seal

The Door Closure Cam is an OEM replacement part for Whirlpool refrigerators. It is a small lever located inside refrigerator doors that engages the latch bolt when closing. The closure cam ensures doors are securely fastened shut to maintain optimal cooling temperatures.

Causes of a bad closure cam can include worn or loose mounting points preventing engagement, cracked or broken lever components, or door latch mechanisms that inhibit full closure.

Symptoms of a bad door closure cam include:

• The refrigerator door not closing fully or latching securely
• Cool air escaping around door edges
• Higher energy bills from excessive compressor run times
• Interior condensation or frost buildup from improper seals

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models

This 10-32 machine screw secures appliance components such as brackets, panels, and trim. Replace missing or stripped hardware to restore a tight, rattle-free fit and maintain proper alignment of the assembly.

• Fastens parts that require a 10-32 threaded fastener
• Helps prevent vibration, noise, and movement from loose hardware
• Restores correct fit and alignment after a screw is lost or damaged
• Common signs: loose panel/trim, rattling, or a missing/stripped screw

• Disconnect power and shut off water/gas as applicable before servicing
• Compare to the original and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping or damage
• Match thread size and length to your original fastener for proper fit

This replacement bracket secures and supports a component in your appliance. Replace a bent, cracked, or missing bracket to restore proper alignment and stable mounting, helping reduce vibration, rattling, and premature wear on connected parts. What it does:

• Holds the related component firmly in place
• Helps maintain correct alignment of the assembly
• Reduces unwanted movement, vibration, and noise
• Common signs it may be needed: loose or shifting component, rattling sounds, visible damage, or a missing bracket

• 1 bracket

• Disconnect power and shut off water or gas supply before servicing
• Wear cut-resistant gloves; brackets and surrounding panels may have sharp edges
• Note the original orientation and reuse existing fasteners as applicable
• After installation, verify alignment and secure fit per your model's parts diagram

This name plate is the appliance's model and serial identification label—an easy way to restore clear product ID for service, parts ordering, and warranty records. Keeps your appliance information visible and readable. What it does:

• Displays manufacturer model and serial numbers and other factory ID details
• Restores a missing or damaged ID label so technicians can identify the correct parts and specs
• Helps when registering the appliance or filing warranty and service requests
• Prevents delays caused by unreadable or absent identification information

• Clean and dry the mounting surface before applying; remove old adhesive residue
• Align carefully and press firmly; some name plates use adhesive backing or mounting tabs
• Do not cover vents, controls, or safety labels when installing

This factory screw secures components in your appliance to keep them properly mounted and stable during operation. Replacing a missing or damaged screw restores a tight fit and helps prevent vibration, noise, or loosening parts.

• Fastens panels, brackets, or trim to maintain correct alignment
• Can address rattling, vibration, or loose/misaligned parts where this screw is used
• Helps prevent wear from movement caused by missing or stripped hardware

• Unplug power and shut off utilities before service
• Note original screw location and orientation; replace like-for-like
• Do not overtighten—start by hand to avoid cross-threading
• Address threads before installing the new screw

This cover-wire protects and organizes a machine's wire harness to help prevent chafing and accidental contact with hot or moving parts. It keeps wiring routed and out of the way for safer, more reliable appliance operation. What it does:

• Shields wiring from abrasion and contact with sharp edges or moving components
• Helps prevent intermittent electrical faults caused by rubbing or pinched wires
• Keeps harnesses neatly routed for easier service and reduced strain on connections
• Useful when you see visible wear on insulation or wires rubbing against chassis parts

• One cover-wire as shown

• Disconnect power to the appliance before inspecting or replacing wiring components
• Verify correct routing and orientation; secure into existing clips or mounting locations
• Do not splice, modify, or stretch the part; replace if damaged
• If you see melted insulation, burnt wiring, or connector damage, replace affected wiring/components per OEM guidance

The Cover-Wire is an OEM part for Whirlpool refrigerators. It plays a vital role in maintaining safe and reliable operation by protecting critical electrical wiring inside the refrigerator.

Causes of a bad Cover-Wire include natural wear and tear over prolonged use. Repeated opening and closing of the refrigerator door subjects the wires to stress that can cause cracks or splits in the protective insulation.

Symptoms of a bad Cover-Wire include:

• Dimming or flickering lights inside the refrigerator/freezer
• Fluctuations in interior temperatures
• Intermittent or complete failure of components like the ice maker or water dispenser
• Buzzing or cracking sounds from exposed wires

This genuine Whirlpool replacement is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models as well.

The Door bin is an OEM replacement part for Whirlpool refrigerators. It is a component located inside the refrigerator door that provides storage for small items like condiments, eggs, or milk cartons. The door bin is designed with convenient dividers and slots to securely organize a variety of items within easy reach on the refrigerator door.

Causes of a bad door bin can include wear and tear over time, damage to the plastic material, or broken components like divider pieces.

Symptoms of a bad door bin include:

• Items falling through larger holes or cracks in the plastic
• Difficulty fitting various items inside the slots and compartments
• The entire bin sagging or collapsing

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is the door bin frame used on select refrigerators. It supports the clear bin/front, creating a sturdy storage shelf on the inner door for bottles, condiments, and other items. Replace a cracked or missing frame to restore secure door storage.

• Holds and supports the door bin/front on the refrigerator door
• Helps keep items organized and stable during door opening/closing
• Common failure signs include cracks, breaks, or a bin that won't stay seated
• Replacing restores proper fit and capacity of the door storage area

• Unplug the appliance before servicing
• Remove the existing bin components; transfer any reusable inserts/fronts
• Align the new frame with the door mounting slots and snap/slide into place
• Ensure the bin is fully seated and level before loading items

The Door Bin Frame is an OEM part for Whirlpool refrigerators. This part supports the removable door bins, which are used for storing smaller items like beverages, condiments, or dairy products.

Causes of a bad part can include physical impact or mishandling, excessive force applied when loading or unloading the door bins, or general wear and tear over time, leading to deterioration of the frame's materials or mechanisms.

Symptoms of a bad Door Bin Frame include:

• Difficulty in inserting or removing the door bins
• Door bins not fitting securely or rattling within the frame
• Visible cracks, breaks, or damage to the frame itself

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
