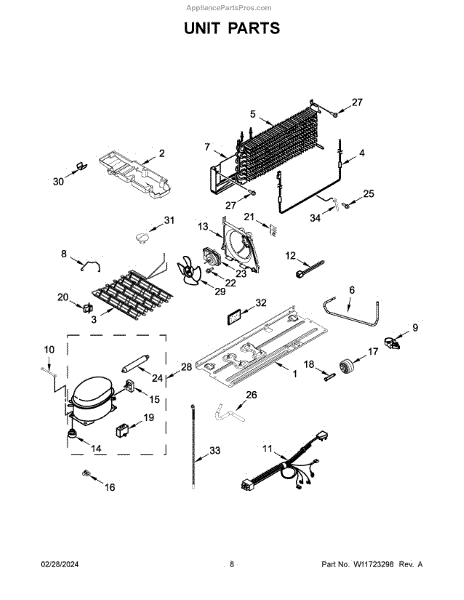

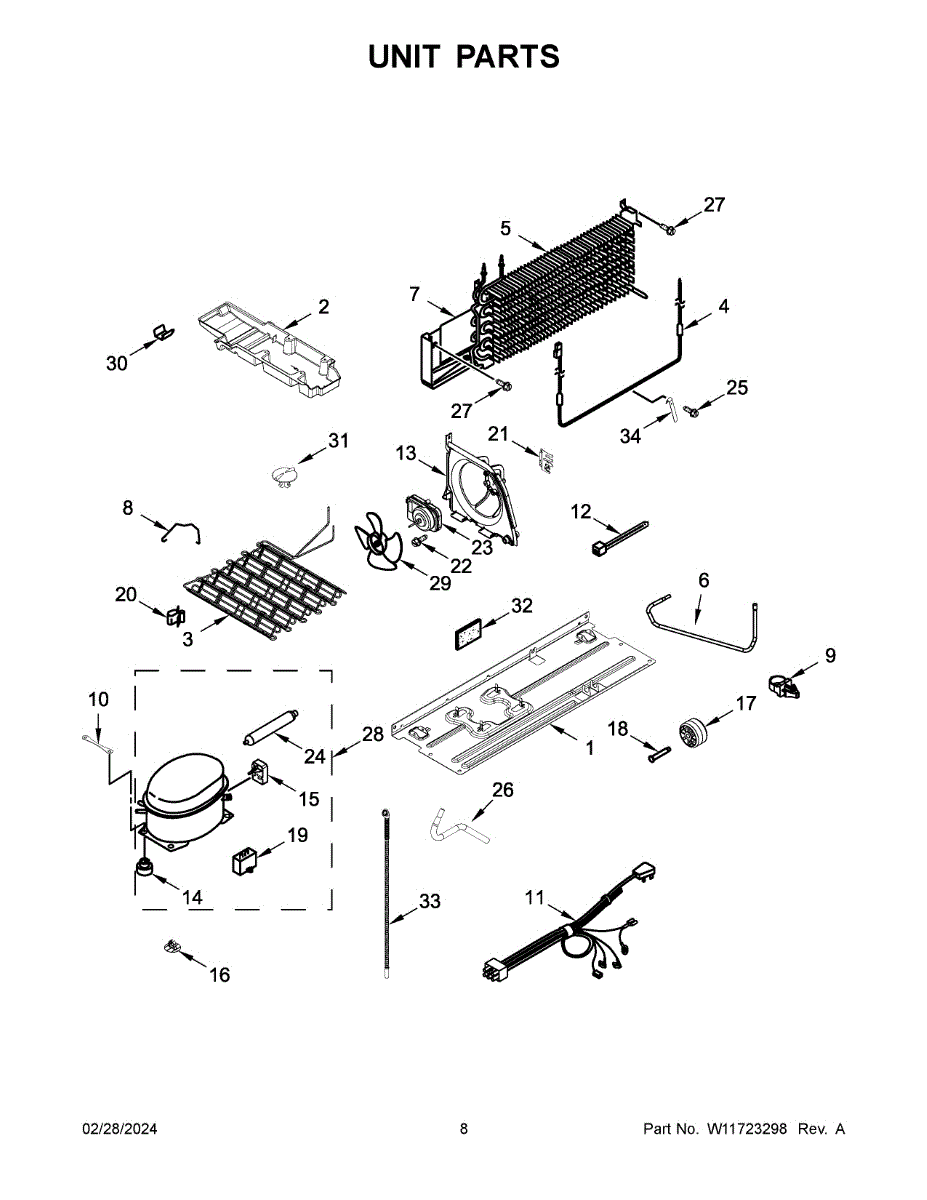

Parts for Whirlpool WRT311FZDB05: Unit Parts

Collects defrost water from the evaporator and directs it to the drain. Replace if cracked, broken, or leaking to prevent water pooling under your fridge.

Fix poor cooling or warm fridge issues. This condenser helps dissipate heat from your refrigerator's cooling system. Moderate DIY repair for most models.

This drive coupler connects the washer motor to the transmission so the agitator or drum turns smoothly. It's a direct-replacement part that restores drive engagement when the original coupler is worn or damaged. What it does

• Transfers motor rotation to the transmission/agitator so the tub agitates or spins.
• Commonly replaced when the washer won't agitate, spin, or makes grinding or clunking noises.
• Resists normal wear from torque and repeated use; failure causes slipping or loss of drive.
• Helps prevent further damage to the motor or transmission when replaced at first signs of wear.

• One drive coupler

• Disconnect power and water supply before beginning any repairs.
• Access typically requires removing the cabinet or front panel; follow the manufacturer service manual.
• Inspect motor shaft and transmission input for damage when replacing the coupler.
• If transmission or motor splines are damaged, replace the damaged assembly rather than relying on a new coupler.

This 4mm brass connector joins refrigerator tubing lines. Replace if the original connector is damaged, leaking, or missing during repairs or installations.

This heater is the internal heating element that produces heat for the appliance, restoring normal operating temperature and performance. Replacing a failed heater brings the unit back to expected heating capability. What it does:

• Converts electrical power into heat to warm the appliance during normal cycles
• Restores proper temperature when the unit is no longer reaching or maintaining heat
• Helps eliminate symptoms such as little or no heat, extended cycle times, or inconsistent temperatures
• Works with the appliance's controls and safety sensors to deliver controlled heating

• One heater

• Disconnect power (and gas supply if applicable) before starting work to avoid electric shock or fire
• Handle element carefully to avoid bending or damage; avoid contact with sharp edges

Secures panels, hoses, and wiring in place to prevent rattling and loose components. Replace when worn or broken to restore proper fit. Confirm compatibility with your model number.

Secures components inside your refrigerator. Replace this retainer strap if the original is cracked, broken, or missing to properly hold parts in place.

This wire assembly routes power and control signals within the appliance using XL double-insulated conductors to protect circuits and reduce wear. It replaces damaged or brittle internal wiring to restore reliable electrical connections. What it does:

• Replaces an internal wire harness used for power and signal routing
• Double-insulated conductors help prevent shorting and reduce chafing risk
• Commonly used when wiring shows burn, breaks, or loss of continuity
• Helps stop intermittent operation caused by damaged internal wires

• One wire assembly

• Disconnect power before inspecting or replacing wiring to avoid shock
• Secure wiring away from sharp edges and moving parts to prevent damage

This air baffle directs cooled air inside the appliance cabinet to maintain even temperatures and proper airflow. Replaces a worn or broken deflector to help restore consistent cooling and circulation. What it does:

• Guides air through the cabinet to balance temperatures between compartments
• Helps prevent hot or cold spots caused by poor airflow
• Reduces frost/ice buildup caused by improper air direction when functioning correctly
• Works with the evaporator/vent system to maintain designed circulation

• One air baffle

• Disconnect power to the appliance before servicing
• Remove shelves/drawers as needed for access and handle the baffle gently to avoid breakage
• Align mounting slots/tabs and secure without forcing; verify a snug, even fit

Fix refrigerator vibration and rattling noise with a new compressor grommet. This rubber isolator cushions the compressor at mounting points. Easy DIY fix.

The Compressor Start Device is an OEM component specifically designed for Whirlpool brand refrigerators. This start device functions to initiate the operation of the refrigerator's compressor when powered on.

Causes of a bad compressor start device can include failing electronic components from age, moisture damage, or thermal stress over many power cycles.

Symptoms of a bad compressor start device include:

• The refrigerator failing to cool or struggle to reach temperature
• Cycling of the compressor more frequently than normal
• Fault codes or error messages relating to the compressor

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This refrigerator roller supports the unit's weight and enables smooth movement for positioning and cleaning. Replace when wheels crack or roll roughly.

Cabinet roller axle supports refrigerator wheels for smooth movement. Replace if rollers wobble or fridge is hard to move. Verify fit with your model.

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Replacement clip for your refrigerator. This small fastening component secures interior parts in place. Order a new one if yours is broken or missing.

Replaces stripped, missing, or damaged mounting screws that secure panels, brackets, and components in your refrigerator. Restores proper assembly.

Fix a refrigerator that's not cooling properly with this condenser fan motor. Replaces worn motors causing poor heat exchange. Video guide included.

Filters and dries refrigerant in your refrigerator's cooling system. Replace if you notice cooling issues, leaks, or clogs. Verify fit with your model.

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

Size: 8-18 x 1/2 inch.

Refrigerator not cooling or running constantly? The compressor circulates refrigerant to cool your fridge. This repair requires technical expertise.

This is the fan blade that attaches to the condenser fan motor, typically located near the bottom rear of the refrigerator. It draws air across the condenser coils to dissipate heat and keep the refrigerator running efficiently. Replace this blade if it is cracked, warped, or broken, which can cause loud noises, reduced cooling performance, or the compressor overheating.

Replacement clip for refrigerators and freezers. Secures shelves, bins, or internal components. Order a new clip if yours is broken, cracked, or missing.

Fix ice maker or water dispenser issues with this valve tube body. Routes water from the main valve to dispenser and ice maker. Stops leaks from damaged tubes.

This insul-sound deadening pad reduces vibration and noise by dampening panels and components in laundry and kitchen appliances. It's a small adhesive-backed sound/isolation pad used where noise or rattles transfer through metal surfaces. What it does

• Dampens rattles and reduces structure-borne noise from panels, cabinets and housings.
• Helps isolate vibrating components from appliance chassis to lower perceived sound.
• Commonly applied behind control panels, cabinet walls or on motor mounts to cut vibration transmission.
• Useful when worn, detached or hardened factory pads allow increased noise.

• One insul-sound deadening pad

• Disconnect power before servicing an appliance to avoid shock or injury.
• Clean and dry mounting surface; press pad firmly to ensure adhesive contact.
• Replace only in the original location; do not cover vents or moving parts.
• If adhesive is weak, use OEM-approved adhesive; avoid solvents that may damage finishes.

This heat probe is a temperature sensing component used in the refrigeration system to monitor heat levels near the evaporator or compressor area. It helps the control board regulate cooling cycles for proper temperature management. Replace this part if the refrigerator is not cooling correctly, runs continuously, or displays temperature error codes.
